WL-520GU/GC

Broad Range Wireless Family Router

E3188 First Edition March 2007

Manufacturer Contact Information

ASUSTeK COMPUTER INC. (Asia-Pacic)

Company address: 15 Li-Te Road, Beitou, Taipei 11259

General (tel): +886-2-2894-3447 Web site address: www.asus.com.tw

General (fax): +886-2-2894-7798 General email: [email protected]

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA

General (fax): +1-510-608-4555 Web site address: usa.asus.com

Technical support

General support: +1-502-995-0883 Support (fax): +1-502-933-8713

Online support: http://vip.asus.com/eservice/techserv.aspx

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany

General (tel): +49-2102-95990 Web site address: www.asuscom.de

General (fax): +49-2102-959911 Online contact: www.asuscom.de/sales

Technical support

Components: +49-2102-95990 Online support: www.asuscom.de/support

Notebook: +49-2102-959910 Support (fax): +49-2102-959911

WL-520GU/GC Broad Range Wireless Family Router User Manual

Table of Contents

Specication Summary

................................................................................2

1. Package Contents ................................................................................3

2. Connecting ADSL Modem and Wireless Router................................3

1) Cable Connection ..............................................................................3

2) Status Indicators ................................................................................4

3) Wall Mounting Option.........................................................................4

3. Getting Started......................................................................................5

1) Wired Connection...............................................................................5

2) Wireless Connection..........................................................................5

3) Setting IP Address for Wired or Wireless Connection .......................5

4) Conguring the Wireless Router........................................................6

5) Quick Setup ......................................................................................7

4. Wireless Router Features ..................................................................12

1) Choosing an Appropriate Operation Mode ......................................12

2) Setting up Wireless Encryption .......................................................13

3) Setting up Virtual Server in Your LAN..............................................14

4) Setting up Virtual DMZ in Your LAN.................................................15

5) Setting up DDNS .............................................................................15

6) Setting up Bandwidth Management.................................................19

5. Application Features ..........................................................................22

1) Sharing USB Printer ........................................................................22

6. Setting up Using ASUS Utility................................................................ 25

1) Utility Installation for WL-520GU/GC ...............................................25

2) EZSetup...........................................................................................26

7. Troubleshooting .................................................................................28

8. Appendix .............................................................................................30

Congure WL-520GU/GC under Vista OS

............................................36

WL-520GU/GC Broad Range Wireless Family Router User Manual

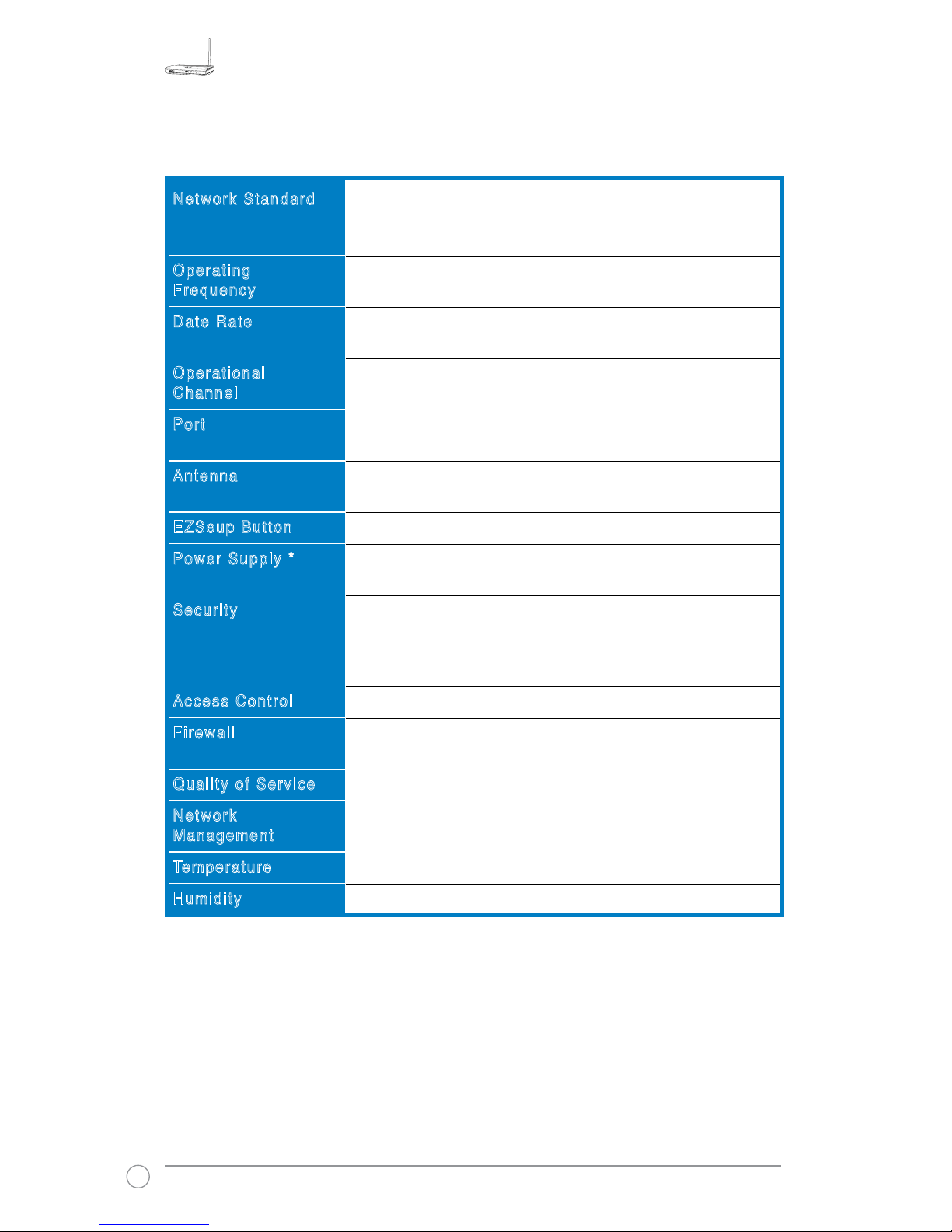

Network Standard

Operating

Frequency

Date Rate

Operational

Channel

Port

Antenna

EZSeup Button

Power Supply *

Security

Access Control

Firewall

Quality of Service

Network

Management

Temperature

Humidity

IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE802.3x, IEEE

802.3u, IEEE 802.1x, IEEE 802.11i, IPv4, IPv6, CSMA/CA,

CSMA/CD, ICMP

2.4G ~ 2.5GHz

802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps

802.11b: 1, 2, 5.5, 11Mbps

11 for N. America, 14 Japan, 13 Europe (ETSI)

WAN x 1, LAN x 4 RJ45 for 10/100 BaseT, 1 x USB2.0 for

Printer Sharing(

WL-520GU only

)

Support Antenna Diversity, 1 x Reverse-SMA antenna

connector

Automatically SSID and WEP or WPA Conguration

WL-520GU: DC: +5V with max. 2A current

WL-520GC: DC: +9V with max 1A current

WEP-64bits, WEP-128bits, WPA-Personal, WPA2-Personal,

WPA-Auto-Personal (TKIP. AES. TKIP+AES), WPA-Enterprise,

WPA2-Enterprise, WPA-Auto-Enterprise (TKIP. AES.

TKIP+AES), Radius with 802.1x

MAC-level Access Control, Inbound/Outbound IP Filter

NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN

Ping Control

BOD (

WL-520GU only

), WMM

Support UPnP, DHCP Server, DNS Proxy, NTP Client, DDNS,

Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through

Operating: 0~40oC Storage: -30~50oC

Operating: 50~90% Storage: 20~90%

* Use only the adapter included in the package.

Specication Summary

WL-520GU/GC Broad Range Wireless Family Router User Manual

2. Connecting ADSL Modem and Wireless Router

1. Package Contents

• WL-520GU/GC Wireless Router x 1

• Power Adapter x 1

• Utility CD x 1

• RJ45 Cable x 1

• External Antenna x 1

• Quick Start Guide x 1

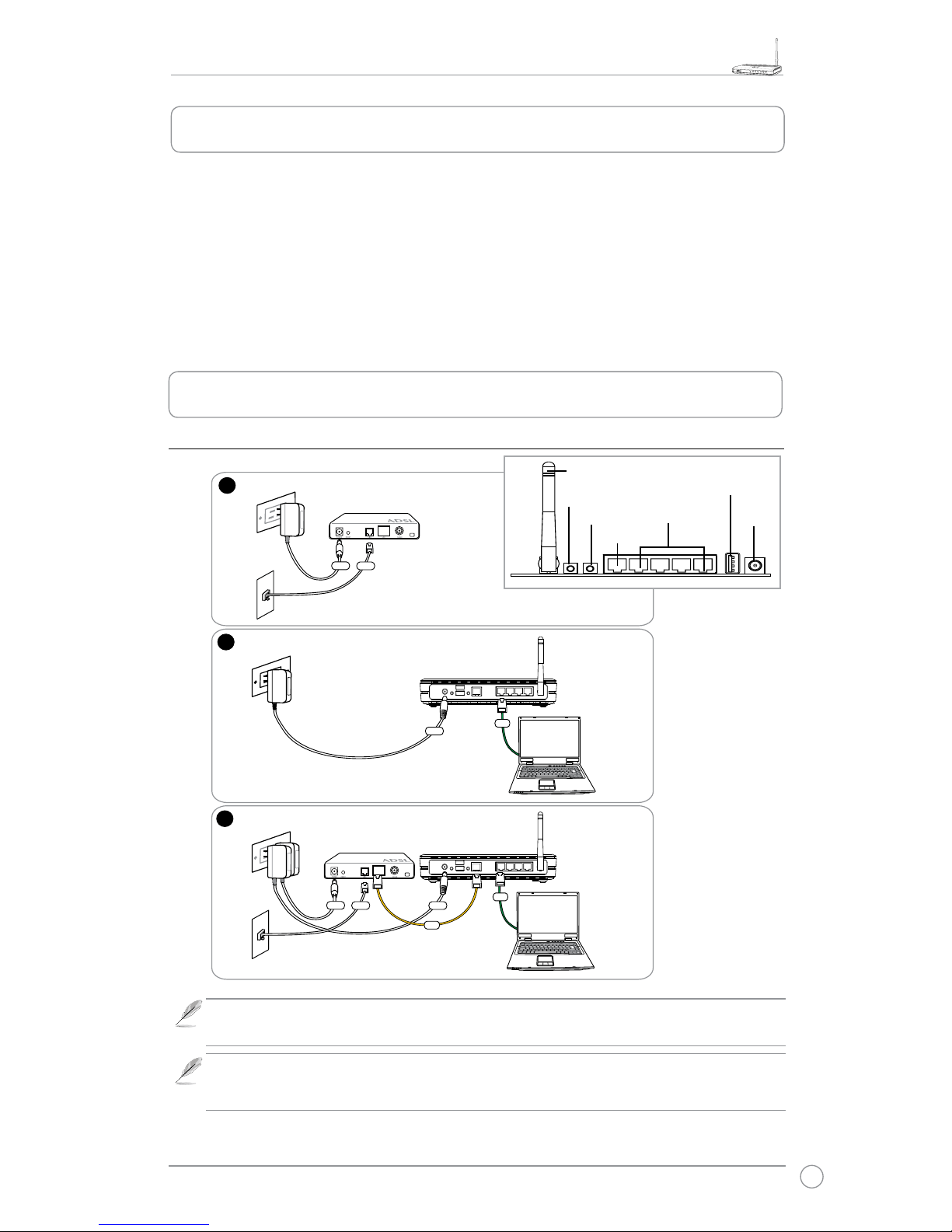

1) Cable connection

Modem

Wall Telephone Outlet

Wall Power Outlet

Phone

Power

Wall Power Outlet

ASUS Wireless Router

LAN

Modem

Wall Telephone Outlet

Wall Power Outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power

Note: Use only the adapter included in the package. Using other adapters may

damage the device.

Note: The device in the above illustration is for your reference only. Please refer to

your package for the real product.

EZ Setup

Reset LAN Power

USB

WAN

Antenna

Rear Panel

WL-520GU/GC Broad Range Wireless Family Router User Manual

WL-520GU

125M High Speed

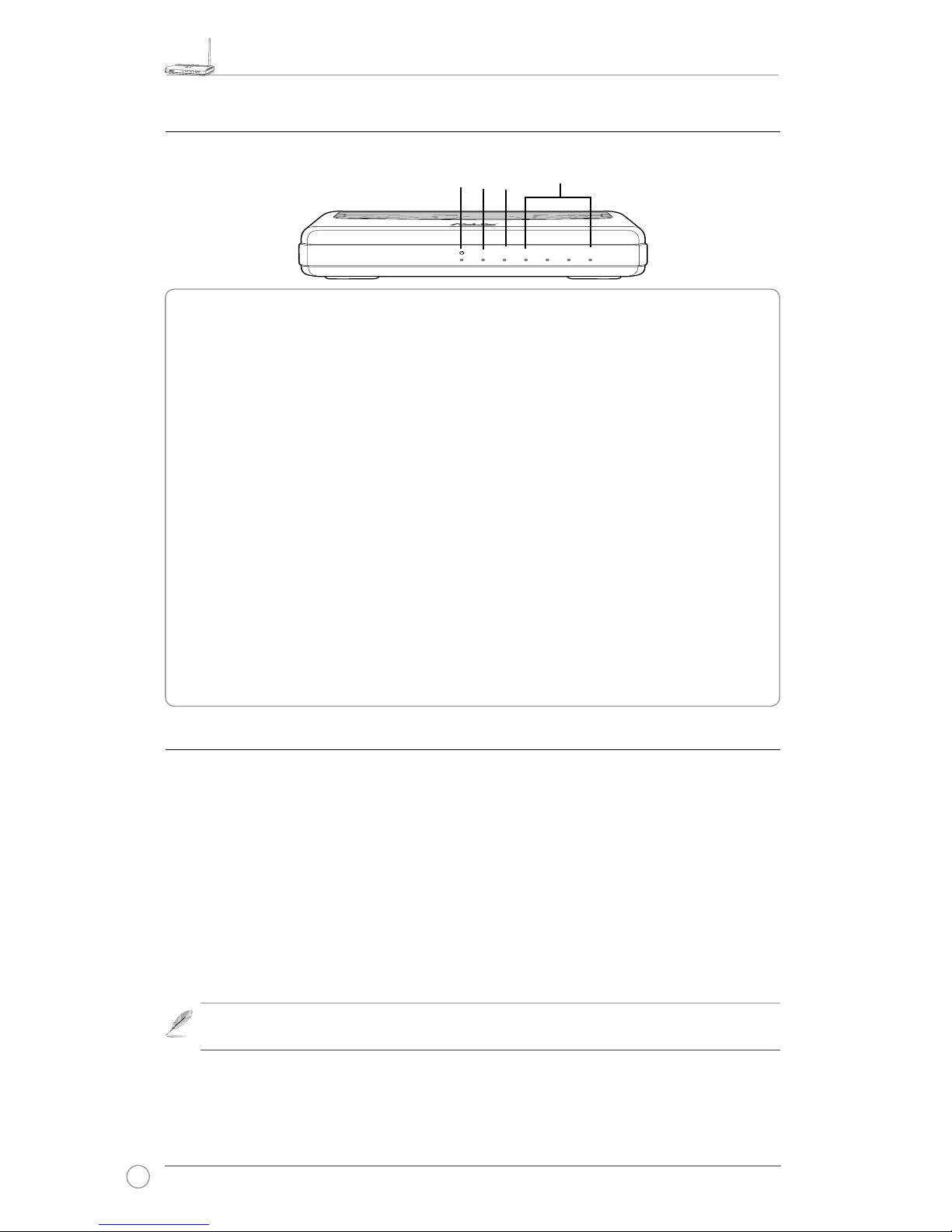

AIR WAN LAN1 LAN2 LAN3 LAN4

2) Status Indicators

PWR (Power)

Off No power

On System ready

Flashing-slow Firmware upgrade failed/Rescure Mode

Flashing-quick EZsetup processing/Rescure Mode

AIR (Wireless Network)

Off No power

On Wireless system ready/Radio-off

Flashing Transmitting or receiving data (Through Wireless)

WAN (Wide Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (Through Ethernet Cable)

LAN 1-4 (Local Area Network)

Off No power or no physical connection

On Has physical connection to an Ethernet network

Flashing Transmitting or receiving data (Through Ethernet Cable)

3) Wall Mounting Option

Out of the box, ASUS WL-520GU/GC Wireless Router is designed to sit on a raised flat

surface like a le cabinet or book shelf. The unit may also be converted for mounting to a wall

or ceiling.

Follow these steps to mount the ASUS Wireless Router to a wall:

1. Look on the underside for the two mounting hooks.

2. Mark two upper holes in a at surface.

3. Tighten two screws until only 1/4'' is showing.

4. Latch the hooks of the ASUS Wireless Router onto the screws.

Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the

screws or if it is too loose.

PWR

AIR WAN LAN

WL-520GU/GC Broad Range Wireless Family Router User Manual

The ASUS WL-520GU/GC Wireless Router can meet various working scenarios with proper

conguration. The default settings of the wireless router may need change so as to meet your

individual needs. Therefore, before using the ASUS Wireless Router, check the basic settings to

make sure they all work in your environment.

ASUS provides a utility named EZSetup for fast wireless conguration. If you would like to use

EZSetup for your wireless network conguration, refer to chapter 6 for details.

Note: Wired connection for initial conguration is recommended to avoid possible

setup problems due to wireless uncertainty.

1) Wired Connection

The ASUS WL-520GU/GC Wireless Router is supplied with an Ethernet cable in the package.

Since the ASUS Wireless Router has integrated auto-crossover function, therefore, you can use

either straight-through or crossover cable for wired connection. Plug one end of the cable to the

LAN port on the rear panel of the router and the other end to the Ethernet port on your PC.

2) Wireless Connection

For establishing wireless connection, you need an IEEE 802.11b/g compatible WLAN card. Refer

to your wireless adapter user manual for wireless connection procedures. By default, the

SSID of ASUS Wireless Router is “default” (in lower case), encryption is disabled and open

system authentication is used.

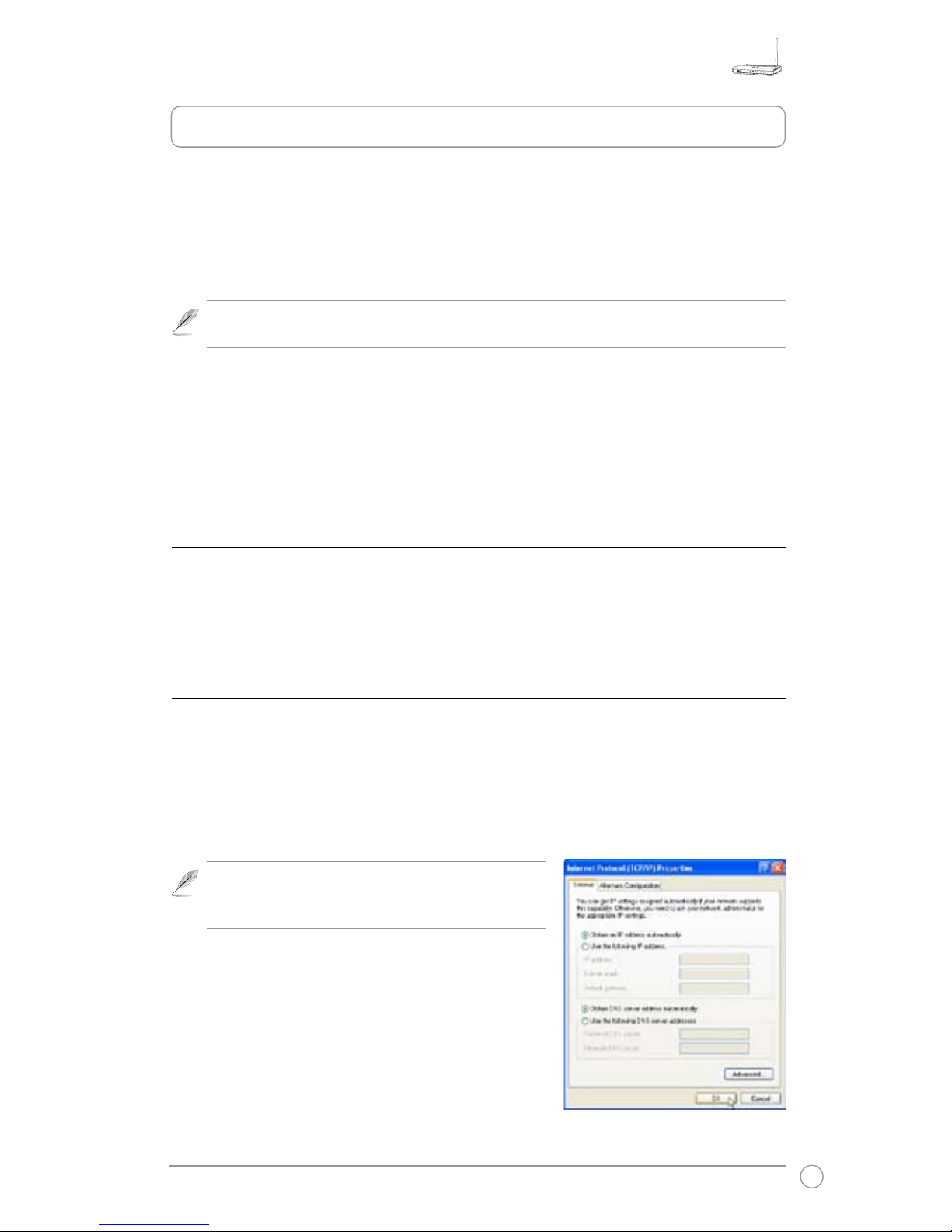

3) Setting IP Address for Wired or Wireless Connection

To access WL-520GU/GC Wireless Router, you must have correct TCP/IP settings on your wired

or wireless clients. Set the IP addresses of the clients within the same subnet of WL-520GU/GC.

Getting IP address Automatically

The ASUS Wireless Router integrates DHCP server functions, therefore, you can make your

PC get IP address automatically from the ASUS Wirelesss Router.

Note: Before rebooting your PC, switch ON the

wireless router and make sure the router is in ready

state.

Setting up IP address Manually

To set IP address manually, you need to know the default

settings of the ASUS Wireless Router:

• IP address 192.168.1.1

• Subnet Mask 255.255.255.0

3. Getting Started

WL-520GU/GC Broad Range Wireless Family Router User Manual

To set up the connection with a manually assigned

IP address, the address of your PC and the wireless

router must be within the same subnet:

• IP address: 192.168.1.xxx (xxx can be any

number between 2 and 254. Make sure the IP

address is not used by other device)

• Subnet Mask: 255.255.255.0 (same as WL-

520GU/GC)

• Gateway: 192.168.1.1(IP address of WL-520GU/

GC)

• DNS: 192.168.1.1 (WL-520GU/GC), or assign a

known DNS server in your network.

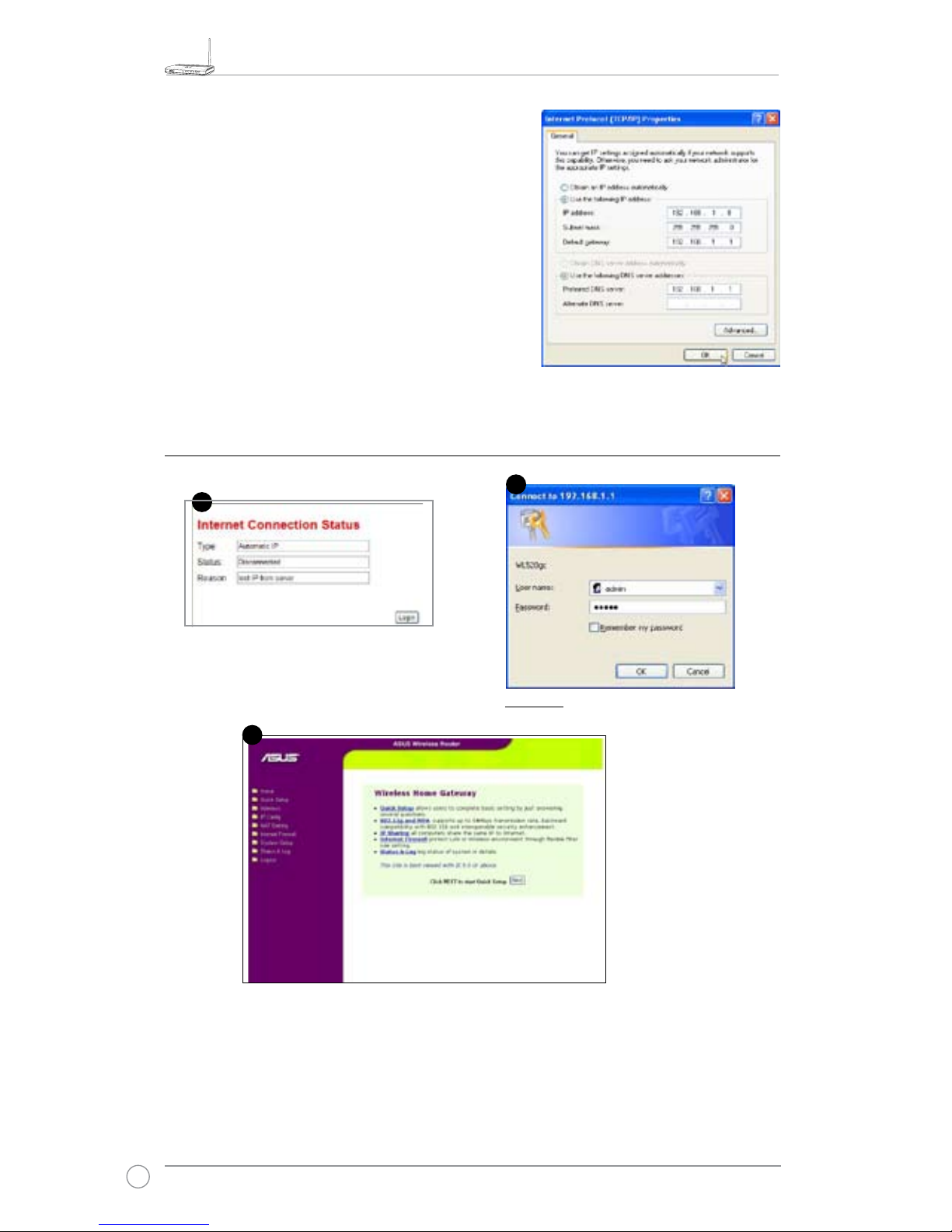

4) Conguring the Wireless Router

Defaults

User name: admin Password: admin

Enter the following address in your

web browser: http://192.168.1.1

After logging in, you can see the ASUS Wireless Router home page.

The homepage displays quick links to congure the main features of the wireless router.

WL-520GU/GC Broad Range Wireless Family Router User Manual

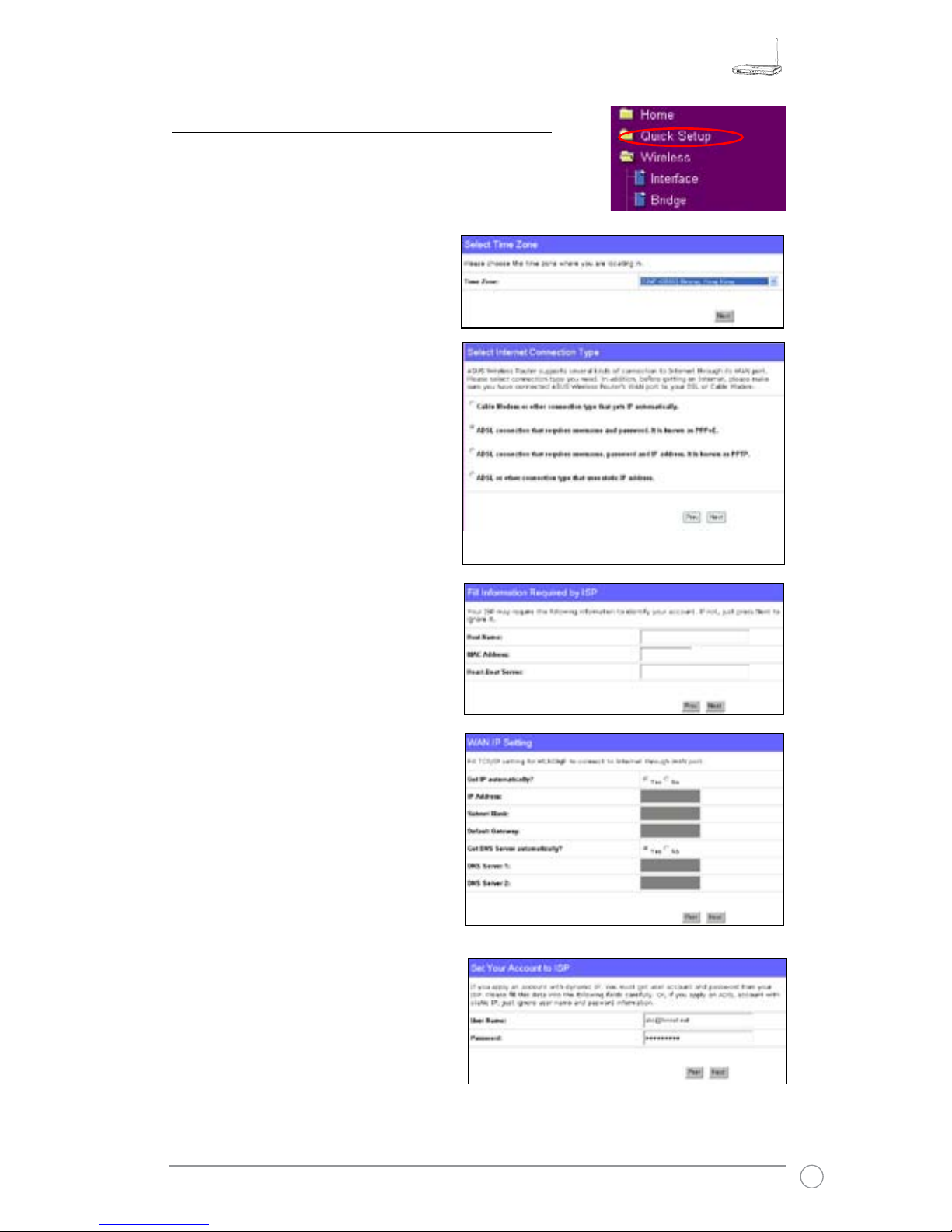

1. Select your time zone and click

Next.

5) Quick Setup

To start quick setup, click Next to enter the “Quick Setup”

page. Follow the instructions to setup the ASUS Wireless

Router.

2. ASUS Wireless Router supports

five types of ISP services: cable,

PPPoE, PPTP, static WAN IP, and

Telstra BigPond (only WL-520GU

supports this function). Select your

connection type and click Next to

continue.

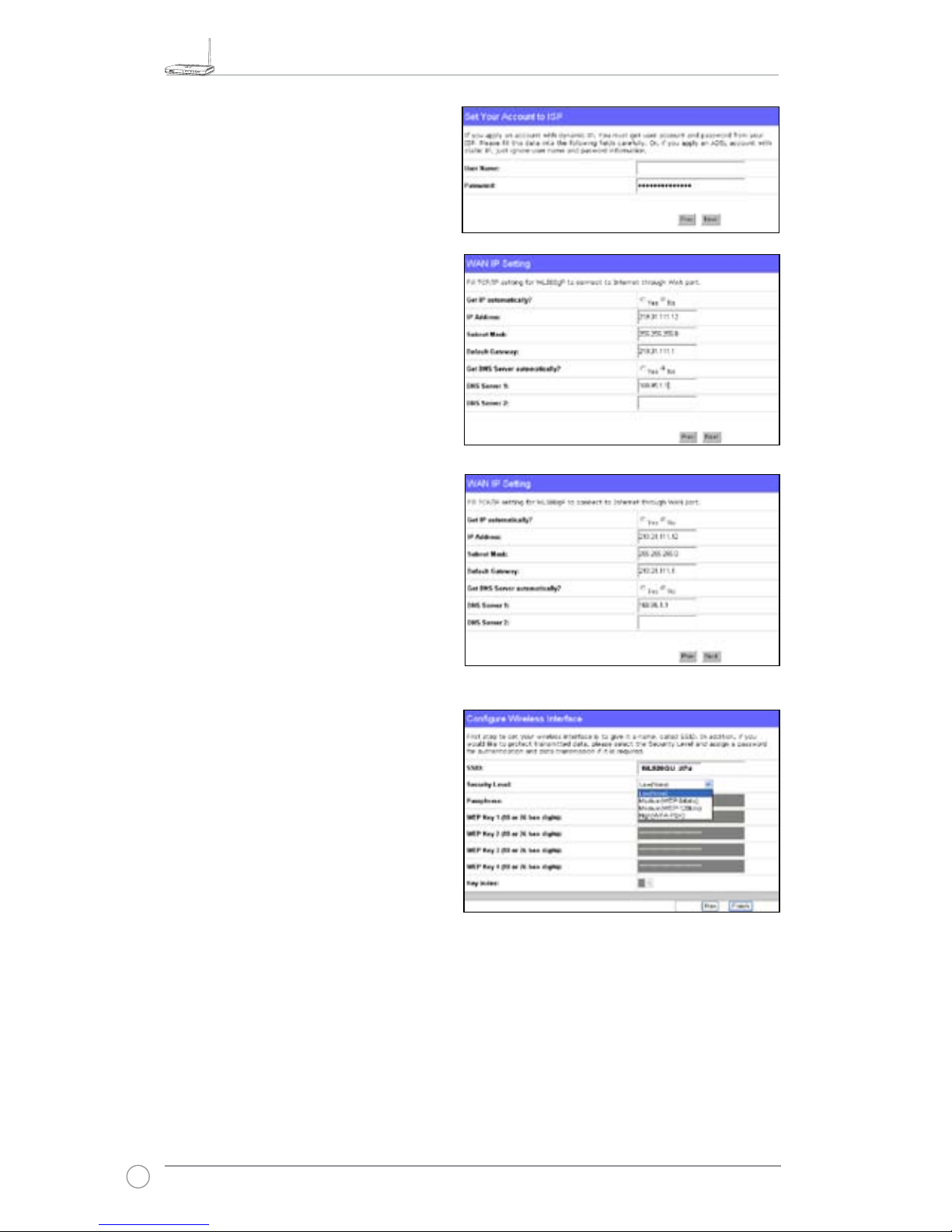

Cable or dynamic IP user

If you are using services provided by

cable ISP, select Cable Modem or other

connection that gets IP automatically.

If your ISP provides you hostname, MAC

address, and heartbeat server address,

fill these information into the boxes on

the setting page; if not, click Next to skip

this step.

PPPoE user

If you use PPPoE service, select ADSL

connection that requires username

and password. It is known as PPPoE.

You need to input the username and

password provided by your ISP. Click

Next to continue.

WL-520GU/GC Broad Range Wireless Family Router User Manual

PPTP user

If you are using PPTP services, select ADSL

connection that requires username,

password and IP address. Fill in the

username, password and IP address

provided by your ISP into the fields. Click

Next to continue.

Static IP user

If you are using ADSL or other connection

type that uses static IP address, select ADSL

or other connection type that uses static

IP address. Input the IP address, subnet

mask, and default gateway provided by your

ISP. You can specify DNS servers, or get

DNS information automatically.

herk036@adsl-comfort

3. After the connection type setting is

complete, you are to set up your

wireless interface. Specify to your

wireless router an SSID (Service Set

Identifier), which is a unique identifier

attached to packets sent over WLAN.

This identifier emulates a password

when a device attempts to communicate

with your wireless router via WLAN.

If you want to protect transmitted data, select a Security Level to enable encryption methods.

Medium: Only users with the same WEP key settings can connect to your wireless router and

transmit data using 64bits or 128bits WEP key encryption. Congure the settings as Open

System/WEP instead of Shared Key/WEP.

High: Only users with the same WPA pre-shared key settings can connect to your wireless

router and transmit data using TKIP encryption.

Altri manuali per WL520GC - Wireless Router

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Asus Router wireless

Asus

Asus RT-N10E EZ N Manuale utente

Asus

Asus RT-N12HP Manuale utente

Asus

Asus RT-N10 - Wireless Router - 802.11b/g/n Manuale utente

Asus

Asus RT-AC68U Manuale utente

Asus

Asus RT-AC52U Manuale utente

Asus

Asus WL-500b Manuale utente

Asus

Asus ZenWiFi AX Mini Manuale utente

Asus

Asus RT-N66U C1 Manuale utente

Asus

Asus RT-AC1200 Manuale di istruzioni

Asus

Asus DSL-N55U Manuale utente

Asus

Asus TM-AC1900 Manuale utente

Asus

Asus RT-N12 Series Manuale utente

Asus

Asus ZenWiFi XD4S Manuale utente

Asus

Asus RT-N10 B1 (RT-N10+ B1) Manuale utente

Asus

Asus ROG Strix GS-AX5400 Manuale utente

Asus

Asus RT-AC68U Manuale utente

Asus

Asus 4G-AX56 Manuale utente

Asus

Asus ZenWiFi AX Mini Manuale utente

Asus

Asus DSL-N12U Manuale utente

Asus

Asus RT-AC53U Manuale utente

Asus

Asus RT-N10 - Wireless Router - 802.11b/g/n Manuale utente

Asus

Asus WL-330N3G Manuale utente

Asus

Asus RT-N10 B1 (RT-N10+ B1) Manuale utente

Asus

Asus ROG Rapture GT-AX6000 Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente

Draytek

Draytek Vigor2120 Series Manuale utente

Sitecom

Sitecom WLR-4000 Manuale utente
