Asus ZenWiFi AX Mini Manuale utente

ASUS ZenWiFi AX Mini

AX1800 Dual Band WiFi Router

Model: XD4R

Quick Start Guide

A16831 / First Edition / June 2020

Table of contentsTable of contents

English.................................................................................................................................... 3

繁體中文 ................................................................................................................................. 9

Bahasa Indonesia................................................................................................................. 15

한국어.......................................................................................................................................................................21

Bahasa Melayu..................................................................................................................... 27

ไทย ....................................................................................................................................... 33

Tiếng Việt............................................................................................................................... 39

English

Hardware Explanations

Plug the adapter into the DCIN port.

The power LED will light up when your hardware is ready.

XD4R Overview

LAN port

DCIN port WAN/LAN port

WAN/LAN port

Connect your modem to this port with a network cable.

LAN port

Connect your PC to a LAN port with a network cable.

DC Power adapter DC Output: +12V with max 1.5A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

Specications:

English

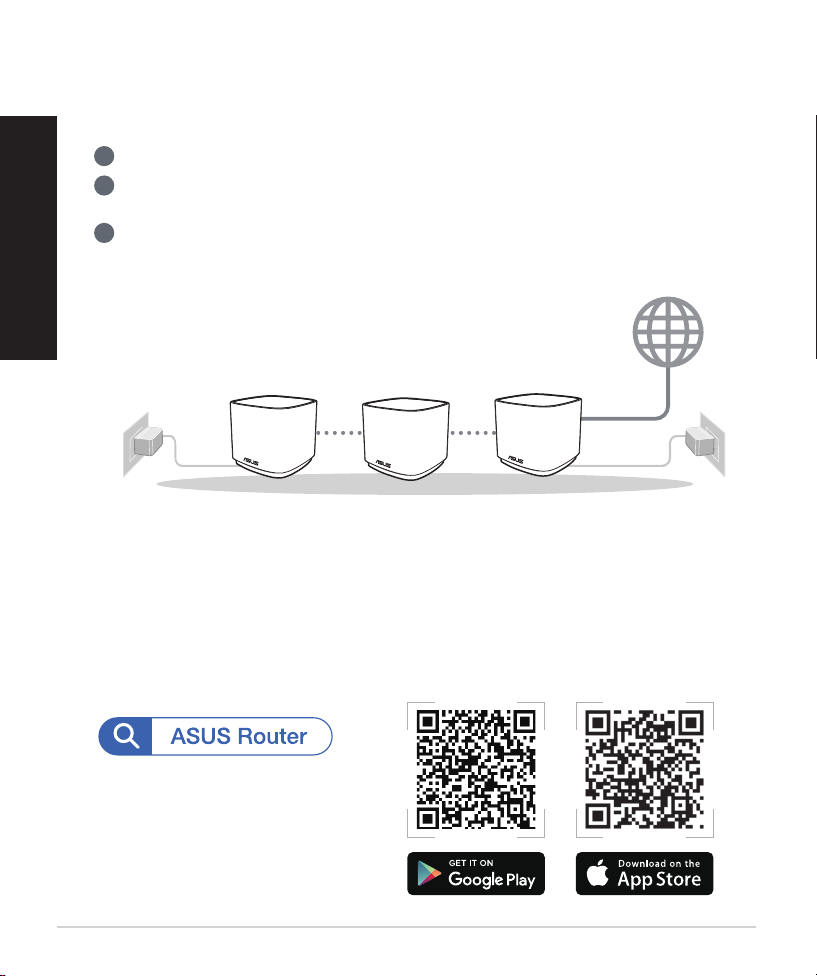

Before Setup

Find three ZenWiFi AX Mini, and power them on.

Use a network cable to connect your modem to the WAN port of one ZenWiFi AX Mini,

which will be the AiMesh router, and the other two ZenWiFi AX Mini will be the AiMesh

nodes.

The LED turns solid blue to indicate that ZenWiFi AX Mini is ready for setup.

Preparing to set up an AiMesh WiFi system

AiMesh Setup Steps

AiMesh node AiMesh node AiMesh router

ASUS Router App

Download free ASUS Router APP to set up and manage your router(s).

English

AiMesh Setup Steps

Prepare

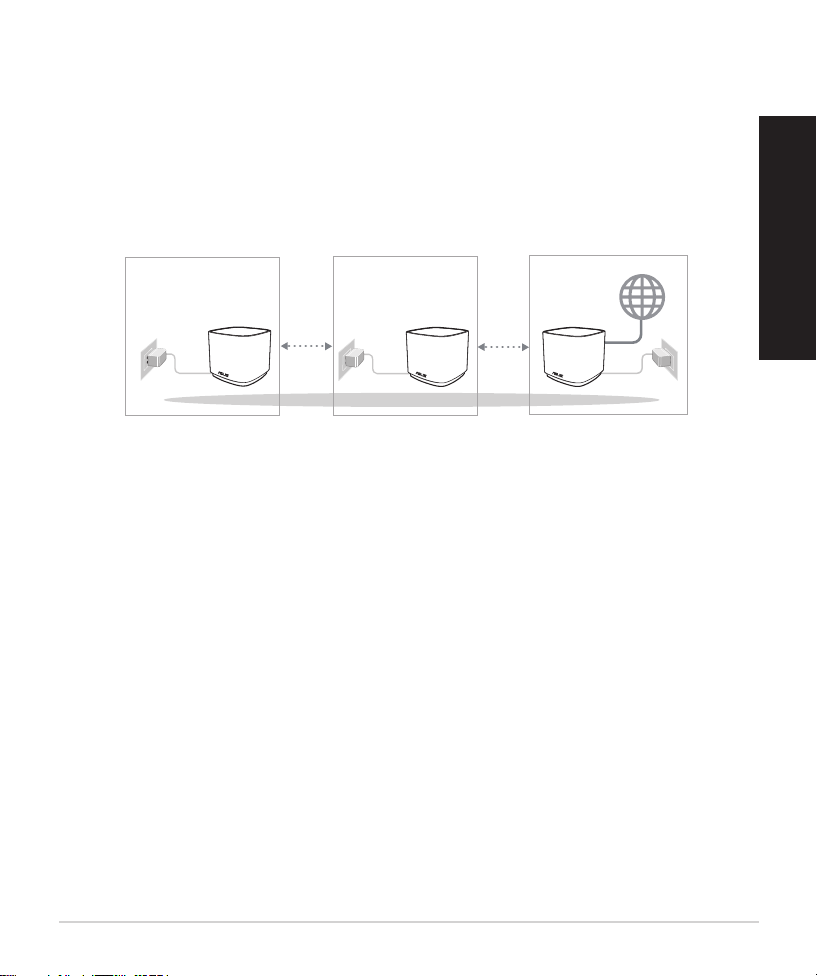

Place your ZenWiFi AX Mini router and nodes within 3 meters of each other

during the setup process.

within

3 meters within

3 meters

AiMesh node AiMesh node AiMesh router

AiMesh node

Keep your AiMesh nodes powered on and standby for AiMesh system

settings.

Launch ASUS Router APP, and then follow the on-screen instructions to

ﬁnish the AiMesh setup.

Launching ASUS Router APP

English

Troubleshooting

If your AiMesh router cannot ﬁnd any AiMesh nodes nearby or synchronization

fails, please check the following and try again.

Move your AiMesh nodes closer to the AiMesh router ideally. Ensure that it is within 3

meters.

Your AiMesh nodes are powered on.

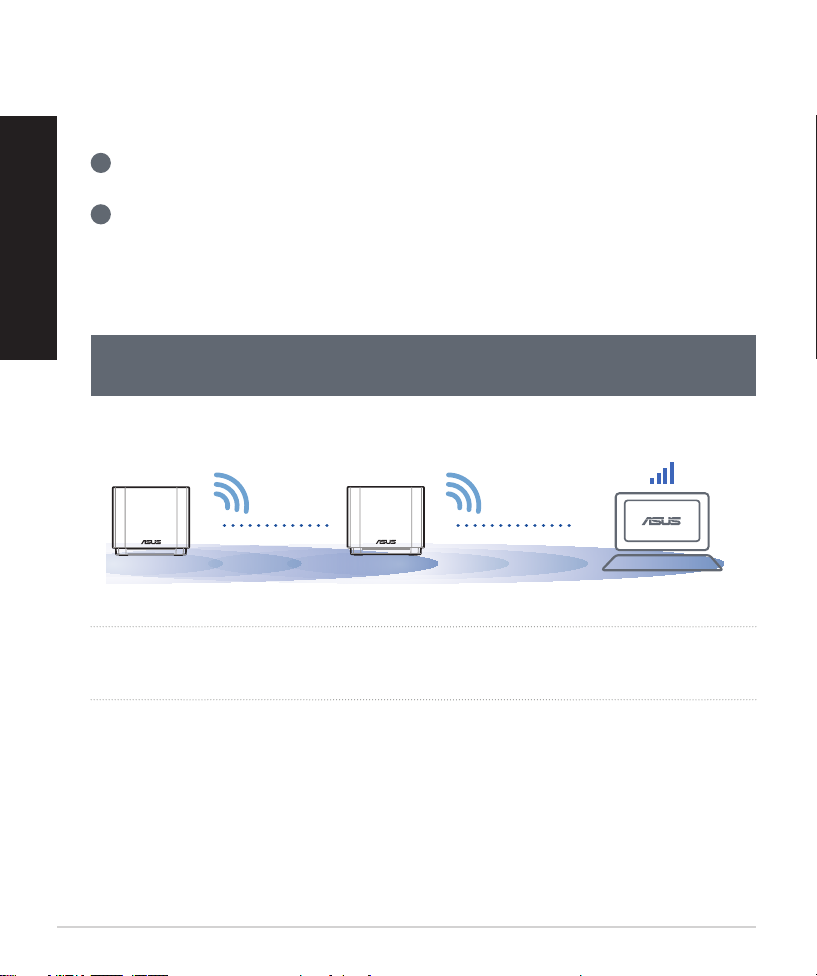

Relocation

THE BEST PERFORMANCE

Locate the AiMesh router and nodes at the best place.

NOTES: To minimize interference, keep the routers away from devices like cordless phones,

Bluetooth devices and microwave ovens.

We recommend that you place the routers in an open or spacious location.

English

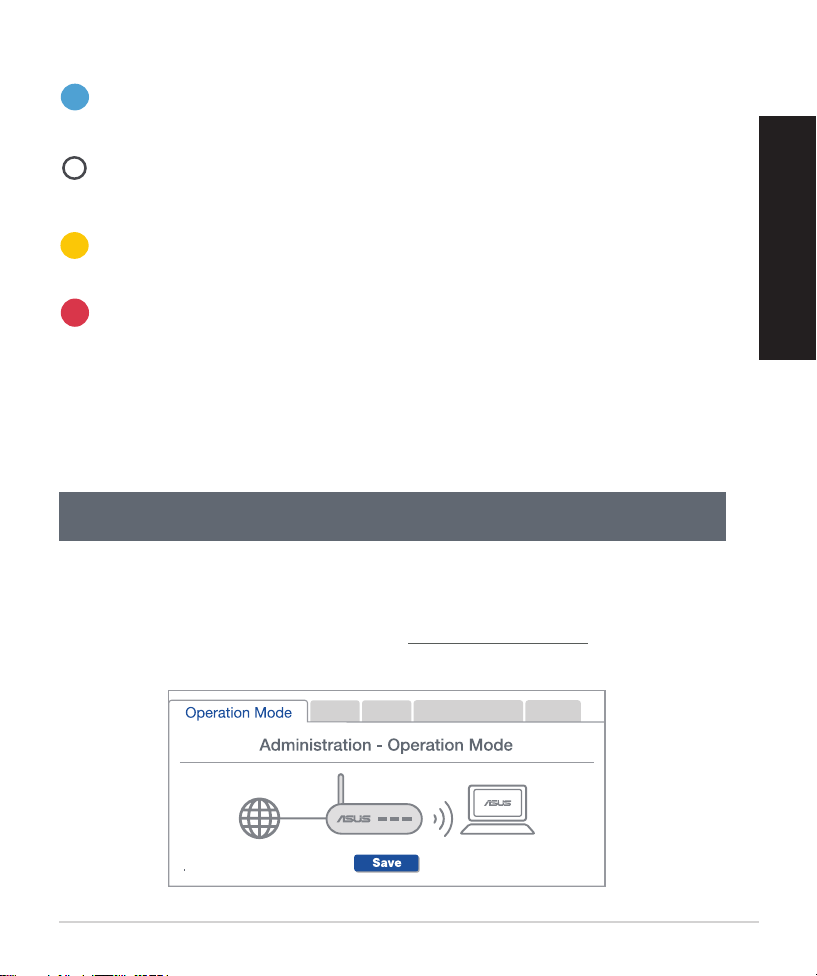

ZenWiFi AX Mini LED indications

Solid blue:

Your ZenWiFi AX Mini is ready for setup.

Solid yellow:

The signal between your ZenWiFi AX Mini router and the node is weak.

Solid red:

Your ZenWiFi AX Mini router has no Internet connection. / Your node is

disconnected from the router.

Solid white:

Your ZenWiFi AX Mini is online and works well.

FAQ

FREQUENTLY ASKED QUESTIONS

Q1:

Does the AiMesh router support Access Point mode?

A: Yes. You can choose to set the AiMesh router as router mode or access

point mode. Please go to web GUI (http://router.asus.com), and go to the page

Administration > Operation Mode.

English

Could I setup wired connection between AiMesh routers (Ethernet

backhaul)?

Q2:

A: Yes. AiMesh system supports both wireless and wired connection

between AiMesh router and node to maximize throughput and stability.

AiMesh analyzes the wireless signal strength for each frequency band

available, and then determines automatically whether a wireless or wired

connection is best to serve as the inter-router connection backbone.

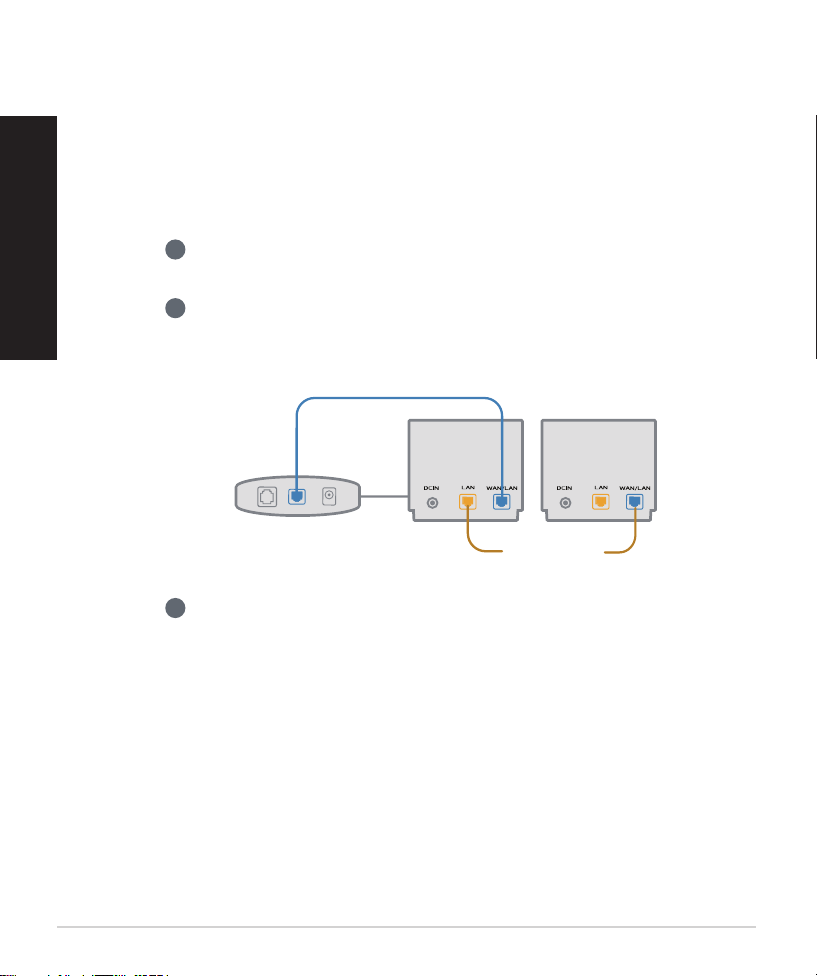

Follow the setup steps to establish a connection between the AiMesh

router and node via WiFi ﬁrst.

Place the node in the ideal locations for best coverage. Run an

Ethernet cable from the LAN port of the AiMesh router to the WAN

port of AiMesh node.

AiMesh system will auto-select the best path for data transmission,

whether wired or wireless.

LAN-WAN

Modem

繁體中文

硬體說明

1 將電源變壓器插入無線路由器的電源插孔（DCIN）。

2 當您的路由器準備就緒後，電源指示燈將會亮起。

XD4R 概述

網路連接埠

電源插孔

（DCIN) WAN/LAN連接埠

WAN / LAN 連接埠

請使用網路線將您的數據機連接至此連接埠。

網路連接埠

請使用網路線將您的電腦連接至LAN連接埠。

直流電源變壓器 DC輸出：12V電壓，最大電流1.5A

運作溫度 0~40°C 儲存溫度 0~70°C

運作濕度 50~90% 儲存溫度 20~90%

規格：

繁體中文

開始設定前

1 準備三台ZenWiFiAXMini並連接電源。

2 將網路線的一端連接至數據機，另一端連接至ZenWiFiAXMini的WAN連接埠，此

ZenWiFiAXMini即為AiMesh路由器，其他兩台ZenWiFiAXMini為AiMesh節點。

3 LED指示燈變為藍色恆亮表示ZenWiFiAXMini已準備就緒。

準備設定 AiMesh WiFi 系統

AiMesh 設定步驟

AiMesh節點 AiMesh節點 AiMesh路由器

ASUS Router App

下載免費的 ASUS Router APP 設定和管理您的路由器。
