English

Hardware Explanations

Plug the adapter into the DCIN port, and press the power switch.

The power LED will light up when your hardware is ready.

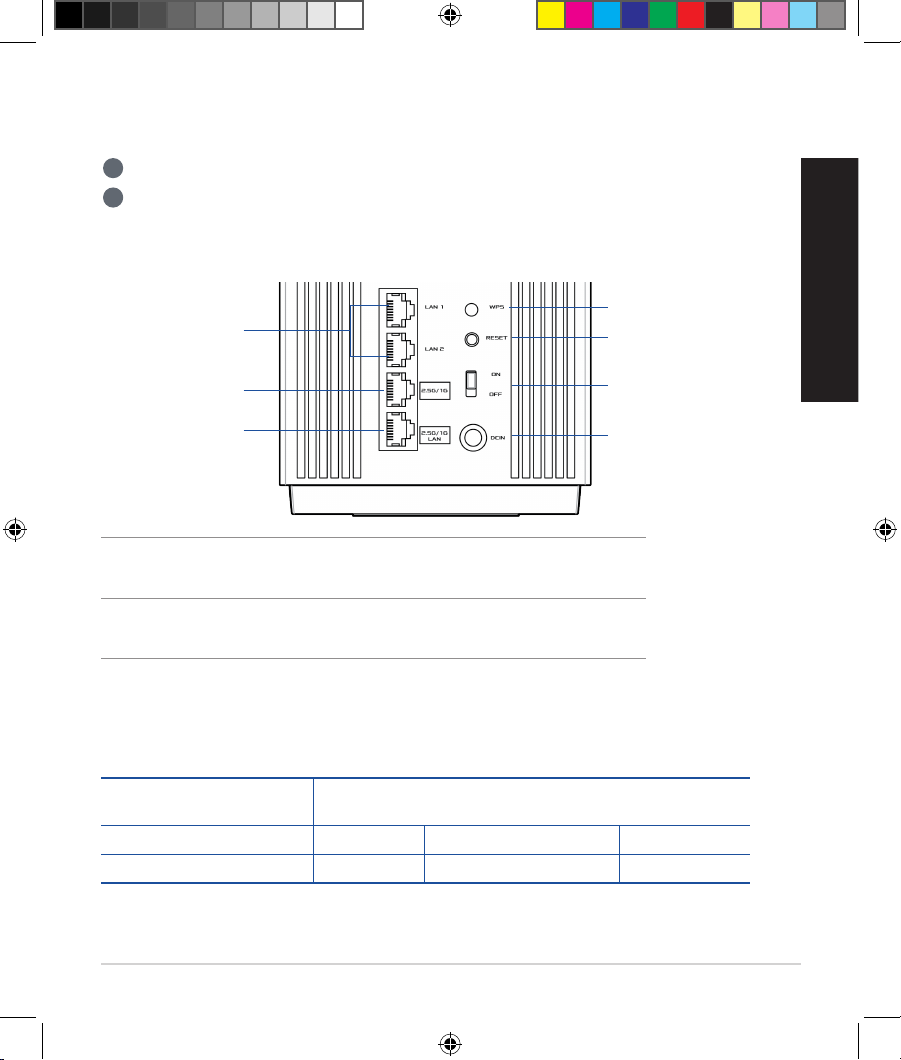

Button and Port Explanations

2.5G / 1G WAN port

Connect your optical modem to this port with a network cable.

LAN ports 1-2

Connect your PC to a LAN port with a network cable.

DC Power adapter DC Output: +19V with max 2.37A current

DC Output: +19.5V with max 2.31A current

Operating Temperature 0~40oCStorage Temperature 0~70oC

Operating Humidity 50~90% Storage Humidity 20~90%

Specications:

LAN ports 1-2

WPS button

Reset button

Power switch

DCIN port

2.5G / 1G LAN port

Connect your PC to a 2.5G / 1G LAN port with a network cable.

2.5G / 1G WAN port

2.5G / 1G LAN port

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 3APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 3 2021/10/26 11:56:412021/10/26 11:56:41

English

Before Setup

Setting up a standalone router

Go to ONE ROUTER SETUP STEPS.

One Router Setup

Setting up an AiMesh WiFi system

Prepare two or more ASUS routers supporting AiMesh.

Assign one as AiMesh router, and another one as AiMesh node.

** If you have multiple AiMesh routers, we recommend using the router with the highest speciﬁcations

as your AiMesh router and the others as AiMesh nodes.

Go to AiMesh SETUP STEPS.

AiMesh Setup Steps

AiMesh routerAiMesh node

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 4APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 4 2021/10/26 11:56:412021/10/26 11:56:41

English

One Router Setup Steps

Prepare your Modem

Unplug the power of cable / DSL modem. If it has a battery backup, remove the

battery.

Connect your modem to the router with

the network cable provided.

Modem back

If you are using DSL for

internet, you will need your

username / password from

your Internet service provider

(ISP) to properly conﬁgure your

router.

Power on the modem. Plug modem

to the power outlet and power on.

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 5APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 5 2021/10/26 11:56:422021/10/26 11:56:42

English

Check the modem LED lights to ensure the connection is active.

Modem front

Connect your Device

Power on the router.

Plug in and press the Power On/Off switch at

the back of your router.

Check that the LED turns solid blue to

indicate that the hardware connection is

ready for setup.

[Web] Connect your PC to the router using an

additional network cable.

[App] Or you can use a phone or pad to

complete the setup via ASUS Router App.

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 6APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 6 2021/10/26 11:56:422021/10/26 11:56:42

English

[Web] Open a web browser.

You will be redirected to the ASUS Setup Wizard. If not, navigate to

http://router.asus.com.

[App] Launch ASUS Router App and follow the instructions to complete the setup.

AiMesh Setup Steps

Prepare

Place your AiMesh router and node within 3 meters of each other during

the setup process.

AiMesh node

Keep your AiMesh node powered on and standby for AiMesh system

settings.

AiMesh routerAiMesh node

within

3 meters

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 7APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 7 2021/10/26 11:56:422021/10/26 11:56:42

English

[Web]

Refer to ONE ROUTER SETUP

STEPS to connect your AiMesh router

to your PC and modem, and then log in

into the web GUI.

AiMesh router

Go to Network Map page, click

AiMesh icon and then Search for

your extending AiMesh node.

Click Search, it will automatically

search for your AiMesh node

nearby. When the AiMesh node

shows on this page, click it to

add it into the AiMesh system.

** If you cannot ﬁnd any AiMesh

node, please go to TROUBLE

SHOOTING.

Modem

AiMesh router

AiMesh node

Logout/Reboot

AiMesh Router

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 8APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 8 2021/10/26 11:56:432021/10/26 11:56:43

English

A message is displayed when

synchronization is completed.

Congratulations! You will ﬁnd the

pages below show up when an

AiMesh node has been successfully

added to the AiMesh network.

Successfully added RT-ABCDE to your AiMesh

system, it will take awhile to show up as connected

in the AiMesh router list.

[App] Log in to your existing router via ASUS Router App and choose “Add AiMesh

Node” to complete the setup.

ASUS Router App

Download free ASUS Router APP to set up and manage your router(s).

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 9APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 9 2021/10/26 11:56:432021/10/26 11:56:43

English

Troubleshooting

If your AiMesh router cannot ﬁnd any AiMesh node nearby or synchronization fails,

please check the following and try again.

Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3

meters.

Your AiMesh node is powered on.

Relocation

Locate the AiMesh router and node at the best place.

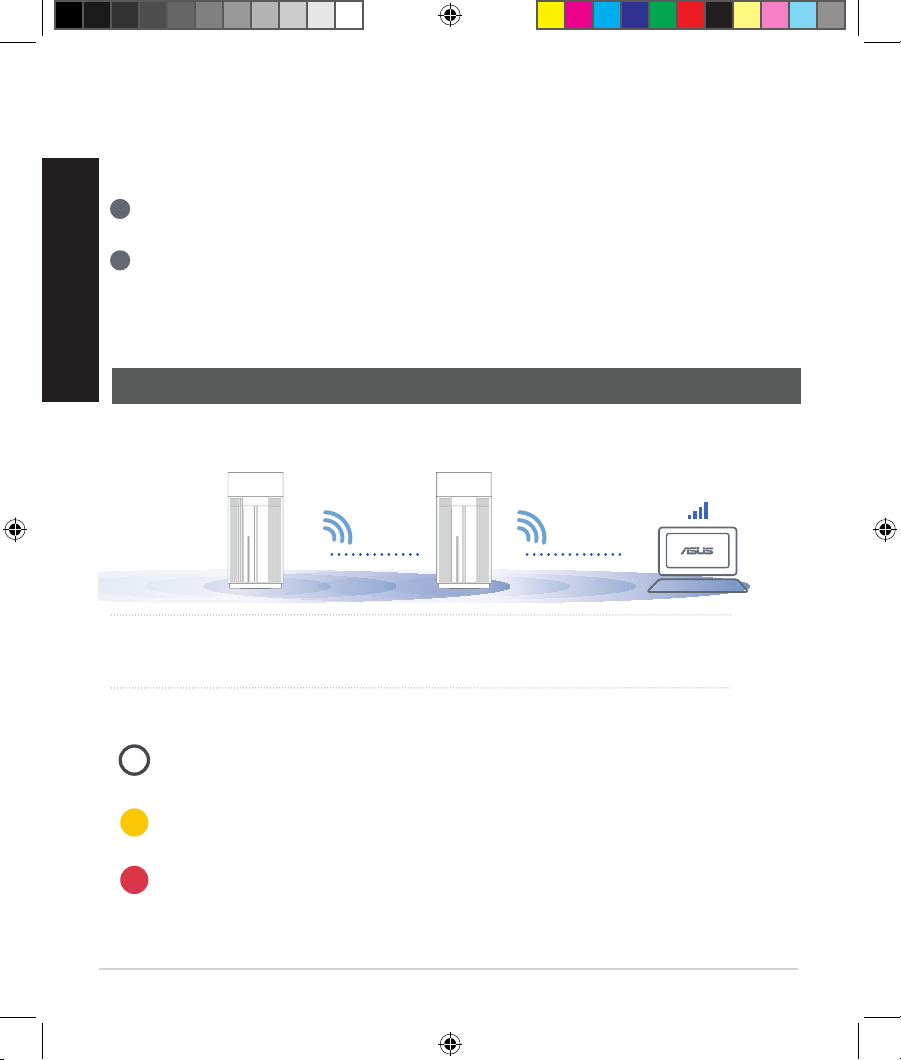

Solid white: Good signal

Solid yellow: Weak signal

Solid red: No signal

THE BEST PERFORMANCE

NOTES: To minimize interference, keep the routers away from devices like cordless phones,

Bluetooth devices and microwave ovens.

We recommend that you place the routers in an open or spacious location.

ZenWiFi Pro XT12 LED indications

APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 10APAC19133_ZenWiFi_Pro_XT12_1PK_Booklet_QSG.indb 10 2021/10/26 11:56:432021/10/26 11:56:43
