Atdec AD-TVAC-CM Manuale utente
Installation Guide
AD-TVAC-CM
AD-TVAC-CM Page 1 of 6
AV Cart Camera Mount

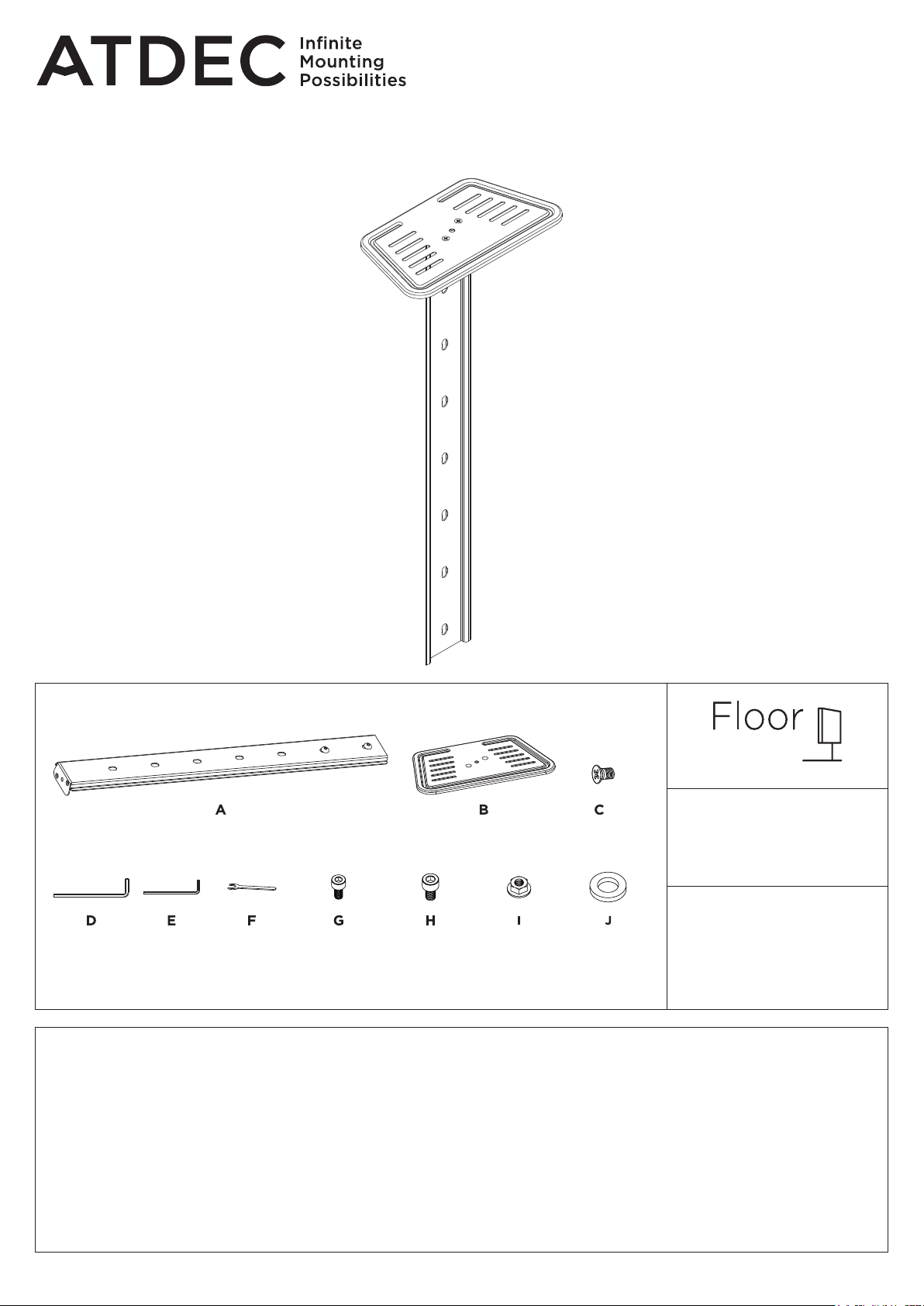

COMPONENT CHECKLIST
Connecting bracket Camera Shelf M5 x 8 mm
Screw (x2)
5mm
Allen Key
M5 x 10
Screw (x2)
M6 x 10
Screw (x2)
M6 Flange
Nut
M6 Washer
(x2)
4mm
Allen Key
M6
Wrench
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to assemble this product correctly may cause serious injury/death during or following installation.
! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these instructions and the
consequences of incorrect installation.
! Do not over tighten screws.
! Two person installation is recommended.
! Product not suitable for use outdoors.
! After installation is complete check to verify that AV Cart is secure and safe for use.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA
locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
Please contact Atdec if you would like further information.
! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on
the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
REQUIRED TOOLS
• Phillips Head
Screwdriver
SHELF WEIGHT
0 - 5kg
(0 - 11lbs)
CAPACITY
AD-TVAC-CM Page 2 of 6

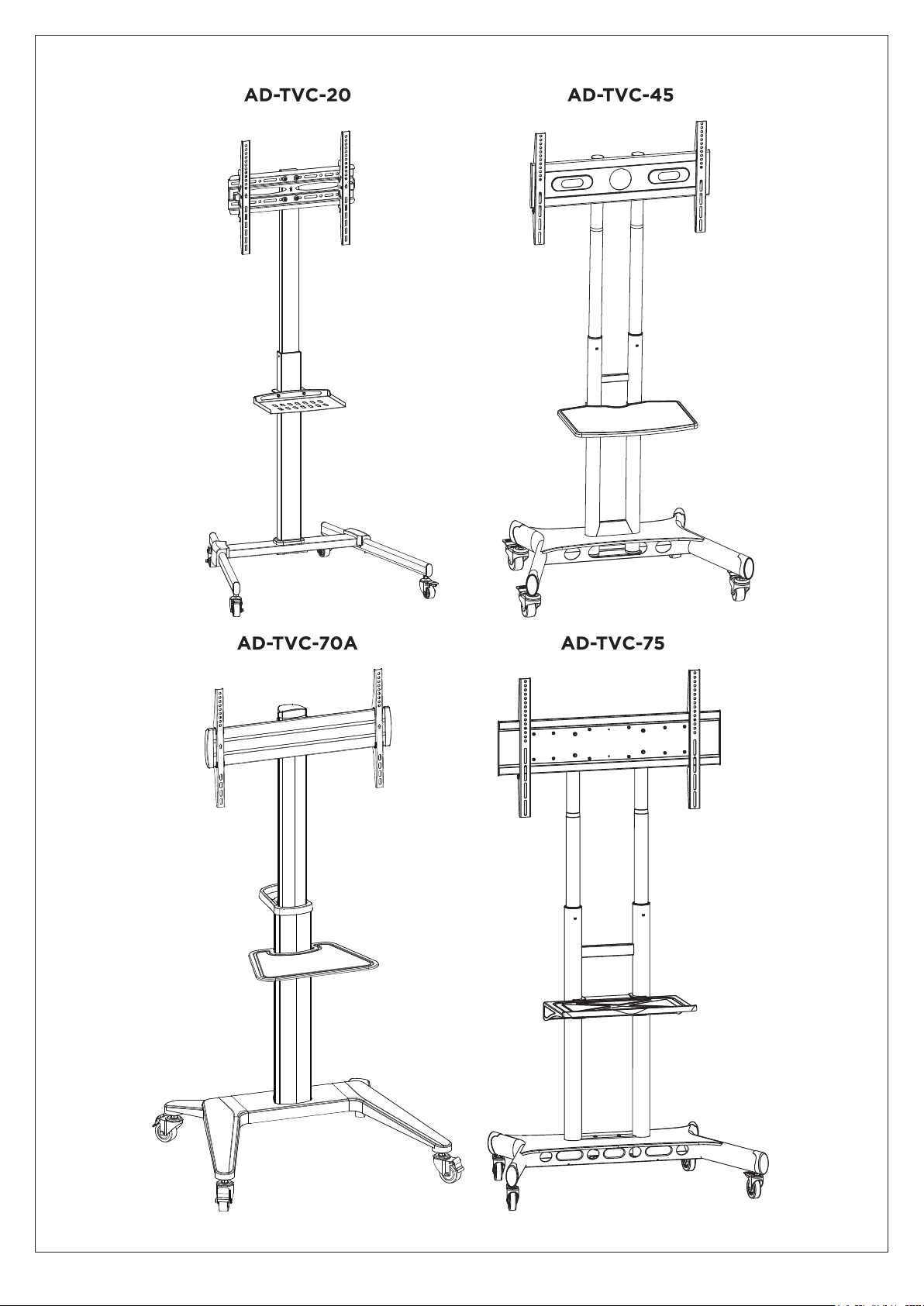

Compatible with:
AD-TVAC-CM Page 3 of 6
> 4 mm

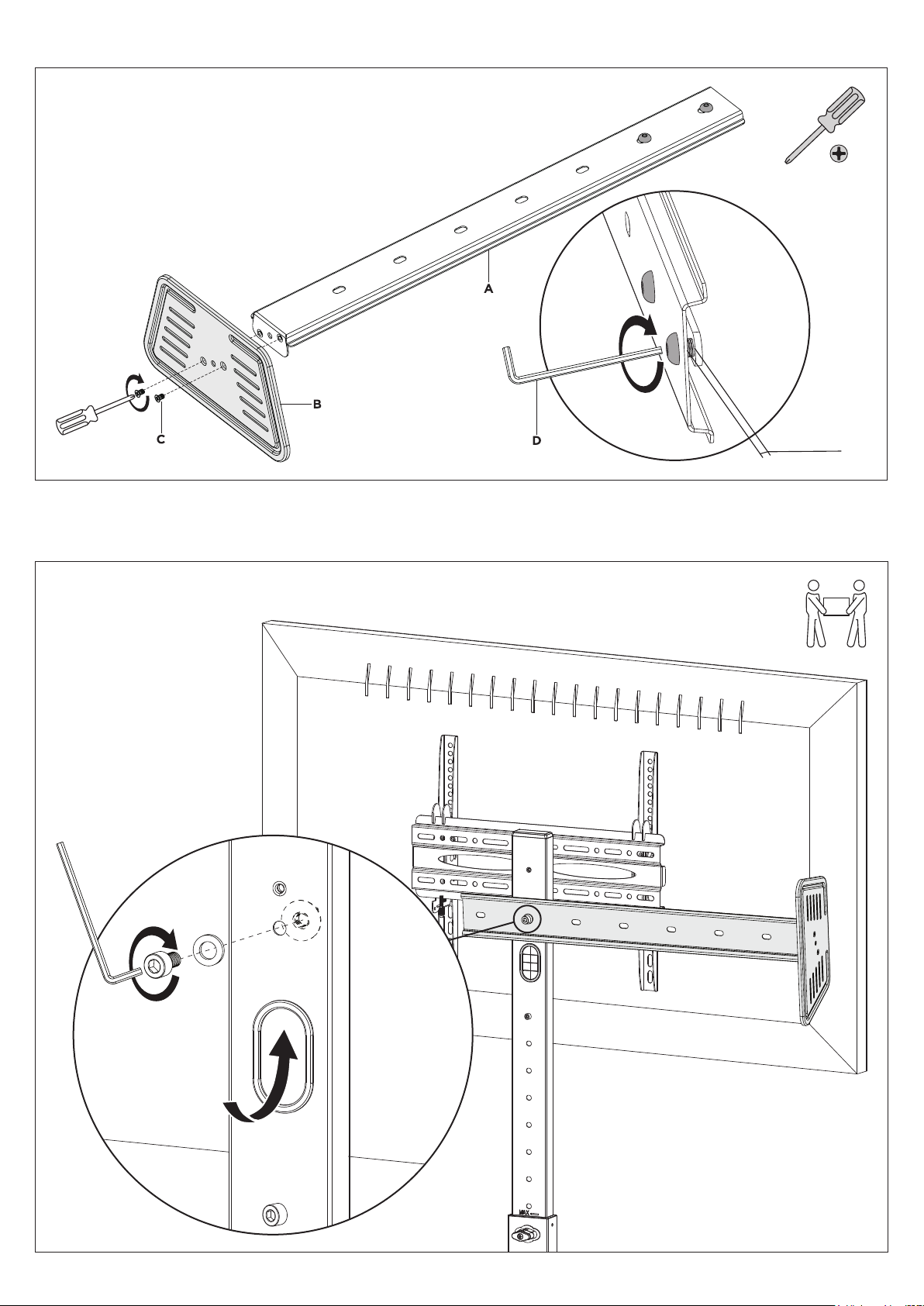

1. Constructing Camera Mount Assembly
2. Attach camera mount assembly to cart
FOR AD-TVC-20 CART
Attach shelf (part B) to connecting bracket (part A) with screws
(part C).
For AD-TVC-70A, loosen screws on silver mounting plate with
allen key.
NOTE: Ensure there is a 4mm gap between the silver bracket
and the connecting bracket before attempting to slide the
mount onto the upper column.
For AD-TVC-20, AD-TVC-45, AD-TVC-75 and AD-TVC-80
remove silver mounting plate completely.
Position camera mount
perpendicular to oor at
desired height.
Attach mount to cart with with
M6 screw, washer and ange
nut (part H, Iand J) with 5mm
allen key (part D).
NOTE: Position nut behind the
correct hole through the cable
management slot.
With assistance, support
camera mount whilst the
screw is being secured
through the nut. Use wrench
(part F) to assist if required.
AD-TVAC-CM Page 4 of 6

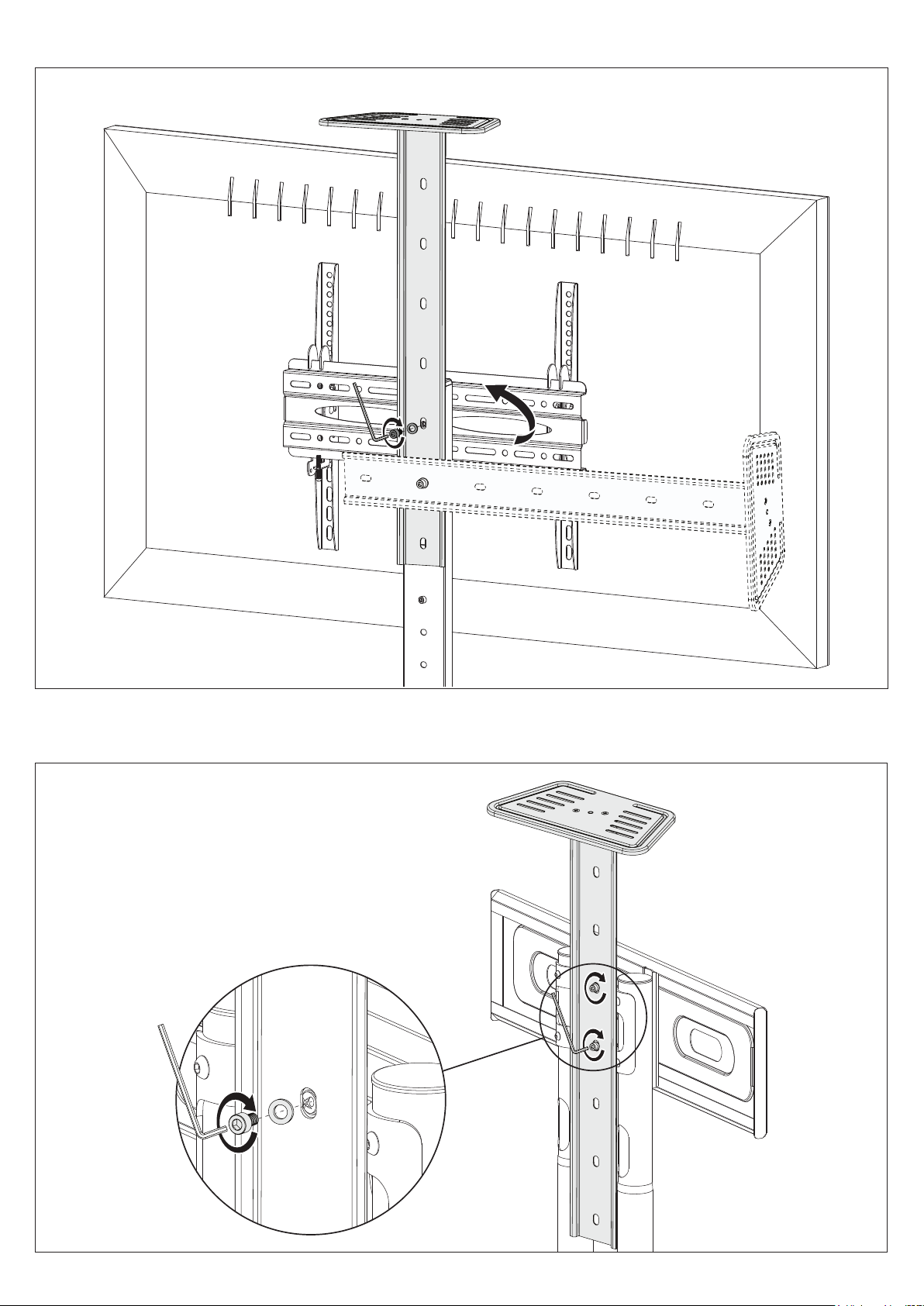

FOR AD-TVC-45 CART
2. Attach camera mount assembly to cart
3. Secure camera mount assembly to cart
Rotate the mount and secure the top xture with an M6 screw and washer (part Hand J) with 5mm allen key (part D).
Attach camera mount with
M5 screws and washers (part
Gand J) at desired height
with 4mm allen key (part E)..
AD-TVAC-CM Page 5 of 6
3. Attach Camera Mount

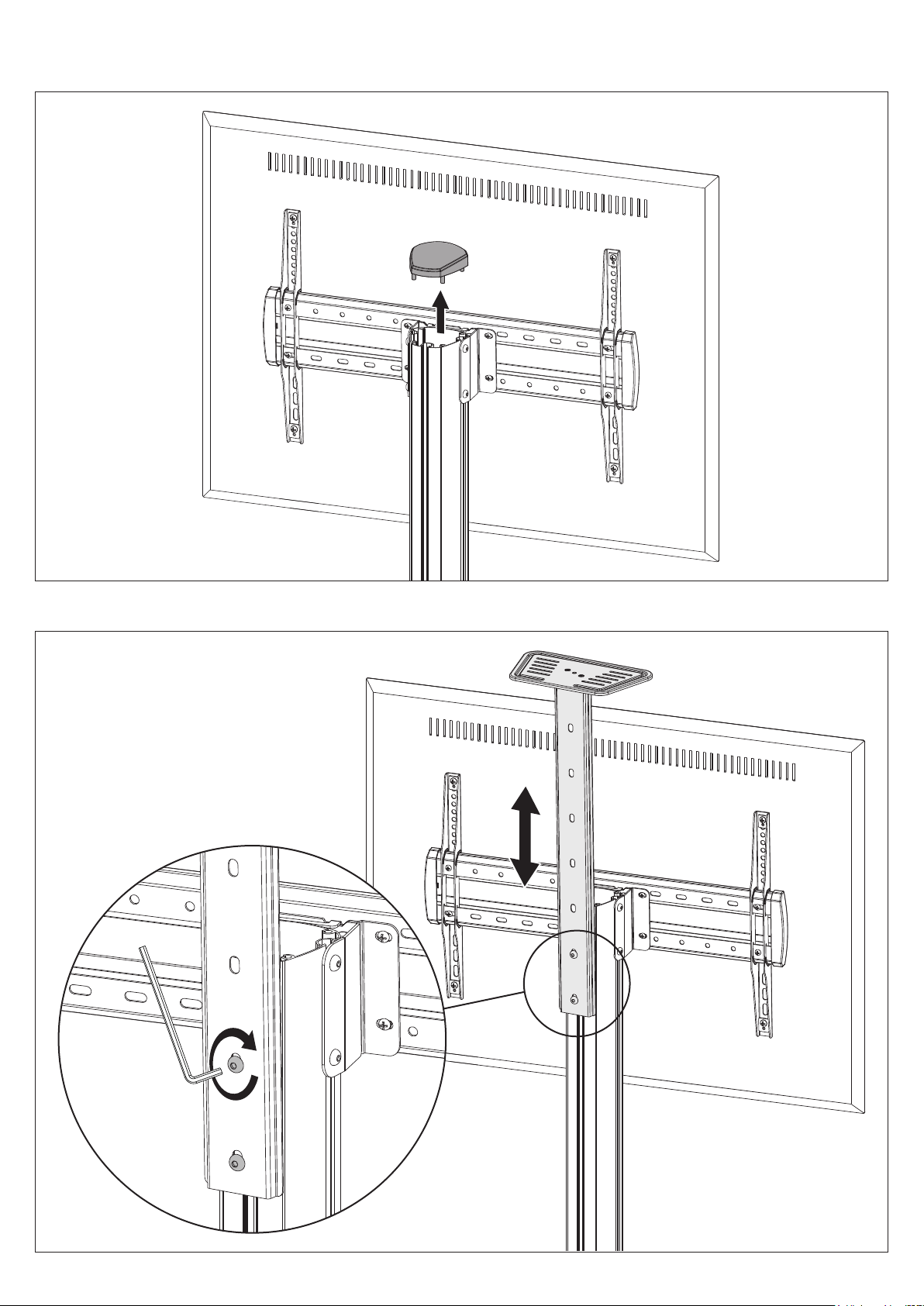

FOR AD-TVC-70A CART
2. Remove cap
Slide the silver mounting plate through the
rear channel of the upper column down to
the desired height and tighten screws with
5mm allen key (part D).
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20210920
MAINTENANCE
• Tighten fasteners and check if the cart is secure and safe to use at regular intervals (at least every three months.)
• Please contact your distributor if you have any questions.
AD-TVAC-CM Page 6 of 6

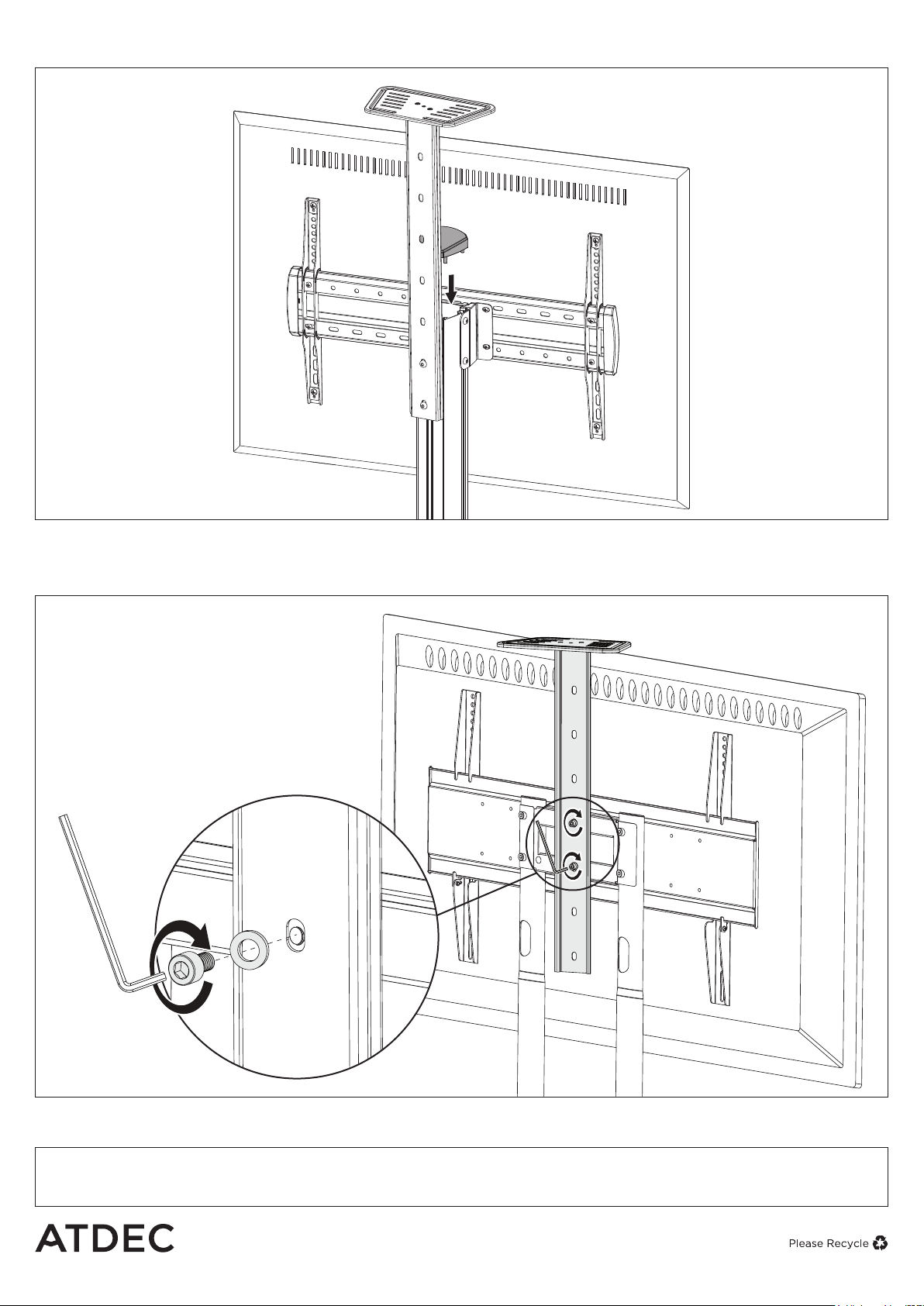

FOR AD-TVC-75 CART
2. Attach camera mount assembly to cart
4. Attach Cap
Attach camera mount with
M5 screws and washers
(part Gand J) at desired
height with 5mm allen key
(part E).
