Atdec AWMS-2-BT75-G Manuale utente

AWMS-2-BT75-G Page 1 of 4

Scan to access

more information

Installation Guide

AWMS-2-BT75-G

COMPONENT CHECKLIST

Bridge

(x1)

Leg

(x2)

Post

(x1)

Bracket

(x2)

4mm/5mm

Hex Key

(x1 each)

13mm

Spanner

(x1)

VESA Plate

(x2)

M8 Stud

(x1)

M4x10mm

Screw

(x8)

M8 Nut

(x1)

Post Cap

(x1)

M4x20mm

Screw

(x8)

10mm

Spacer

(8x)

M8x30mm

Screw (x1)

M8 Stud

(x1)

M8x30mm

Screw

(x1)

Clamp Bar

(x1)

Clamp Plate

(x1)

Clamp Bar

(x1)

Clamp Plate

(x1)

IMPORTANT INFORMATION

! Product should only be assembled and used as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Eachbracketsupportsamaximumweightasperabovecapacityspecication.

! Avoid applying downward load to corners of display.

! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.

! The product is compatible with desk thicknesses from 18 - 36mm (0.71 - 1.42”)

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can

exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you

would like further information.

! WARNING! Death or serious injury may occur if a child climbs on or tips product.

Post Mounted Heavy Duty

Dual Vertical Monitor Mount

Grommet Clamp

REQUIRED TOOLS

• Phillips Head Screwdriver

CAPACITY (per monitor)

Flat Monitor

4.5 - 25kg (10 - 55lb)

Curved Monitor

4.5 - 18kg (10 - 40lb)

Display Size

24” - 55”

300mm (12”) max overall

display depth

AWMS-2-BT75-G Page 2 of 4

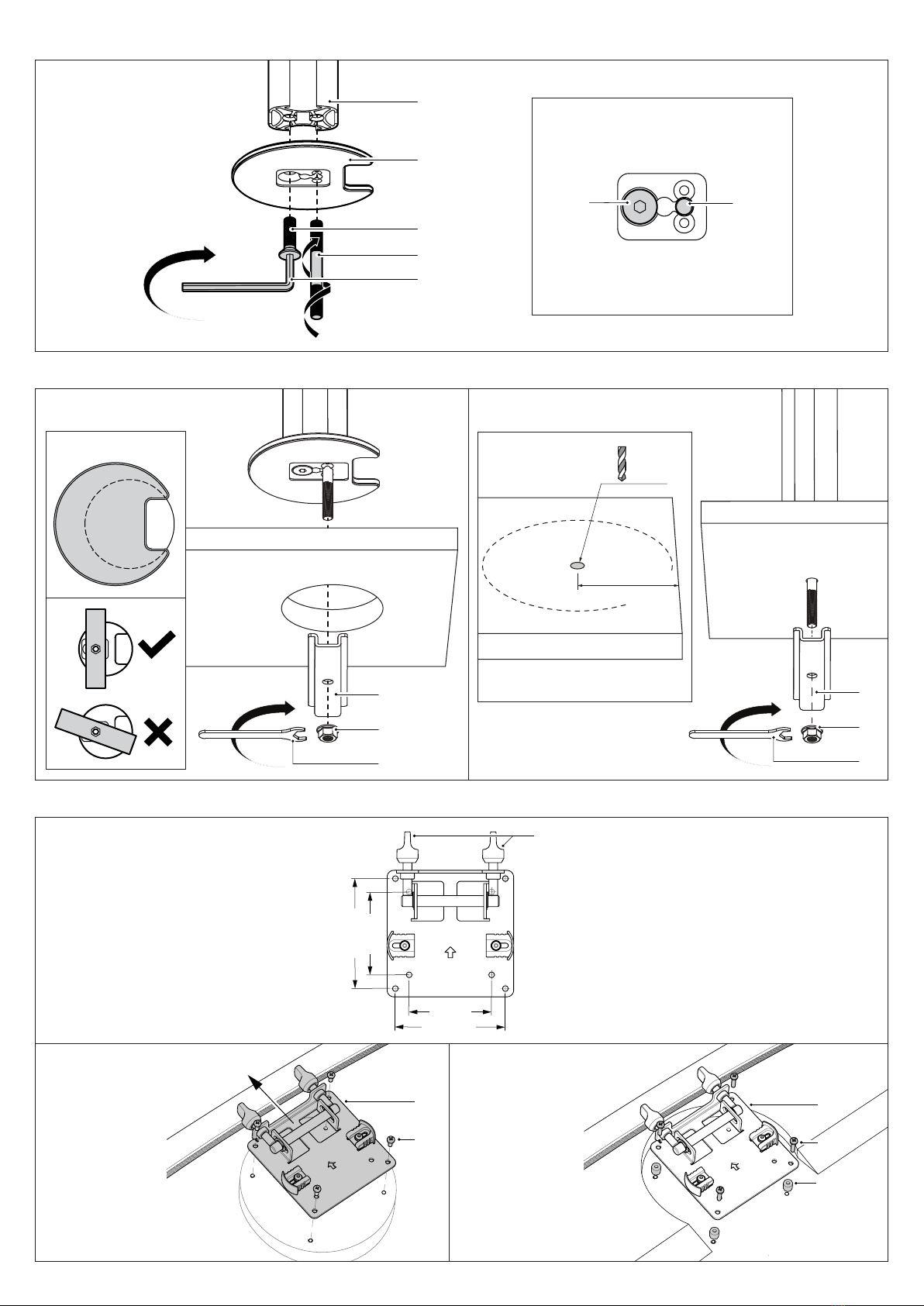

2. Attach grommet clamp on desk

Option A - Through grommet hole

80mm (31

8”) max hole diameter

1. Assemble post to clamp plate

1.1

Option B - As heavy duty bolt through

75mm

100mm

75mm

100mm

NOTE:

For 75mm VESA unscrew

5mm to access top holes

Option A

Attach VESA plate

with M4x10mm

screws.

Option B

For recessed VESA

use 10mm spacers

and M4x20mm

screws.

3.1 VESA compatibility.

NOTE:

Some displays require the use of

a VESA adapter before attaching

the VESA plate. This VESA adapter

may ship in the box with the display.

Consult your display’s installation

guide for further information.

3. Attach VESA plates to displays

TOP

9mm

(3/₈’’)

60mm (2⅓”)

minimum

Installed position

AWMS-2-BT75-G Page 3 of 4

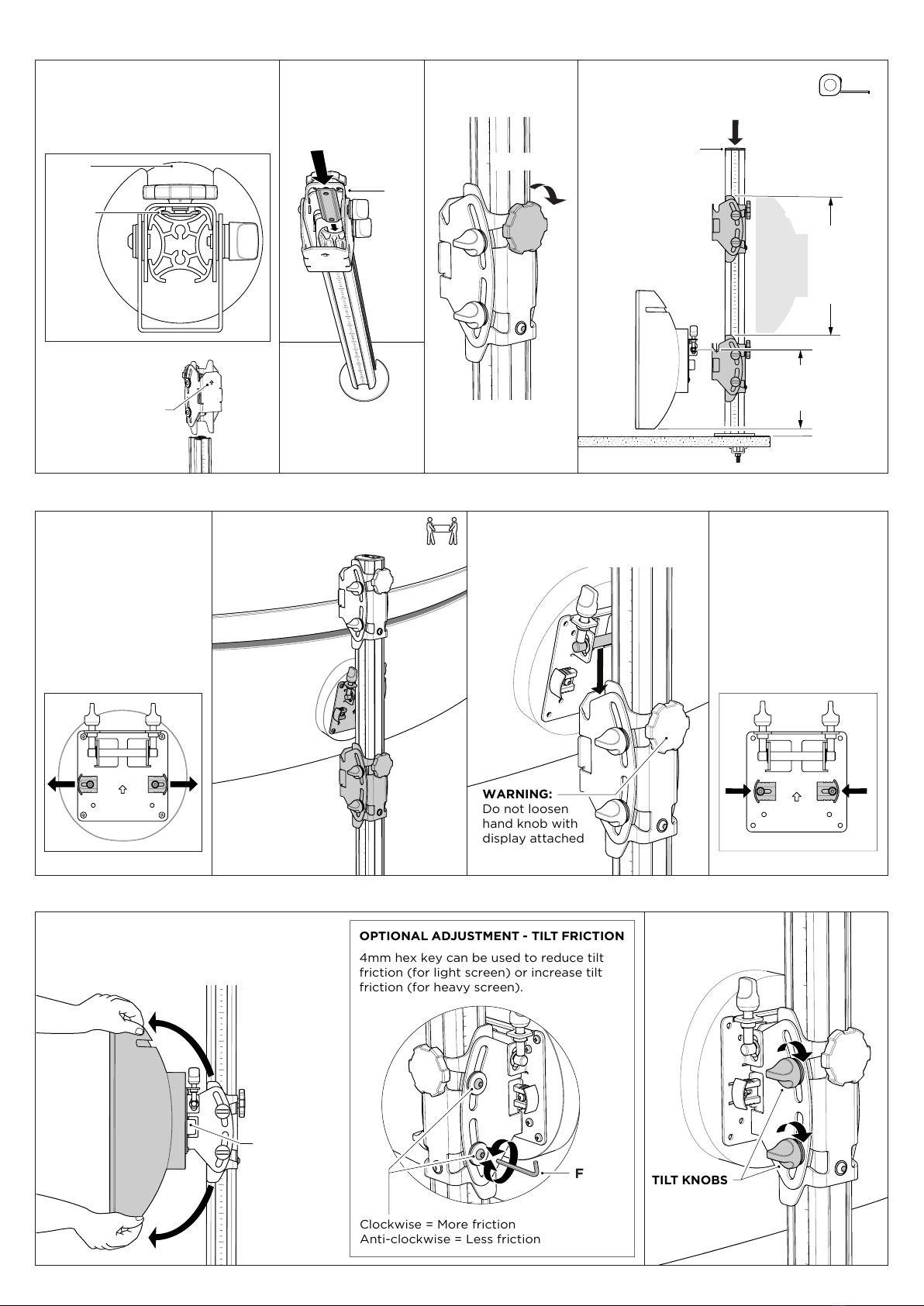

4. Slide brackets onto post and set height

4.1 Line up the inner guide

on rear of bracket with rear

channel on post.

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

HOLE

in desk

FRONT

of display

INNER

GUIDE

in rear

post

channel

VIEW FROM ABOVE

WARNING:

Ensure clips

closed before

tilting

5. Attach bottom display

6. Set tilt

5.1 Set VESA plate clips

to open position.

Bottom display must be

attachedtobracketrst.

WARNING:

Use two people to install

display

5.4 Set VESA plate

clips to closed position.

6.1 Adjust display tilt

angle by gripping edges

of screen and rolling up or

down to desired position.

TILT KNOBS

6.2 Set display

angle by tightening

tilt knobs.

5.3 Centre VESA plate close to

post and slowly lower until bar on

VESA plate sits in saddle in bracket.

5.2 Lift display until

VESA plate is above

the bracket.

OPEN

CLOSED

NOTE:

Display hangs from the

bracket like a painting.

After clips are closed,

if corners of the screen

are pushed downwards,

rocking movement is

expected.

WARNING:

Do not loosen

hand knob with

display attached

Clockwise = More friction

Anti-clockwise = Less friction

OPTIONAL ADJUSTMENT - TILT FRICTION

4mm hex key can be used to reduce tilt

friction (for light screen) or increase tilt

friction (for heavy screen).

4.3 Firmly tighten

hand knob at chosen

height.

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

TIGHTEN

WARNING:

Never loosen knob

while display is on

bracket

4.4 Ensure height is

sufcientfordisplayto

clear desk once in place.

Repeat with

second

bracket and

tpostcap.

4.2 Slide inner

guide into channel,

then lower bracket.

Arrow side

towards user

AWMS-2-BT75-G Page 4 of 4

Cables can

exit from

the side of

the cable

cover

PUSH

Please Recycle

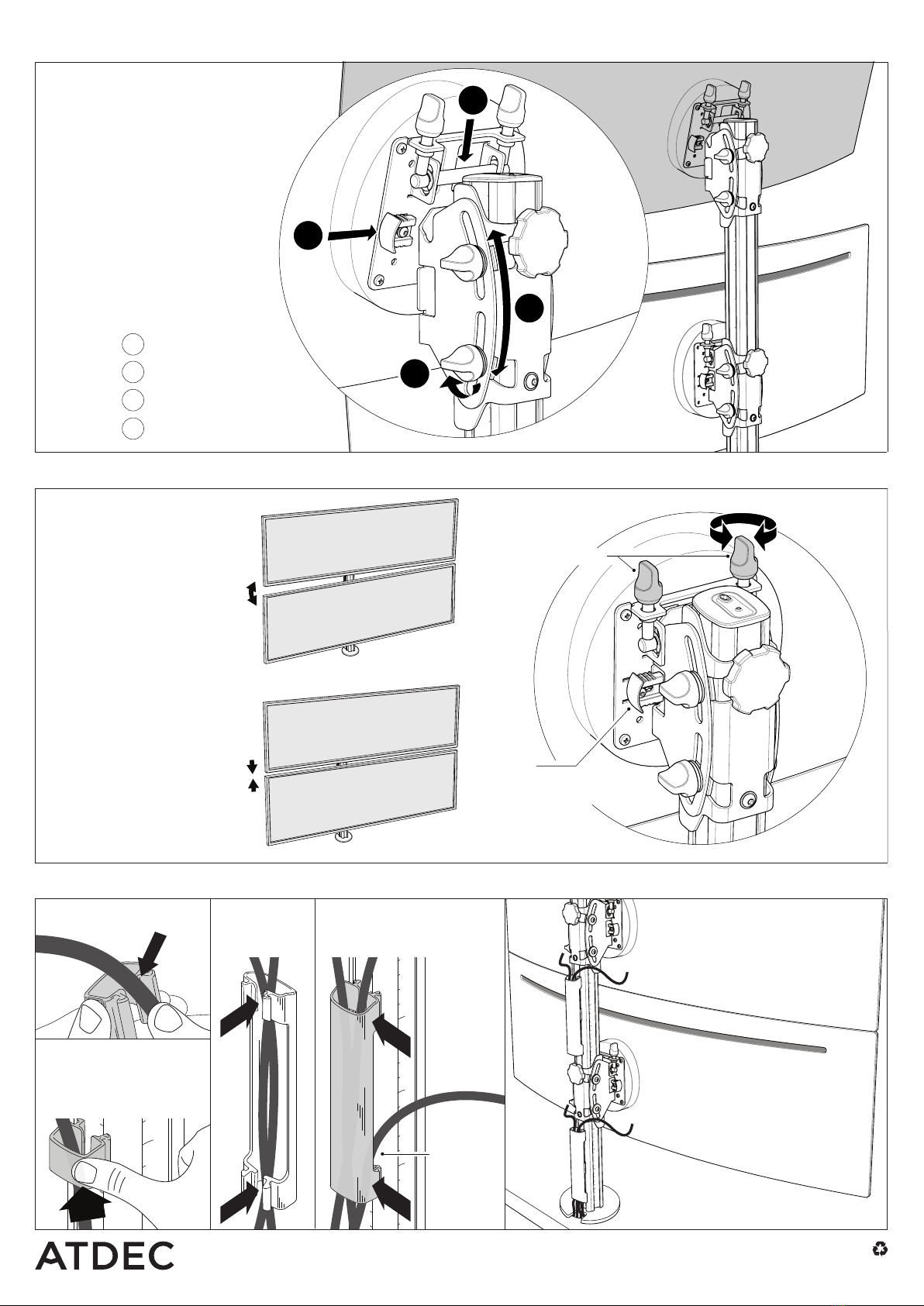

8. Fine Adjustment

7. Attach top display

iii

LHS &

RHS

TOP &

BOTTOM

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

7.1 Check that distance between brackets

is equal to or greater than the height of

the display. (See image in Step 4.4)

7.2 Repeat Step 5 & Step 6 to

attach top display and set tilt

angle.

Unstacked Stacked

9. Cable Management

9.1 Load cables into

cable clip.

9.2 Insert one side of the

cable clip into a channel

on the post, then push in

the other side.

Load cables into

cable cover

9.3 Load

cables into

cable cover.

9.4 Clip the cable cover

back onto rear post

channels.

8.1 To correct horizontal angle

of display +/- 3 °:

Turnasinglenetune

adjustment knob to adjust

angle of screen.

Clockwise = Higher

Anti-clockwise = Lower

8.2 To close small gap between

displays +/-6mm (1/4”):

Turnbothnetuneadjustment

knobs - alternating sides a few

rotations at a time.

Clockwise = Higher

Anti-clockwise = Lower

iii

LHS &

RHS

TOP &

BOTTOM

Lower

Adjust angle

Set angle

iii

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure clips are in

CLOSED position

WARNING:

Damage to monitors may occur

ifthereisinsufcientspacing

between brackets. Top monitor

must hang in bracket - not be held

up by the monitor below it. After

bothdisplaysareattached,usene

adjustment to close gap between

them (see Step 8).
