AWMS-BT40 Page 1 of 4
Installation Guide
AWMS-BT40
Post Mounted Heavy Duty
Monitor Mount
AWMS-BT40-H
AWMS-BT40X-H
AWMS-BT40-C AWMS-BT40-G
AWMS-BT40X-G
AWMS-BT40-H
AWMS-BT40X-H
AWMS-BT40-C AWMS-BT40-G
AWMS-BT40X-G
COMPONENT CHECKLIST
B
Bridge
(x1)
C
Leg
(x2)
A
Post
(x1)
B
Bracket
(x1)
E
4mm
Hex Key
(x1)
F
5mm
Hex Key
(x1)
N
13mm
Spanner
(x1)
C
VESA Plate
(x1)
A
M8 Stud
(x1)
H
M4x10mm
Screw
(x4)
D
Post Cap
(x1)
I
M4x20mm
Screw
(x4)
J
10mm
Spacer
(x4)
G
M8x60mm
Screw
(x2)
G
M8 Stud
(x1)
H
M8x30mm
Screw
(x1)
C
Clamp Bar
(x1)
B
Clamp Plate
(x1)
REQUIRED TOOLS
CAPACITY
Flat Monitor
4.5 - 25kg
(10 - 55lb)
Curved Monitors
4.5 - 18kg
(10 - 40lb)
Display Size
24” - 55”
300mm (12”) max
overall display depth
• Phillips Head Screwdriver
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! EachBracketsupportsamaximumweightasperabovecapacityspecication.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that
can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec
if you would like further information.
AWMS-BT40 Page 2 of 4

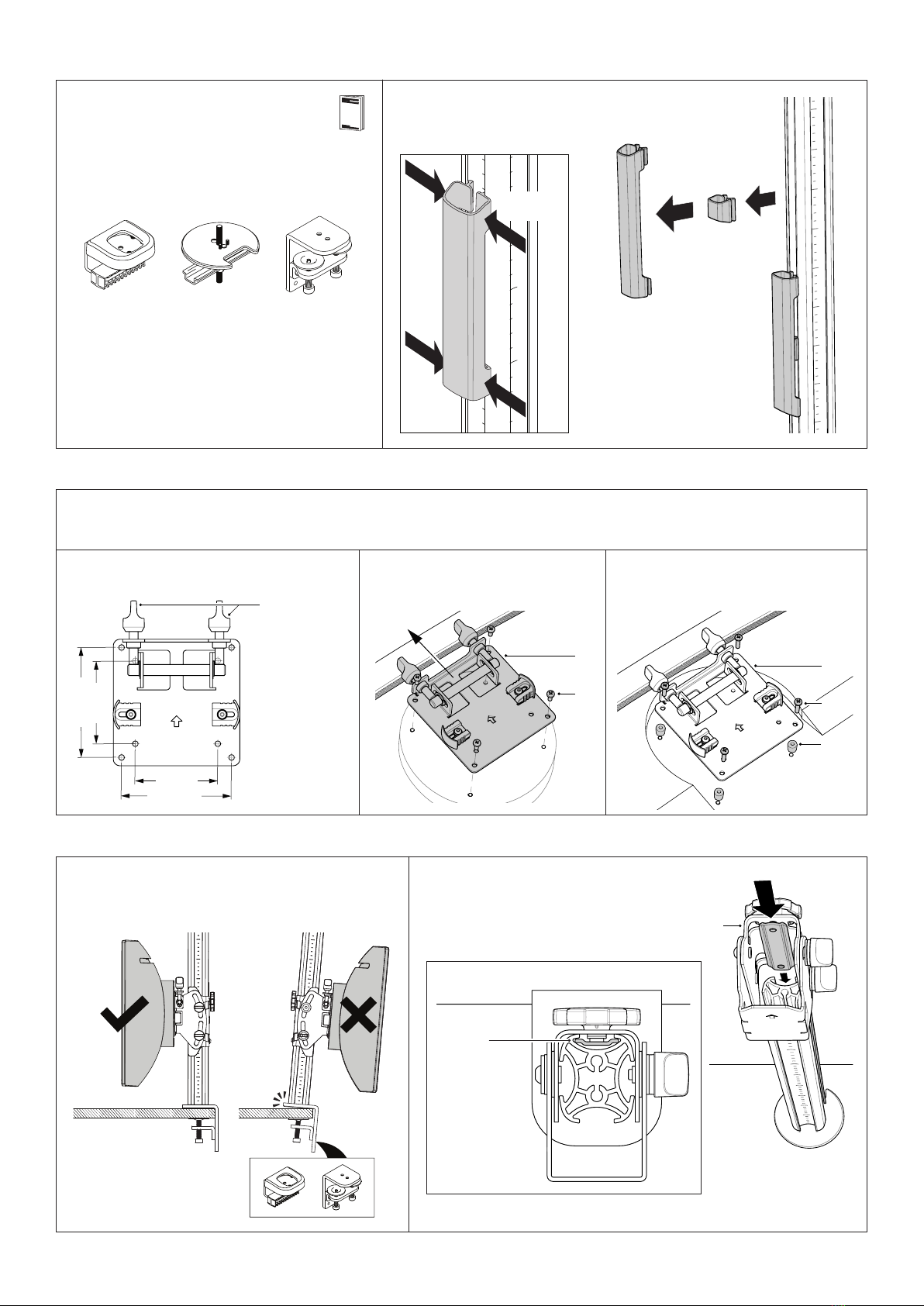

2. Attach VESA plate to display
2.1 VESA compatibility
3.1 Tilt bracket must only be attached with
display facing the front of the mounting
surfaceunlessxingisAC-GC.
NOTE: Some displays require the use of a VESA adapter before attaching the VESA plate. This VESA adapter may ship in the
box with the display. Consult your display’s installation guide for further information.
1. Attach post to xing (xing sold separately)
1.1 Follow the installation guide
providedwiththexingto
attachthepostandxittothe
worksurface.
1.2 Remove cable clips and covers
from post by sliding up and out or
by squeezing sides.
AWM-FC
C Clamp
AC-GC
Grommet
Clamp
AWM-FH
Heavy Duty
F Clamp
3. Slide bracket onto post
3.2 Line up the inner guide on rear of
bracket with rear channel on post.
Slide inner guide into channel, then
lower the bracket.
PLAN VIEW
AWM-FC
C Clamp
AC-GC
Grommet
Clamp
AWM-FH
Heavy Duty
F Clamp
75mm
100mm
75mm
100mm
NOTE:
For 75mm
VESA
unscrew
5mm to
access
top holes
C
I
J
C
H
TOP
WORK
SURFACE
C
B
BACK OF
DESK
INNER
GUIDE
POSITIONED
IN REAR
POST
CHANNEL
Option B - For recessed VESA use
10mm spacers and M4x20 screws.
Option A - Attach VESA plate
with M4x10 screws.
SQUEEZE
to release
AWMS-BT40 Page 3 of 4
5. Attach display
4. Set height
4.1 Ensure height is
sufcientfordisplayto
clear desk once in place.
4.2 Firmly tighten hand
knob at chosen height.
Fit post cap.
5.1 Set VESA plate to
open position.
5.4 Set VESA plate to
closed position by sliding
clips on both sides inwards.
5.3 Centre VESA plate
close to post and
slowly lower until bar
on VESA plate sits in
saddle in bracket.
5.2 Lift display until
VESA plate is above the
bracket.
5.5 Adjust display tilt
angle by gripping edges
of screen and rolling up or
down to desired position.
WARNING:
Never loosen
knob while display
is on bracket
WARNING:
Use two people to
install display
TIGHTEN
MEASURE
≥Display
height
between
brackets
D
MEASURE to
ensure clearance
to desk
D
MEASURE
≥Display
height
between
brackets
D
MEASURE to
ensure clearance
to desk
D
OPEN
WARNING:
Do not loosen
hand knob once
display attached
CLOSED
TILT KNOBS
OPEN
E
OPTIONAL
ADJUSTMENT -
TILT FRICTION
Clockwise = More friction
Anticlockwise = Less friction
4mm hex key
can be used to
reduce tilt
friction (for
light screen) or
increase tilt
friction (for
heavy screen)
5.6 Set display
angle by tightening
both tilt knobs.
AWMS-BT40 Page 4 of 4
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reservestherighttoalterspecicationswithoutnotice.©20221222
7. Fine adjustment
8. Cable management
CABLE COVERS
8.5 Load cables
into cable cover.
CABLE CLIPS
8.2 Load cables into
cable clip.
8.6 Clip the
cable cover
onto post
channel.
7.1 To correct horizontal angle
of display +/- 3 °:
Turnasinglenetune
adjustment knob to adjust angle
of screen.
CLOCKWISE = HIGHER
ANTI-CLOCKWISE = LOWER
7.2 Tonetuneheightwithout
removing screen +/-6mm (1/4”):
Turnbothnetuneadjustment
knobs - alternating sides a few
rotations at a time.
8.1 Cable clips and covers
can be clipped onto any
post channel. The rear
channel is recommended.
8.3 Insert one side of the
cable clip into a channel
on the post, then push in
the other side.
8.4 (OPTIONAL)
Cable covers can
be clipped on
over the cable
clips.
HINT: Cable covers
have greater cable
capacity.
+/- 6mm (0.25”)
Micro adjustment - Fine tune height
+/- 3°
Micro adjustment - Levelling
FINE HEIGHT ADJUST
FINE ADJUSTMENT
KNOBS
NOTE:
Ensure clips are in
CLOSED position
PUSH
Cables can
exit from
the side of
the cable
cover
PUSH
PUSH
Load cables into
cable cover
WARNING:
Always remove display
before adjusting height
Unstacked Stacked
