Atdec AWMS-2-D13-C Manuale utente

AWMS-2-D13-C | Page 1 of 13

Installation Guide

AWMS-2-D13-C

2 x Dynamic Arms on 135 Post with C-Clamp

COMPONENT CHECKLIST RANGE

CONTENTS

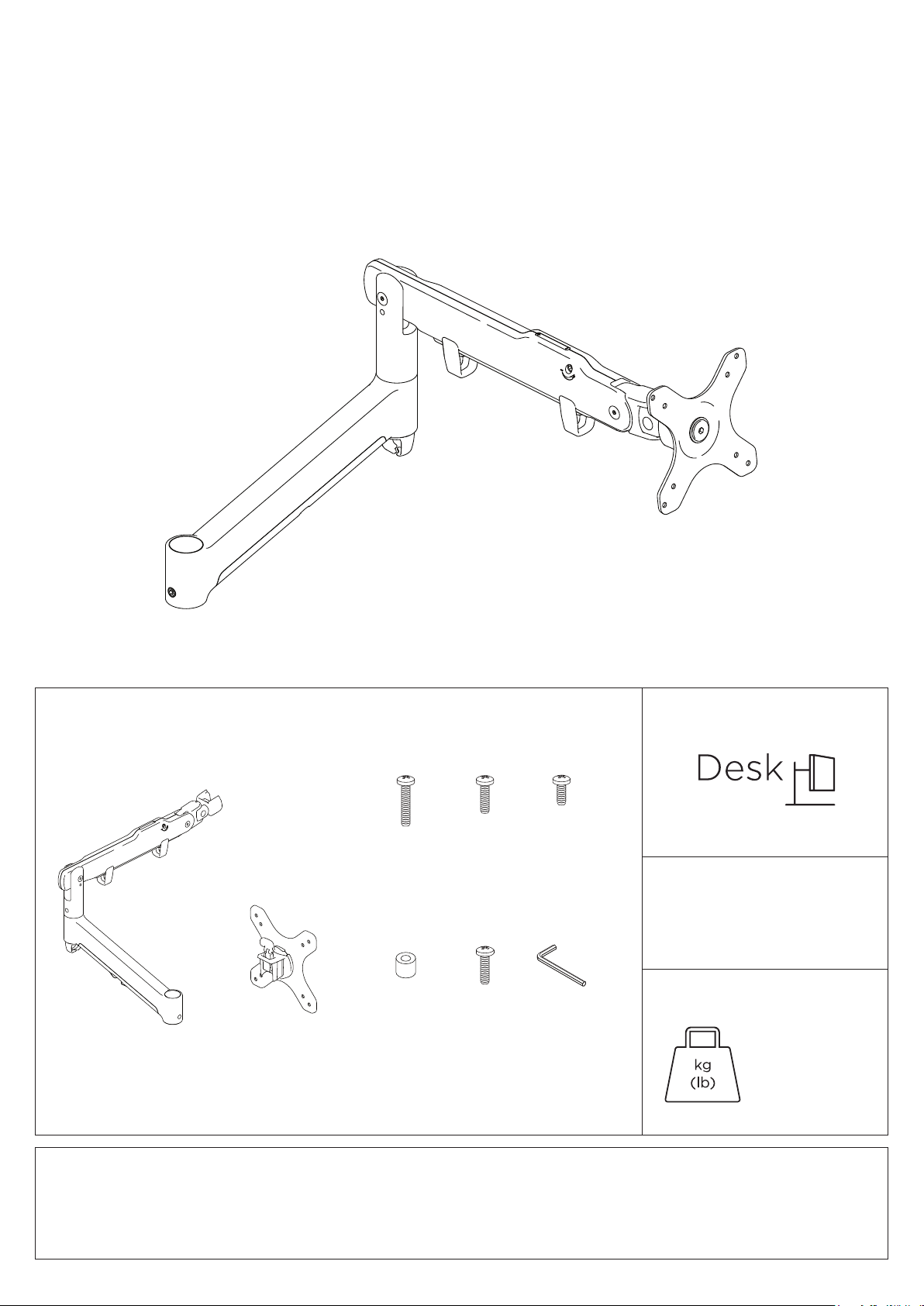

AWM-AD

Dynamic Arm

(x2)

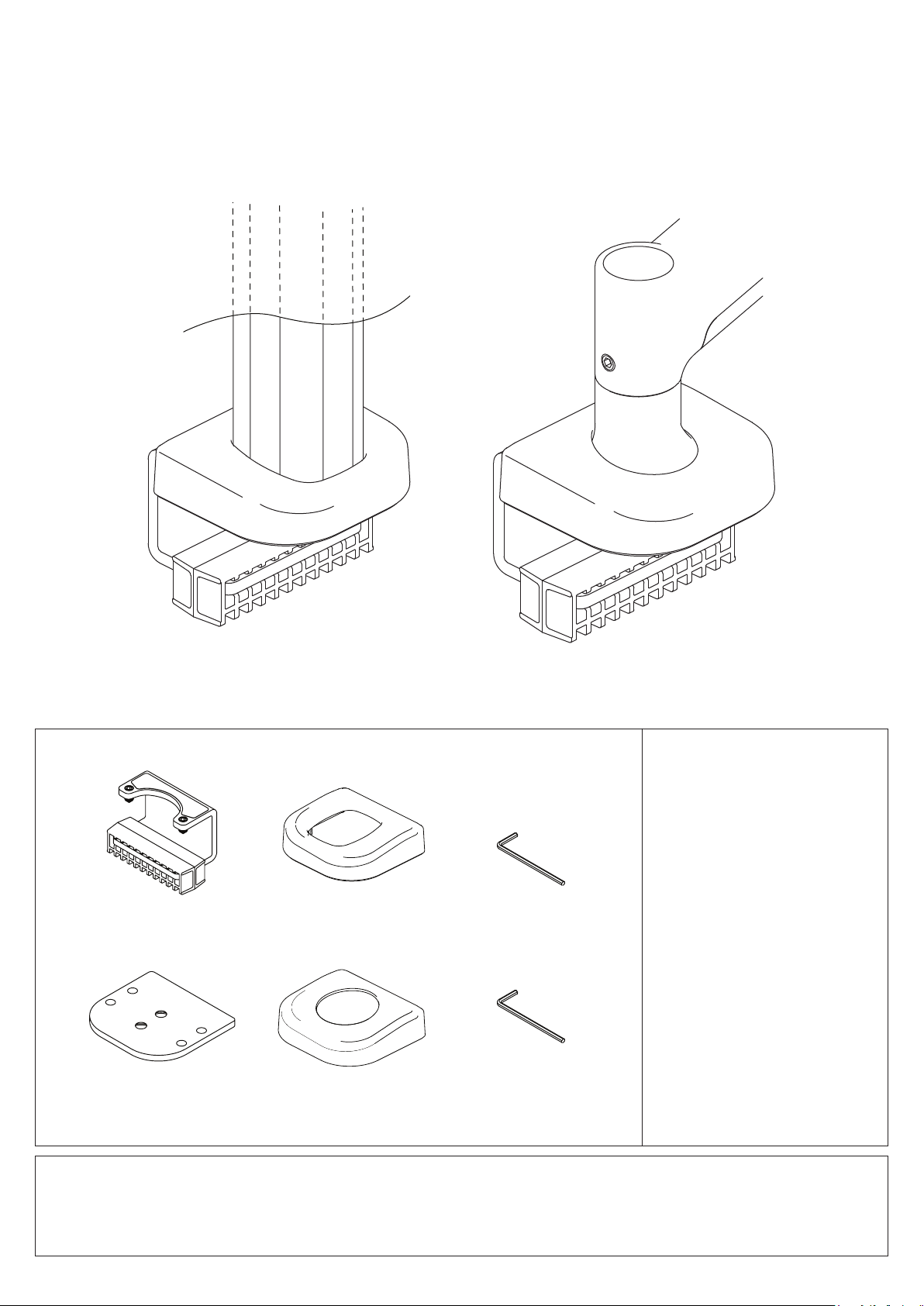

AWM-FC

C-Clamp

(x1)

AWM-LC

Post Clamp (x1)

AWM-P13

135 Post

(x1)

C-Clamp

Page 2

Page 3

135 Post

Page 6

Page 7

Post Clamp

Page 8

Page 9

Dynamic Arm

Page 10

Page 11

Page 12

Page 13

AWM-FC

Component Checklist

Clamp Installation

AWM-P13

Component Checklist

Post Installation

AWM-LC

Component Checklist

Post Clamp Installation

AWM-AD

Component Checklist

Arm Installation

Monitor Installation

Cable Management

AWMS-2-D13-C | Page 2 of 13

AWM-FC

C-Clamp

AWM-FC Page 1 of 4

Installation Guide

AWM-FC

C Clamp

COMPONENT CHECKLIST REQUIRED TOOLS

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec modular (AWM) products.

! The manufacturer accepts no responsibility for incorrect installation.

C Clamp Bracket

(x1)

C Clamp Plate

(x1)

Cover for Post

(x1)

Cover for Base

(x1)

4mm

Allen key

(x1)

5mm

Allen key

(x1)

• All tools supplied

C Clamp Bracket

(x1)

C Clamp Plate

(x1)

Cover for Post

(x1)

Cover for Base

(x1)

4mm Allen key

(x1)

5mm Allen key

(x1)

AWMS-2-D13-C | Page 3 of 13

AWM-FC Page 2 of 4

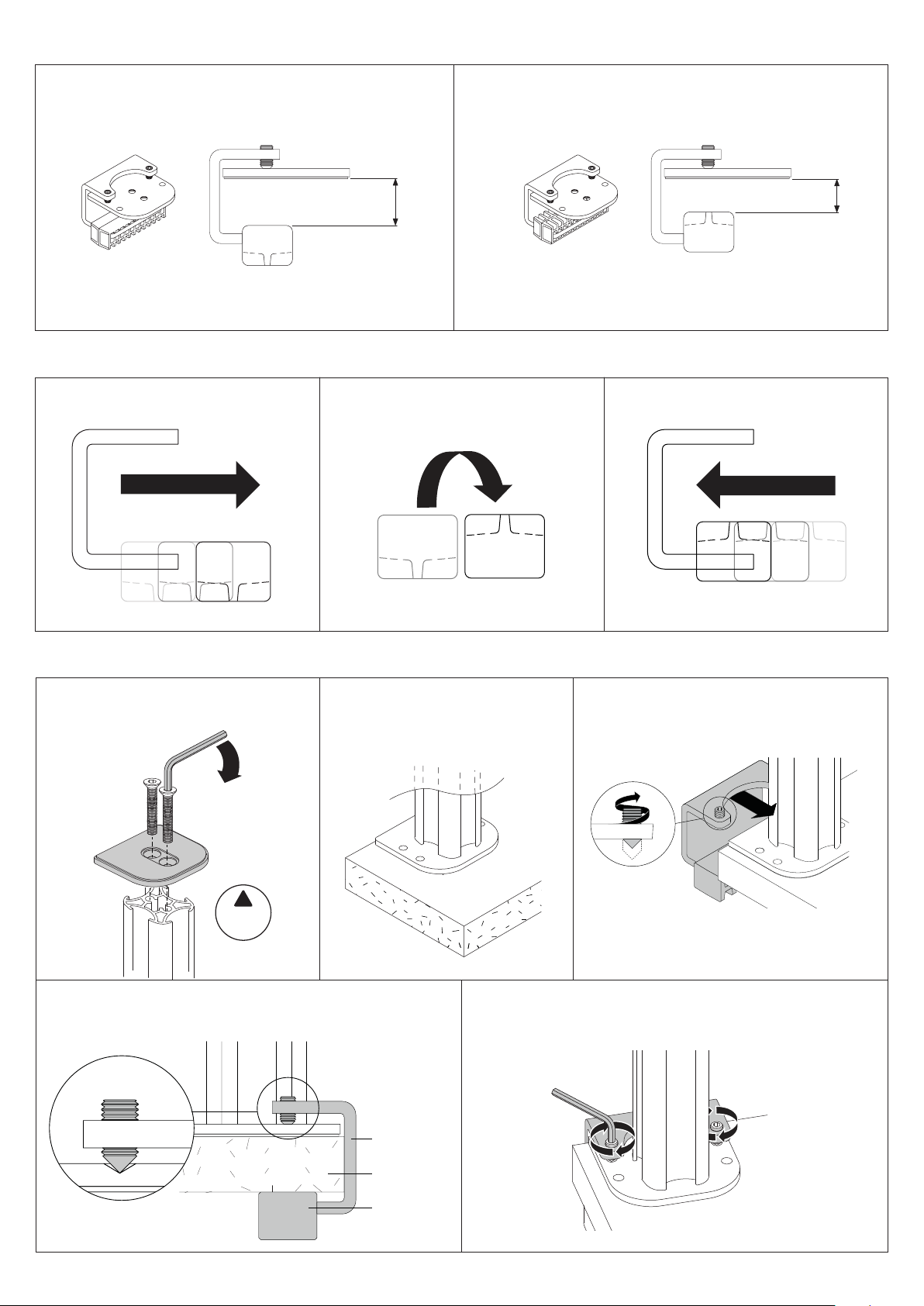

1. C Clamp overview

2. Re-configure Clamp

1.1 Default - This is the “out of the box” configuration

MIN THICKNESS - 25mm ( 1”)

MAX THICKNESS - 33mm (15

16”)

MIN THICKNESS - 18mm (11/

16”)

MAX THICKNESS - 25.8mm (1”)

1.2 Inverted - The C Clamp can be reconfigured for thicker surfaces

2.1 Slide pad off 2.3 Invert pad 2.3 Slide pad back on

Fasteners

supplied

with post

Tighten

Firmly

3.2 Place in desired location 3.3 Slide the C Clamp bracket over the plate

and position screw tips in the indents on

the base plate

Note: You may need to un-screw the set screws

out of the plate using the allen key

3.1 Attach plate to post

3. Post mount configuration

Desk Clamp

Bracket

Mounting

surface

Pad

M8 x 16mm

Set Screw

3.4 Check the set screws are mounted in position. Also check the

desk clamp bracket is positioned tight up against the mounting

surface edge

3.5 Tighten the set screws firmly and evenly on both sides of the

desk clamp bracket.

AWMS-2-D13-C | Page 4 of 13

AWM-FC Page 3 of 4

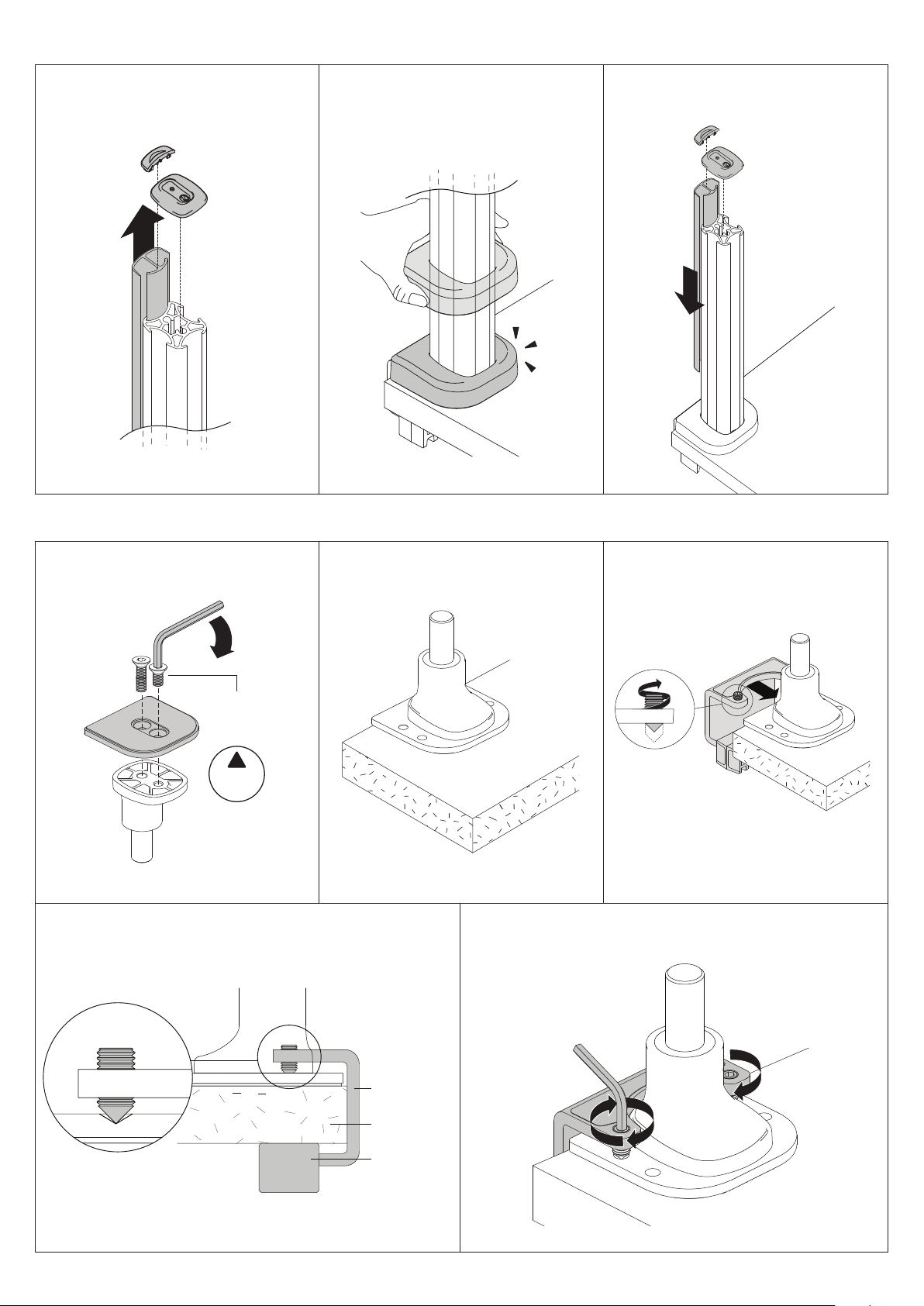

4. Installing the clamp cover to post

5. Base mount installation

4.1 Remove the cable cover by pulling it

straight up and out of the post. Remove

top cap if already installed

5.1 Attach plate to base

5.5 Tighten the set screws firmly and evenly on both sides of the

desk clamp bracket

5.4 Check the set screws are mounted in position. Also check the

desk clamp bracket is positioned tight up against the mounting

surface edge

4.2 Locate the C Clamp cover over the

post. Guide over the holes in the base

plate and gently apply pressure on the

cover until it clicks into place

5.2 Place the base and plate in desired

location

4.3 Re-attach the cable cover by sliding

it into the post channel. Fit the pole and

cover caps back on.

5.3 Slide the bracket onto the base plate

and position screw tips in the indents on

the base plate

Note: You may need to un-screw the set

screws out of the plate using the allen key

Fasteners

supplied

with base

Tighten

Firmly

Desk Clamp

Bracket

Mounting

surface

Pad

M8 x 16mm

Set Screw

Click!

AWMS-2-D13-C | Page 5 of 13

AWM-FC Page 4 of 4

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

6. Installing the clamp cover to base

6.1 Locate the Cover for Base over the base. Guide over the

holes in the base plate and gently apply pressure on the cover

unitl it clicks into place.

6.2 Installation Complete

To continue with intallation of your monitor arm, refer to

your monitor arm’s installation guide.

Click!

AWMS-2-D13-C | Page 6 of 13

AWM-P Page 1 of 2

Installation Guide

AWM-P

Post

COMPONENT CHECKLIST

REQUIRED TOOLS

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM Series products.

! The manufacturer accepts no responsibility for incorrect installation.

• All tools provided

Post

(x1)

Screw

(x2)

Cable clips

(not supplied

with all posts)

Post Cap

(x1)

Cable Cover

(x1)

(not supplied

with all posts)

Cable Cover Cap

(x1)

(not supplied

with all posts)

AWM-P

Post

(x1)

Screw M8

(x2)

Cable clips

(not supplied

with all posts)

Post Cap

(x1)

Cable Cover

(x1)

(not supplied

with all posts)

Cable Cover Cap

(x1)

(not supplied

with all posts)

AWMS-2-D13-C | Page 7 of 13

AWM-P Page 2 of 2

Rear of Mounting

Surface

Rear of Mounting

Surface

Rear of Mounting

Surface

Rear of Mounting

Surface

1. Attach Post to fixing (fixing sold seperately)

2. Check post placement & arm positions

4. Cable clips and cover

3. Cable cover position and post cap

2.1 Do not mount a monitor arm on the rear channel

of a post when the post is fixed to the desk using an

F Clamp, Heavy Duty F Clamp, or C Clamp.

4.1 Push the cable down into

the cable clip.

4.2 Insert one side of the

cable clip into the channel on

the post assembly, then push

in the other side.

3.1 To reposition the cable cover, pull it

straight up and out of the post and insert

it into any of the available channels

3.2 Optional cable cover positions 3.3 Fit post cap onto the top of the post

Note: The cable cover shown does not

come with all posts

Note: Cable clips do not come with all

posts. Additional clips sold separately.

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Cable Cover

Allen Key

Post Cap

Post

Note: An allen key

may be stored in

the Post Cap.

F Clamp

AWM-FF

Heavy Duty

F Clamp

AWM-FH

C Clamp

AWM-FC

C Clamp

Bolt

Through

Kit

AC-GC

Grommet

Clamp

HD F Clamp

F Clamp

C Clamp

Bolt

Through

Kit

AC-GC

Grommet

Clamp

HD F Clamp

F Clamp

AWM Fixing options

Bolt Through

Kit

AWM-FB

F Clamp

AWM-FF

Heavy Duty

F Clamp

AWM-FH

C Clamp

AWM-FC

Grommet

Clamp

AC-GC

1.1 Follow the installation

guide provided with your

xing to attach it to the post

and t it to the worksurface.

4.3 Loop cable and insert

into cable cover.

4.4 Feed remaining cable

into the cover.

AWMS-2-D13-C | Page 8 of 13

AWM-LC Page 1 of 2

COMPONENT CHECKLIST

Installation Guide

AWM-LC

Post Clamp

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with AWM Series Arms, Posts and Wall Channels.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

• All tools provided

Post Clamp

(x1)

AWM-P

Post Clamp

AWMS-2-D13-C | Page 9 of 13

AWM-LC Page 2 of 2

1. Fix Clamp to Post or Wall Channel

3. Fit AWM Series arm to Post Clamp

1.1 Ensure knob is undone.

2.1 Remove plastic sleeve.

3.1 Push arm onto clamp.

1.2 Slide Post Clamp into channel.

2.2 Remove rotation ring

3.2 Ensure arm is fully pushed onto clamp.

Push knob to

aid insertion

1.3 Hold clamp in desired position on post

and turn knob to lock in place.

2.3 Place rotation ring in the desired position.

3.3 Tighten joint screw.

Note: Check the

arm rotation is

smooth after

tightening.

Note: Arm sold

separately

Note: Place the rotation ring

depending on what post channel

the arm will be attached to. The tag

should always face towards the user.

1. Ensure Knob is undone

1. Remove plastic sleeve

Tip: push knob

to aid insertion

2. Slide post clamp into channel

2. Remove rotation ring

1. Press

2. Lift

3. Hold clamp in desired position on post and turn

knob to lock in place

3. Place the rotation ring

in the desired postion

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

180°

360°

Default

Position

Flipped

Position

Tag

1. Push arm onto clamp

2. Ensure arm is fully pushed onto clamp

3. Tighten set screw

Tip: Check the

arm rotation is

smooth after

tightening.

2. Set arm rotation to 180° (optional)

Note: default arm rotation is set to rotate 360�

AWMS-2-D13-C | Page 10 of 13

AWM-AD

Dynamic Arm

AWM-AD Page 1 of 4

Installation Guide

AWM-AD

Dynamic Arm

COMPONENT CHECKLIST

REQUIRED TOOLS

Dynamic

Monitor Arm

(x1)

VESA

head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

Security

screw

(x1)

4mm

allen key

(x1)

• Phillips Head Screwdriver

WEIGHT RANGE

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM Series products.

! The Dynamic Arm (AWM-AD) requires a Channel Clamp (AWM-LC, sold separately) for installation on an AWM Post.

! The Dynamic Arm (AWM-AD) requires a Desk Base (AWM-LB, sold separately) for installation directly onto an AWM fixing.

! The manufacturer accepts no responsibility for incorrect installation.

0 - 9kg

(0 - 20lbs)

Dynamic

Monitor Arm

(x1)

VESA

Head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

Security

Screw

(x1)

4mm

Allen Key

(x1)

Altri manuali Atdec Rack e supporto

Atdec

Atdec AWM-LC Manuale utente

Atdec

Atdec AWMS-BT40 Manuale utente

Atdec

Atdec SYSTEMA SW6S Manuale utente

Atdec

Atdec AWMS-2-BT75-FS Manuale utente

Atdec

Atdec TH-2050-VFM Manuale utente

Atdec

Atdec AWMS-2-BT75-FS Manuale utente

Atdec

Atdec Freestanding Quad Manuale utente

Atdec

Atdec TELEHOOK TH-3060-UT Manuale utente

Atdec

Atdec TH-3060-UF Manuale utente

Atdec

Atdec AWMS-DW6 Manuale utente

Atdec

Atdec Visidec Freestanding Double Manuale utente

Atdec

Atdec AWM Series Manuale utente

Atdec

Atdec AWMS-2-LTH75-H Manuale utente

Atdec

Atdec AWMS-2-BT75-FS Manuale utente

Atdec

Atdec AWM 460 Arm Manuale utente

Atdec

Atdec AF Series Manuale utente

Atdec

Atdec SPACEDEC ACROBAT Istruzioni operative

Atdec

Atdec 8060 Manuale utente

Atdec

Atdec AWM-W6 Manuale utente

Atdec

Atdec AWM-P G Manuale utente

Atdec

Atdec AWMS-2-4640-C Manuale utente

Atdec

Atdec AWM-WS Manuale utente

Atdec

Atdec AD-TVAC-CM Manuale utente

Atdec

Atdec AF-AN Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente
