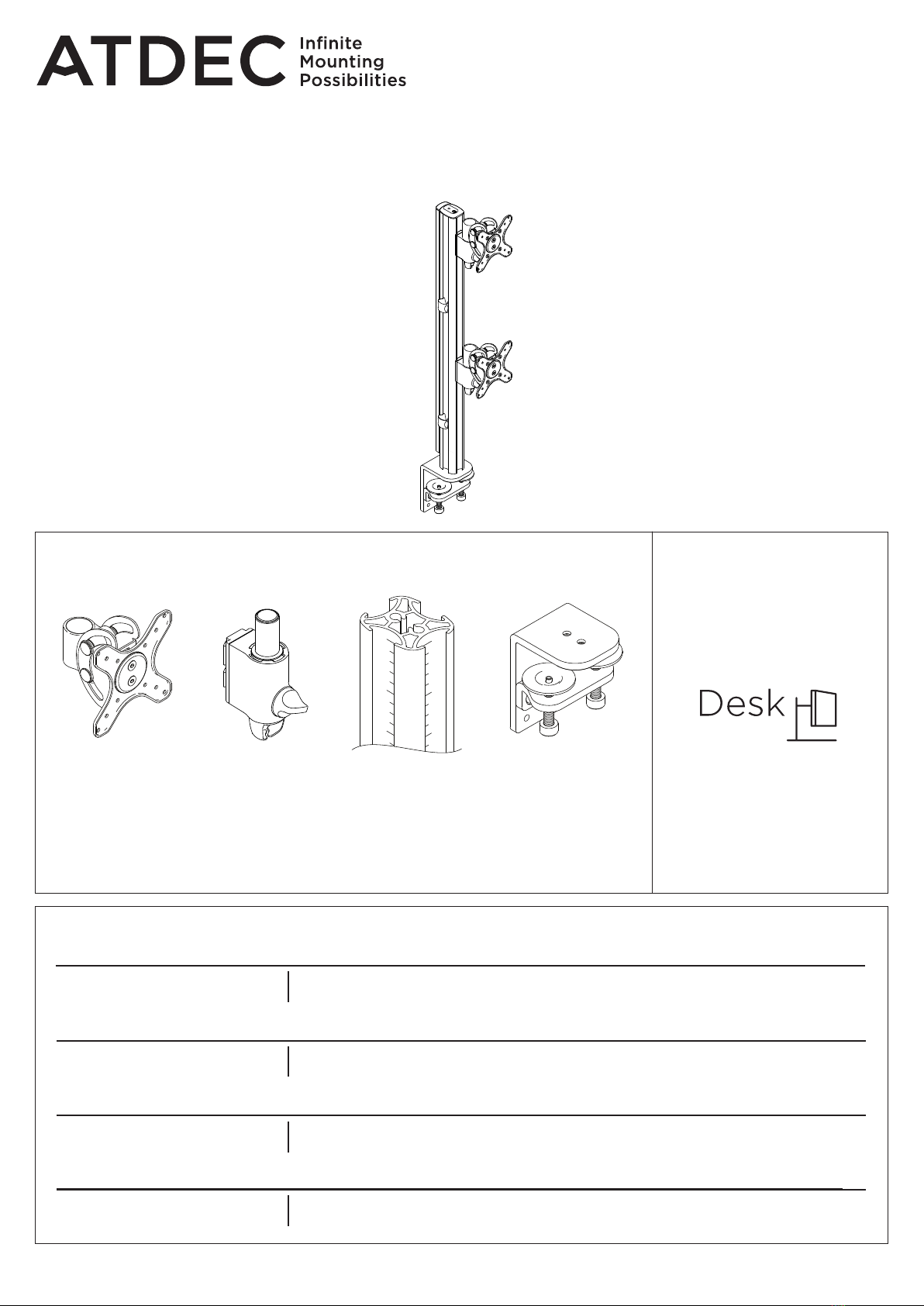

AWM-2-LTH75-H Page 1 of 10

Installation Guide

AWMS-2-LTH75-H

Dual Vertical Stack Desk Mount with

Heavy Duty F Clamp

COMPONENT CHECKLIST RANGE

CONTENTS

AWM-LC

Channel

Clamp

(x2)

AWM-LTH

Heavy Duty

Tilt Head

(x1)

Heavy Duty

Tilt Head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

4mm

allen key

(x1)

Rotation

Security

Screw

M5x16mm

(x4)

AWM-FH

Heavy Duty

F Clamp

(x1)

AWM-P75G

750 Post with

Guide Marks

(x1)

Heavy Duty F Clamp

Page 2

Page 3

750 Post with Guide Marks

Page 4

Page 5

Channel Clamp

Page 6

Page 7

Heavy Duty Tilt Head

Page 8

Page 9

AWM-FH

Component Checklist

Clamp Installation

AWM-P75G

Component Checklist

Post Installation

AWM-LC

Component Checklist

Clamp Installation

AWM-LTH

Component Checklist

Head Installation

AWM-2-LTH75-H Page 2 of 10

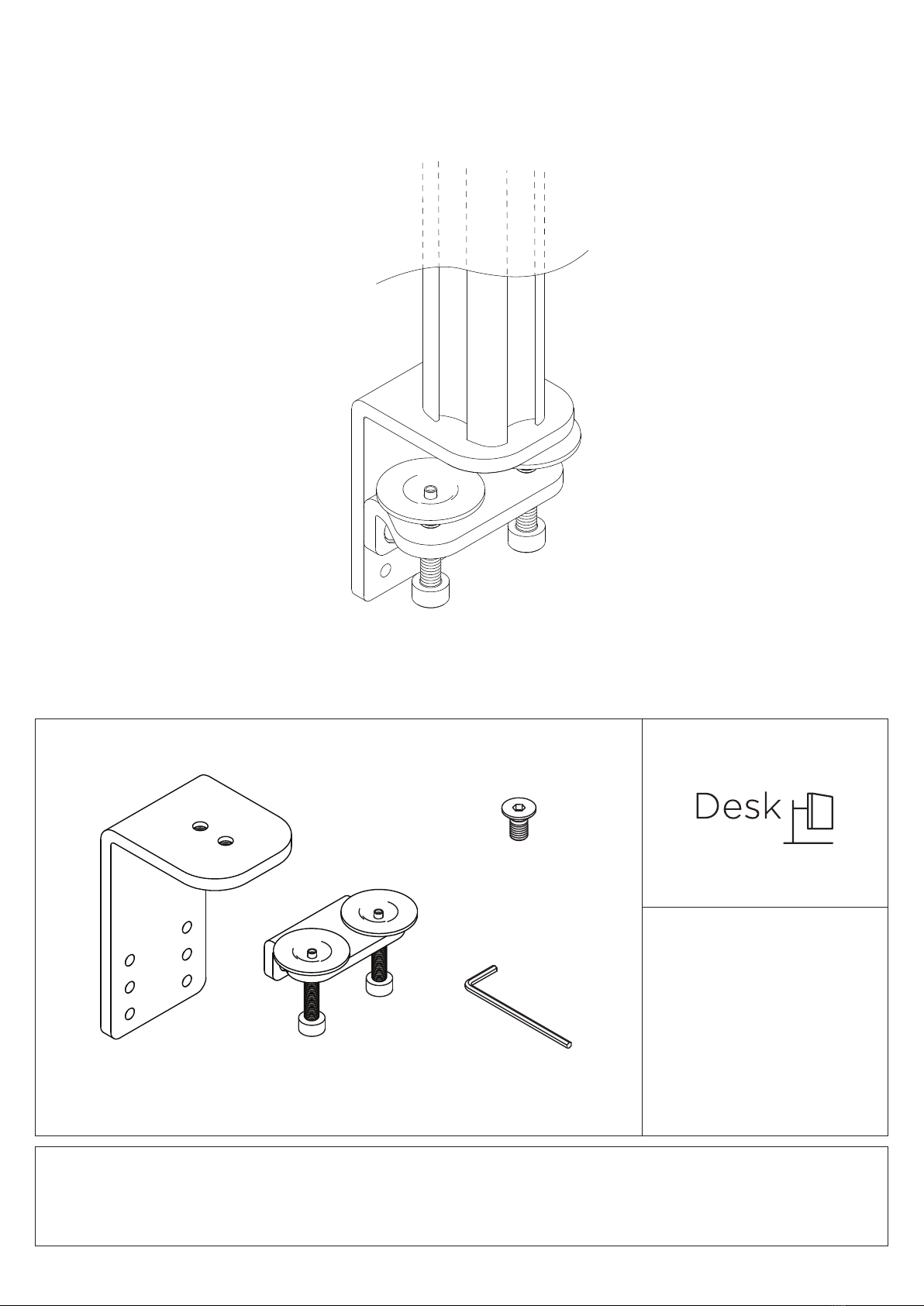

AWM-FH

Heavy Duty F Clamp

COMPONENT CHECKLIST

5mm

Allen key

(x1)

Lower Clamp

(x1)

Upper Clamp

(x1)

Screw

M8 x 16mm

(x2)

REQUIRED TOOLS

• All tools provided

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM Series products.

! The manufacturer accepts no responsibility for incorrect installation.

AWM-2-LTH75-H Page 3 of 10

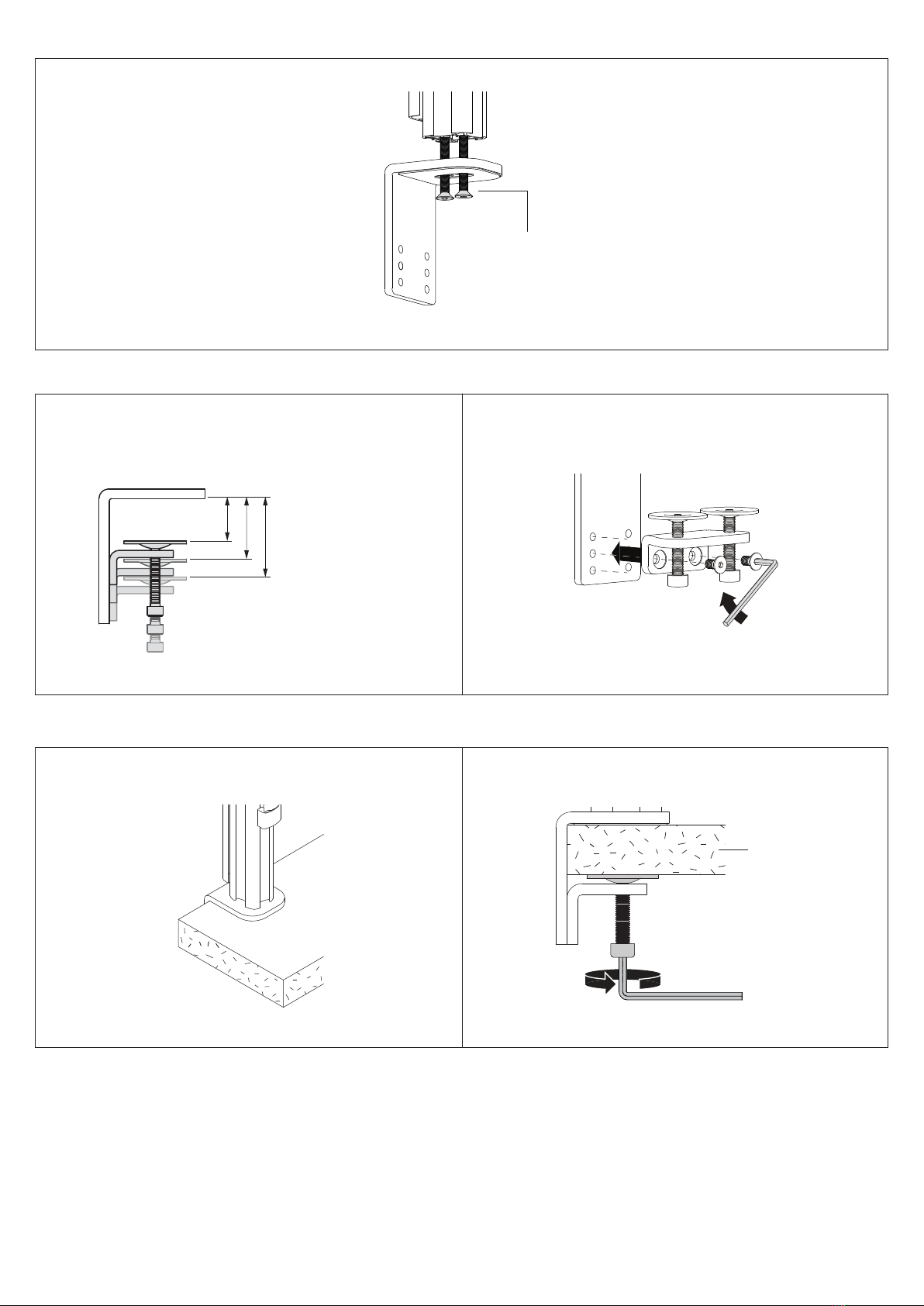

1. Attach post to upper clamp

2. Attach lower clamp to upper clamp

3. Fit fixing to work surface

Fasteners

supplied

with post

3.1 Place in desired location on worksurface 3.2 Screw in both pressure plates and

tighten evenly and firmly

2.2 Attach lower clamp to upper clamp in the suitable

position using the two provided screws

2.1 Measure the worksurface thickness and

choose the suitable lower clamp position

NOTE: If there is only a small gap behind the

worksurface, perform Step 3.1 before this step.

NOTE: Post packaged seperately

Mounting

surface

5mm

allen key

T M B

Top

Middle

Bottom

0 - 38mm (0.00 - 1 ½”)

11 - 53mm (”- 2 ”)

25 - 68mm (1” - 2 ”)

AWM-2-LTH75-H Page 4 of 10

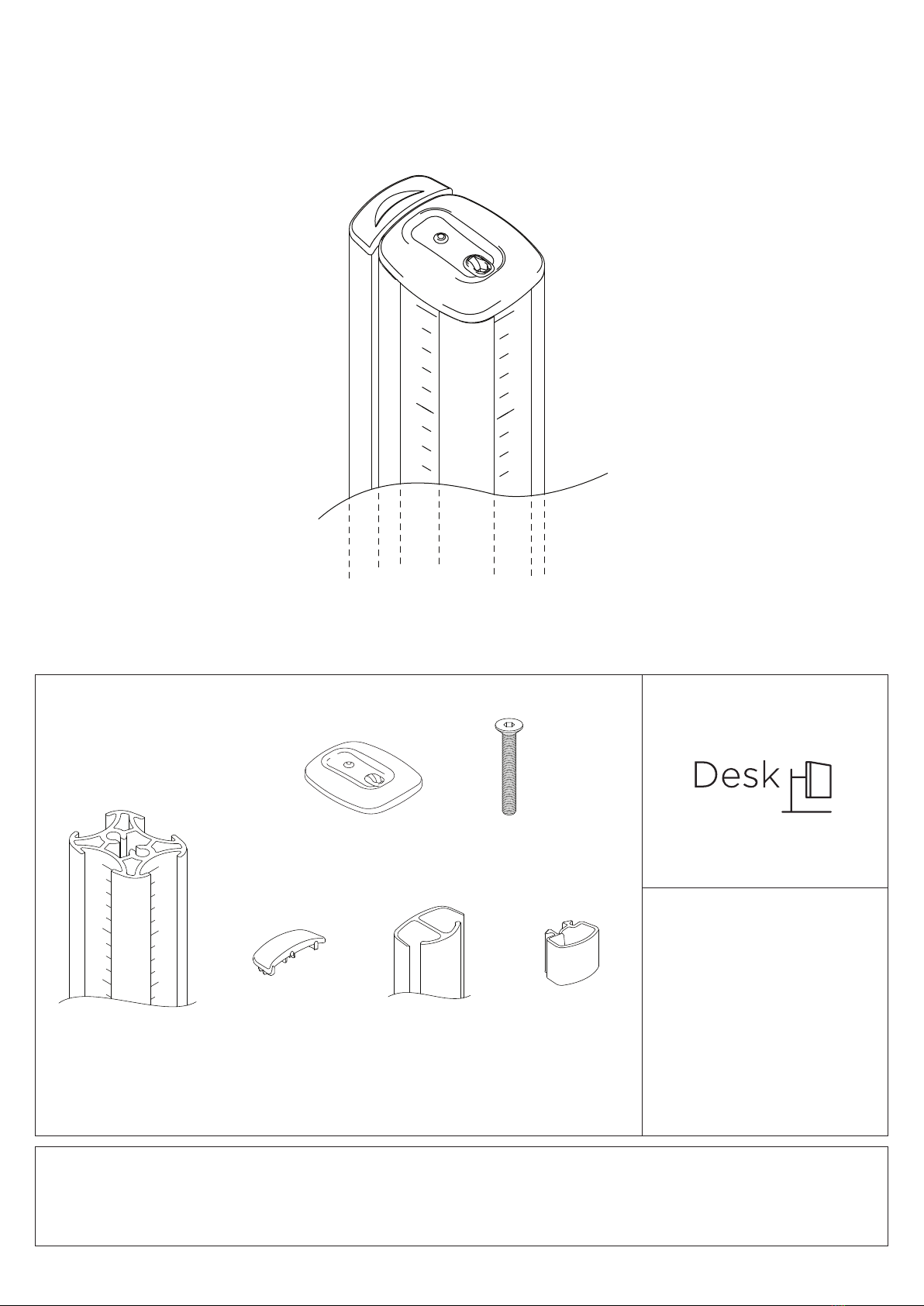

AWM-P

Post with Guide marks

COMPONENT CHECKLIST

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM Series products.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

• All tools provided

Post

(x1)

Screw

(x2)

Cable clips

(not supplied

with all posts)

Post Cap

(x1)

Cable Cover

(x1)

(not supplied

with all posts)

Cable Cover Cap

(x1)

(not supplied

with all posts)

AWM-2-LTH75-H Page 5 of 10

1. Attach Post to Fixing

2. Mount Clamp to Post

4. Cable clips and cover

3. Position Cable Cover and fit Post Cap

2.2 Do not mount monitor arm

on rear channel post when

using the supplied Heavy Duty

F Clamp

2.1 Slide clamp into post and position

to desired height. Turn knob to lock in

place.

If you are installing multiple

mounts, use the guide marks on

post as reference for setting the

height of each arm. Final fine-tuning

may be required once monitor

is installed.

4.1 Push the cable down into

the cable clip.

4.2 Insert one side of the

cable clip into the channel on

the post assembly, then push

in the other side.

3.1 To reposition the cable cover, pull

it straight up and out of the post

and insert it into any of the available

channels

Optional cable

cover positions

3.2 Fit post cap onto the top of the post

NOTE: Cable cover does not come with all posts

Note: Cable clips do not come with all

posts. Additional clips sold separately.

Cable Cover

Allen Key

(Supplied w/fixing)

Post Cap

Post

Note: An allen key

may be stored in

the Post Cap.

C Clamp

Bolt

Through

Kit

AC-GC

Grommet

Clamp

HD F Clamp

F Clamp

C Clamp

Bolt

Through

Kit

AC-GC

Grommet

Clamp

HD F Clamp

F Clamp

C Clamp

Bolt

Through

Kit

AC-GC

Grommet

Clamp

HD F Clamp

F Clamp

Supplied Also Compatible

Heavy Duty

F Clamp

AWM-FH

Grommet

Clamp

AC-GC

1.1 Follow the Heavy Duty F Clamp installation

guide on pages 2 and 3 of this booklet or

provided with your alternate xing option.

4.3 Loop cable and insert

into cable cover.

4.4 Feed remaining cable

into the cover.

Note: Guide marks only available on 400

post, 510 post and 750 post.

AWM-2-LTH75-H Page 6 of 10

COMPONENT CHECKLIST

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with AWM Series Arms, Posts and Wall Channels.

! The manufacturer accepts no responsibility for incorrect installation.

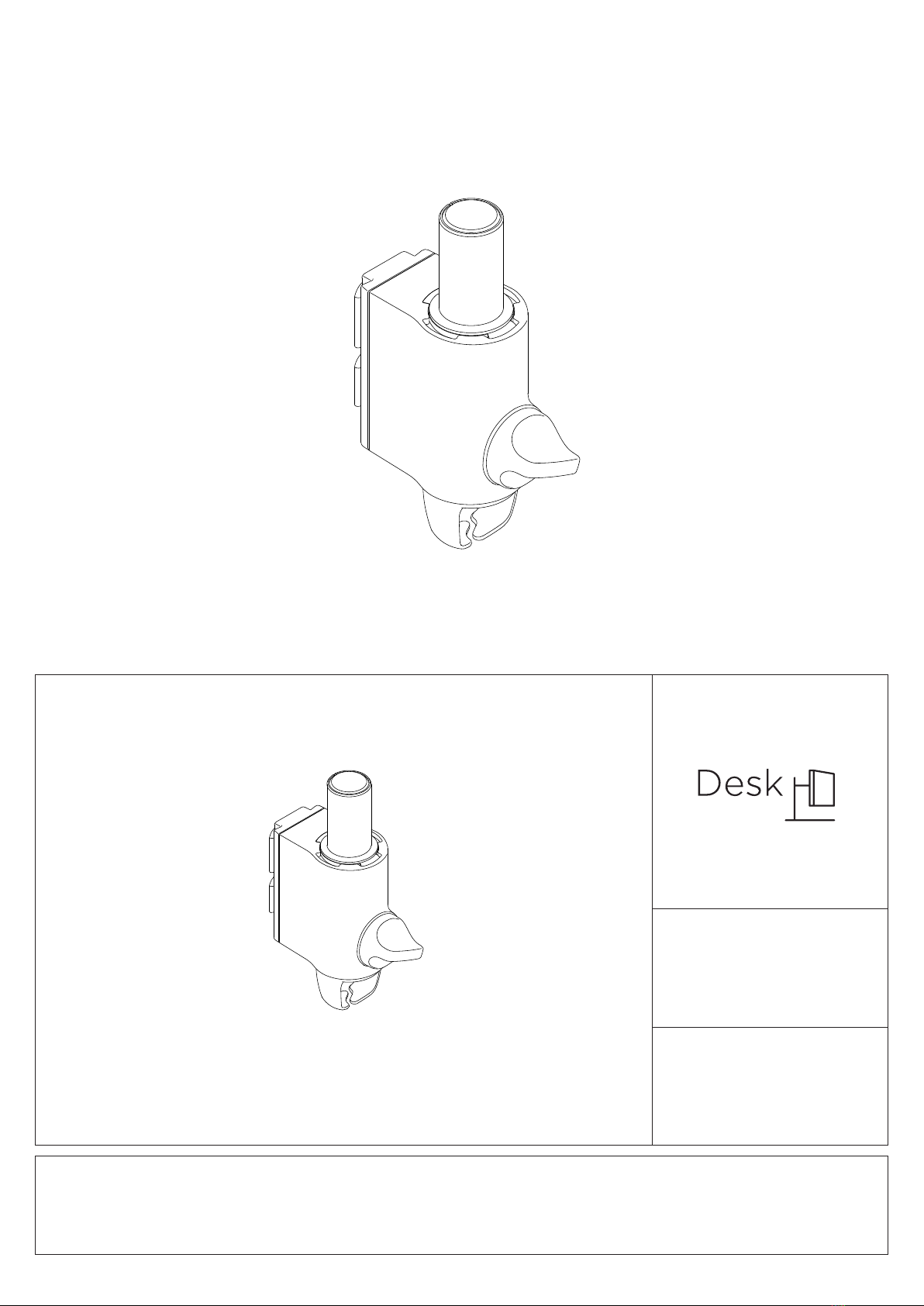

AWM-LC

Channel Clamp

REQUIRED TOOLS

• All tools provided

Channel

Clamp

(x1) WEIGHT RANGE

0 - 14kg

(0 - 31lbs)

AWM-2-LTH75-H Page 7 of 10

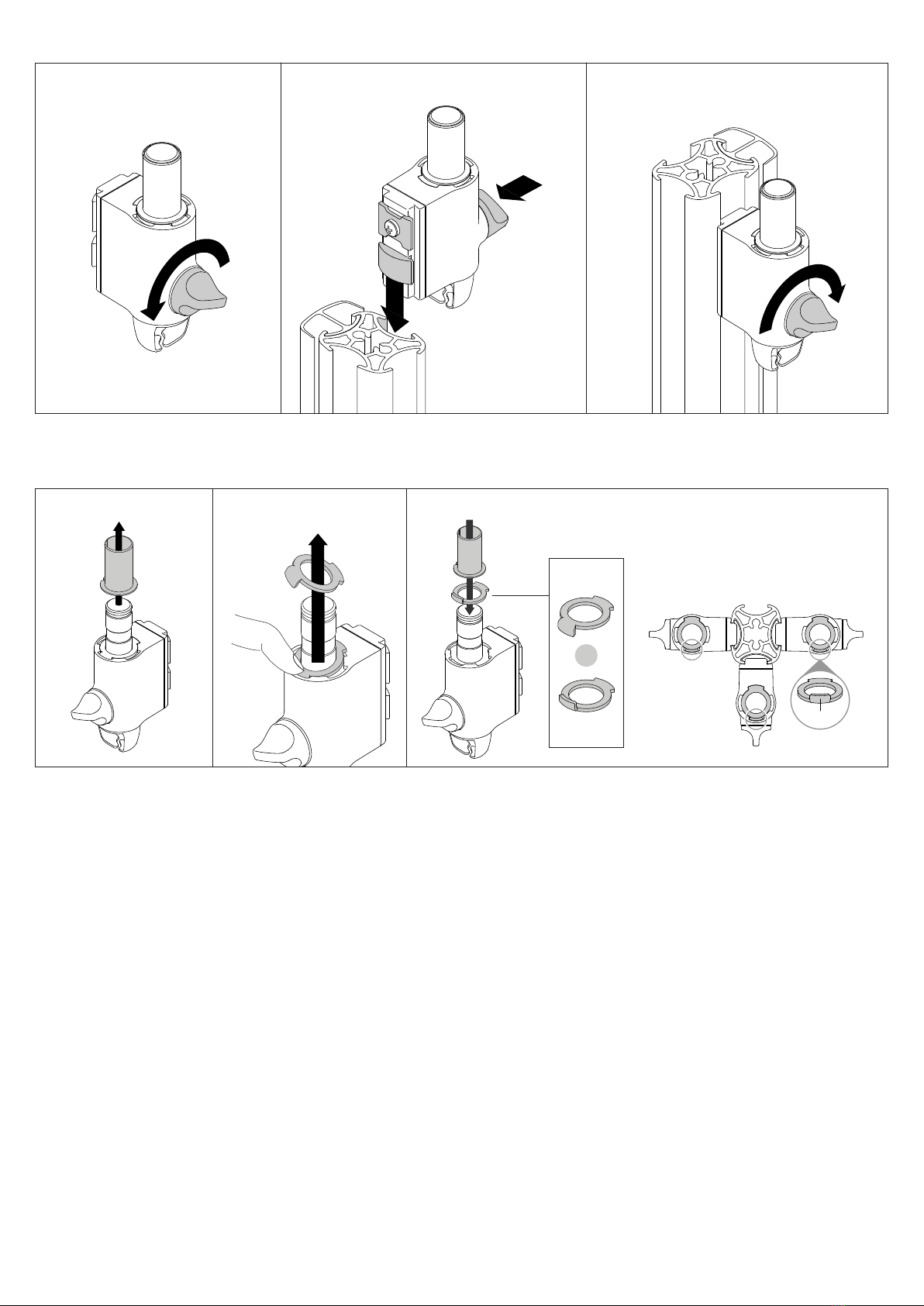

1. Fix Clamp to Post

1.1 Ensure knob is undone.

2.1 Remove plastic sleeve.

1.2 Slide Channel Clamp into channel.

2.2 Remove rotation ring

Push knob to

aid insertion

1.3 Hold clamp in desired position on post

and turn knob to lock in place.

2.3 Place rotation ring in the desired position.

NOTE: Place the rotation ring

depending on what post channel

the arm will be attached to. The tag

should always face towards the user.

1. Ensure Knob is undone

1. Remove plastic sleeve

Tip: push knob

to aid insertion

2. Slide post clamp into channel

2. Remove rotation ring

1. Press

2. Lift

3. Hold clamp in desired position on post and turn

knob to lock in place

3. Place the rotation ring

in the desired postion

180°

360°

Default

Position

Flipped

Position

Tag

2. (Optional) Set arm rotation to 180°

NOTE: default arm rotation is set to rotate 360�

AWM-2-LTH75-H Page 8 of 10

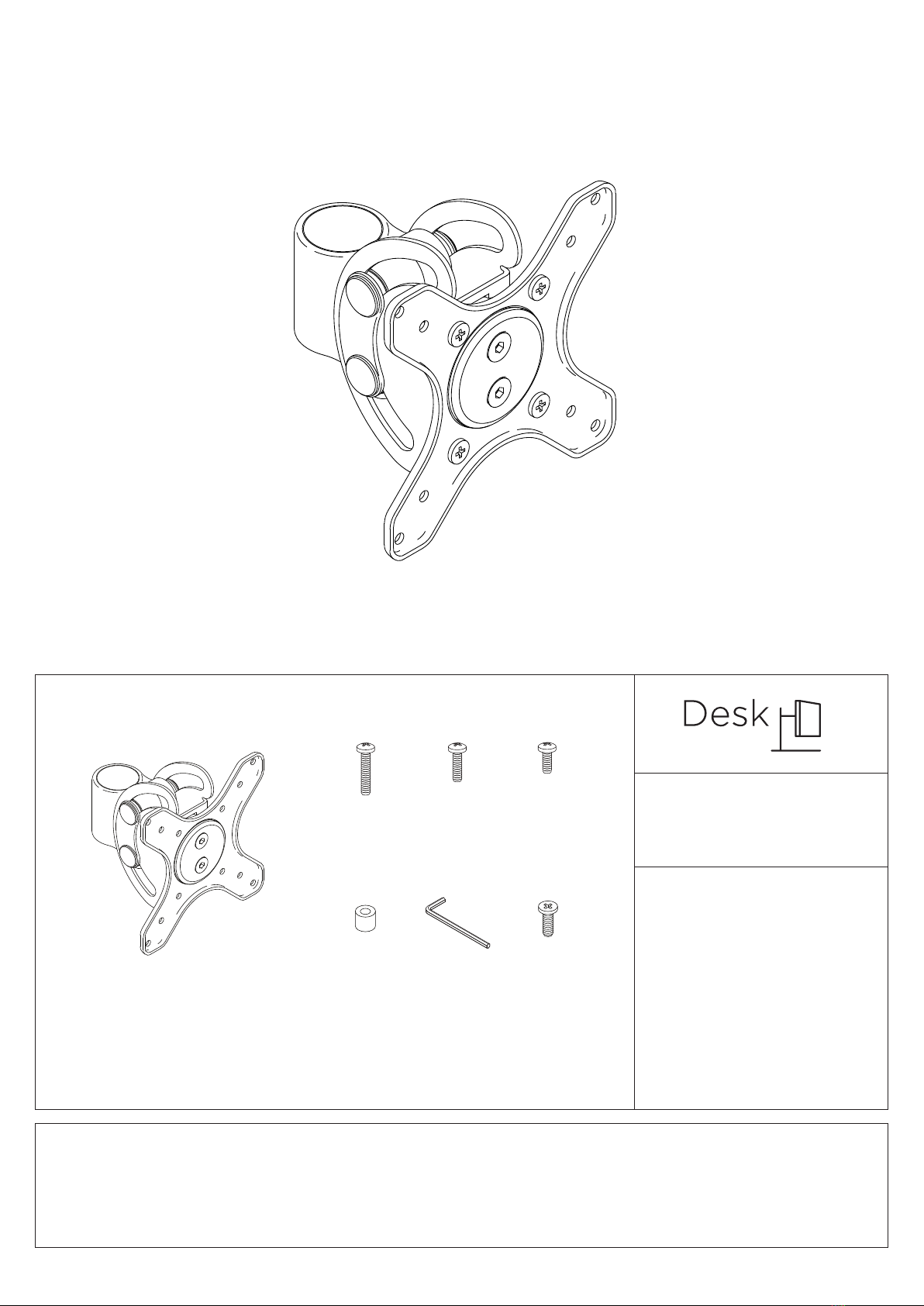

AWM-LTH

Heavy Duty VESA Tilt Head

COMPONENT CHECKLIST

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed

the capacity of the mount even though the monitor weight may be within the stated range.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with AWM Series monitor arm products: AWM-AHX, AWM-LC, AWM-A46 & AWM-A71.

REQUIRED TOOLS

• Phillips Head Screwdriver

Heavy Duty

Tilt Head

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

4mm

allen key

(x1)

Rotation

Security

Screw

M5x16mm

(x4) Monitor weight should be within the weight

range of all modular elements that make up

the complete monitor mounting solution.

WEIGHT RANGE

Flat Monitors

0 - 18kg

(0 - 40lbs)

Curved Monitors

0 - 12kg

(0 - 26.5lbs)

AWM-2-LTH75-H Page 9 of 10

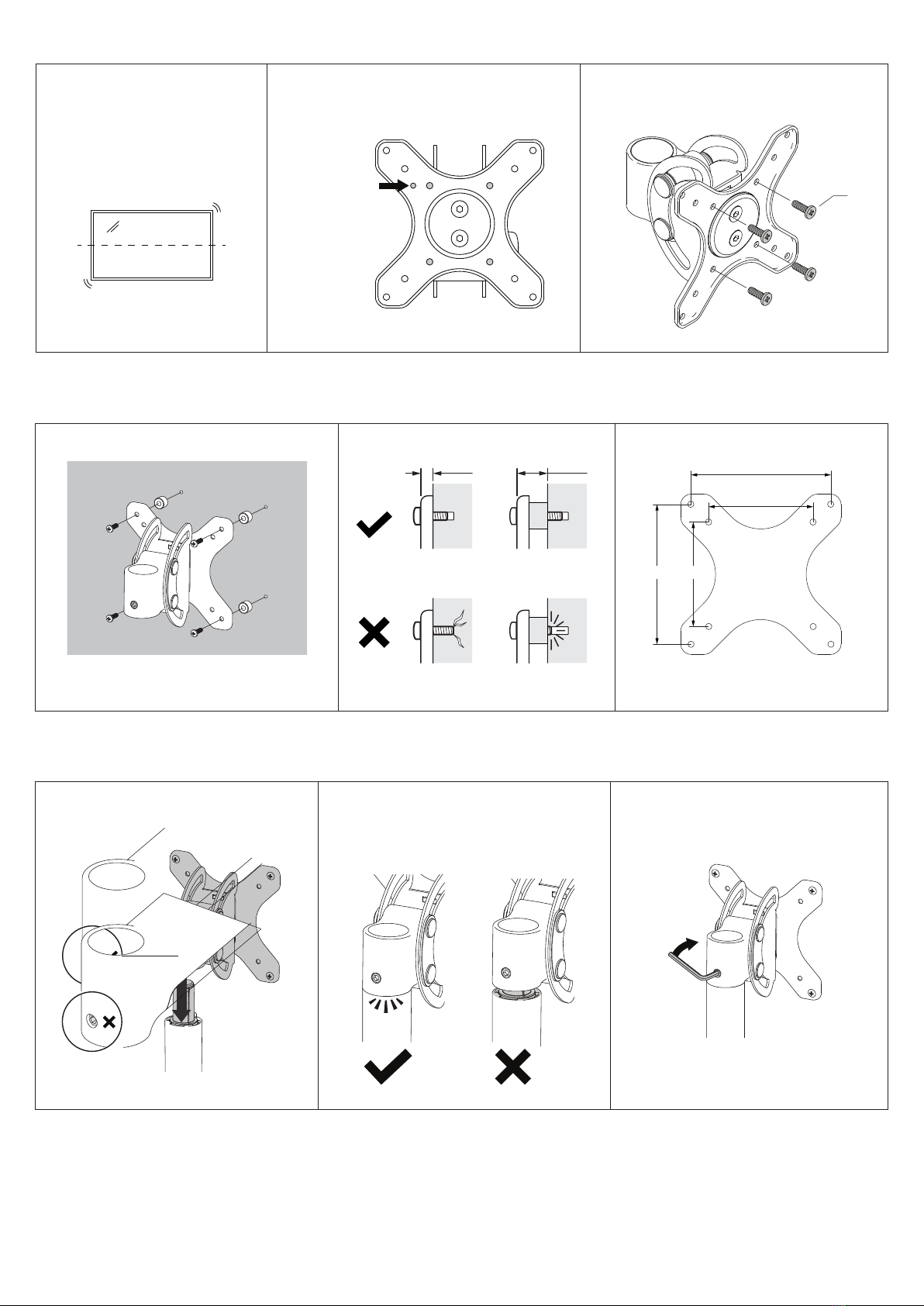

2. Attach VESA head to monitor

1. (Optional) Lock monitor rotation

2.2 Ensure suitable screw size is used. 2.3 VESA mounting compatibility

NOTE: For other sizes, use a

suitable adaptor plate

1.1 Ensure VESA Plate is in this

orientation before installing screws.

1.2 Install the four Rotation Security Screws

(G) into the front of the VESA Head

2.1 Screw the VESA head onto monitor

NOTE:Spacers may be required for curved,

recessed or uneven monitor surfaces.

OPTIONAL To lock monitor

rotation screw the four M5x16

screws into the four holes on

the front of the VESA Head.

3. Mount monitor onto channel clamp

3.1 Push tilt head onto the shaft at the

end of the channel clamp.

3.3 Tighten the joint screw with 4mm

allen key to secure the tilt head and

monitor in place.

100mm

75mm

100mm 75mm

Flush

Too long Too short

Spacer

5mm 12mm

Note position

of dimple

0°

Screen Rotation

NOTE: Check the head rotation is

smooth after tightening.

3.2 Ensure tilt head is fully pushed

onto shaft.

100mm

75mm

100mm 75mm

Flush

Too long Too short

Spacer

5mm 12mm

AWM-2-LTH75-H Page 10 of 10atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Re-attach

Tighten

Remove

NOTE: Monitor should

balance in a level position

with factory settings. If it

droops to one side follow

these steps to adjust the

rotation tension.

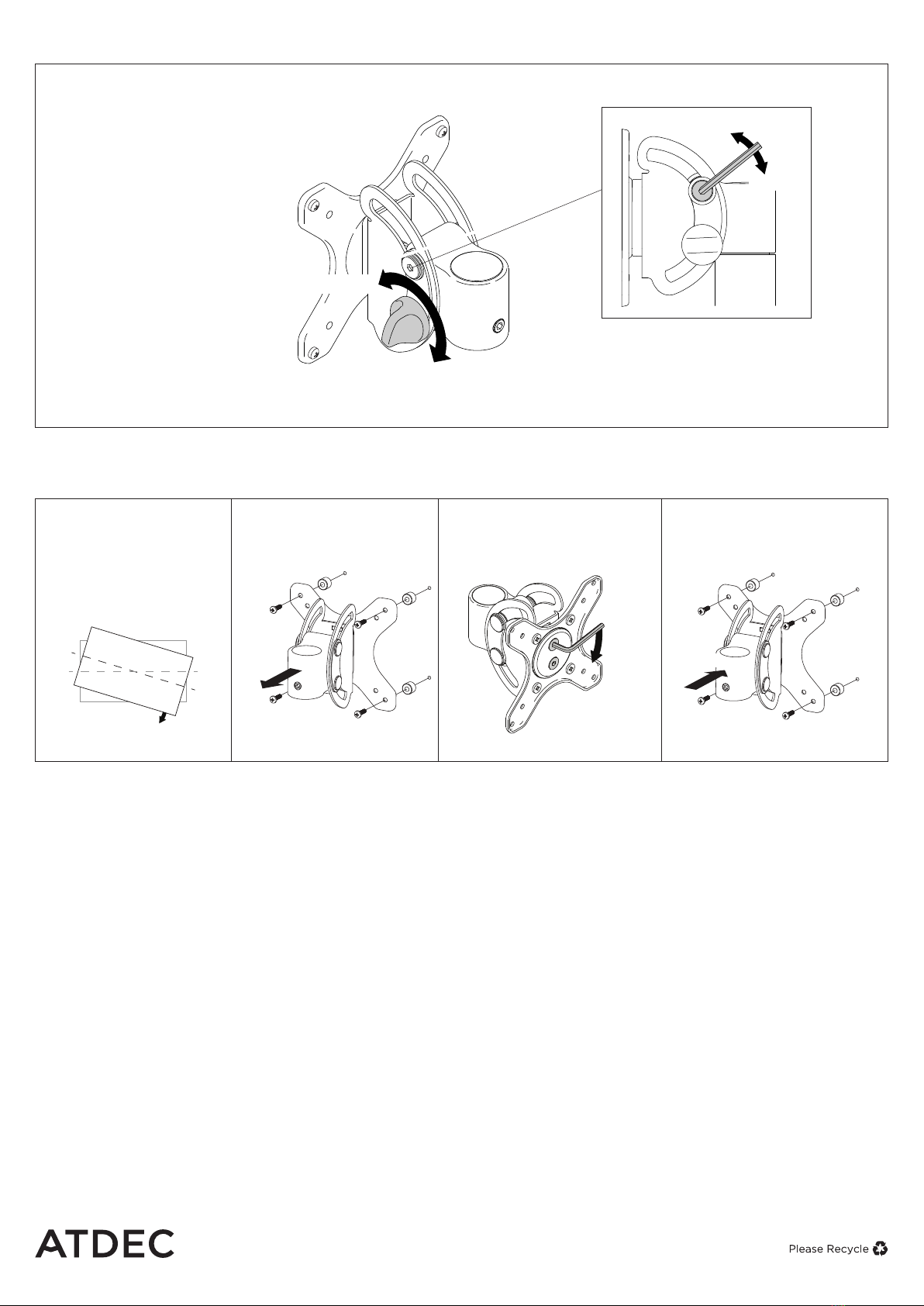

5. (Optional) Adjust rotation tension

5.1 Remove VESA head

from monitor.

5.3 Re-attach VESA head to

monitor as per Step 1.

5.2 Tighten the two screws on

the front of the VESA plate

using 4mm allen key.

Loosen

Tighten

4.1 Use the knob to tighten and loosen the

tilt tension to suit your monitor weight.

NOTE: Always support the

monitor whilst adjusting

to prevent it from falling

forward sharply.

Optional

If extra tilt tension is required for

your monitor, use 4mm allen key

to tighten second tilt screw.

Loosen

Tighten

4. Adjust tilt tension
