Atdec AD-AC-PH Manuale utente
AD-AC-PH Page 1 of 3
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! Exercise caution when closing tray to avoid damage to cables or components.
! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these
instructions and the consequences of incorrect installation.
! Check load capacity of surface prior to installation. Failure to provide adequate structural strength for this product can result
in serious personal injury or damage to equipment. It is professional installer’s responsibility to ensure suitable structural
capacity of desk (including appropriate safety factor) to support total weight of all equipment being mounted.
! This product only to be used on underside of horizontal surface.
! This product is not suitable for outdoors use.
! Do not use this product for mobile applications.
Installation Guide
AD-AC-PH
Hinged Media Storage Panel
COMPONENT CHECKLIST
A
Bracket
(x1)
B
Tray
(x1)
F
M4 x 12mm
Securing screw
(Optional) (x2)
D
Hook & loop
16mm x 500mm
(5/8” x 20”)
C
#10 x 16mm (5/8”)
Wood screw*
(x6)
E
M5 Flat
Washer
(x12)
REQUIRED TOOLS
WEIGHT RANGE
0 - 8kg
(0 - 17.5lbs)
• Phillips head screwdriver
• Power drill
• 3.5mm (1/8”) drill bit
* Professional installer to ensure appropriate fastener
length & type to suit surface where bracket is installed.

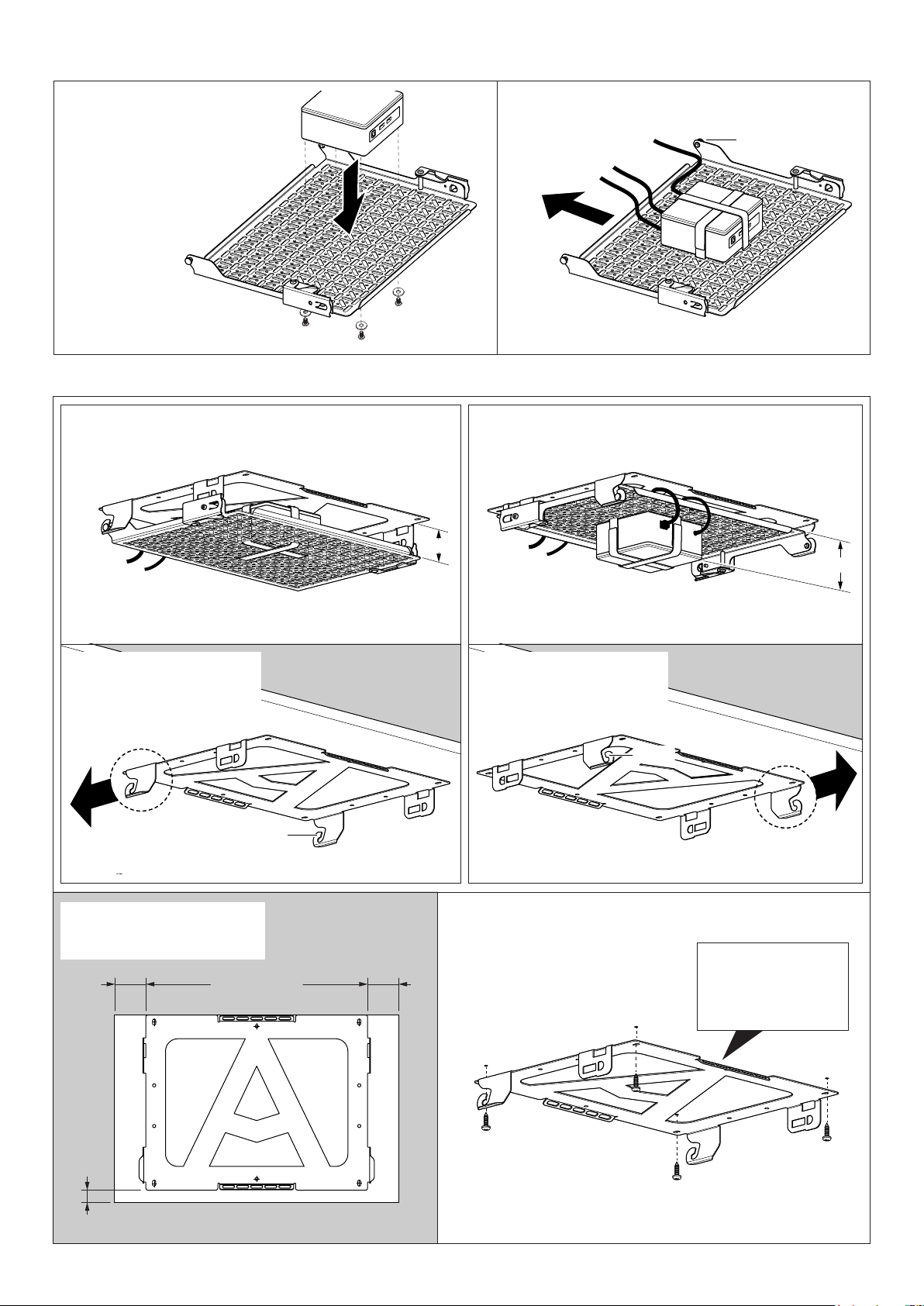

AD-AC-PH Page 2 of 3
>40mm
(1.6”)
SIDE VIEW
>40mm
(1.6”)
>18mm
(0.7”)
>54
54
>54
54
Hinge
Hook
1.1 Mount components on side
of Tray Bshown.
Components can be attached
with hook & loop, cable ties,
or the fasteners provided with
your components..
OPTION A - Enclosed components
Components up to 54mm (2 1/8”)
high can be enclosed.
1.2 Cable exit and entry
always at hinge end.
2. Choose product conguration then attach bracket
1. Attach components to tray
Hook
2.1B Position hooks towards
front to make components
accessible when tray
hanging for maintenance.
Hinge
2.1A Position hooks towards
back to make components
accessible when tray
hanging for maintenance.
Exposed conguration bracket orientation
Enclosed conguration bracket orientation
Minimum clearance
2.2 Ensure sufcient clearance
to walls/desk structure for
tray attachment and latching.
2.3 Check surface thick enough
and material appropriate for
supplied #10 x 16mm (5/8”)
Wood Screws C.
2.4 Use Bracket A as a drilling
template and mark mounting
hole centres.
2.5 Carefully drill 3.5mm (1/8”)
pilot holes. Fasten Bracket
with Wood Screws C.
Tip: Components can be
mounted on both sides of
tray in enclosed position.
Tip: Use Washers E
when using component
fasteners if needed
Tip: Front and back
tabs with slot detail
are a place to attach
cables independant
of hinging tray
OPTION B - Exposed components
Components greater than 54mm (2 1/8”)
high must be exposed.
AD-AC-PH Page 3 of 3
Hook
Securing
screw F
Cable tie
or lock
3.1 Lift Tray Bwith two hands and
engage simultaneously with hook
detail on both sides of Bracket A.
3.2 With latches in open
position rotate Tray Buntil
parallel with mounting surface.
NOTE: Cables must
always exit at the
hinging side of tray
4.1 Line up latches with holes
in bracket and rotating inwards
until they engage with a click.
5.1 Check for and remove any securing
screws, cable ties or locks.
5.2 Use two hands to
support tray while
opening both
latches. Smoothly
rotate tray into
hanging position.
Components
accessible without
need to remove tray.
4.2 (OPTIONAL) For extra security
attach M4 screws F, cable ties or
locks to both latches.
Do not overtighten
screws.
4. Secure tray
5. Component maintenance
Enclosed latch position
3. Attach tray
Securing
screw F
Cable tie
or lock
Securing
screw F
Cable tie
or lock
Exposed latch position
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20230803
Securing
screw F
Cable tie
or lock
Enclosed
Click
Click
Hook
Click
Click
Click
Hook
Exposed
