AWM-BT Page 1 of 2

Installation Guide

AWM-BT

COMPONENT CHECKLIST

Bracket

(x2)

VESA Plate

(x2)

M4x10

Mount Screw

(x4)

M4x20

Mount Screw

(x4)

10mm

Spacer

(4x)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! EachBracketsupportsamaximumweightasperaboveweightrangespecication.

! ThisproductsupportsVESAmountingholecongurations:75x75mmand100x100mm.

! The manufacturer accepts no responsibility for incorrect installation.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can

exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would

like further information.

AWM Tilt Bracket

REQUIRED TOOLS

• Phillips Head Screwdriver

CAPACITY

Flat Monitor

0-25kg(0-55lb)

Curved Monitor

0-18kg(0-39lb)

300mm(12”)maxoverall

display depth

Screen Size

17”-55”

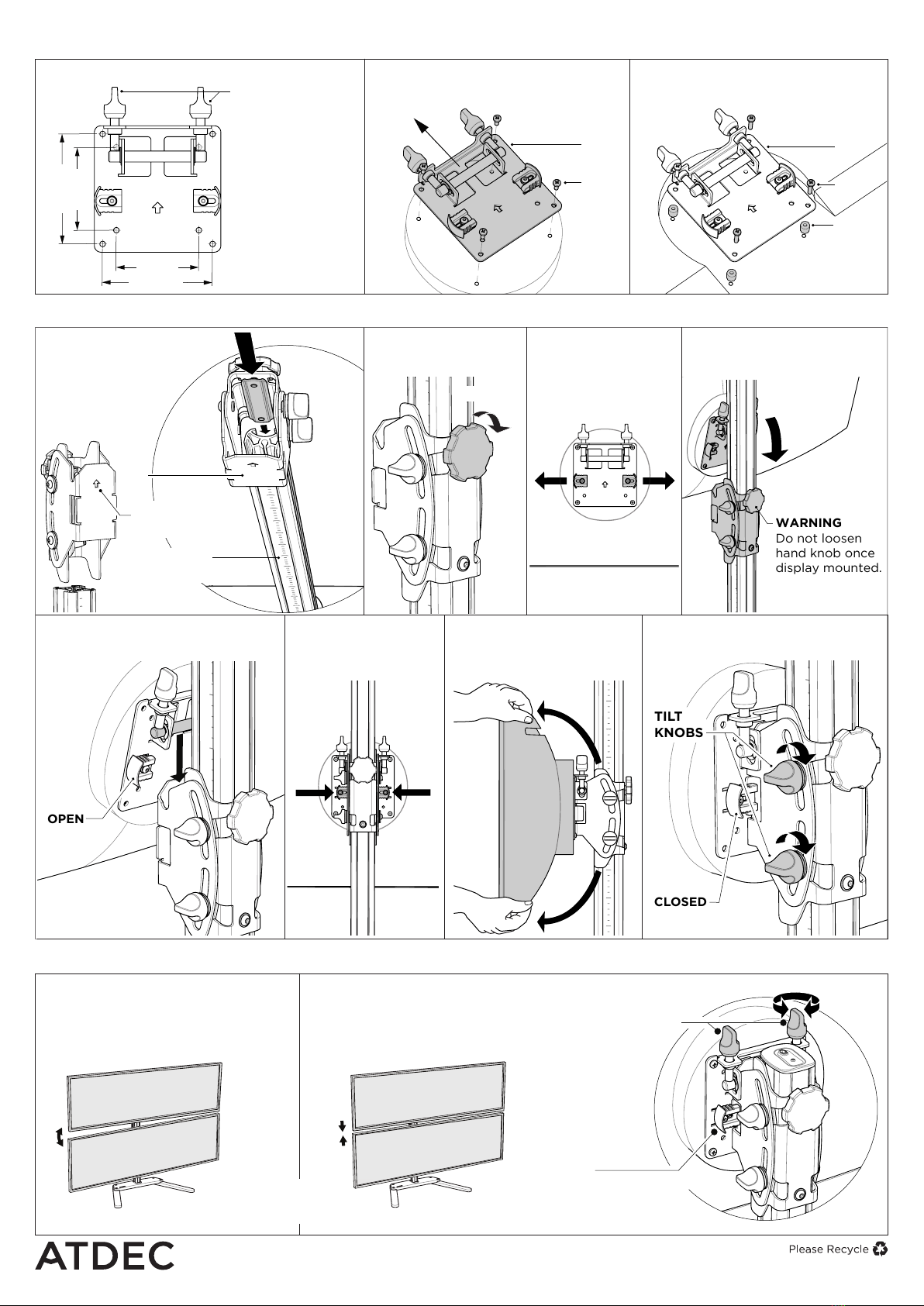

AWM-BT Page 2 of 2

1. Attach VESA Plate to Display

75mm

100mm

75mm

100mm

NOTE

For 75mm VESA

unscrew 5mm to

access top holes A

1.2 Attach VESA Plate

withM4x10screws.

1.1 VESA mount compatibility

2. Slide Bracket onto Post, Set Height and Mount Display

TOP

WARNING

Do not loosen

hand knob once

display mounted.�

2.3 Set VESA plate

to open position.

2.4 Lift display until Vesa

Plate is above the height

of the Bracket.

2.5 With post centered, slowly

lower display until bar on VESA

Plate sits in saddle in bracket.

2.6 Set VESA Plate

to closed position by

sliding clips on both

sides inwards.

TILT

KNOBS

CLOSED

3. Fine Adjustment

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

2.1 Line up the inner guide

on rear of bracket with

rear channel on post.

Slide inner guide into

channel and

lower bracket.

2.2 Firmly tighten hand

knob at chosen height.

AWM POST

(not supplied)

Arrow side

towards user

TIGHTEN

NOTE Never loosen

knob while display

is on �

OPEN

2.7 Adjust Display tilt angle

by gripping edges of screen

and rolling up or down to

desired position.

2.8 Tighten Tilt knobs

to set Display angle.

ORForrecessedVESAuse10mm

SpacersandM4x20screws.

AWM POST

(not supplied)

Arrow side

towards user OPEN

CLOSED

3.1 To correct horizontal angle of

display+/-3°:

Turnasingleneadjustmentknobto

adjust angle of screen.

3.2 To close small gap between

displays+/-6mm(1/4”):

Turnbothneadjustmentknobs-

alternating sides a few rotations at a

time.

NOTE

Clockwise = Higher

Anti-clockwise = Lower

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE

Ensure slide clips in

CLOSED

position after

ﬁne adjustment complete
