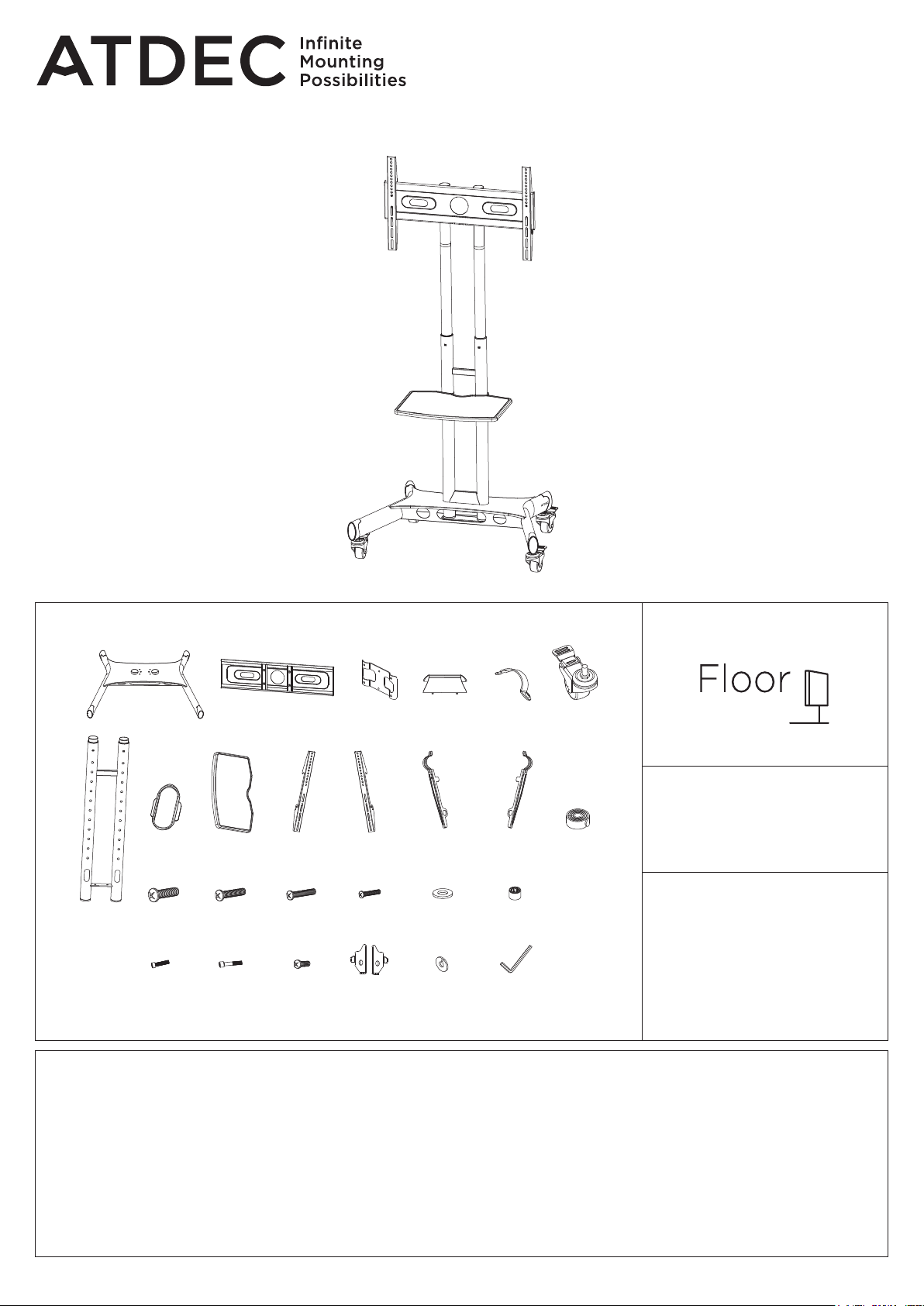

Atdec AD-TVC-45 Manuale utente

Atdec AD-TVC-45 Page 1 of 4

Installation Guide

AD-TVC-45

AV Cart 45

COMPONENT CHECKLIST

Base (x1)

Shelf

(x1)

LHS Vesa

Bracket (x1)

LHS Vesa

Bracket (x1)

M8x25

Screw (x4)

M6x25

Screw (x4)

M5x25

Screw (x4)

M4x12

Screw (x4)

ø16xø6.2

Washer (x4)

ø15x10mm

Spacer (x4)

M8x26

Cap Screw

(x6)

M8x55

Cap Screw

(x4)

M5x15

Screw (x2)

Display

Lock (x2)

ø16.5xø12.5

Washer (x4)

M6 Allen

Key (x1)

LHS Shelf

Support (x1)

RHS Shelf

Support (x1)

Mounting Plate (x1)

Column

(x1)

Mounting

Brace (x1)

Cover

(x1)

Shelf

Clamp (x2)

Castor

(x4)

Grommet

(x4)

Hook and

Loop (x3)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these

instructions and the consequences of incorrect installation.

! Do not over tighten screws.

! Two person installation is recommended.

! Product not suitable for use outdoors.

! After installation is complete check to verify that TV Cart is secure and safe for use.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA

locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.

Please contact Atdec if you would like further information.

! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control

or toys placed on the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.

REQUIRED TOOLS

• Phillips Head Screwdriver

CAPACITY

DISPLAY

0-45kg (0-100lb)

32”-65”

SHELF

0-4.5kg (0-10lb)

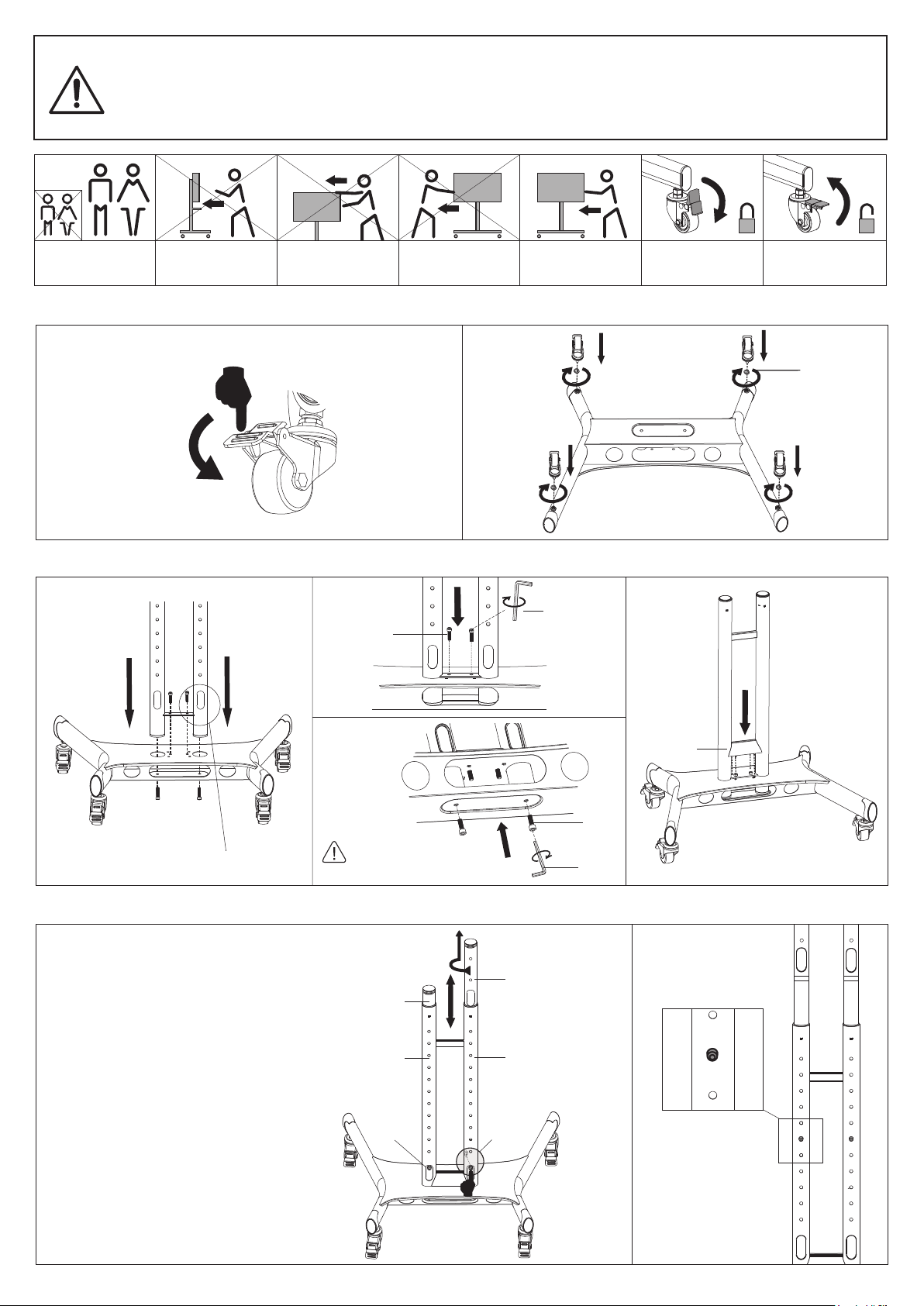

Atdec AD-TVC-45 Page 2 of 4

1. Install the castors

1.1 1.2

WARNING!

! CART CAN TIP OVER RESULTING IN RISK OF INJURY!

! DO NOT ALLOW CHILDREN UNDER 16 TO PLAY WITH OR MOVE CART

! MOVE CART SLOWLY

DO NOT PULLNEVER APPLY FORCE

AT TOP

APPLY FORCE ON

NARROW SIDES

PUSH NEAR MIDDLE

DO NOT APPLY

MOVING FORCE ON

FRONT OR BACK

ONLY ADULTS SHOULD

MOVE THIS CART

LOCK

BRAKES WHEN

STATIONARY

UNLOCK

BRAKES BEFORE

MOVING

DO NOT PULL

NEVER APPLY FORCE AT

TOP

APPLY FORCE ON

NARROW SIDES

PUSH NEAR MIDDLE

DO NOT APPLY MOVING

FORCE ON FRONT OR

BACK

ONLY ADULTS SHOULD

MOVE THIS CART

LOCK

BRAKES WHEN

STATIONARY

UNLOCK

BRAKES BEFORE

MOVING

2. Attach column to the base

2.1 2.2 2.4

2.3

Note: Make sure cable management

windows are facing the rear of base.

Caution: Ensure

screws are secured firmly.

3. Set column height

Right

upper

column

Right

lower

column

Left

upper

column

Left

lower

column

Spring

button Depress

Spring button

3.1 Use thumb or finger to depress

the spring button located in the cable

window on the lower right column.

At the same time use other hand to

twist then pull upper column upward

until your desired height. Twist

motion is to ensure spring button

doesn’t engage unintentionally.

Twist upper column back toward the

plunger holes and engage the spring

button into the plunger hole. Ensure

spring button pops out as shown in

Fig-2.

3.2 Repeat step 1 on left column.

Fig-1 Fig-2

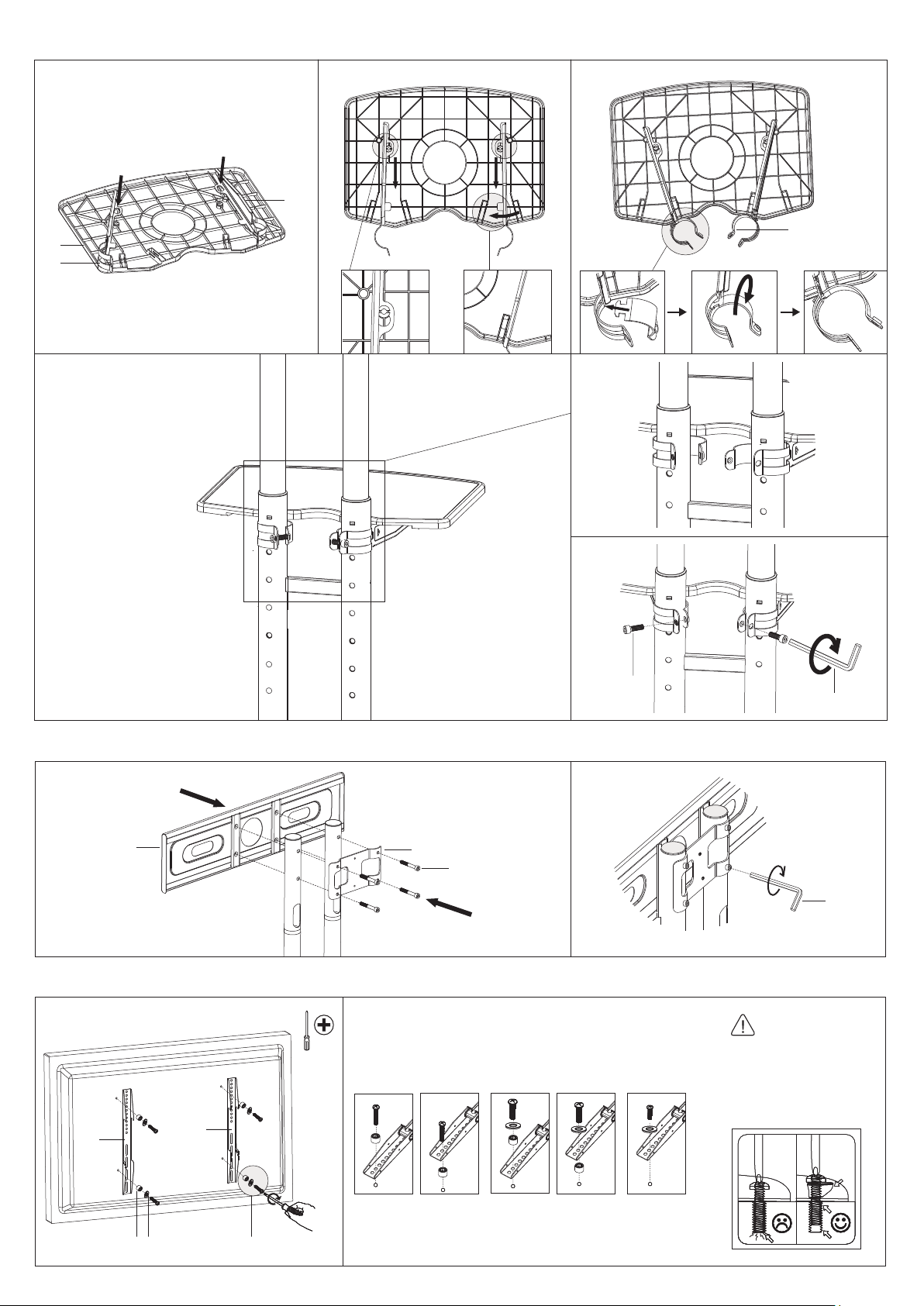

Atdec AD-TVC-45 Page 3 of 4

5. Attach mounting plate

4. Assemble and install shelf

4.1

4.4

4.2 4.3

6. Attach VESA brackets to display

E1 (A1, B1,C1)+E1+F1/D1+E1

Fastener configuration examples

M8x25mm A1 M4x12mm D1

M5x25mm C1

M6x25mm B1

Note: Use spacers

where necessary to

ensure brackets are not

loose, and screws are

not forced too deep

into the display.

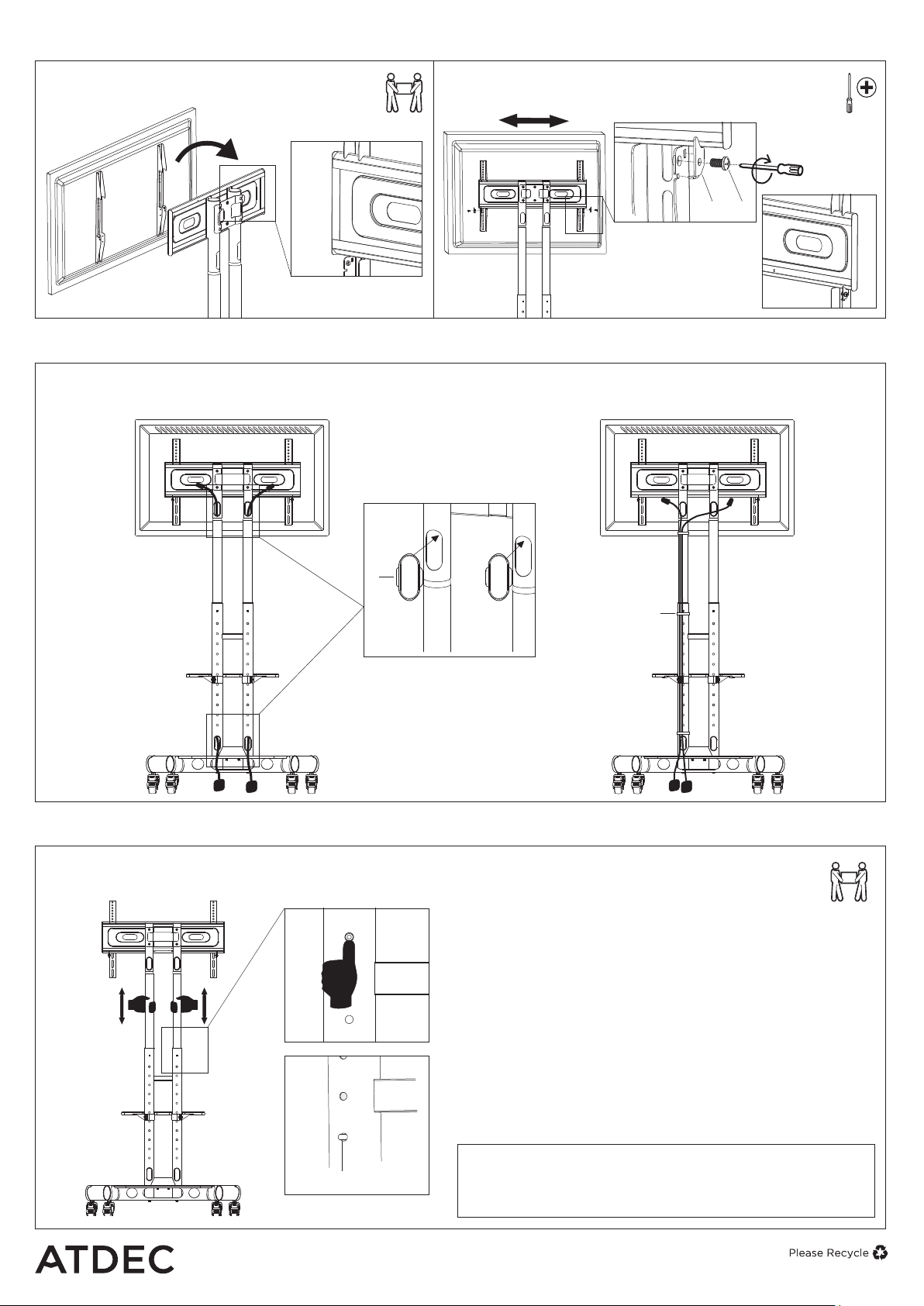

Atdec AD-TVC-45 Page 4 of 4

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

8. Cable routing options

Note: Grommets must be

inserted into tube prior

to inserting cables.

9. Adjust display height

9.1 Two people are required to change display height.

Display must be removed prior to adjusting height.

8.1 Cables may be routed down the

inside or outside of column.

9.2 Person “A” holds the top section of the

telescopic column. Person “B” depresses left

and right spring buttons on column by using

thumbs, so that person “A” can move top of

column down or up to desired height.

Take care to ensure spring buttons are not

pressed further than necessary to disengage

from column.

9.3 When height is determined, let spring

button set into plunger holes. Ensure both

spring buttons have popped out.

Spring button

7. Mount display

D2 C2

7.1 Hook display over mounting bracket

and centre display.

7.2 Attach both display locks to prevent

accidental dislodgement of display.

Maintenance

• Tighten fasteners and check the cart is secure and safe to use

at regular intervals (at least every three months.)

• Please contact your distributor if you have any questions.
