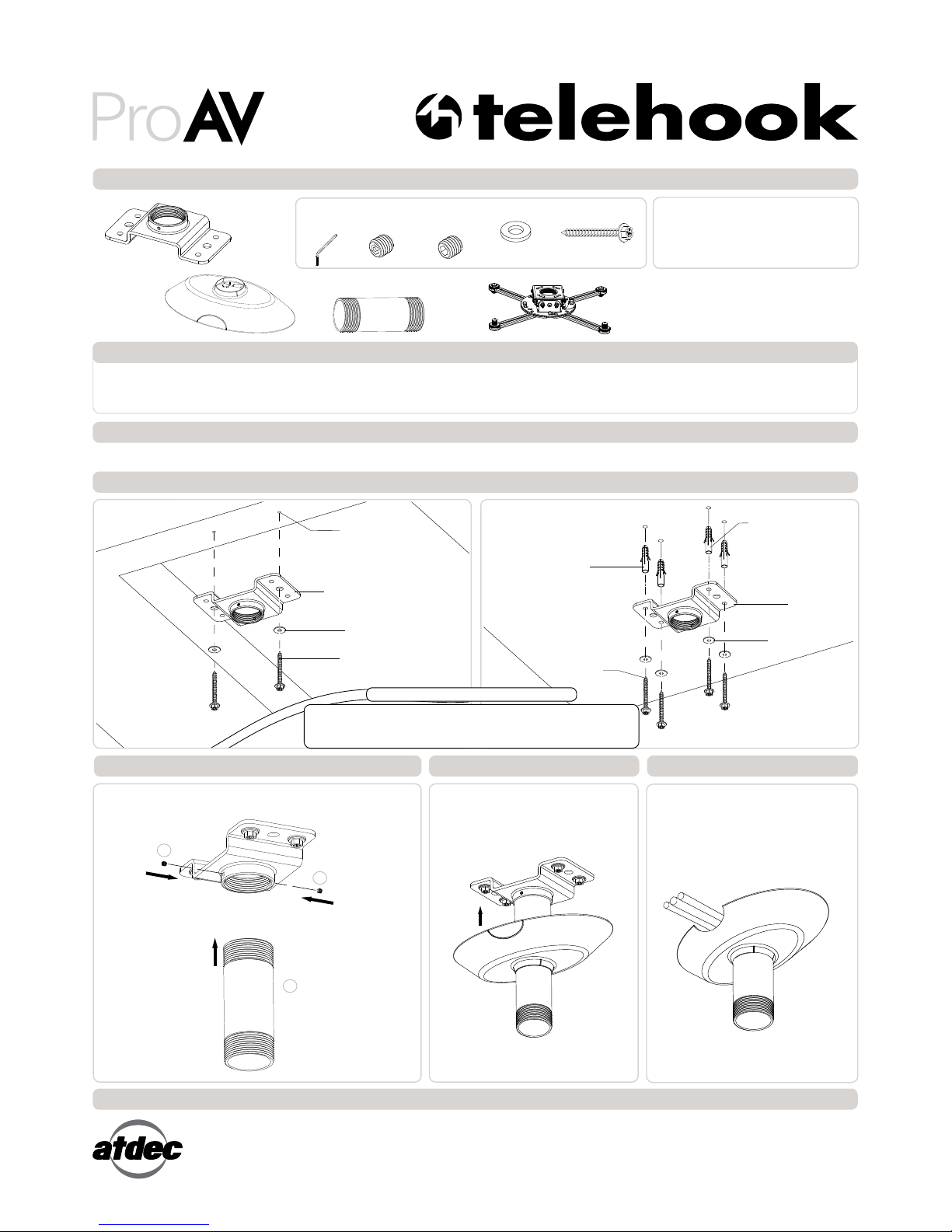

Atdec TH-PFK Manuale utente

To complete installation please jump to Step 5 of the TH-PF installation manual

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 21.03.13 ©

TH-PFK

Component Checklist

Pro AV Projector Ceiling Mount with 3” Pole

Coach Bolt (x4)

HARDWARE Tools Required:

• Power Drill

• 4.5mm(0.18”) Drill Bit

• 10mm (3/8”) Socket Wrench Shifter

• Phillips Head Screw Driver

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.

! This product supports a maximum load of 25kg (55lbs.).

! The manufacturer accepts no responsibility for incorrect installation.

IMPORTANT INFORMATION:

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

M6 Washer (x4)

Security

Allen Key

Standard Set

Screw (x2)

Security Set

Screw (x2)

Mount

Step 2. Ceiling Mount

Step 3.

Cover

IMPORTANT! Any structural elements must be capable of

supporting the combined weight of all the equipment and devices

being mounted. If in doubt, consult a structural engineer.

Timber Stud Masonry

Coach Bolt

Screw in 3” Pole

M6 Washer

Mount

TIP: Use Mount as a drilling template.

Coach Bolt

M6 Washer

Mount

Clip on Cover

Holes to Suit Anchors

NYLON ANCHORS

NOT SUPPLIED

Ø4.5mm x 65mm

deep Drilled Hole

Secure pole by inserting

standard or security set

screws using supplied

Allen key

Side panels can be

snapped off to provide

cable route

Step 4. Step 5.

Installation Instructions

3” Pole TH-PF

Pro AV Projector Mount
