Atdec AWMS-2-BT75-G Manuale utente

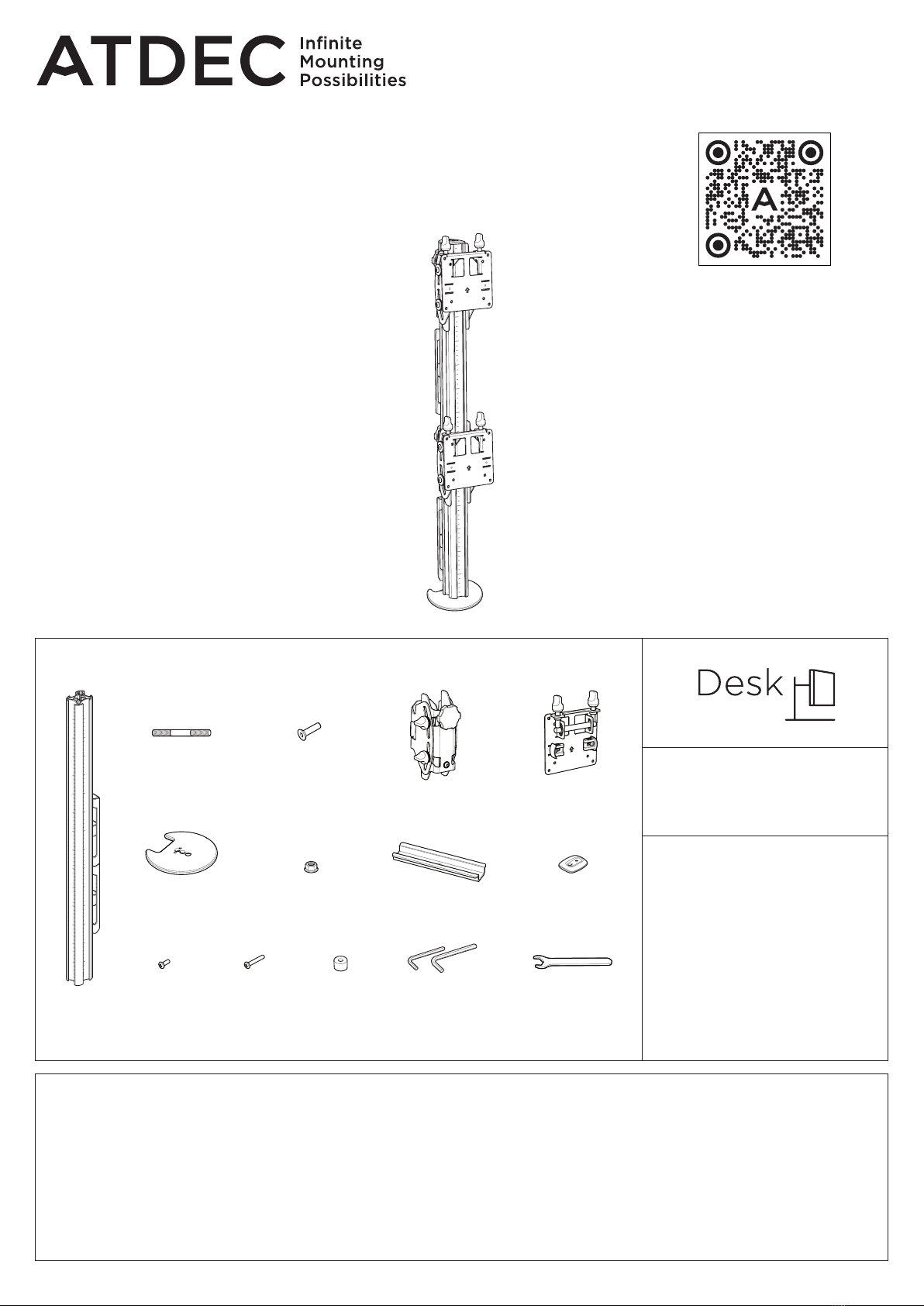

AWMS-2-BT75-G Page 1 of 4
Scan to access
more information
Installation Guide
AWMS-2-BT75-G
COMPONENT CHECKLIST
B
Bridge
(x1)
C
Leg
(x2)
I
Post
(x1)
C
Bracket
(x2)
M
4mm/5mm
Hex Key
(x1 each)
N
13mm
Spanner
(x1)
D
VESA Plate
(x2)
A
M8 Stud
(x1)
J
M4x10
Screw
(x8)
F
M8 Nut
(x1)
H
Post Cap
(x1)
K
M4x20
Screw
(x8)
L
10mm
Spacer
(8x)
B
M8x30mm
Screw (x1)
G
M8 Stud
(x1)
H
M8x30mm
Screw
(x1)
G
Clamp Bar
(x1)
E
Clamp Plate
(x1)
C
Clamp Bar
(x1)
B
Clamp Plate
(x1)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! EachBracketsupportsamaximumweightasperabovecapacityspecication.
! The product is compatible with desk thicknesses from 18 - 36mm (0.71 - 1.42”)
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you
would like further information.
Post Mounted Heavy Duty
Dual Vertical Monitor Mount
Grommet Clamp
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24” - 55”
300mm (12”) max overall
display depth

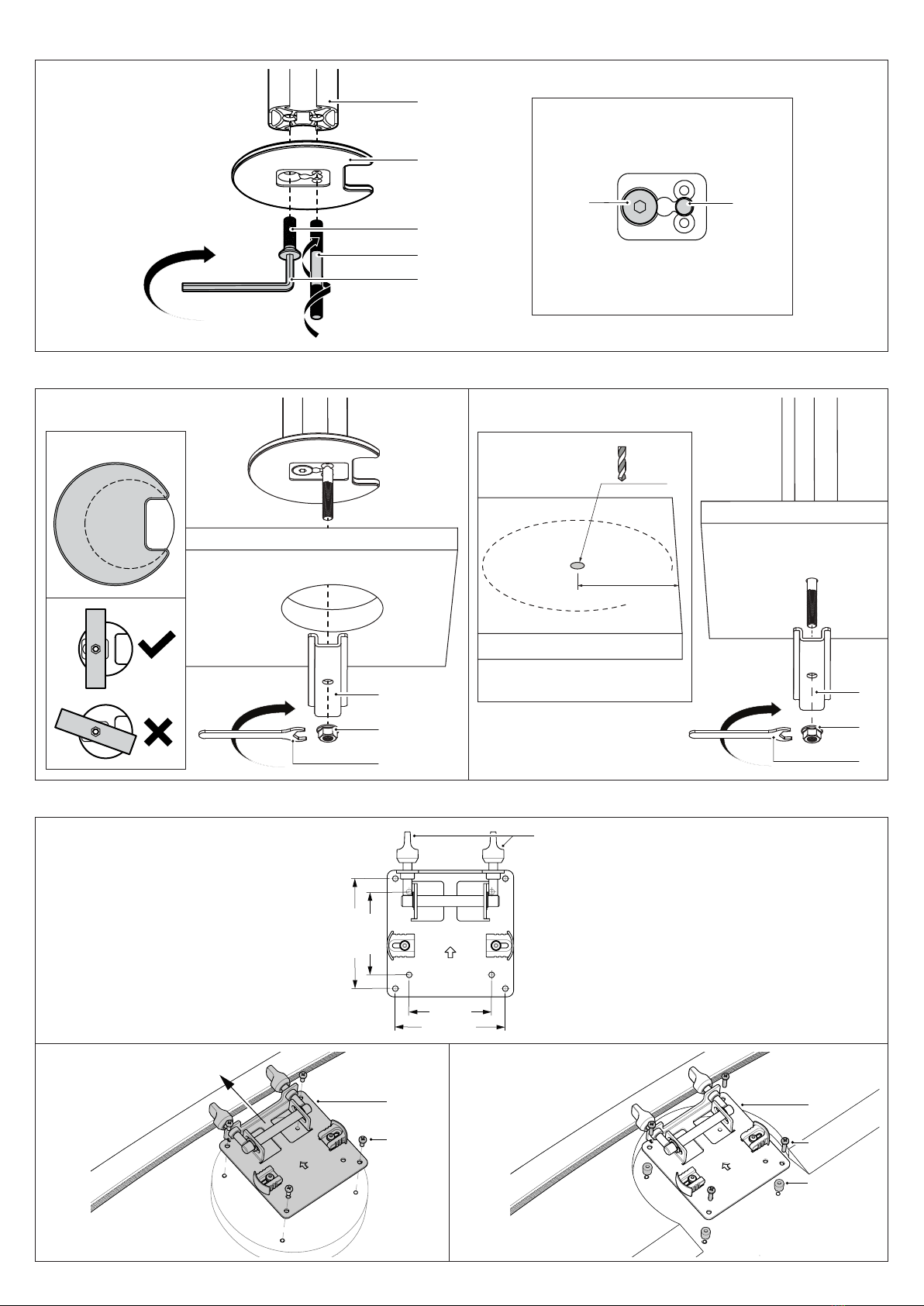

AWMS-2-BT75-G Page 2 of 4
2. Attach grommet clamp on desk
Option A - Through grommet hole
80mm (31
/
8”) max hole diameter
1. Assemble post to clamp plate
1.1
Option B - As heavy duty bolt through
75mm
100mm
75mm
100mm
NOTE:
For 75mm VESA unscrew
5mm to access top holes
Option A - Attach VESA
plate with M4x10 screws.
Option B - For recessed
VESA use 10mm spacers
and M4x20 screws.
3.1 VESA compatibility.
NOTE:
Some displays require the use of
a VESA adapter before attaching
the VESA plate. This VESA adapter
may ship in the box with the display.
Consult your display’s installation
guide for further information.
3. Attach VESA plates to displays
D
J
TOP
D
K
L
I
A
M
B
E
AB
G
F
N
9mm
(3/₈’’)
60mm (2⅓”)
minimum
G
F
N
Installed position

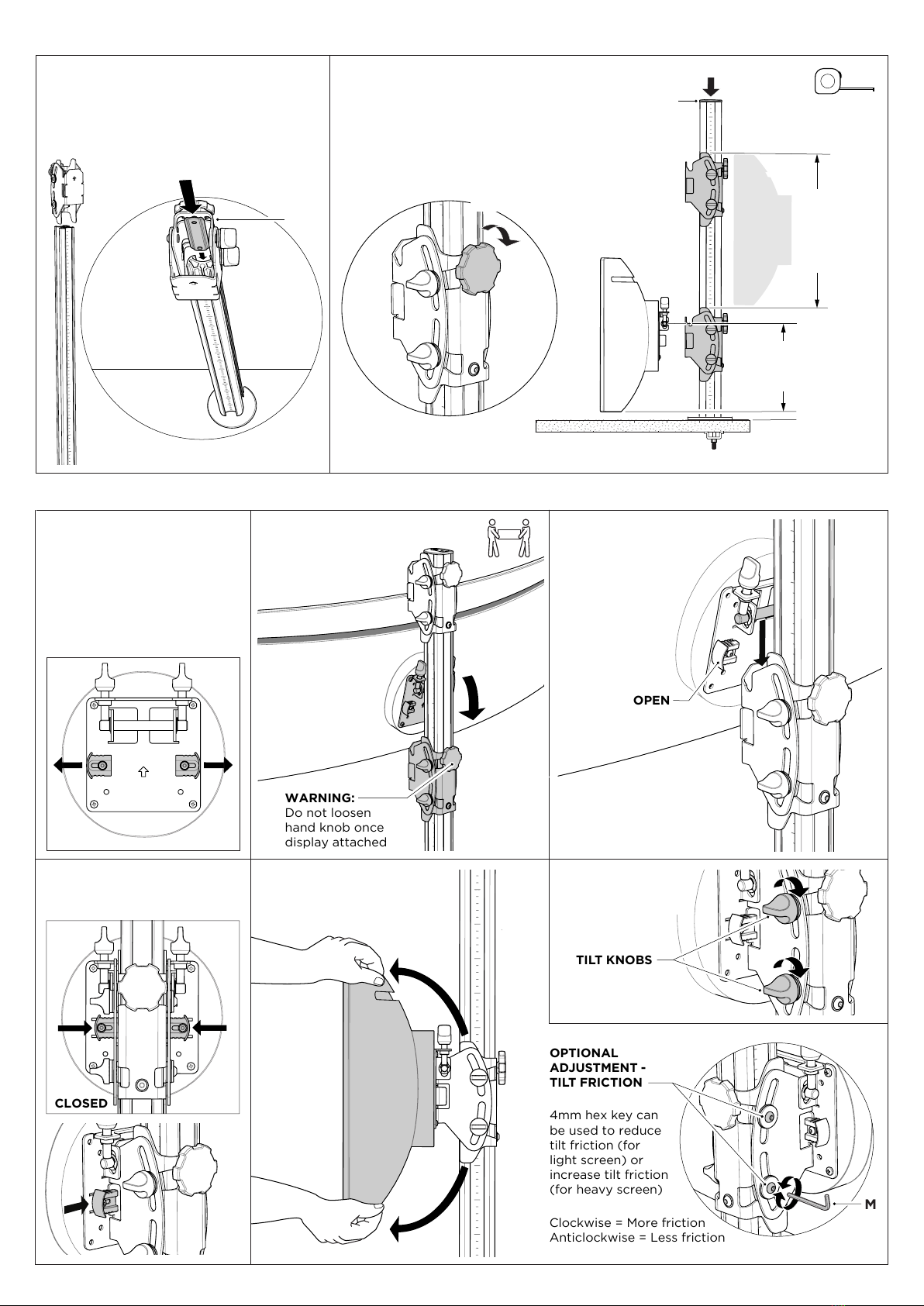

AWMS-2-BT75-G Page 3 of 4
5. Attach bottom display
5.1 Set VESA plate to
open position.
Bottom display must be
attachedtobracketrst.
WARNING:
Use two people to install
display
OPEN
WARNING:
Do not loosen
hand knob once
display attached
5.4 Set VESA plate to closed
position by sliding clips on
both sides inwards.
5.5 Adjust display tilt
angle by gripping edges
of screen and rolling up or
down to desired position.
OPEN
TILT KNOBS
5.6 Set display
angle by tightening
tilt knobs.
M
OPTIONAL
ADJUSTMENT -
TILT FRICTION
Clockwise = More friction
Anticlockwise = Less friction
4mm hex key can
be used to reduce
tilt friction (for
light screen) or
increase tilt friction
(for heavy screen)
5.3 Centre VESA plate
close to post and slowly
lower until bar on VESA
plate sits in saddle in
bracket.
5.2 Lift display until
VESA plate is above
the bracket.
CLOSED
4. Slide brackets onto post and set height
4.1 Line up the inner guide
on rear of bracket with rear
channel on post.
Slide inner guide into channel,
then lower bracket.
C
TIGHTEN
WARNING:
Never loosen knob while
display is on bracket
C
MEASURE
≥Display
height
between
brackets
H
MEASURE to
ensure clearance
to desk
4.2 Firmly tighten hand knob at
chosen height.
Ensureheightissufcientfor
display to clear desk once in place.
Repeatwithsecondbracketandt
post cap.
MEASURE
≥Display
height
between
brackets
H
MEASURE to
ensure clearance
to desk

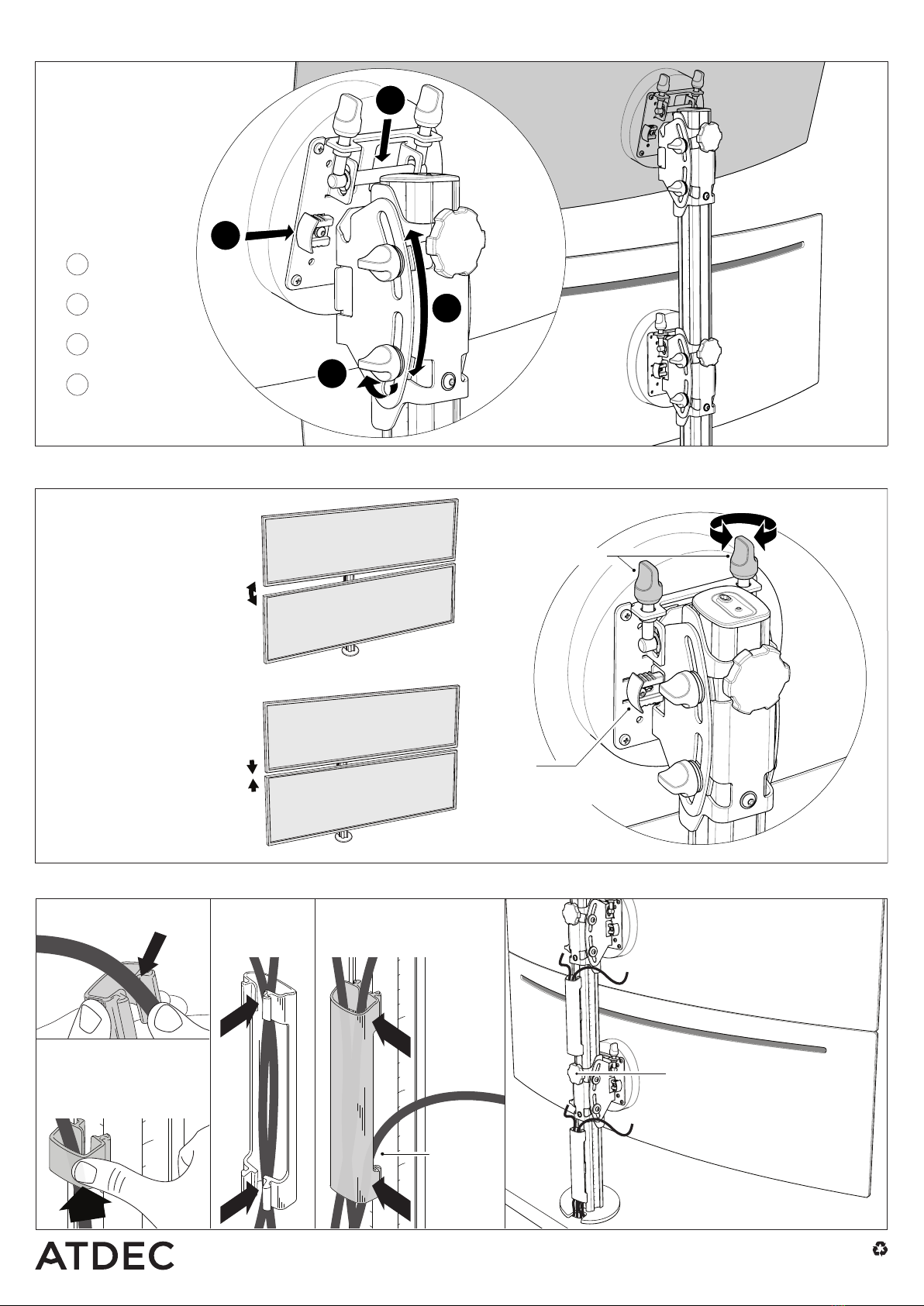

AWMS-2-BT75-G Page 4 of 4
Please Recycle
7. Fine Adjustment
6. Attach top display
ii
iii
iv
i
LHS &
RHS
TOP &
BOTTOM
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reservestherighttoalterspecicationswithoutnotice.©20221125A
6.1 Check that distance
between brackets is
equal to or greater than
the height of the display.
Repeat Step 5 to attach
top display and set tilt
angle.
Lower
Close
Adjust angle
Set angle
i
ii
iii
iv
WARNING:
Always remove display
before adjusting height
Unstacked Stacked
Cables can
exit from
the side of
the cable
cover
PUSH
PUSH
PUSH
8. Cable Management
8.1 Load cables into
cable clip.
8.2 Insert one side of the
cable clip into a channel
on the post, then push in
the other side.
Load cables into
cable cover
8.3 Load
cables into
cable cover.
8.4 Clip the cable cover
back onto rear post
channels.
7.1 To correct horizontal angle
of display +/- 3 °:
Turnasinglenetune
adjustment knob to adjust
angle of screen.
Clockwise = Higher
Anti-clockwise = Lower
7.2 To close small gap between
displays +/-6mm (1/4”):
Turnbothnetuneadjustment
knobs - alternating sides a few
rotations at a time.
Clockwise = Higher
Anti-clockwise = Lower
ii
iii
iv
i
LHS &
RHS
TOP &
BOTTOM
FINE HEIGHT ADJUST
FINE ADJUSTMENT
KNOBS
NOTE:
Ensure clips are in
CLOSED position
