Atdec AF-AT-NBC Manuale utente

AF-AT-NBC Page 1 of 4

COMPONENT CHECKLIST

Notebook tray

assembly

(x1)

Primary arm

cable cover

(x1)

Secondary arm

cable cover

(x1)

Self adhesive

hook & loop

(x4 sets)

Monitor

arm

(x1)

Pole

assembly

(x1)

Rotation

limitor

(x1)

Screw

M8 x 30mm

(x1)

Pole

top cap

(x1)

Bolt through

base

(x1)

5mm

Allen key

(x1)

Mounting

screws

M4 x 10mm

(x4)

Mounting

screws

M4 x 12mm

(x4)

Mounting

screws

M4 x 16mm

(x4)

Security

Screw

M4 x 16mm

(x1)

Steel

washer

(x1)

Cable

stop

(x2)

Screw

M8 x 60mm

(x1)

Desk clamp

assembly

(x1)

Cable

clip

(x1)

VESA

head

(x1)

Installation Guide

AF-AT-NBC

Notebook Monitor Arm

Combo Mount

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

WEIGHT RANGE

• Power Drill

• Drill Bit

• Phillips Head Screwdriver

0 - 8kg

(0 - 17.6lbs)

AF-AT-NBC Page 2 of 4

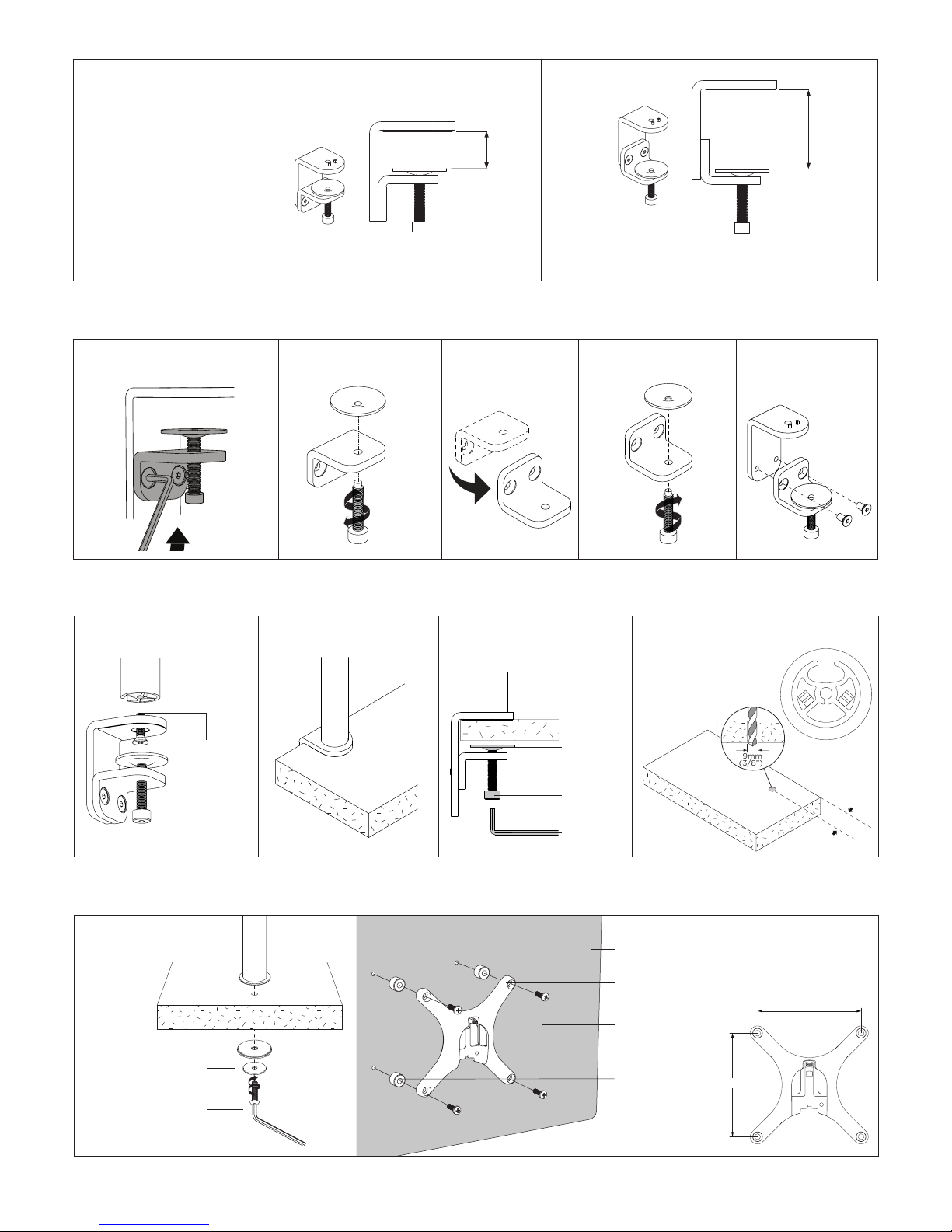

1. Desk overview

The desk clamp bracket

can be repositioned to

suit different mounting

surface thicknesses.

1.1 Default 1.2 Inverted

2. How to reconfigure desk clamp

2.1 Remove screws

(M8 x 16mm Countersunk screw)

2.2 Remove clamp plate 2.3 Invert bracket 2.4 Replace clamp plate 2.5 Reattach bracket

Pressure

Plate

M10 Desk

Clamp Screw

5mm Allen

Key

M8 x 30mm

Countersunk

screw Tighten

firmly

3.2 Place in desired location 3.3 Screw pressure plates

in and tighten firmly.

Drill 9mm hole in desired post

position on work surface.

3.1 Attach clamp to post

3. Post mount configuration 4. Bolt through

9mm

(3/8”)

25mm

offset

MIN THICKNESS - 0mm (0”)

MAX THICKNESS - 39mm (1.5”)

MIN THICKNESS - 35mm (1.4”)

MAX THICKNESS - 76mm (3”)

5. Installing bolt through

5.1 Attach plate to post

Align rear hole with

hole on desk

5mm

Allen key

M8x60mm

Screw

Bolt

through

plate

6. Install VESA monitor head

Optional Spacers

(may be required

for recessed and

uneven surfaces)

VESA monitor

head

Screen

M4x10/12/16mm

Phillips head

mounting screws

6.1 Install VESA monitor head as shown.

100mm

AF-AT-NBC Page 3 of 4

1st Handgrip

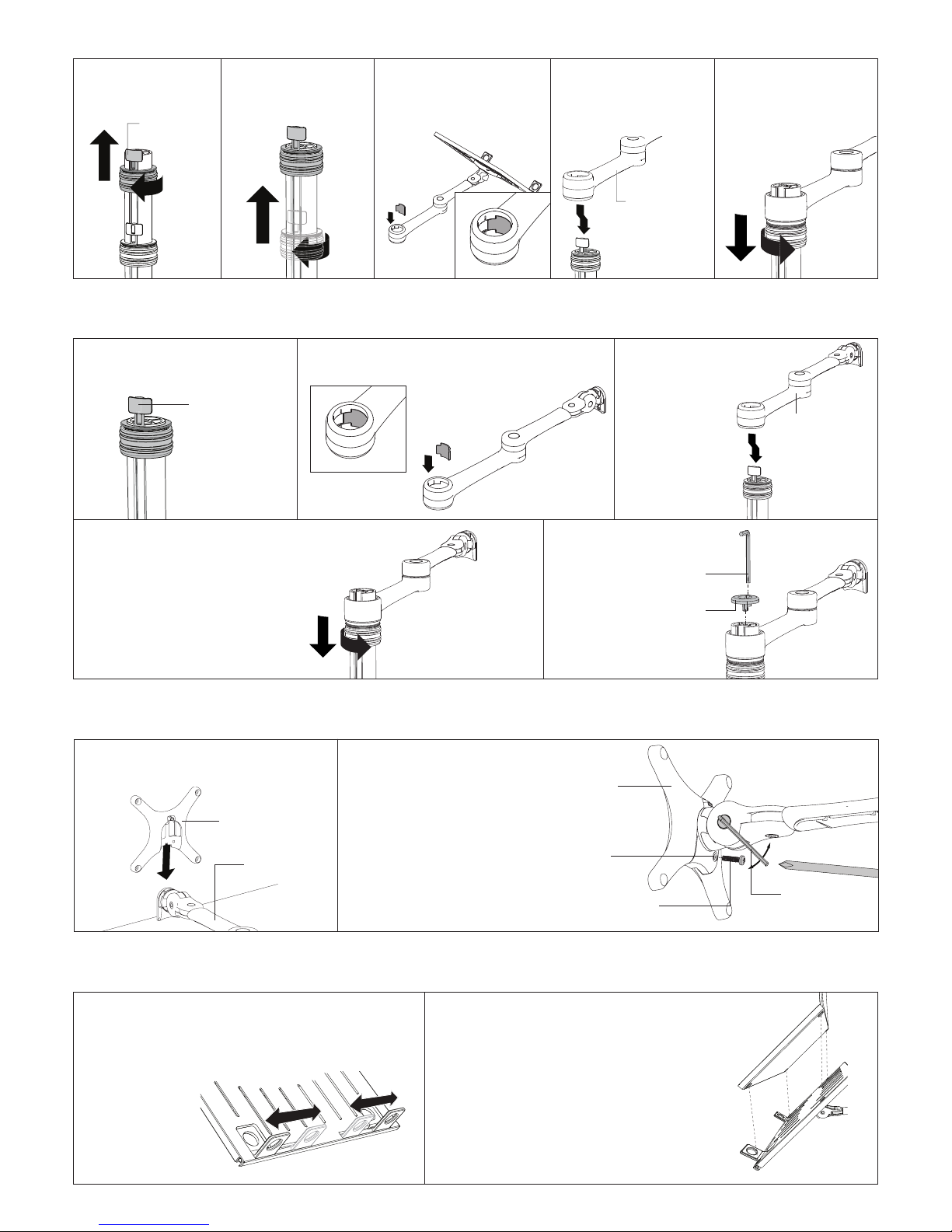

7. Mount Notebook Tray Arm

7.1 Unlock 1st handgrip

and remove from

pole assembly

Notebook Tray

& Arm Assembly

7.2

Unlock 2

handgrip

and raise so that

handgrip tab protrudes

7.3 OPTIONAL ROTATION

LIMITER Insert rotation

limiter for 180� rotation

around mounting pole

7.4 Slip the notebook

tray & arm assembly

over the handgrip tab

and then onto the pole

7.5 Slide the arm

assembly and handgrip

down the pole before

locking the handgrip at

the desired height

Arm Assembly

8. Install arm assembly

Handgrip

Tab

5mm

Allen key

Pole

top cap

8.1 Reinstall handgrip so that

handgrip tab protrudes

8.4 Slide the arm assembly and

handgrip down the pole before locking

the handgrip at the desired height

8.5 Insert pole

top cap into

pole. This is also

where the allen

key is stored.

8.3 Slip the arm

assembly over the

handgrip tab and

then onto the pole

8.2 OPTIONAL ROTATION LIMITER Insert rotation

limiter for 180� rotation around mounting pole

9. Mounting Monitor

10. Install Notebook

VESA monitor head

Arm assembly

9.2 OPTIONAL SECURITY SCREW

Ensure the monitor is supported,

then loosen the monitor head

screw with the 5mm allen key and

tilt screen up before installing the

m4 x 16mm security screw into the

security screw hole

Note: Support Screen

when adjusting tilt.

9.1 Insert VESA monitor head into the

receptacle in the arm assembly

5mm Allen key

Phillips head

screwdriver

Loosen

Tighten

Security screw

hole

M4 x 16mm

Security screw

Monitor head

screw

10.1 Adjust the support

tabs to suit the width of

the notebook computer

ensuring that cable ports

are not obstructed

10.2 To increase stability, use the self

adhesive Hook-and-Loop Fasteners supplied

• Peel off the backing paper to the fasteners

• Attach fasteners to both the notebook tray

and computer

• Ensure that each set of fasteners are

correctly aligned i.e. Hook to loop

AF-AT-NBC Page 4 of 4

11. Adjust Height

11.1 Unlock handgrip ensuring screen

or notebook tray and arm assembly

are supported

11.2 Lift/lower screen or notebook tray to

the desired height. move both screen and

arm assembly together

11.3 Lock handgrip firmly

LIFT

Cable

Stop

Cable

Clip

Note: If this product is in a

Multi-user environment, use

the supplied cable clip to

secure the cables to the pole.

12.1 After plugging in your cables,

install the cable covers

12.3 Cable clips and cable stops can be installed

to further manage cables. Please see over

Lock Slot

Elbow joint

‘click’

12. Cable Management

Note: After connecting the notebook

cables, route them through the cable

management clip on the back of the

notebook tray

Ensure enough cable slack is

given to allow for movement.

Insert cable covers

up into lock slots.

12.2 Push cable covers

away from elbow joint to

secure in place

13. Insert Cable Stops

Note: Press down firmly onto

the other edge of the Cable

Stop and hold. This allows the

rear profile to flex in place

13.1 Insert cable stop on one edge

of the pole slot

13.2 Insert allen key into top cap

on pole

Allen key

storage

Allen Key

Storage

Loosen

Tighten

Loosen

Tighten

Loosen

Tighten

Loosen

Tighten

Horizontal

Adjustment

±95°

Portrait/Landscape

Rotation

±5°

±25° Tilt

14. Adjusting the display bracket

Adjust the tilt

angle of the

notebook tray as

desired, locking it

in position using

the 5mm allen key

TILT (tray angle up/down)

TILT (screen angle up/down)

PAN (tray angle left/right)PAN (screen angle left/right)

5mm Allen Key

Tighten

Loosen

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
