Atdec AWMS-2-BT75-H Manuale utente
AWMS-2-BT75-H Page 1 of 4
Installation Guide
AWMS-2-BT75-H
COMPONENT CHECKLIST
B
Bridge
(x1)
C
Leg
(x2)
A
Post
(x1)
D
Bracket
(x2)
F
4mm/5mm
Hex Key
(x1 each)
E
VESA Plate
(x2)
G
M8x60mm
Screw
(x2)
J
M4x10 Screw
(x8)
I
Post Cap
(x1)
K
M4x20 Screw
(x8)
L
10mm Spacer
(8x)
H
M8x16
Screw
(x2)
C
Lower Clamp
(x1)
B
Upper Clamp
(x1)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! EachBracketsupportsamaximumweightasperabovecapacityspecication.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you
would like further information.
Post Mounted Heavy Duty
Dual Vertical Monitor Mount
Heavy Duty F Clamp
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24” - 55”
300mm (12”) max overall
display depth
Scan to access
more information

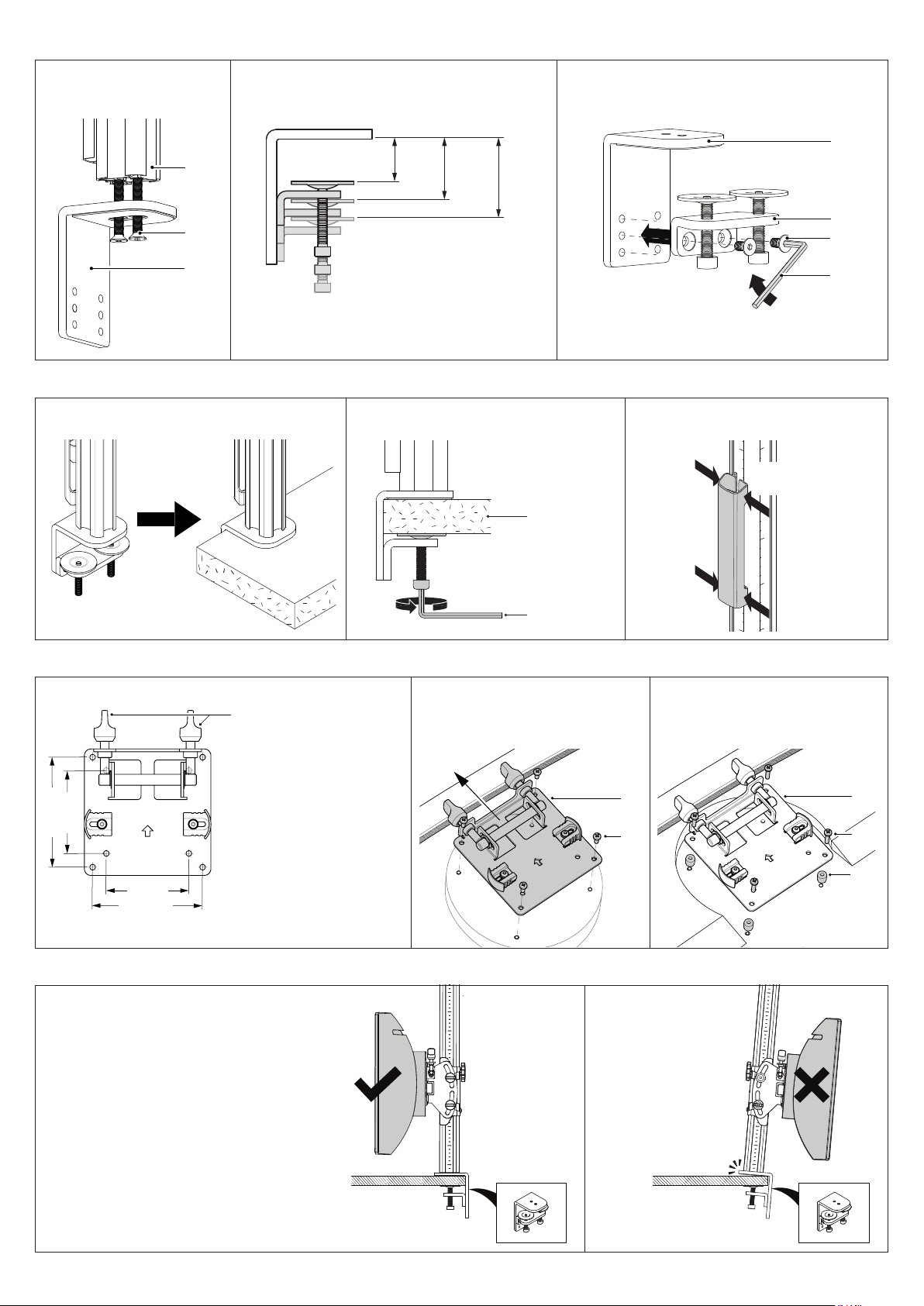

AWMS-2-BT75-H Page 2 of 4
2. Fit clamp to work surface
2.1 Place in desired location
on worksurface.
1. Assemble post to clamp
1.1 Attach post to upper
clamp using the M8x60mm
screws and 5mm hex key.
1.2 Measure the worksurface
thickness and choose the
suitable lower clamp position.
1.3 Attach lower clamp to upper
clamp in the suitable position using the
M8x16mm screws and 5mm hex key.
2.2 Screw in both pressure plates
and tighten evenly and rmly.
2.3 Remove clips & covers from post by
sliding up & out or by squeezing sides.
SQUEEZE
to release
75mm
100mm
75mm
100mm
For 75mm VESA
unscrew 5mm to
access top holes
Option A
Attach VESA plate
with M4x10 screws.
Option B
For recessed VESA
use 10mm spacers
and M4x20 screws.
3.1 VESA compatibility.
NOTE:
Some displays require the
use of a VESA adapter
before attaching the
VESA plate. This VESA
adapter may ship in the
box with the display.
Consult your display’s
installation guide for
further information.
3. Attach VESA plates to displays
E
J
TOP
E
K
L
G
A
B
Top Middle Bottom
Top
Middle
Bottom
0 - 38mm (0 - 1 ½”)
11 - 53mm (” - 2 ”)
25 - 68mm (1” - 2 ”)
C
B
F
H
Note: If there is only a small gap behind the
worksurface perform Step 2.1 before this step
Mounting
surface
5mm
Hex key
4. Slide brackets onto post and set height
4.1 Tilt bracket must only be
attached with display facing
the front of the mounting
surface.
WORK
SURFACE
WORK
SURFACE
WORK
SURFACE
WORK
SURFACE

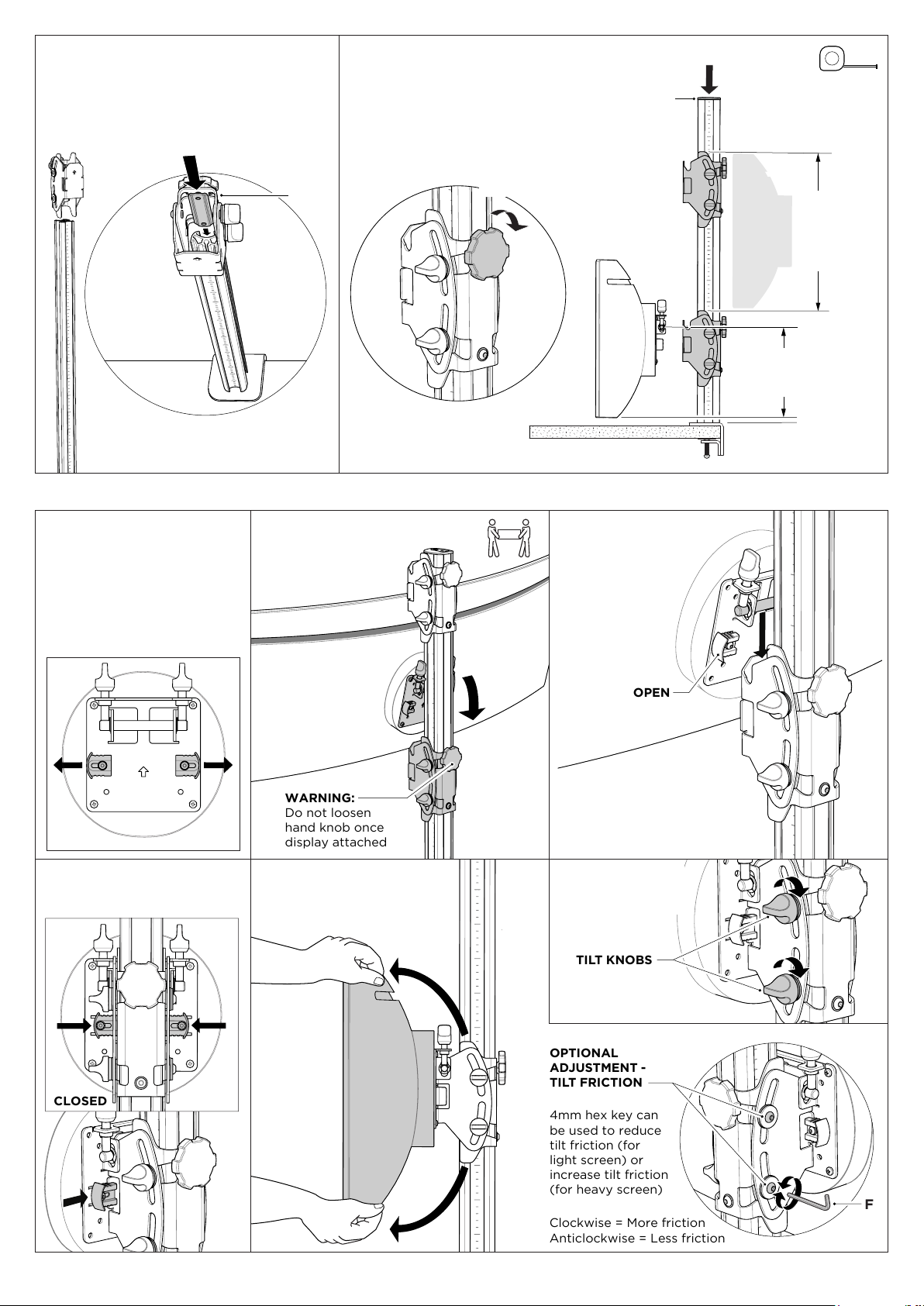

AWMS-2-BT75-H Page 3 of 4
5. Attach bottom display
5.1 Set VESA plate to
open position.
Bottom display must be
attachedtobracketrst.
WARNING:
Use two people to install
display
OPEN
WARNING:
Do not loosen
hand knob once
display attached
5.4 Set VESA plate to closed
position by sliding clips on
both sides inwards.
5.5 Adjust display tilt
angle by gripping edges
of screen and rolling up or
down to desired position.
OPEN
TILT KNOBS
5.6 Set display
angle by tightening
tilt knobs.
F
OPTIONAL
ADJUSTMENT -
TILT FRICTION
Clockwise = More friction
Anticlockwise = Less friction
4mm hex key can
be used to reduce
tilt friction (for
light screen) or
increase tilt friction
(for heavy screen)
5.3 Centre VESA
plate close to
post and slowly
lower until bar on
VESA plate sits in
saddle in bracket.
5.2 Lift display until
VESA plate is above
the bracket.
CLOSED
4.2 Line up the inner guide
on rear of bracket with rear
channel on post.
Slide inner guide into channel,
then lower bracket.
D
TIGHTEN
WARNING:
Never loosen knob while
display is on bracket
DMEASURE
≥Display
height
between
brackets
I
MEASURE to
ensure clearance
to desk
4.3 Firmly tighten hand knob at
chosen height.
Ensureheightissufcientfor
display to clear desk once in place.
Repeatwithsecondbracketandt
post cap.
MEASURE
≥Display
height
between
brackets
I
MEASURE to
ensure clearance
to desk

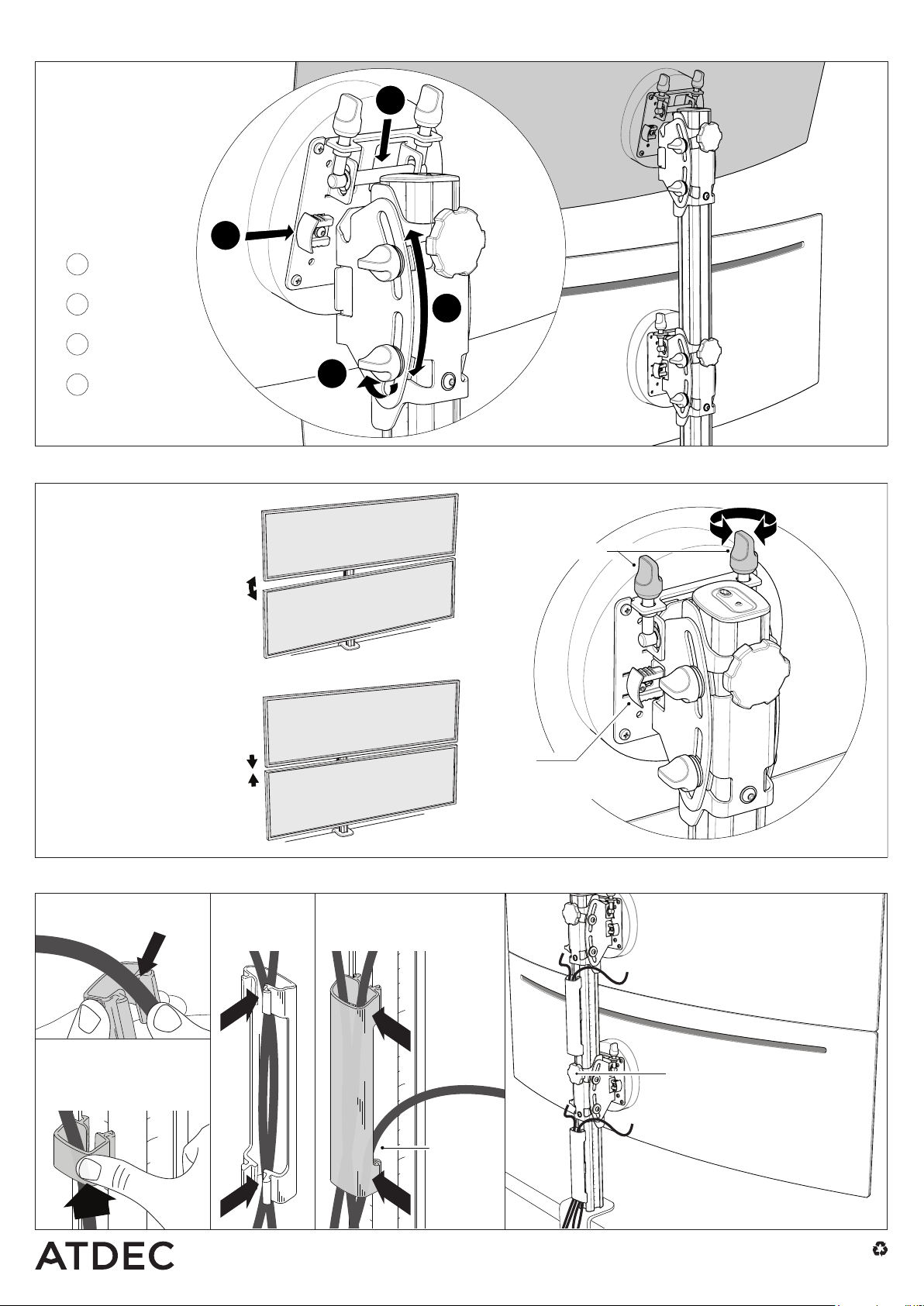

AWMS-2-BT75-H Page 4 of 4
Please Recycle
7. Fine adjustment
6. Attach top display
ii
iii
iv
i
LHS &
RHS
TOP &
BOTTOM
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reservestherighttoalterspecicationswithoutnotice.©20221125A
6.1 Check that distance
between brackets is
equal to or greater than
the height of the display.
Repeat Step 5 to attach
top display and set tilt
angle.
Lower
Close
Adjust angle
Set angle
i
ii
iii
iv
WARNING:
Always remove display
before adjusting height
Unstacked Stacked
Cables can
exit from
the side of
the cable
cover
PUSH
PUSH
PUSH
8. Cable management
8.1 Load cables into
cable clip.
8.2 Insert one side of the
cable clip into a channel
on the post, then push in
the other side.
Load cables into
cable cover
8.3 Load
cables into
cable cover.
8.4 Clip the cable cover
back onto rear post
channels.
7.1 To correct horizontal angle
of display +/- 3 °:
Turnasinglenetune
adjustment knob to adjust
angle of screen.
Clockwise = Higher
Anti-clockwise = Lower
7.2 To close small gap between
displays +/-6mm (1/4”):
Turnbothnetuneadjustment
knobs - alternating sides a few
rotations at a time.
Clockwise = Higher
Anti-clockwise = Lower
ii
iii
iv
i
LHS &
RHS
TOP &
BOTTOM
FINE HEIGHT ADJUST
FINE ADJUSTMENT
KNOBS
NOTE:
Ensure clips are in
CLOSED position
