Atdec AWM-BT Manuale utente
AWM-BT Page 1 of 3
Installation Guide
AWM-BT
AWM Tilt Bracket
COMPONENT CHECKLIST
REQUIRED TOOLS
CAPACITY
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24” - 55”
• Phillips Head Screwdriver
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! EachTiltBracketsupportsamaximumweightasperabovecapacityspecication.
! Avoidapplyingdownwardloadtocornersofdisplay.
! Thisproductisnotsuitableforoutdooruse.
! Donotusethisproductformobileapplications.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with Atdec AWM Series products.
! VESAmountedaccessories(suchasminiPCbracketsandmounts),andoffsetVESAlocationsexertadditionalleverage
thatcanexceedthecapacityofthemounteventhoughthemonitorweightmaybewithinthestatedrange.Pleasecontact
Atdecifyouwouldlikefurtherinformation.
! WARNING!Deathorseriousinjurymayoccurifachildclimbsonortipsproduct.
B
Bracket
(x1)
A
VESA Plate
(x1)
C
M4x10mm
Screw
(x4)
D
M4x20mm
Screw
(x4)
E
10mm
Spacer
(4x)
F
4mm
Hex Key
(x1)
300mm (12”) max
overall display depth
AWM-BT Page 2 of 3
2. Slide bracket onto post and set height
2.2Lineuptheinnerguide
onrearofbracketwithrear
channelonpost.
VIEW FROM ABOVE
2.3 Slideinnerguide
intochannelandlower
bracket.
2.1 Tiltbracketmustonlybe
attachedwithdisplayfacingthe
frontofthemountingsurfaceunless
xingisGrommetClamp(AC-GC).
2.4Firmlytighten
handknobat
chosenheight.
1.1 VESA compatibility Option A Attach VESA
plate with M4x10mm
screws.
Option B For recessed
VESA use 10mm spacers
andM4x20mmScrews.
1. Attach VESA plate to display
75mm
100mm
75mm
100mm
For 75mm VESA
unscrew 5mm to
access top holes.
NOTE:
SomedisplaysrequiretheuseofaVESAadapter
beforeattachingtheVESAplate.ThisVESA
adaptermayshipintheboxwiththedisplay.
Consultyourdisplay’sinstallationguidefor
furtherinformation.
A
C
TOP
A
D
E
TIGHTEN
Back of
work
surface
Inner guide
positioned
in rear post
channel
B
AWM POST
(not supplied)
Arrow side
towards user
B
AWM POST
(not supplied)
Arrow side
towards user
WORK
SURFACE
AWM-BT Page 3 of 3
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20230120

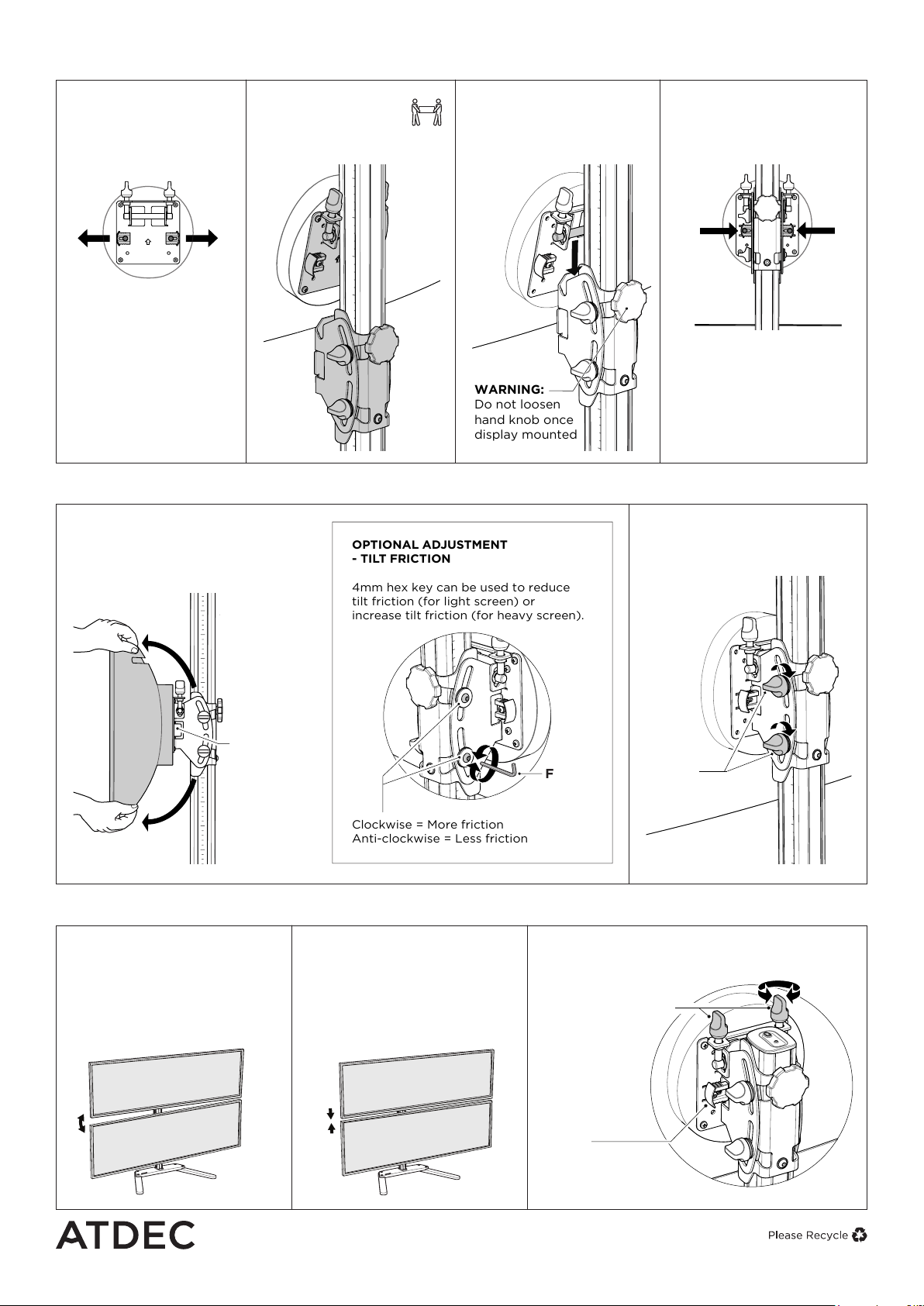

5. Fine adjustment
3. Attach display
4. Set tilt
3.1 Set VESA plate
clips to open position.
WARNING:
Use two people to
install display
NOTE:
Display hangs from the
bracket like a painting.
After clips are closed, if
corners of the screen are
pushed downwards, rocking
movement is expected.
3.2 Liftdisplay
untilVESAplateis
above the height
ofthebracket.
3.3 Withpostcentered
slowlylowerdisplayuntil
baronVESAplatesitsin
saddleinbracket.
3.4 Set VESA plate
clips to closed position.
4.1 Adjust display tilt
angle by gripping edges
of screen and rolling up or
down to desired position.
4.2 Tighten tilt knobs
to set.
5.1 Tocorrecthorizontalangle
ofdisplay+/-3°:
Turnasingleneadjustment
knobtoadjustangleofdisplay.
5.2 Toclosesmallgapbetween
displays+/-6mm(1/4”):
Turnbothneadjustment
knobs-alternatingsidesafew
rotationsatatime.
OPEN
WARNING:
Do not loosen
hand knob once
display mounted�
CLOSED
WARNING:
Ensure clips
closed before
tilting
Clockwise = More friction
Anti-clockwise = Less friction
OPTIONAL ADJUSTMENT
- TILT FRICTION
4mm hex key can be used to reduce
tilt friction (for light screen) or
increase tilt friction (for heavy screen).
F
TILT
KNOBS
Clockwise=Higher
Anti-clockwise=Lower
FINE HEIGHT ADJUST
FINE ADJUSTMENT
KNOBS
NOTE:
Ensure slide clips in
CLOSED position
