VS-0404

USER MANUAL

Video Matrix Switch

vs0404.fm Page 1 Friday, November 5, 2010 4:14 PM

FCC Information

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instruction manual, may

cause interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna;

Increase the separation between the equipment and receiver;

Connect the equipment into an outlet on a circuit different from

that which the receiver is connected;

Consult the dealer or an experienced radio/television technician

for help.

RoHS

This product is RoHS compliant.

SJ/T 11364-2006

The following contains information that relates to China.

vs0404.fm Page 2 Friday, November 5, 2010 4:14 PM

- 3 -

VS-0404 User Manual

Online Registration

Telephone Support

Technical Support

For international online technical support – including

troubleshooting, documentation, and software updates:

http://support.aten.com

For North American technical support:

International http://support.aten.com

North America http://www.aten-usa.com/product_registration

International 886-2-8692-6959

China 86-10-5255-0110

Japan 81-3-5323-7178

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

United Kingdom 44-8448-158923

Email ATEN TECH [email protected]

ATEN NJ [email protected]

Online Technical Support ATEN TECH http://www.aten-usa.com/support

ATEN NJ http://support.aten.com

Troubleshooting

Documentation

Software Updates

ATEN TECH http://www.aten-usa.com

ATEN NJ http://www.aten.com

Telephone ATEN TECH 1-888-999-ATEN

ATEN NJ 1-732-356-1703

vs0404.fm Page 3 Friday, November 5, 2010 4:14 PM

- 4 -

Package Contents

The VS-0404 Video Matrix Switch package contains the

following:

1 VS-0404 Video Matrix Switch

1 VGA/Audio Cable (1.8m)

1 Power Adapter

1 User Manual*

1 Quick Start Guide

Check to make sure that all the components are present and that

nothing got damaged in shipping. If you encounter a problem,

contact your dealer.

Read this manual thoroughly and follow the installation and

operation procedures carefully to preventanydamage tothe unit,

and/or any of the devices connected to it.

*Features may have been added to the VS-0404 since this

manual was printed. Please visit our website to download the

most up-to-date version of the manual.

Manual Part No. PAPE-1269-101G

Manual Date: 2010-11-05

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

vs0404.fm Page 4 Friday, November 5, 2010 4:14 PM

- 5 -

Overview

The VS-0404 Video Matrix Switch combines the capability of a

video switcher and signal splitter. It duplicates and enhances the

video and audio signals from up to four input sources

(computers), and routes them to up to four output devices

(monitors, projectors, etc.).

The VS-0404 provides fast, flexible, reliable solutions for

installations that require audio-visual information from multiple

sources to be delivered to multiple destinations – such as:

Broadcasting information to public locations (news, airline and

train schedule and arrival/departure information)

Sporting events

Theater and lecture overflow rooms

Classroom and company training facilities

Clearly marked front panel switches and LED indicators make it

easytolinksources withdesiredoutputdevices,creatingamatrix

of presentation possibilities.

vs0404.fm Page 5 Friday, November 5, 2010 4:14 PM

- 6 -

Features

Front panel push button switches select the combination of

video input to video output.

Duplicates and enhances video signals up to 65 m (max.)

Cascadable

Audio enabled

Installation Requirements

A VGA, SVGA, XGA or Multisync monitor capable of the

highest resolution that you will be using on any computer in

the installation for each output port you will be using.

Speakers for each output port you will be using.

A video cable with HDB-15 connectors (male on one end and

female on the other end) for each computer you will be

installing.*

An audio cable for each computer you will be installing.

vs0404.fm Page 6 Friday, November 5, 2010 4:14 PM

- 7 -

Components

VS-0404 Front View

No. Component Description

1 Input Select

Switches Each switch corresponds to an output port.

Pressing the switch cycles through the input

sources to select which input source’s signal

will be sent to the switch’s corresponding

output port.

2 Input Port LEDs The input source LEDs are built into the

Selection Switches. Each switch has four

numbered LEDs that correspond to the four

input source ports. A lit LED indicates which

input source is the currently selected one.

3 Source LEDs Each of these LEDs corresponds to an input

port. A lit LED indicates data transmission

from the source connected to its

corresponding input port.

4 Power LED Lights to indicate that the unit is receiving

power.

31 & 2

vs0404.fm Page 7 Friday, November 5, 2010 4:14 PM

- 8 -

VS-0404 Rear View

No. Description Function

1 Video / Audio

Output Ports The video and audio cables from the monitor

and speakers plug in here (bottom row).

2 Power Jack The Power Adapter cable plugs in here.

3 Video / Audio

Input Ports The video and audio cables from the

computer’s video and audio output ports plug

in here (top row).

vs0404.fm Page 8 Friday, November 5, 2010 4:14 PM

- 9 -

Hardware Setup

Before you Begin

Single Stage

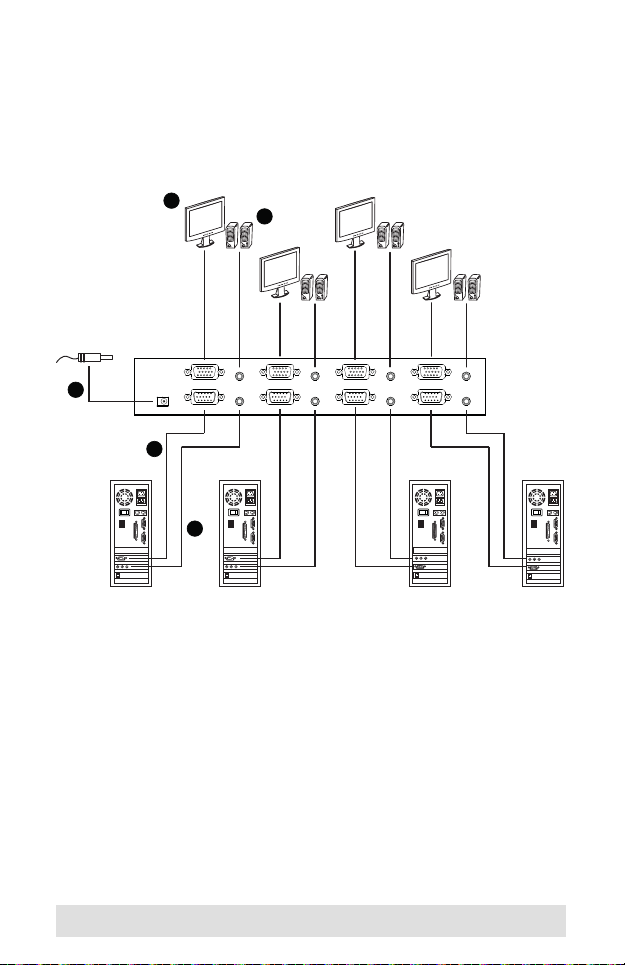

Setting up the VS-0404 is simply a matter of plugging in the

cables. Refer to the installation diagram on the next page (the

numbers in the diagram correspond to the numbered steps) and

do the following:

1. Use a high density HDB-15 male/female VGA cable to con-

nect the computer’s video port to any available video input

source port on the VS-0404.

2. Use a male/male audio cable to connect the computer’s

speaker port to the audio input source port that corresponds

to the video input source port you connected in step 1.

3. Connect the monitor to any available video output port on the

VS-0404.

4. Connect the speakers to the audio output port that

corresponds to the video output port you connected in step 3

Note: 1. Repeat steps 1 - 4 for any other ports you wish to set up.

2. When connecting computers to the switch, we strongly

recommend you use custom VGA/Audio Combination

Cables like the one provided with this package – see

Installation Requirements, page 6, for details.

1. Make sure that the power to all the devices you will

be connecting up has been turned off.

2. Make sure that all devices you will be connecting

up are properly grounded.

vs0404.fm Page 9 Friday, November 5, 2010 4:14 PM

- 10 -

5. Plug the power adapter that came with the VS-0404 into an

AC power source, then plug the power adapter cable into the

switch’s Power Jack.

After you are all cabled up, you can power on the attached

equipment.
