ATI Technologies RADEON 7000 Manuale utente

RADEON

™

7200

RADEON

™

7000

User’s Guide

Version 3.0

P/N 137-40299-30 Rev. B

ATI and all ATI product and product feature names are trademarks and/or registered

trademarks of ATI Technologies Inc. All other company and/or product names are

trademarks and/or registered trademarks of their respective owners. Features,

performance and specifications are subject to change without notice. Product may not

be exactly as shown in the diagrams.

Reproduction of this manual, or parts thereof, in any form, without the express written

permission of ATI Technologies Inc. is strictly prohibited.

Disclaimer

While every precaution has been taken in the preparation of this document, ATI

Technologies Inc. assumes no liability with respect to the operation or use of ATI

hardware, software or other products and documentation described herein, for any act

or omission of ATI concerning such products or this documentation, for any

interruption of service, loss or interruption of business, loss of anticipatory profits, or

for punitive, incidental or consequential damages in connection with the furnishing,

performance, or use of the ATI hardware, software, or other products and

documentation provided herein.

ATI Technologies Inc. reserves the right to make changes without further notice to a

product or system described herein to improve reliability, function or design. With

respect to ATI products which this document relates, ATI disclaims all express or

implied warranties regarding such products, including but not limited to, the implied

warranties of merchantability, fitness for a particular purpose, and non-infringement.

Product Notice

MACROVISION

A.Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and

4,907,093 licensed for limited viewing users only.

B.In the printed collateral material that accompanies the Product, the following notice

must be printed in an appropriate place in such materials:

This product incorporates copyright protection technology that is protected by method

claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

iii

Table of Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features At A Glance .................................................................................. 2

Radeon™ 7000....................................................................................... 2

Radeon™ 7200....................................................................................... 2

ATI’s Catalyst Software Suite .................................................................... 3

3D Gaming Experience .......................................................................... 3

Direct 3D®and OpenGL®..................................................................... 3

HydraVision™ ....................................................................................... 3

Display Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Catalyst™ Software Suite . . . . . . . . . . . . . . . . . . . . . . 6

ATI Displays Tab......................................................................................... 6

Monitor Attributes Tab........................................................................... 7

Monitor Adjustments Tab ...................................................................... 8

Monitor Advanced Tab .......................................................................... 9

Multiple Monitors................................................................................. 10

Installing a Second ATI Graphics Card ............................................... 10

Enabling/Disabling Secondary Displays .............................................. 11

Enabling Extended Desktop Mode....................................................... 11

Dynamic Display Reassignment .......................................................... 11

Virtually Repositioning Your Displays................................................ 12

Ratiometric Expansion ......................................................................... 13

ATI Color Tab ........................................................................................... 14

ATI Options Tab........................................................................................ 16

ATI Overlay Tab ....................................................................................... 17

Video Overlay ...................................................................................... 17

Direct 3D®Control Panel . . . . . . . . . . . . . . . . . . . . . . 19

Main and Custom Settings........................................................................ 19

Direct 3D®Compatibility Settings........................................................... 22

OpenGL®Control Panel. . . . . . . . . . . . . . . . . . . . . . . 24

Main and Custom Settings........................................................................ 24

OpenGL®Compatibility Settings ............................................................ 27

Using TV Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

View your PC’s display on a TV.......................................................... 28

Connecting to a TV or a VCR .................................................................. 28

Starting Windows®with TV Display Enabled..................................... 30

Using SCART Connectors for European TVs ..................................... 30

How To Enable/Disable The TV Display ............................................ 30

Using and Adjusting TV Out................................................................ 31

Using a Monitor vs. Using the TV Display.......................................... 31

Adjusting Monitor Display................................................................... 31

Viewing Text on a TV.......................................................................... 32

Reducing Edge Distortion .................................................................... 32

Changing Display Configurations ........................................................ 33

Using Games and Applications ............................................................ 34

Introduction

The RADEON™ 7000 series of graphic accelerators

delivers ground breaking 3D graphics performance.

• Designed and built by ATI Technologies Inc.

• Powered by the RADEON Graphics Processing

Unit (GPU).

• Awesome 3D gaming performance.

• Support for OpenGL®applications.

• Support for Direct 3D®applications.

• High resolution in 3D up to 2048x1536.

• Best performance for today’s and tomorrow’s

applications.

• Optional S-Video Out to connect your PC to your

TV or VCR.

Features At A Glance

Radeon™ 7000

The RADEON™ 7000 provides high performance

acceleration for today's demanding 3D graphic

applications. Its main features are:

• VIDEO IMMERSION™ which provides industry-

leading DVD playback and digital TV decode

capability

• Hyper Z™ technology, which reduces memory

bandwidth consumption, resulting in improved 3D

performance

• PIXEL TAPESTRY™ which can apply 3 textures

at once to a complex 3D gaming scene

• 64MB double data rate (DDR) memory, PCI and

AGP versions

• 32MB double data rate (DDR) memory, PCI and

AGP versions

• Optional TV output support (The 64MB AGP

version provides an S-Video Out connector).

Radeon™ 7200

In addition to the features of the RADEON™ 7000,

the RADEON™ 7200 also provides:

• CHARISMA ENGINE™ which is the main GPU,

providing full Transformation, Clipping and

Lighting at 30 million triangles per second,

necessary to accelerate today’s 3D games and

applications.

• 64MB of single data rate (SDR) memory.

The RADEON™ 7200 is available as AGP only.

ATI’s Catalyst Software Suite

3D Gaming Experience

ATI’s Catalyst™ Software Suite activates the

advanced graphic features, such as PIXEL

TAPESTRY™, for advanced 3D gaming capability.

For help on installing the Catalyst™ Software Suite,

refer to the Getting Started Guide.

The Catalyst™ Software Suite installs the ATI

display tabs. These tabs are accessed through the

Windows®Display Control Panel, through the

Advanced... button located on the Settings tab. For a

detailed explanation of each ATI tab, refer to

Catalyst™ Software Suite on page 6.

Direct 3D®and OpenGL®

The Catalyst™ Software Suite also supports the

latest versions of Direct 3D®and OpenGL®. Many

new 3D game titles, and the latest versions of older

titles, will virtually come to life as they utilize their

advanced Direct 3D®or OpenGL® features. Gamers

can tweak their settings for the ultimate experience in

3D image quality or 3D gaming performance.

ATI’s Direct 3D®and OpenGL® tabs are available

through the Windows®Display Control Panel,

through the Advanced... button located on the

Settings tab.

For a detailed explanation of the Direct 3D®and

OpenGL®tabs, refer to Direct 3D® Control Panel

on page 19, and OpenGL® Control Panel on

page 24.

HydraVision™

With an additional ATI graphics card installed in

your system, you can also use HydraVision™ for

advanced multi-monitor management. For more

information on HydraVision™, please refer to the

HydraVision™ User’s Guide PDF located on your

ATI Installation CD.

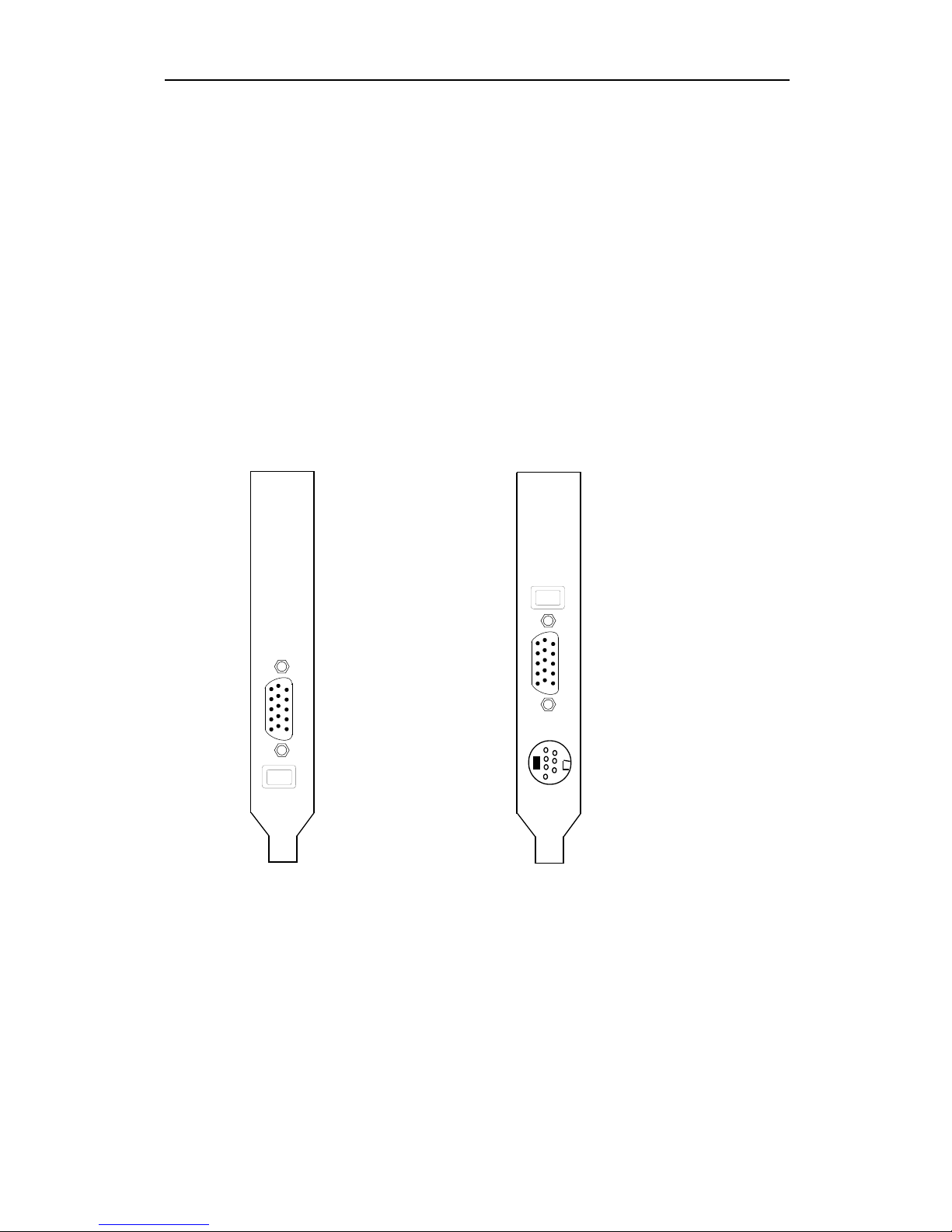

Display Connectors

The RADEON™ 7200 provides an IBM standard

analog VGA connector.

The RADEON™ 7000 64MB PCI, 32MB PCI and

32MB AGP versions also provide an IBM standard

analog VGA connector.

The RADEON™ 7000 64MB AGP version provides

an IBM standard analog VGA connector and an

S-Video Out connector.

For information on how to use the S-Video Out

connector, refer to Using TV Out on page 28.

If you install an additional ATI graphics card, you

can take advantage of Windows®multiple display

support. When you use multiple displays, one display

will always be Primary. Any additional display(s)

will be designated as Secondary.

S-VIDEO OUT

IBM STANDARD VGA

MONITOR CONNECTOR

S-VID OUT

IBM STANDARD VGA

MONITOR CONNECTOR

RADEON 7200

RADEON 7000 RADEON 7000

64MB AGP

Catalyst™ Software Suite

The following section provides an explanation of

each ATI tab available after installing the Catalyst™

Software Suite.

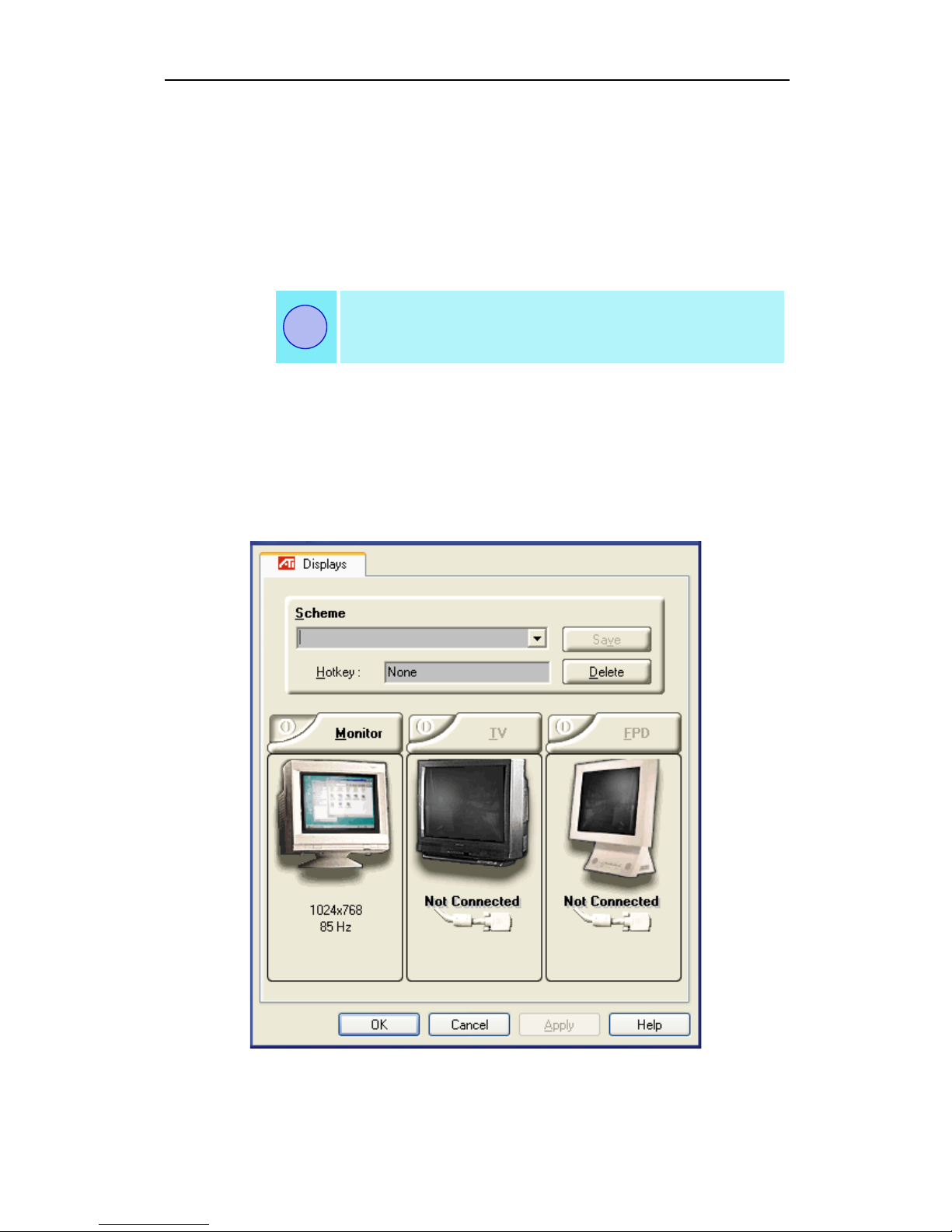

ATI Displays Tab

The ATI Display tab provides information on the

current screen resolution and refresh rate your

monitor is set to.

Clicking the monitor button accesses additional

monitor information, properties and controls.

Features presented in the following pages may not

be supported in all operating systems and/or may

appear differently.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ATI Technologies Scheda video

ATI Technologies

ATI Technologies Radeon 9200 Manuale utente

ATI Technologies

ATI Technologies X1650 - AMD Radeon XT 256MB PCI-E Graphics... Manuale utente

ATI Technologies

ATI Technologies Radeon CrossFire Manuale utente

ATI Technologies

ATI Technologies RADEON 9500 SERIES Manuale utente

ATI Technologies

ATI Technologies FireGL V5000 Manuale utente

ATI Technologies

ATI Technologies X1650 - AMD Radeon XT 256MB PCI-E Graphics... Manuale utente

ATI Technologies

ATI Technologies 100-505181 - FireGL 256 MB PCI-Express Card Manuale utente

ATI Technologies

ATI Technologies X800 - 100-435317 Radeon XT Mac Edition Manuale utente

ATI Technologies

ATI Technologies All-in-Wonder X800 PCI Express Manuale utente

ATI Technologies

ATI Technologies 100 437807 - Radeon X1950 Pro HD PCI Express 256MB Video... Manuale utente

ATI Technologies

ATI Technologies FIRE GL 8700 Manuale utente

ATI Technologies

ATI Technologies Vectra VL420 Guida rapida

ATI Technologies

ATI Technologies X1800 - 100-435705 Radeon XT 512MB GDDR3 SDRAM PCI Express x16 Graphics... Manuale utente

ATI Technologies

ATI Technologies Radeon HD 3450 Manuale utente

ATI Technologies

ATI Technologies RADEON 7200 Manuale utente

ATI Technologies

ATI Technologies 3D XPRESSION Manuale utente

ATI Technologies

ATI Technologies FireGL X1-256p Manuale utente

ATI Technologies

ATI Technologies 9200 - Radeon 128MB Video Graphics Card Manuale utente

ATI Technologies

ATI Technologies V3700 - Firepro 100-505551 256 MB PCIE Graphics... Manuale utente

ATI Technologies

ATI Technologies 9600 - Radeon XT 128 MB DDR Video Adapter Istruzioni per il montaggio

ATI Technologies

ATI Technologies RADEON 9800 PRO Manuale utente

ATI Technologies

ATI Technologies X3-256 - 100-505096 FireGL 256MB AGP 4x/8x Dual DVI Graphics... Manuale utente

ATI Technologies

ATI Technologies Radeon 9700 Series Manuale utente

ATI Technologies

ATI Technologies ALL-IN-WONDER 9700 Series Manuale utente

Manuali Scheda video popolari di altre marche

Gainward

Gainward GeForce GTX 690 4GB Manuale utente

MSI

MSI N220GT series Manuale utente

SIIG

SIIG aurora Manuale utente

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuale utente

MSI

MSI R7850 series Manuale utente

DVS

DVS Atomix HDMI Manuale utente

Aztech

Aztech VGS3D-AGP Manuale utente

Advoli

Advoli TB4 Standard Manuale utente

ELSA

ELSA ERAZOR III LT Manuale utente

Gigabyte

Gigabyte GV-R7500L Manuale utente

Themis

Themis TGA-7000 PMC Manuale utente

EMS

EMS XtremeRGB-Ex1 Manuale utente

Nvidia

Nvidia Quadro Workstation Manuale utente

Pioneer

Pioneer PDA-5003 Manuale utente

QDI

QDI N2 Manuale utente

NEC

NEC N8116-48 Manuale utente

MSI

MSI R7770 PoweR Edition Manuale utente

Gigabyte

Gigabyte GV-N68T256D Manuale utente
