Atlantis Land WebShare A02-RA340 Manuale utente
Where solutions begin
Company certified ISO 9001:2000
WebShare 340/440
VPN ROUTER ADSL2+
A02-RA440
A02-RA340
MULTILANGUAGE
QUICK START GUIDE
A02-RA3(4)40_GX01
Where solutions begin
Company certified ISO 9001:2000
ITALIANO
Questo prodotto è coperto da garanzia Atlantis Land Fast
Swap della durata di 3 anni. Per maggiori dettagli in merito o
per accedere alla documentazione completa in Italiano fare
riferimento al sito www.atlantis-land.com.
ENGLISH
This product is covered by Atlantis Land 3 years Fast Swap
warranty. For more detailed informations please refer to the web
site www.atlantis-land.com.
For more detailed instructions on configuring and using this
device, please refer to the online manual.
FRANCAIS
Ce produit est couvert par une garantie Atlantis Land Fast
Swap de 3 ans. Pour des informations plus détaillées, référez-
vous svp au site Web www.atlantis-land.com.
DEUTSCH
Dieses Produkt ist durch die Atlantis Land 3 Jahre Fast Swap
Garantie gedeckt. Für weitere Informationen, beziehen Sie sich
bitte auf Web Site www.atlantis-land.com.
ESPAÑOL
Este producto està cubierto de garantía Atlantis Land Fast Swap
por 3 años. Para una información más detallada, se refiera por
favor al Web site www.atlantis-land.com.
Where solutions begin
Company certified ISO 9001:2000
The award of the information is facultative, but its lack will
prevent ATLANTIS LAND® from starting the Guarantee process
requested.
Copyright
The Atlantis Land logo is a registered trademark of Atlantis Land
SpA. All other names mentioned mat be trademarks or
registered trademarks of their respective owners. Subject to
change without notice. No liability for technical errors and/or
omissions.
R
R
Re
e
eg
g
gi
i
is
s
st
t
te
e
er
r
r
y
y
yo
o
ou
u
ur
r
r
p
p
pr
r
ro
o
od
d
du
u
uc
c
ct
t
t!
!
!
w
w
ww
w
ww
w
w.
.
.a
a
at
t
tl
l
la
a
an
n
nt
t
ti
i
is
s
s-
-
-l
l
la
a
an
n
nd
d
d.
.
.c
c
co
o
om
m
m
Registration on the web site
www.atlantis-land.com within 15 days
from the purchase of the product dismiss
the customer from showing a valid proof of
purchase (Sale Receipt or Invoice) in case
of the request of intervention. For further
information we invite you to look at our web
site at the section WARRANTY.
MULTILANGUAGE QUICK START GUIDE
5
ITALIANO
1.1 Contenuto della confezione ............................... 9
1.2 I LED frontali......................................................... 9
1.3 Le porte posteriori.............................................. 10
1.4 Cablaggio............................................................ 11
1.5 Settaggi di Default ............................................. 12
1.6 Configurazione di IE.......................................... 13
1.7 Configurazione del PC...................................... 13
Configurazione del PC in Windows 95/98/ME .......13
Configurazione del PC in Windows NT4.0 .............14
Configurazione del PC in Windows 2000..............14
Configurazione del PC in Windows XP .................14
1.8 Configurazione Router...................................... 16
PPPoE routed/PPPoA routed ................................20
RFC1483 routed / IpoA routed...............................22
ENGLISH
1.1 Package contents .............................................. 26
1.2 The Front Panel LEDs ...................................... 26
1.3 The Rear Ports................................................... 27
1.4 Cabling ................................................................ 28
1.5 Default Settings.................................................. 29
1.6 IE Configuration ................................................. 30
1.7 TCP/IP Configuration ........................................ 30
Configuring PC (Windows 95/98/ME) ....................30
Configuring PC (Windows NT4.0)........................31
Configuring PC (Windows 2000)...........................31
Configuring PC (WindowsXP)..............................31
1.8 Browser configuration ....................................... 33
PPPoE routed/PPPoA routed ................................35
RFC1483 routed / IpoA routed...............................38
MULTILANGUAGE QUICK START GUIDE
6
FRANCAIS
1.1 Contenu de la boîte ........................................... 40
1.2 Face avant .......................................................... 40
1.3 Face arrière ........................................................ 41
1.4 Câblage ............................................................... 42
1.5 Configuration initiale.......................................... 43
1.6 Configuration du TCP/IP................................... 43
Configuration sous Windows 95/98/ME .................43
Configuration sous Windows NT4.0.......................44
Configuration sous Windows 2000 ......................44
Configuration sous Windows XP..........................45
1.7 Vérification .......................................................... 47
1.8 Configuration avec le Browser......................... 48
PPPoE Routed /PPPoA Routed.............................51
RFC1483 routed / IpoA routed...............................53
DEUTSCH
1.1 Inhalt der Verpackung....................................... 55
1.2 Die frontalen LED .............................................. 55
1.3 Die Hinterturen ................................................... 56
1.4 Verdrahtung........................................................ 57
1.5 Einstellung des Default ..................................... 57
1.6 Die IE Konfiguration .......................................... 58
1.7 Konfiguration des PC ........................................ 58
Konfiguration des PC in Windows 95/98/ME .........58
Konfiguration des PC in Windows NT4.0...............59
Konfiguration des PC in Windows 2000................59
Konfiguration des PC in Windows XP....................60
1.8 Konfiguration des Router.................................. 63
PPPoE routed/PPPoA routed ................................65
RFC1483 routed / IpoA routed...............................67
MULTILANGUAGE QUICK START GUIDE
7
ESPANOL
1.1 Contenido de la caja ......................................... 69
1.2 Los LED frontales .............................................. 69
1.3 Las puertas posteriores .................................... 70
1.4 Cablaje ................................................................ 71
1.5 Configuraciones por Defecto ........................... 72
1.6 Configuracciòn de IE......................................... 72
1.7 Configuracciòn del PC ...................................... 73
Configuracciòn del PC en Windows 95/98/ME ......73
Configuración del PC en Windows NT4.0..............73
Configuración del PC en Windows 2000...............74
Configuración del PC en Windows XP..................74
1.8 Configuracciòn Router ...................................... 75
PPPoE routed/PPPoA routed ................................77
RFC1483 routed / IpoA routed...............................79
MULTILANGUAGE QUICK START GUIDE
8
A02-RA3(4)40_GX01(V1.01 January 2006)
ITALIANO
9
Questo manuale è inteso come una guida rapida,
pertanto per ulteriori dettagli sulla configurazione fare
riferimento alla presentazione multimediale interattiva
(Vera) o al manuale esteso presenti sul CDRom
allegato.
1.1 Contenuto della confezione
Atlantis Land WebShare ADSL2+ VPN Router, CD-Rom
contenente il manuale e la guida interattiva multimediale,
Guida di Quick Start, cavo RJ-11 ADSL, cavo CAT-5 LAN,
Cavo Console RS232-PS2(DB9), Alimentatore (12V, 1A).
1.2 I LED frontali
LED INFORMAZIONE
PWR Acceso quando connesso alla rete elettrica.
SYS Acceso verde fisso quando il sistema è
pronto.
ITALIANO
10
LAN
Acceso quando connesso ad un dispositivo
Ethernet
Verde= connessione a 100Mbps
Arancio= connessione a 10Mbps
Lampeggiante quando vi è
trasmissione/ricezione.
ADSL
Acceso quando connesso in modalità ADSL
DSLAM. Lampeggiante durante la fase di
allineamento.
PPP/MAIL
Acceso verde fisso quando è attiva una
sessione PPP.
Lampegginate quando una mail è presente
nell’account configurato.

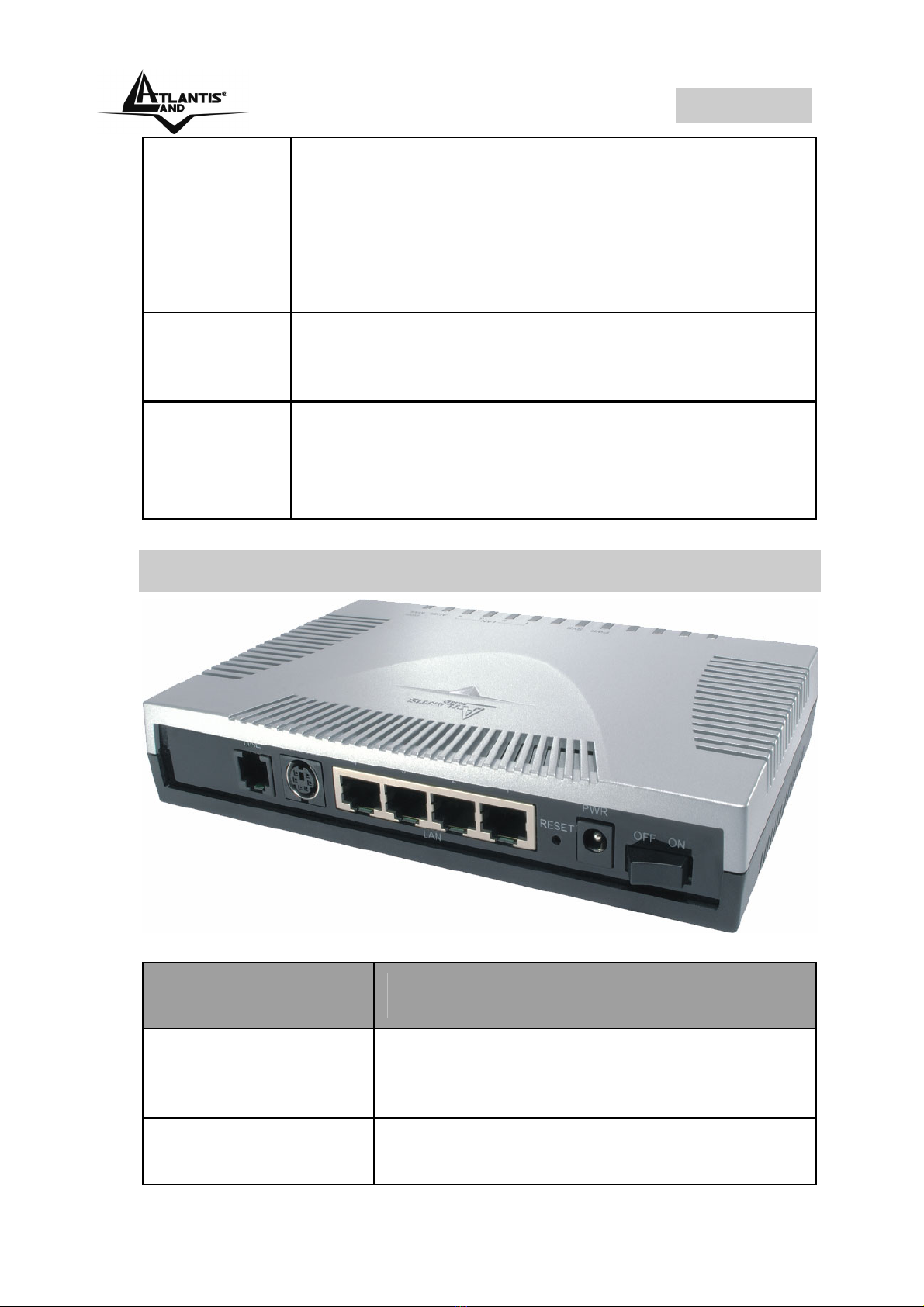

1.3 Le porte posteriori
PORTE UTILIZZO
ADSL(RJ11) Connettere il cavo RJ-11 a questa
porta per effettuare l’allacciamento
all’ADSL.
PS2 Connettere il cavo Console per
collegare il dispositivo al PC. Tale
