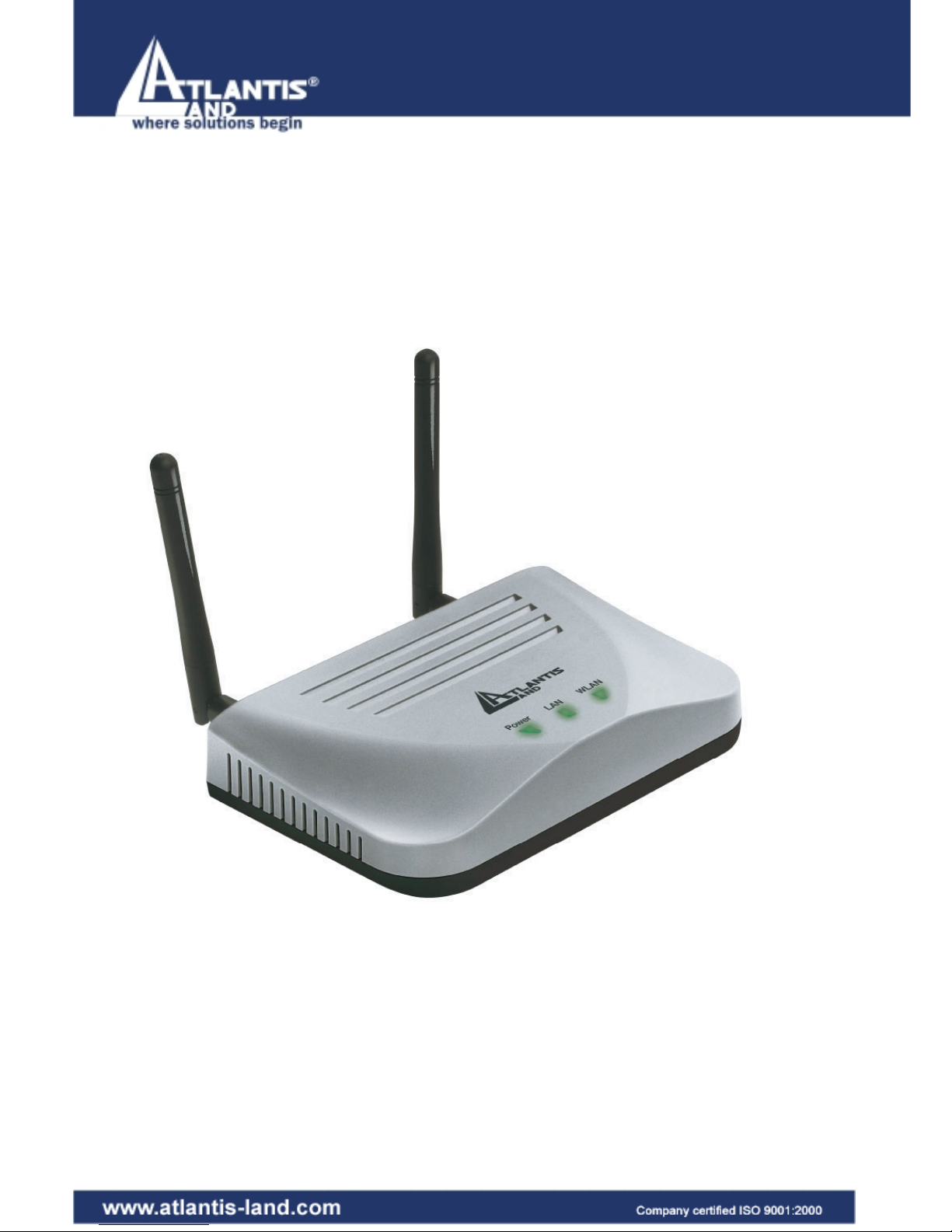

Atlantis Land A02-AP-W54 Manuale utente

Wireless Multi-Function

Access Point

A02-AP-W54

Quick Start Guide

A02-AP-W54_GE01

Wireless Multi-Function Access Point

ENGLISH

This product is covered by Atlantis Land 3 years Fast-Swap

warranty. For more detailed informations please refer to the

web site www.atlantis-land.com.

For more detailed instructions on configuring and using the

Switch , please refer to the online manual.

ITALIANO

Questo prodotto è coperto da garanzia Atlantis Land

Fast-Swap della durata di 3 anni. Per maggiori dettagli in

merito o per accedere alla documentazione completa in

Italiano fare riferimento al CDRom o al sito

www.atlantis-land.com.

FRANCAIS

Ce produit est couvert par une garantie Atlantis Land

Fast-Swap de 3 ans. Pour des informations plus

détaillées, référez-vous svp au site Web

www.atlantis-land.com.

Le manuel complet en Francais est disponible dans le

CDRom ou sur le WEB.

DEUTSCH

Dieses Produkt ist durch die Atlantis Land 3 Jahre

Fast-Swap Garantie gedeckt. Für weitere Informationen,

beziehen Sie sich bitte auf Web Site

www.atlantis-land.com.

ESPAÑOL

Este producto està cubierto de garantía Atlantis Land

Fast-Swap por 3 años. Para una información más

detallada, se refiera por favor al Web site

www.atlantis-land.com.

Wireless Multi-Function Access Point

-l

Registration on the web site www.atlantis-land.com

within 15 days from the purchase of the product

dismiss the customer from showing a valid proof of

purchase (Sale Receipt or Invoice) in case of the

request of intervention. For further information we

invite you to look at our web site at the section

WARRANTY.

Wireless Multi-Function Access Point

Congratulations on your purchase of this IEEE 802.11g

Wireless Multi-Function Access Point.

For more detailed instructions on configuring and using the

Wireless Multi-Function Access Point, please refer to the

online manual.

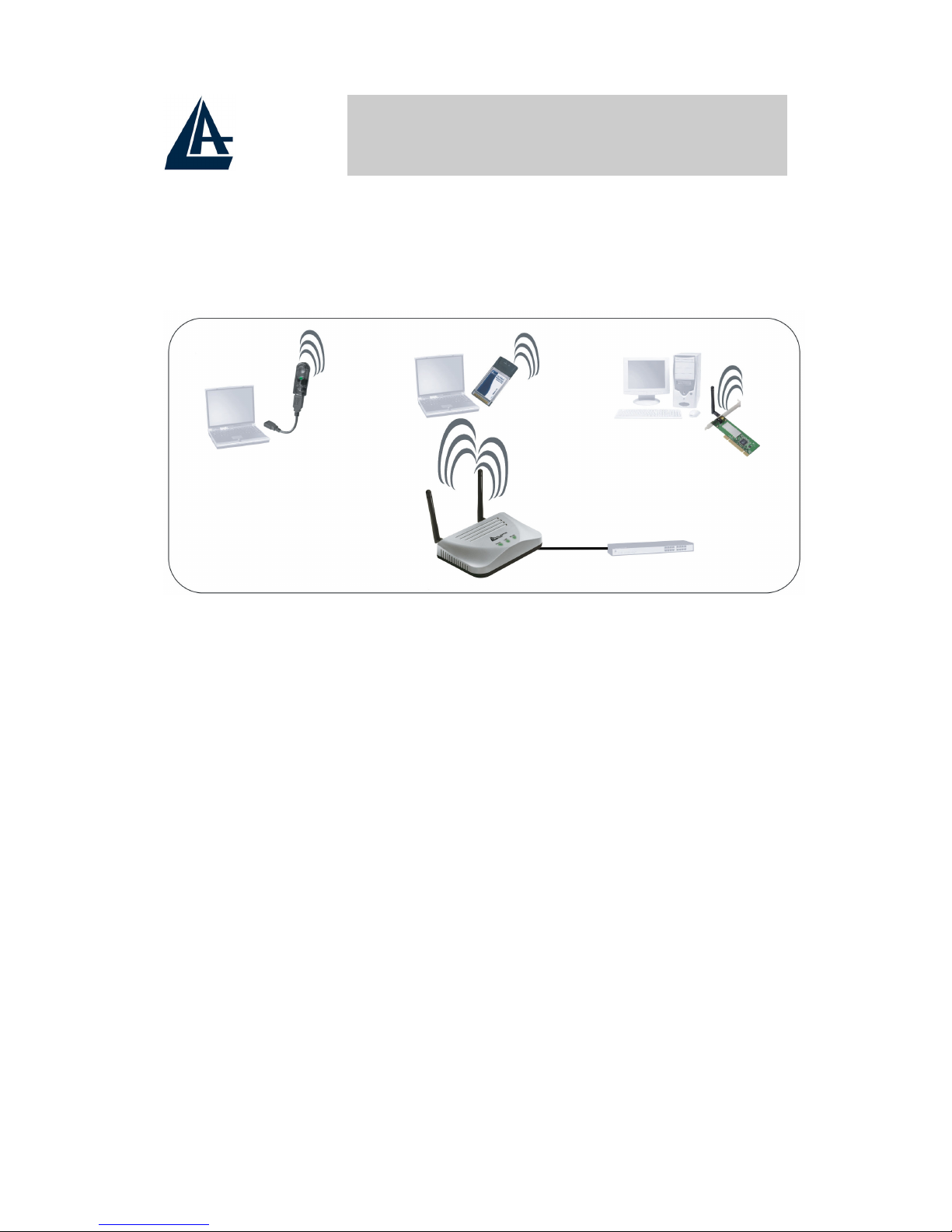

1.1 An Overview

The device for a total freedom of movement without losing

the connection. Easy to be installed and fast and flexible,

with Wireless Multi-Function Access Point there is no more

obligation for a fixed working place: you can easily work or

navigate for fun from your own garden or in different rooms

of your office, always in wireless connection.

The Roaming function gives you a complete freedom of

movement and two or more Wireless Multi-Function Access

Point can serve wireless also large headquarters.

A pair of Wireless Multi-Function APs operating under

Bridge mode to act as the bridge that connect two Ethernet

networks or Ethernet enabled clients together. Repeat Mode

is able to extend the effective range and coverage of the

wireless network.

Thanks to advanced security functions which are integrated

and thanks to the troughput of the protocol IEE802.11G you

are going to have a fast and flexible wireless net, hacker

safe.

The chipsets fully support Wi-Fi Protected Access (WPA)

and the IEEE 802.11i draft security standards in hardware

and high-speed encryption engines with no performance

degradation.

Last, but not least, this product implements Intersil Nitro

GT™ capabilities to deliver up to a 3x improvement in

throughput for 802.11g clients operating in mixed-mode

wireless networks, and up to 50 percent greater throughput

performance in 802.11g only networks.

Wireless Multi-Function Access Point

1.2 System Requirements

Before installing the Adapter, your PC should meet the

following:

 Intel® Pentium®III 600Mhz or compatible processor

with TCP/IP stack

 Iinternet Explorer V6.0 on Netscape V6.0

 CDRom

1.3 Package Contents

Unpack the package and check all the items carefully. If any

item contained is damaged or missing, please contact your

local dealer as soon as possible. Also, keep the box and

packing materials in case you need to ship the unit in the

future. The package should contain the following items:

 Wireless Multi-Function Access Point

 CDRom with Manuals (English, Italian and

French)and Quck Start Guide

 Quick Start Guide (English)

 Cable CAT5 LAN

 AC-DC Adapter (5V DC@1,2A)

 2 x 2.2 dBi Antennas

 Warranty Card

1.4 Setup

The setup of the Wireless Multi-Function Access Point can

be performed using the following steps:

 Visually inspect the Ethernet RJ45 port connector and

make sure that it is fully plugged in to the system’s

Ethernet switch/hub port.

 Fix the direction of the antennas. Try to place the AP

in a position that can best cover your wireless

network. Normally, the higher you place the antenna,

the better the performance will be.

Wireless Multi-Function Access Point

 The antenna’s position enhances the receiving

sensitivity.

 Visually inspect if the Power Adapter was fully

plugged to the device power jack (Connect the Power

Adapter DC plug to the AP’s power jack DC-IN).

1.5 Location

Locate an optimum location for the Wireless LAN Access

Point (AP). The best place for your AP is usually the center

of your wireless network, with line of sight to all of your

mobile stations.

Try to place the AP in a position that can best cover your

wireless network. Normally, the higher you place the

antenna, the better the performance will be. The antenna’s

position enhances the receiving sensitivity.

Wireless Multi-Function Access Point

1.6 Using Wireless Access Point

1.6.1 The Front LEDs

The table below shows the LED Indicator of the Wireless

Multi-Function Access Point.

LED Meaning

POWER This indicator lights green when the

Access Point receives power. Otherwise, it

turns off.

LAN The indicator lights green when the LAN

port is connected to a 100Mbps Ethernet

station, the indicator blinks green while

transmitting or receiving data on the

100Mbps Ethernet network.

WLAN The indicator always blinks green while the

wireless AP is always broadcasting

packets.

1.6.2 The Rear Ports

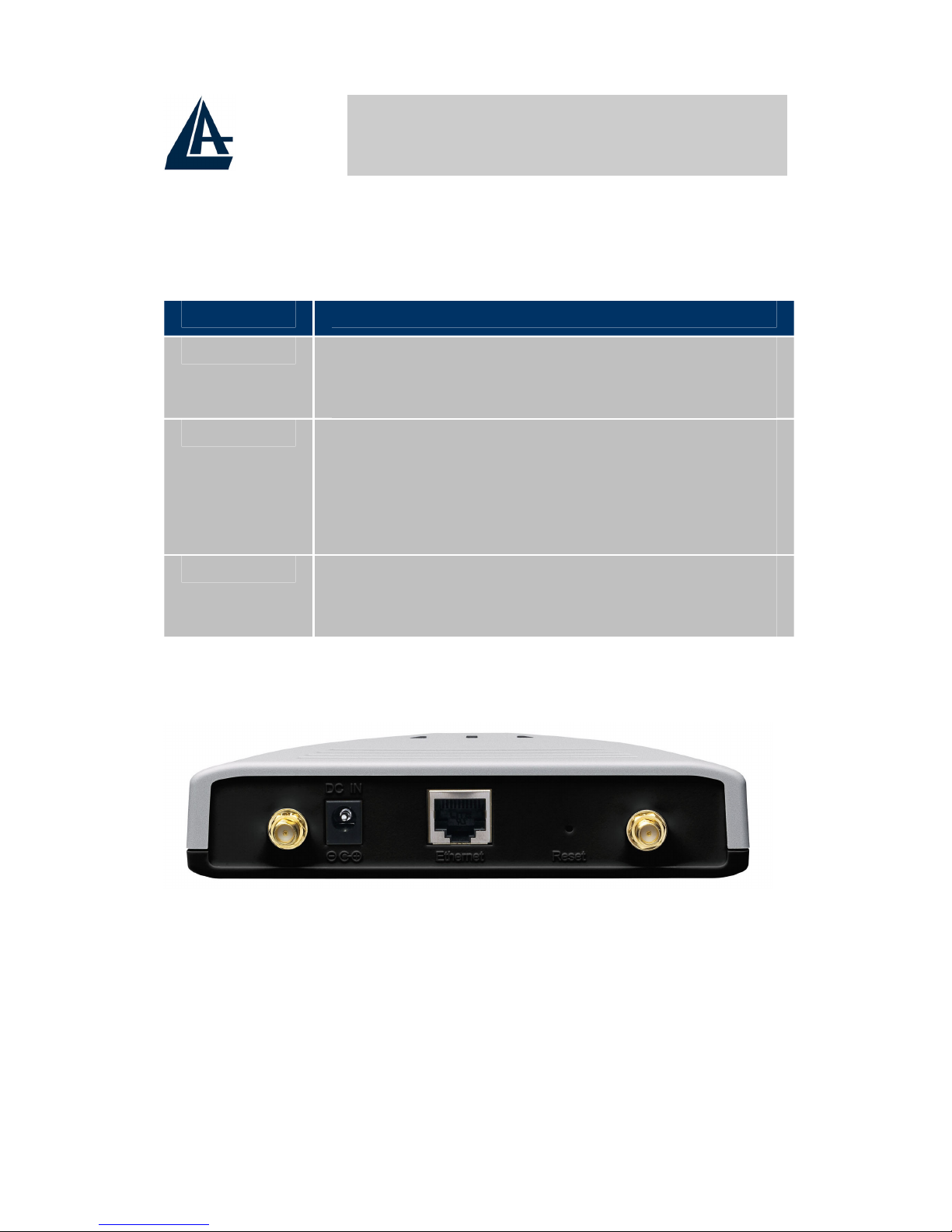

The figure below shows the rear panel of the Wireless Multi-

Function Access Point.

Wireless Multi-Function Access Point

1.7 TCP/IP

The Wireless Multi-Function Access Point can be

configured with your Web browser. The web browser is

included as a standard application in the following operation

systems, UNIX, Linux, Mac OS, Windows

95/98/NT/2000/Me, and etc. The product provides a very

easy and user-friendly interface for configuration.

Port Meaning

Reverse

SMA

Connectors

There are two antennas in the rear

panel, when you need to connect

extended Antenna, connect to

Antenna 2 for the extended antenna.

When you are using one antenna

model, connect the extended antenna

directly to the antenna screw in the

rear panel.

LAN

Ethernet uplink port with 10/100Mbps

Fast Ethernet connections, connect

this port to switch/hub.

Reset The Reset function is to reset the

setting back to factory default setting,

once you press the “RESET” button

within 10 seconds, the LED of the

WLAN will turn off. And when the

Access Point is ready, the WLAN LED

will start blinking.

And the other function is when the AP

is locked, press the reset button to

unlock it.

POWER

(DC-IN) Connect the Power Adapter DC plug

to the AP’s power jack.

Wireless Multi-Function Access Point

1.7.1 IP Adress

This section describes the configuration required by LAN-

attached PCs that communicate with the Wireless Multi-

Function Access Point, either to configure the device or for

network access. These PCs must have an Ethernet

interface (or wireless adapter) installed properly, be

connected to the Wireless Multi-Function Access Point

either directly or through an external repeater hub or by

wireless, and have TCP/IP installed and configured to

obtain an IP address through a DHCP server or a fixed IP

address that must be in the same subnet of the Wireless

Multi-Function Access Point. The default IP address of the

Wireless Multi-Function Access Point is 192.168.1.100 and

subnet mask is 255.255.255.0.

Please follow the steps below for PC’s network environment

installation. First of all, please check your PC’s network

components. The TCP/IP protocol stack and Ethernet

network adapter must be installed. If not, please refer to MS

Windows related manuals.

1.8 Default Settings

Before configurating this Wireless Multi-Function Access

Point, you need to know the following default settings.

 User:

 Password:

 IP address (192.168.1.100)

 Subnet Mask(255.255.255.0)

 Wireless: Access Point

 SSSID: default

 Channel:6

Wireless Multi-Function Access Point

1.9 Accessing the Access Point Web

Configurator

Before you configure this device, note that when the AP is

configured through an Ethernet connection, make sure the

manager PC must be set on same the IP network.

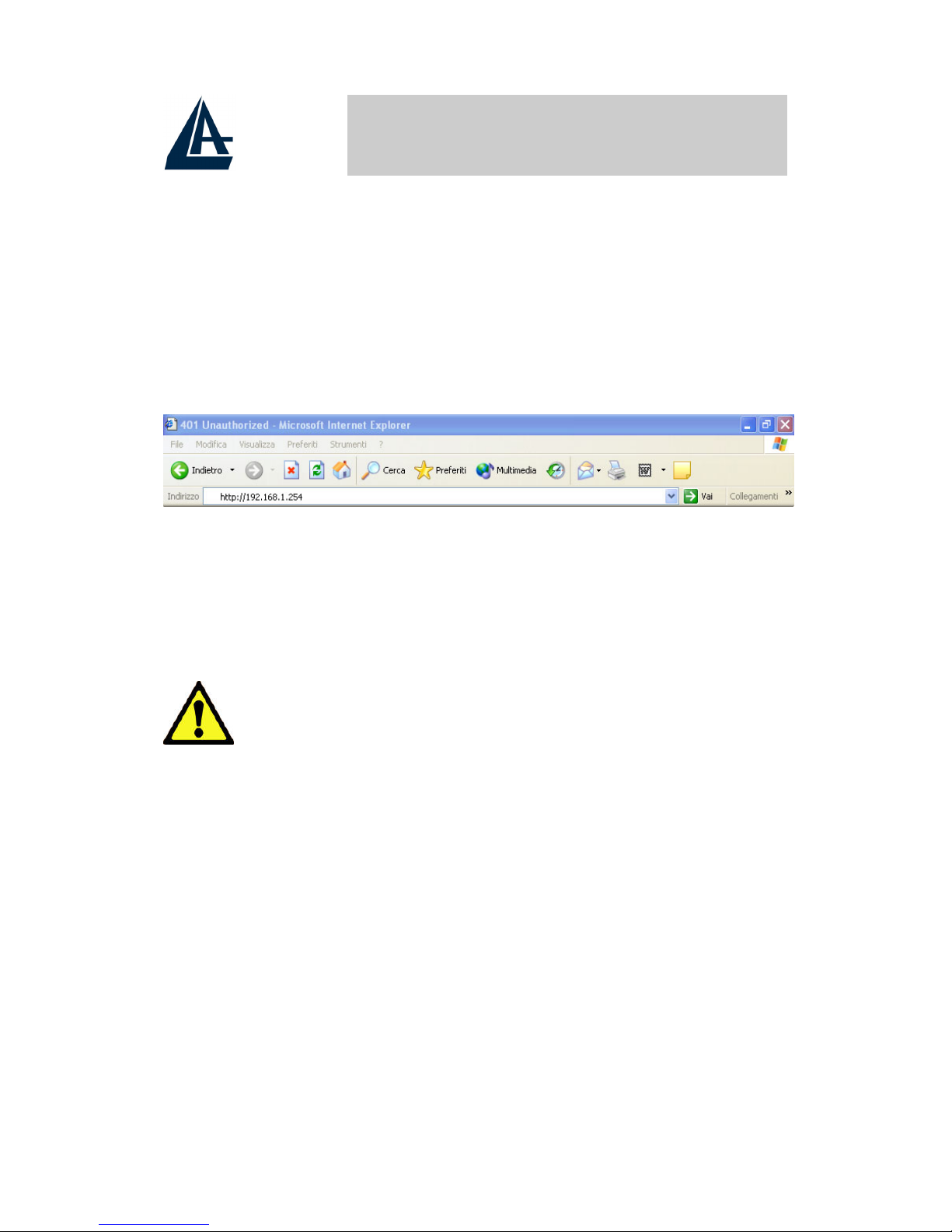

Open Internet Explorer 5.0 or above Web browser.

Enter IP address http://192.168.1.100 (the factory-default

IP address setting) to the address location.

Click OK.

The screen will show the station summary of the AP when

you login to the AP.

There is no need to enter any password when

you first login the AP, the default setting is without

password. When there is a screen needs to enter

the Network password, it means that there is a

password settle, type in the password you

entered before.

Type a name or leave the username dialog box

empty to login, the system will check only the

password that was set in the system before.

1.9.1 Navigating the Access Point Web

Configurator

There are six main functions included in the left side of the

main screen: Network, Security, Status, Clients, Tools and

Configuration. Point the selections in the left side of the

menu screen.

Altri manuali per A02-AP-W54

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Atlantis Land Punto di accesso wireless

Atlantis Land

Atlantis Land A02-AP-W54 Manuale utente

Atlantis Land

Atlantis Land I-Fly i I-Fly Wireless Access Point Manuale utente

Atlantis Land

Atlantis Land NETFLY AP2-54M Manuale utente

Atlantis Land

Atlantis Land NetFly AP1-54/P Manuale utente

Atlantis Land

Atlantis Land FlyBoost CL100 Manuale utente

Atlantis Land

Atlantis Land NetFly AP1-54/P Manuale utente

Atlantis Land

Atlantis Land A02-AP2-W54M Manuale utente

Atlantis Land

Atlantis Land A02-AP1-W54 Manuale utente

Atlantis Land

Atlantis Land A02-AP2-W54M Manuale utente

Atlantis Land

Atlantis Land I-Fly A02-WAP-54G Manuale utente

Atlantis Land

Atlantis Land A02-AP1-W54 Manuale utente

Atlantis Land

Atlantis Land I-Fly A02-WAP-54G/G2 Manuale utente

Atlantis Land

Atlantis Land NetFly WAP 108 A02-WAP-54G(V1.1)_GX01 Manuale utente

Atlantis Land

Atlantis Land A07-WA6102X-2 Manuale utente

Atlantis Land

Atlantis Land NetFly AP1-54 Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
