Atlas Copco LUM22 SR4 Foglio di istruzioni
LUM22 SR4
Printed Matter No. 9836 9344 00 Screwdriver
Valid from Serial No. A5700001
2010-01-01 Product Instructions
LUM22 SR4 0.6-4.0 Nm 8431 0269 46
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and in-
structions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future
reference
2© Atlas Copco Industrial Technique AB - 9836934400
Table of Contents
EN Product Instructions.......................................................................... 3
FR Instructions sur le produit .............................................................. 17
DE Produktanweisungen...................................................................... 27
ES Instrucciones del producto ............................................................ 38
PT Instruções do produto .................................................................... 47
IT Istruzioni sul prodotto..................................................................... 56
NL Productinstructies ........................................................................... 65
DA Produktanvisninger......................................................................... 74
NO Produktanvisninger......................................................................... 83
FI Tuoteohjeet...................................................................................... 92
SV Produktanvisningar....................................................................... 101
RU Инструкции по изделию ............................................................ 110
PL Instrukcje produktu ....................................................................... 119
SK Produktové pokyny....................................................................... 129
CS Pokyny týkající se produktu ........................................................ 138
HU Termékutasítások ......................................................................... 148
ZH 产品说明......................................................................................... 157
LUM22 SR4 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 934400 00 3
Safety and operating instructions
Safety instructions
Warning
• Make sure you are familiar with the operating instructions before you use
this machine.
• Before making any adjustments (e.g. setting the torque, changing bits) dis-
connect the machine from the compressed air line.
• The machine, together with any attachments and accessories, must never be
used for anything other than the designed purpose.
• Use power sockets only. For safe and economic use - replace worn sockets.
• Check that the power socket is properly fastened - replace the square drive
retainer when necessary.
• Keep your fingers and loose articles (cloths, hair) away from the outgoing
shaft.
• Do not use gloves.
• Hold the machine correctly and be aware of the reaction force.
• Check the position of the reversing valve before start.
• Check the correct clutch function after any adjustment. Decreased air pres-
sure may produce that the clutch not disconnect properly.
• Check that the suspension yoke is in good condition and correctly fastened.
• Use support handle or torque arm at high torque settings or stressed working
positions.
General information
EC DECLARATION OF CONFORMITY
We, Atlas Copco Industrial Technique AB, S-105 23 STOCKHOLM, SWE-
DEN declare that the product (with name, type and serial number, see front
page) is in conformity with the following Directive(s):
2006/42/EC
Harmonised standards applied:
ISO 11148-6
Technical file available from:
Quality Manager, Atlas Copco Industrial Technique, Stockholm, Sweden
Stockholm, 1 July 2013
Tobias Hahn, Managing Director
Signature of issuer
Safety and operating instructions EN LUM22 SR4
4© Atlas Copco Industrial Technique AB - 9836 934400 00
Installation
Installation of vibrating tools
It is recommended that a minimum length of 300 mm of flexible hose for com-
pressed air is inserted between a vibrating tool and the quick-action coupling.
Air quality
• For optimum performance and maximum machine life we recommend the
use of compressed air with a maximum dew point of +10°C. We also rec-
ommend the installation of an Atlas Copco refrigeration-type air dryer.
• Use a separate air filter of type Atlas Copco FIL. This filter removes solid
particles larger than 15 microns and also removes more than 90 % of liquid
water. The filter must be installed as close as possible to the machine/equip-
ment and prior to any other air preparation unit such as REG or DIM (please
see Air Line Accessories in our main catalogue). Blow out the hose before
connecting.
Models which need air lubrication:
• The compressed air must contain a small quantity of oil.
We strongly recommend that you install an Atlas Copco oil lubricator
(DIM). This should be set according to air consumption by the air line tool
according to the following formula:
L = Air consumption (litre/s)
D = Number of drops per min (1 drop = 15 mm3)
L* 0.2 = D
this applies to the use of long work cycle air line tools. A single point lubri-
cator type Atlas Copco Dosol can also be used for tools with short running
cycles.
Information about Dosol settings may be found under Air Line Accessories
in our main catalogue.
Lubrication-free models:
• In the case of lubrication-free tools it is up to the customer to decide on the
peripheral equipment to be used. However, it is no disadvantage if the com-
pressed air contains a small quantity of oil e.g. supplied from a fog lubrica-
tor (DIM) or Dosol system.
•Note – This does not apply to turbine tools, which should be kept oil free.
Compressed air connection
• The machine is designed for a working pressure of 6–7 bar = 600–700 kPa =
87–102 psi.
• Blow out the hose before connecting.

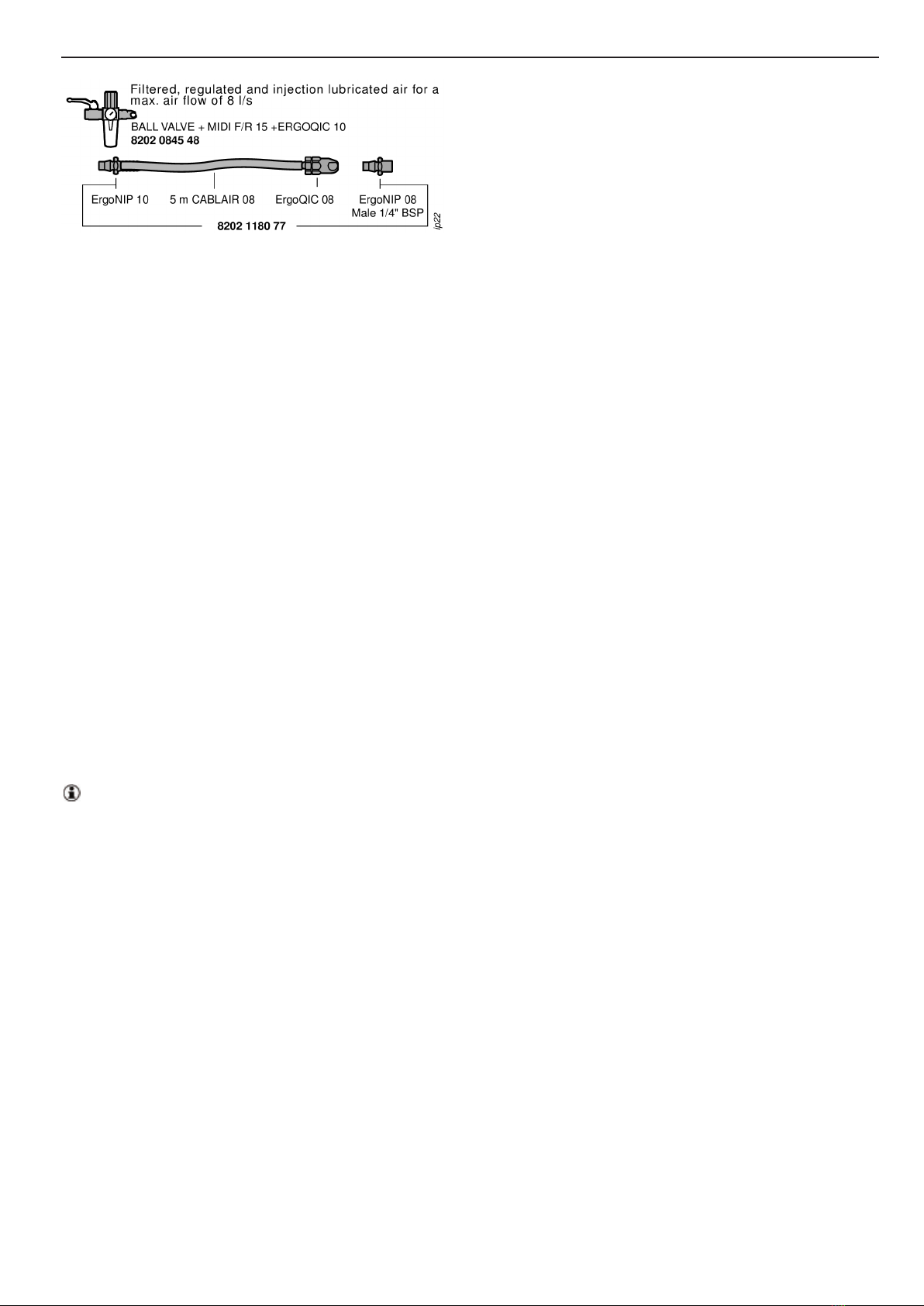

Installation proposal
Choosing the correct couplings, hose and clamps can be a troublesome digging
into details. To save your time and to ensure correct capacity of the airline in-
stallation, from the tapping point to the tool, we offer you an installation pro-
posal.
LUM22 SR4 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 934400 00 5
For more information please read, Atlas Copco Industrial Power Tools cata-
logue Ordering No. 9837 3000 01.
Handling
Operating instructions
See figure in Service instructions
Tightening torque
For accurate operation and safety, the tightening torque of the screwdriver must
be adjuisted correctly in relation to the screw joint. Check the torque specifica-
tion for the actual joint.
The tightening torque is adjusted by altering the tension of the clutch spring.
Turn the protection ring until the hole in the clutch housing is free. Then turn
the out going spindle until you can see the keyhole in the adjustment washer.
Turn the adjustment key clockwise to decrease and anticlockwise to increase
the torque. After the adjustment, turn the protective ring back again.
Verification of tightening torque
Atlas Copco Torque Analyser, ACTA 3000, plus an appropriately-sized in-line
transducer, IRTT together with the available test joints are recommended equip-
ment.
Torque range of the clutch springs :
Each clutch spring gives a certain torque range. Don’t adjust the torque
over the maximum recommendation as that might result in improper func-
tion and faster wear of the clutch.
The torque range of each spring is easily identified by it’s colour.
Maintenance
For maximum performance
At tough working conditions – soft joints and max. setting – lubrication of the
air is recommended.
With extreme dry air the service life of vanes and machine performance might
be reduced. A daily supply of 0.1 – 0.2 ml oil into the machine inlet will im-
prove the machine performance. Alternatively consider an automatic lubricator
device, Atlas Copco oil fog lubricator DIM, or single point lubricator DOS,
which will improve the machine performance.
Safety and operating instructions EN LUM22 SR4
6© Atlas Copco Industrial Technique AB - 9836 934400 00
Rust protection and internal cleaning
Water in the compressed air, dust and wear particles cause rust and sticking of
vanes, valves etc. An air filter should be installed close to the machine (se 'Air
quality'). Before longer standstills, flush with oil (some drops) into the air inlet,
run the machine for 5-10 seconds when absorbing the oil in a cloth.
Service instructions
Overhaul and preventive maintenance is recommended at regular intervals once
per year or after maximum 250.000 tightening depending on which occurs
sooner. More frequent overhaul may be needed, if used at high torque and long
tightening times. If the machine is not working properly, it should immediately
be taken away for inspection.
The strainer at the air inlet and the exhaust silencer should be cleaned fre-
quently or replaced in order to prevent clogging, which decreases the capacity.
At the overhauls, all parts should be cleaned accurately and defective or worn
parts (i.e. O-rings, vanes) should be replaced.
Disassembling /assembling
It is important that the machines threaded connections are tightened properly;
i.e. in accordance with the specifications on the exploded views.
Cleaning
Clean all parts thoroughly in white spirit or similar cleaning agent. To prevent
clogging and decreased power, it could be necessary to clean the strainer (if
used) and the exhaust filter between the overhauls.
Inspection
After the cleaning, inspect all parts. Damaged and worn parts should be re-
placed.
Lubrication
Lubricate specially gears, valve and clutch with grease containing molybdenum
disulphide (e.g. Molykote BR2 Plus). Lubricate o-rings and threaded connec-
tions with grease before assembling.
Spare parts
Parts without ordering number are for technical reasons not delivered sepa-
rately. The use of other genuine Atlas Copco replacement parts may result in
decreased tool performance and increased maintenance and may, at the com-
pany option, invalidate all warranties.
Grease guide Screwdrivers
Brand
General purpose
Bearings Air Lubrication
BP Energrease LS-EP2 Energol E46
Castrol Spheerol EP L2
Esso Beacon EP2 Arox EP46
Q8 Rembrandt EP2 Chopin 46
Mobil Mobilegrease XHP 222 Almo oil 525
LUM22 SR4 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 934400 00 7
Brand
General purpose
Bearings Air Lubrication
Shell Alvania EP2 Tonna R32
Texaco / Preem Multifak EP2 Aries 32
Brand Clutch / Gears Angle gears
Molycote Longterm 2 Plus
Lub. engineers LE 3752*
* except, see Clutch in exploded views
Reporting, RE - signal
Reporting (RE) machines supply an air signal that can be connected to a moni-
toring instrument that counts the number of approved tightening and detects
premature shut-off and rehits and other irregularities.
Useful information
Log in to Atlas Copco www.atlascopco.com
You can find information concerning our products, accessories, spare parts and
published matters on our website.
Ergonomic guidelines
Consider your workstation as you read through this list of general ergonomic
guidelines and see if you can identify areas for improvement in posture, compo-
nent placement, or work environment.
• Take frequent breaks and change work positions frequently.
• Adapt the workstation area to your needs and the work task.
• Adjust for convenient reach range by determining where parts or tools
should be located to avoid static load.
• Use workstation equipment such as tables and chairs appropriate for the
work task.
• Avoid work positions above shoulder level or with static holding during as-
sembly operations.
• When working above shoulder level, reduce the load on the static mus-
cles by reducing the weight of the tool, using for example torque arms,
hose reels or weight balancers. You can also reduce the load on the static
muscles by holding the tool close to the body.
• Make sure to take frequent breaks.
• Avoid extreme arm or wrist postures, particularly for operations requir-
ing a degree of force.
• Adjust for convenient field of vision by minimizing movement of the eyes
and head during the work task.
• Use the appropriate lighting for the work task.
• Select the appropriate tool for the work task.
Safety and operating instructions EN LUM22 SR4
8© Atlas Copco Industrial Technique AB - 9836 934400 00
• Use ear protection equipment in noisy environments.
• Use high-quality inserted tools or consumables to minimize exposure to ex-
cessive levels of vibration.
• Minimize exposure to reaction forces.
• When cutting:
A cut-off wheel can get stuck if the wheel is either bent or if it is not
guided properly. Make sure to use the correct flanges for cut-off wheels
and avoid bending the wheel during cut-off operation.
• When drilling:
The drill might stall when the drill bit breaks through. Makes sure you
use support handles if the stall torque is too high. The safety standard
ISO11148 part 3 recommends using something to absorb the reaction
torque above 10 Nm for pistol grip tools and 4 Nm for straight tools.
• When using direct-driven screw or nutrunners:
Reaction forces depend on tool setting and joint characteristics. The abil-
ity to bear reaction forces depends on the operator’s strength and pos-
ture. Adapt the torque setting to the operator's strength and posture and
use a torque arm or reaction bar if the torque is too high.
• Use dust extraction system or mouth protection mask in dusty environments.
Country of origin
Please refer to the information on the product label.
Spare parts
Parts without ordering number are not delivered separately for technical rea-
sons.
The use of other than genuine Atlas Copco replacement parts may result in de-
creased tool performance and increased maintenance and may, at the company
option, invalidate all warranties.
Warranty
Contact the Atlas Copco sales representative within your area to claim a prod-
uct. Warranty will only be approved if the product has been installed, operated
and overhauled according to the Operating Instructions.
Please also see the delivery conditions applied by the local Atlas Copco com-
pany.
ServAid
ServAid is a utility for providing updated product information concerning:
- Safety instructions
- Installation, Operation and Service instructions
- Exploded views
ServAid facilitates the ordering process of spare parts, service tools and acces-
sories for the product of your choice. It is continuously updated with informa-
tion of new and redesigned products.
LUM22 SR4 EN Safety and operating instructions
© Atlas Copco Industrial Technique AB - 9836 934400 00 9
You can use ServAid to present content in a specific language, provided that
translations are available, and to display information about obsolete products.
ServAid offers an advanced search functionality of our entire product range.
ServAid is available on DVD and on the web:
http://servaidweb.atlascopco.com
For further information contact your Atlas Copco sales representative or e-mail
us at:
Safety Data Sheets MSDS/SDS
The safety data sheets describes chemical products sold by Atlas Copco.
For more information, consult the website
http://www.atlascopco.com/.
Choose Products - Safety Data Sheets, and follow the instructions on the
page.
Technical data EN LUM22 SR4
10 © Atlas Copco Industrial Technique AB - 9836 934400 00
Technical data
Technical data
Noise and vibration emission
Noise (in accordance with ISO15744) dBA
Sound pressure level 78
Sound power level -
Uncertainty 3
Vibration total value, valid from 2010
(3-axes value in accordance with ISO28927-2) m/s2
Vibration value <2.5
Uncertainty -
Noise and Vibration Declaration Statement
These declared values were obtained by laboratory type testing in accordance
with the stated standards and are suitable for comparison with the declared val-
ues of other tools tested in accordance with the same standards. These declared
values are not adequate for use in risk assessments and values measured in indi-
vidual work places may be higher. The actual exposure values and risk of harm
experienced by an individual user are unique and depend upon the way the user
works, the workpiece and the workstation design, as well upon the exposure
time and the physical condition of the user.
We, Atlas Copco Industrial Technique AB, cannot be held liable for the con-
sequences of using the declared values, instead of values reflecting the actual
exposure, in an individual risk assessment in a work place situation over which
we have no control.
This tool may cause hand-arm vibration syndrome if its use is not adequately
managed. An EU guide to managing hand-arm vibration can be found by ac-
cessing http://www.pneurop.eu/index.php and selecting 'Tools' then 'Legisla-
tion'.
We recommend a programme of health surveillance to detect early symptoms
which may relate to noise or vibration exposure, so that management proce-
dures can be modified to help prevent future impairment.
Questo manuale è adatto per i seguenti modelli
1
Altri manuali Atlas Copco Cacciavite elettrico
Atlas Copco
Atlas Copco ETD M 200 ABL Foglio di istruzioni
Atlas Copco
Atlas Copco LUM22 HRX12-120 Foglio di istruzioni
Atlas Copco
Atlas Copco LUM12 SR Foglio di istruzioni
Atlas Copco
Atlas Copco S2305 Manuale utente
Atlas Copco
Atlas Copco LUM22 HR12-370 Foglio di istruzioni
Atlas Copco
Atlas Copco LUM12 PR Series Foglio di istruzioni
Atlas Copco
Atlas Copco LUM21 HR Manuale utente
Atlas Copco
Atlas Copco QMC41-50-I06 Foglio di istruzioni
Atlas Copco
Atlas Copco PRO S2452-P Manuale utente
Atlas Copco
Atlas Copco LUM 25 PR05-P Foglio di istruzioni
Atlas Copco
Atlas Copco LUM12 HRF Foglio di istruzioni
Atlas Copco
Atlas Copco ETD M200ABL V2 Foglio di istruzioni
Atlas Copco
Atlas Copco LUM22 HR14-K Foglio di istruzioni
Atlas Copco
Atlas Copco LTV009 R11-10-L-BL Foglio di istruzioni
Atlas Copco
Atlas Copco QMC41-150-I06 Foglio di istruzioni
Atlas Copco
Atlas Copco LUM22 HR6-P Foglio di istruzioni
Atlas Copco
Atlas Copco QMC41-50-HM4 Foglio di istruzioni
Atlas Copco
Atlas Copco LUM12 HRX8-WH Foglio di istruzioni
Atlas Copco
Atlas Copco ZS 4 VSD Manuale utente
Atlas Copco
Atlas Copco LUM22 HR12-370-RE Manuale utente
