Atlas Equipment BP12000X Manuale utente

Model: BP12000X

Revised: 05/26/2021

CONTENTS

Product Features and Specifications ..............................................3

Installation Requirement .............................................................5

Steps of Installation ………………………………………………..……………………………7

Exploded View ..........................................................................24

Test Run ..................................................................................29

Operation Instruction .................................................................30

Maintenance ............................................................................31

Trouble Shooting ......................................................................32

Lift Disposal............................................................................. 32

Parts List ................................................................................ 33

Warranty ................................................................................ 36

I. PRODUCT FEATURES AND SPECIFICATIONS

FLOORPLATE CHAIN-DRIVE MODEL FEATURES

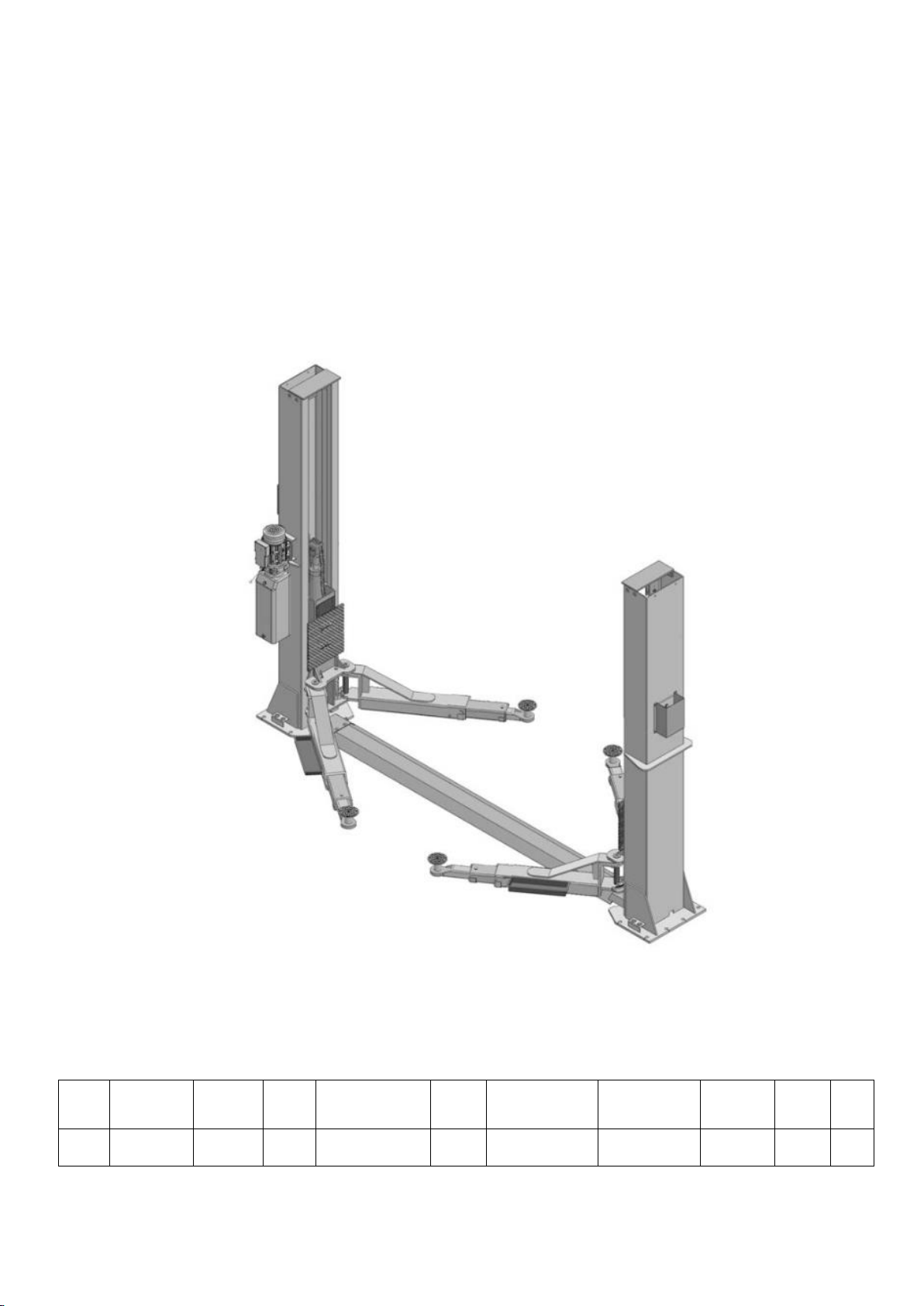

Model BP12X (See Fig. 1)

· Dual hydraulic cylinders, designed and made on high standards, high quality seals.

· Self- lubricating UHMW Polyethylene sliders and bronze bush.

· Single-point safety release, and dual safety design.

· Super-Symmetric arm design with 3-stage front and rear arms.

· Adjustable width settings.

. Stackable rubber pad with 1.5”, 2.5’’ and 5”extension adaptors.

MODEL BP12000X SPECIFICATIONS

Model

Style

Lifting

Capacity

Lifting

Time

Lifting Height

Overall

Height

Overall Width

Width

Between

Columns

Minimum

Pad

Height

Gross

Weight

Motor

BP12X

Floor-plate

Chain-drive

12,000lbs

55S

73 1/4” –82 1/4’’

122 1/2”

145 3/8”-150 3/4”

118 1/8”-123 1/2”

4 3/4”-

13 3/4”

2,156lbs

2.0 HP

Fig. 1

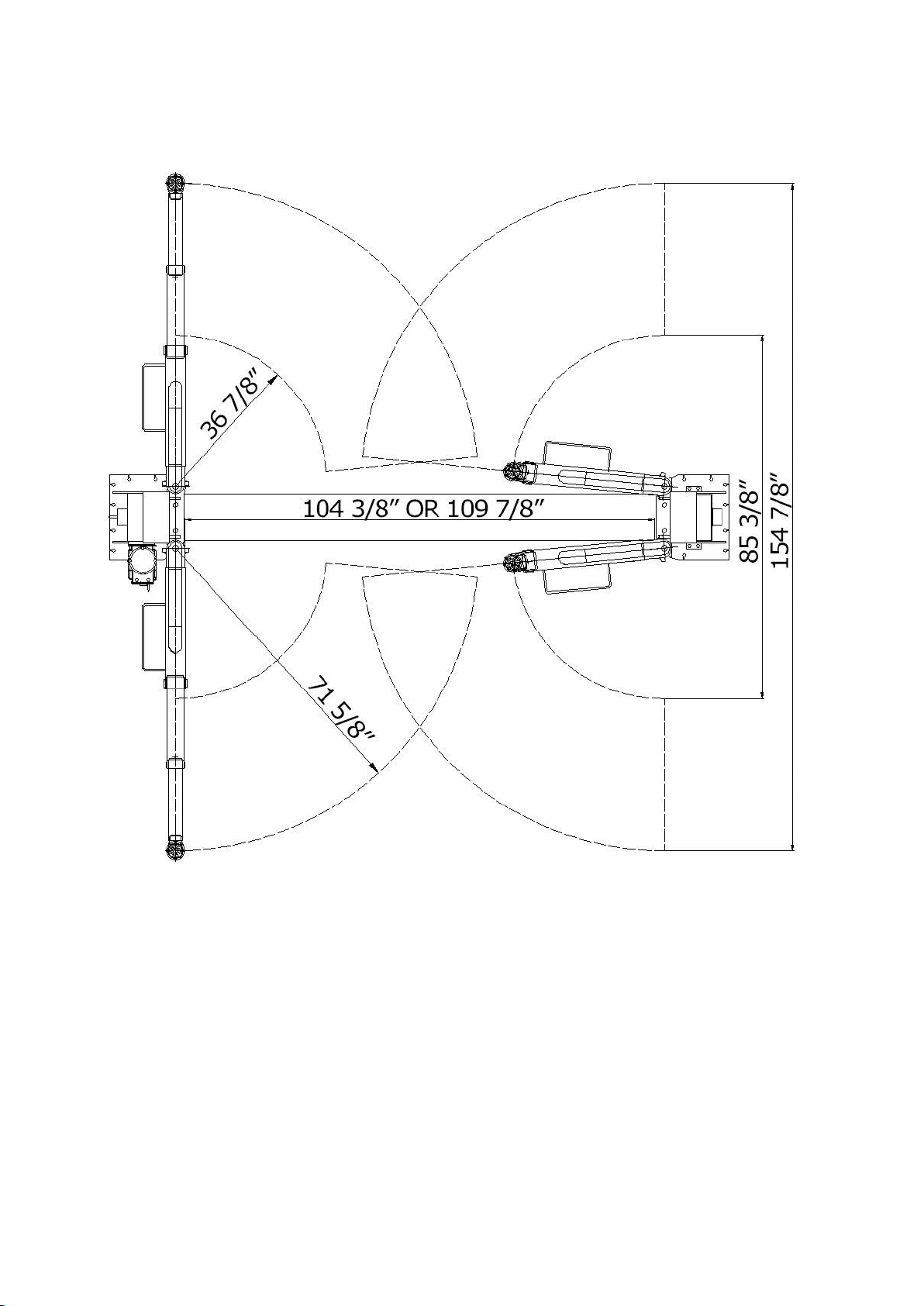

Arm Swings for Model 212

Fig. 2

II. INSTALLATION REQUIREMENT

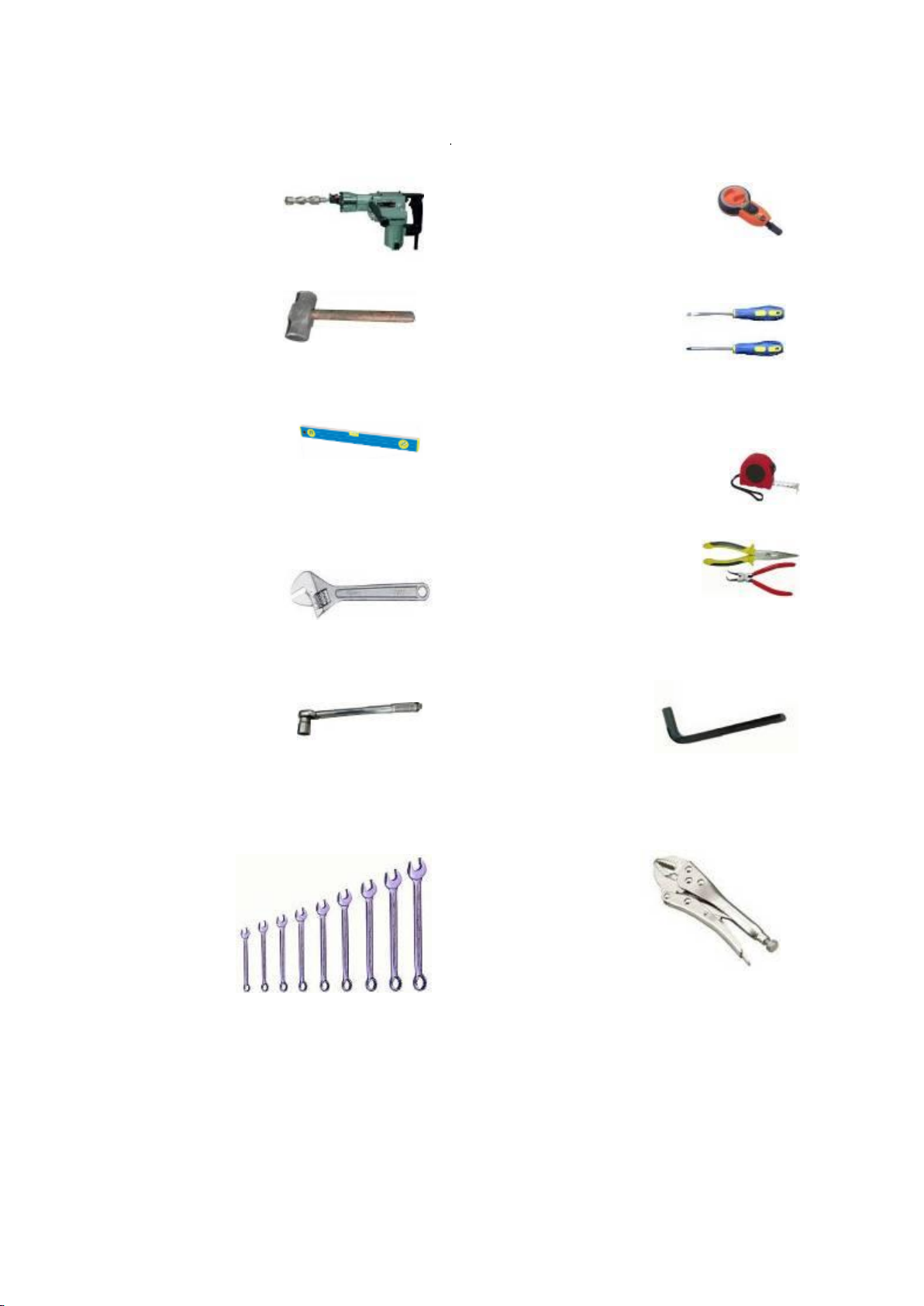

A. TOOLS REQUIRED

✓Rotary Hammer Drill (Φ19)

✓Hammer

✓Level Bar

✓English Spanner (12")

✓Ratchet Spanner With Socket (28#)

 Wrench set

✓Carpenter’s Chalk

✓Screw Sets

✓Tape Measure (7.5m)

✓Pliers

✓Socket Head Wrench (6#)

 Lock Wrench

(10#, 13#, 14#, 15#, 17#, 19#, 24#, 27#)

Fig. 3

B. Equipment storage and installation requirements.

The equipment should be stored or installed in a shady, normal temperature,

ventilated and dry place.

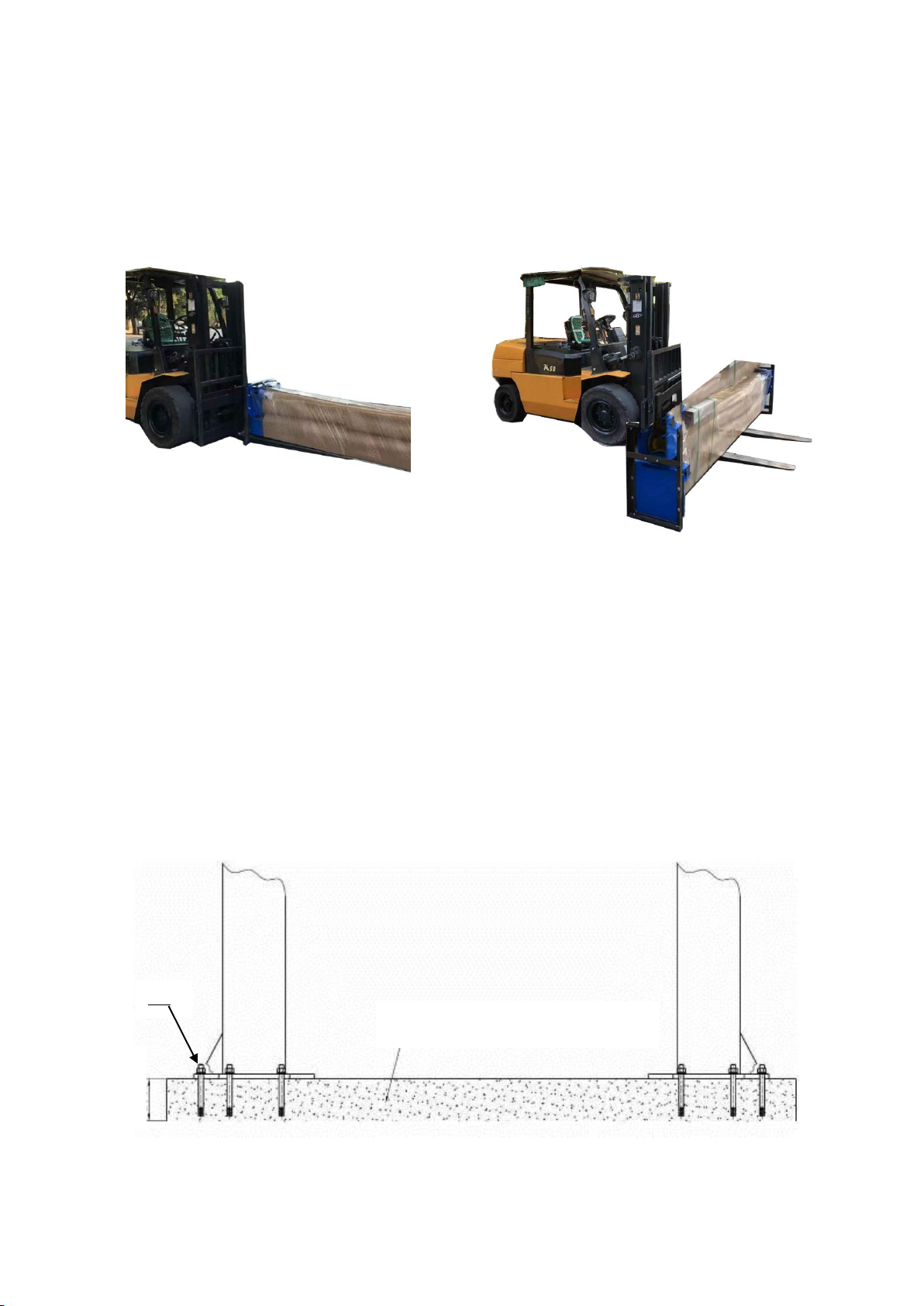

C. The equipment should be unloaded and transferred by forklift.

D. SPECIFICATIONS OF CONCRETE (See Fig. 5).

Concrete must adhere to the specifications listed below, failure to do so

may result in lift and/or vehicle falling.

1. Concrete must be thickness 6”minimum and without reinforcing steel bars, and

must be dried completely before the installation.

2. Concrete must be in good condition and must be of test strength 3,000psi

minimum.

3. Floors must be level and no cracks.

Fig. 5

Concrete intensity must be 3000psi

minimum

¾”

Fig 4

6”

E. POWER SUPPLY

220volt single phase source on a 30amp breaker with minimum of 10 gauge

wire running to the power unit. Operating voltage range is 208v-230v.

III.STEPS OF INSTALLATION

A. Location of Installation

Check and ensure the installation location (concrete, layout, space size etc.) is

suitable for lift installation.

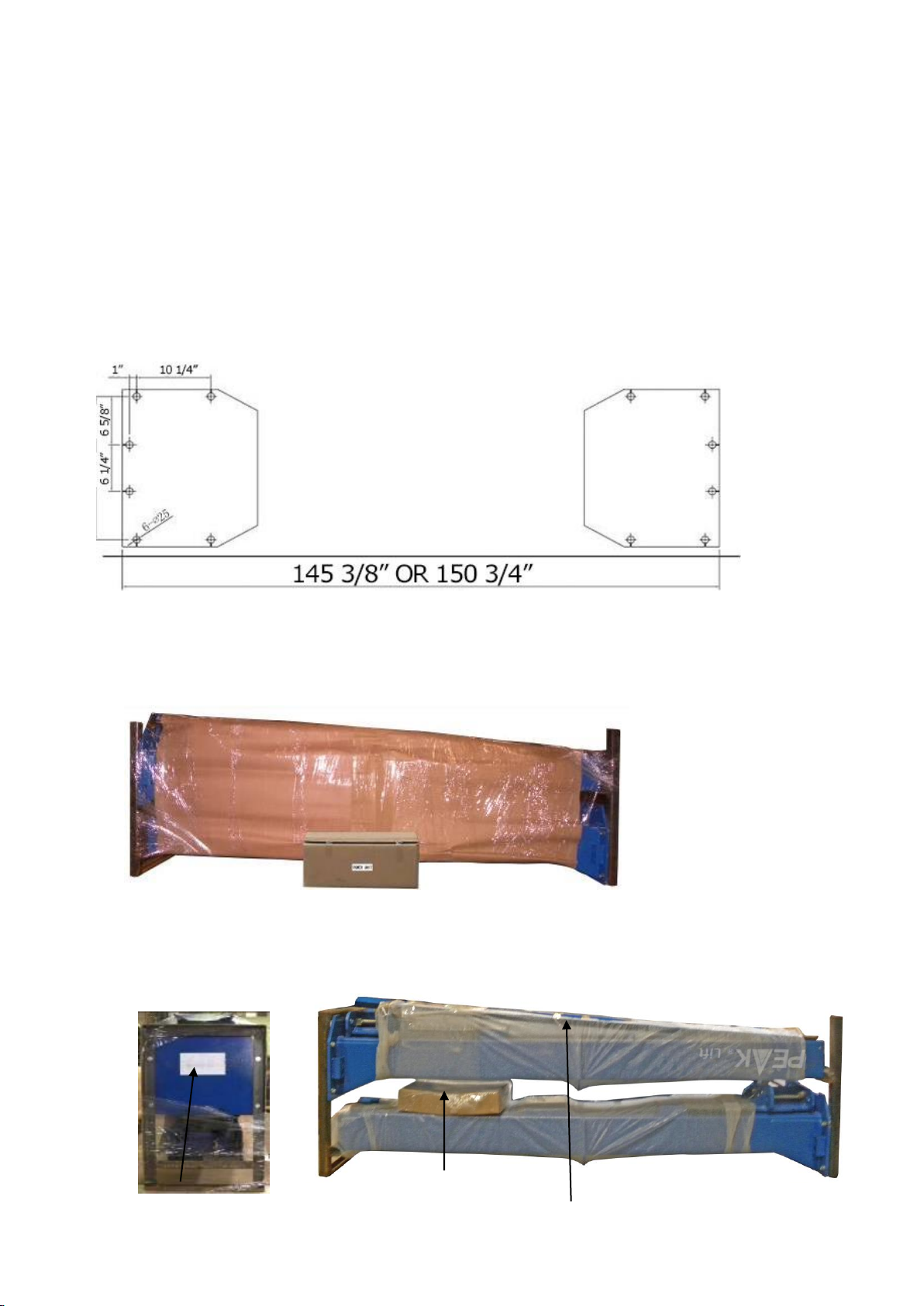

B. Use a carpenter’s chalk line to establish installation layout of columns (See Fig. 6).

C. Check the parts before assembly.

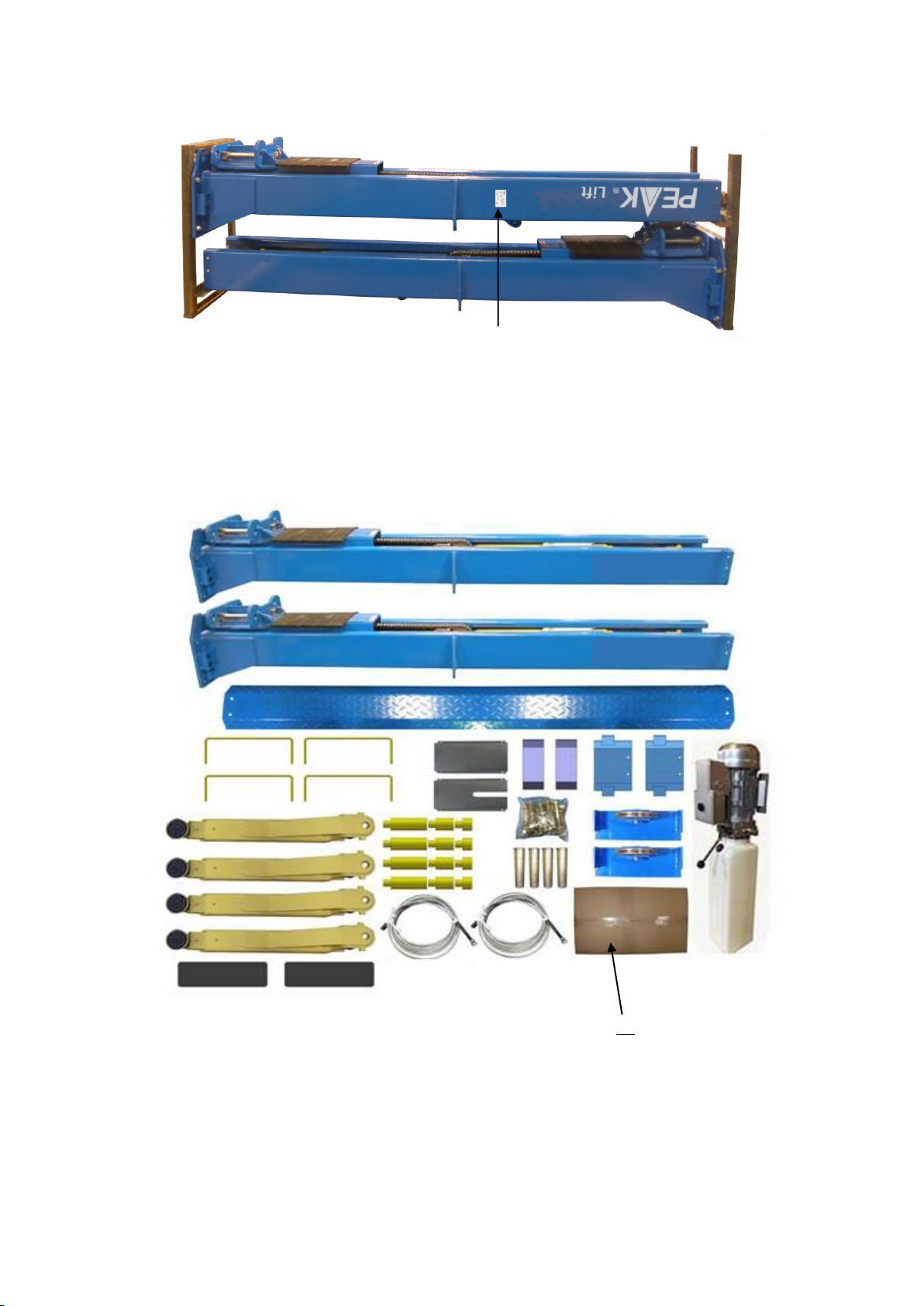

1. Packaged lift and hydraulic power unit (See Fig. 7).

Fig. 7

2. Move the lift aside with forklift or hoist, and open the outer packing carefully

(See Fig. 8).

Shipment Parts list

Floor cover

Fig. 6

Fig. 8

Parts box

3. Take off the parts from upper and inside the column, then take out the parts box

(See Fig. 9).

4. Loosen the bolts of the upper package stand, take off the upper column and remove

the package stand.

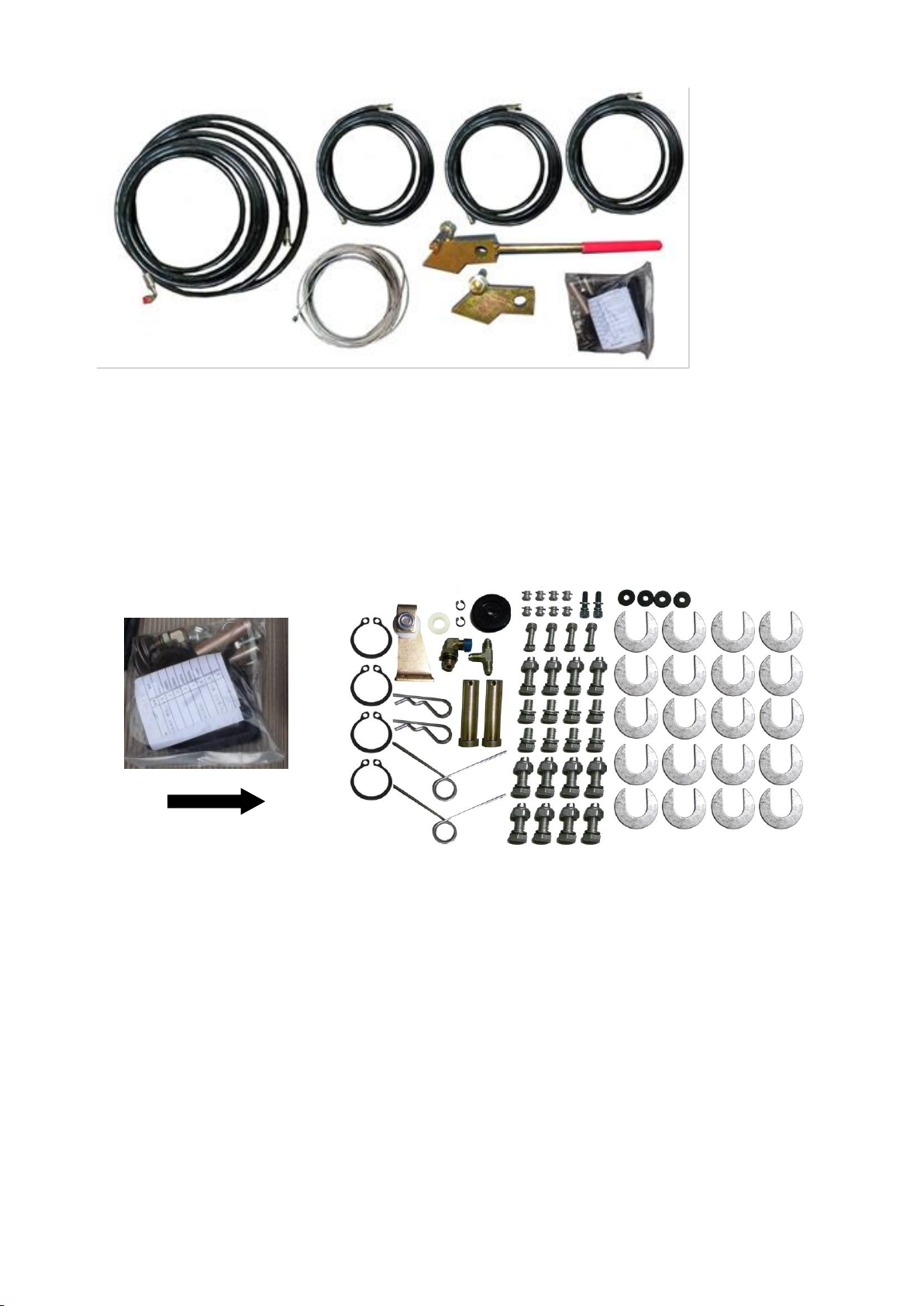

5. Move aside the parts and check the parts according to the shipment parts list

(See Fig. 10, 11).

Fig. 9

Parts in the shipment parts list

Fig. 10

Aluminum serial label

6. Open the parts bag and check the parts according to parts bag list (See Fig. 12).

Fig. 12

Parts in the parts box (84)

Fig. 11

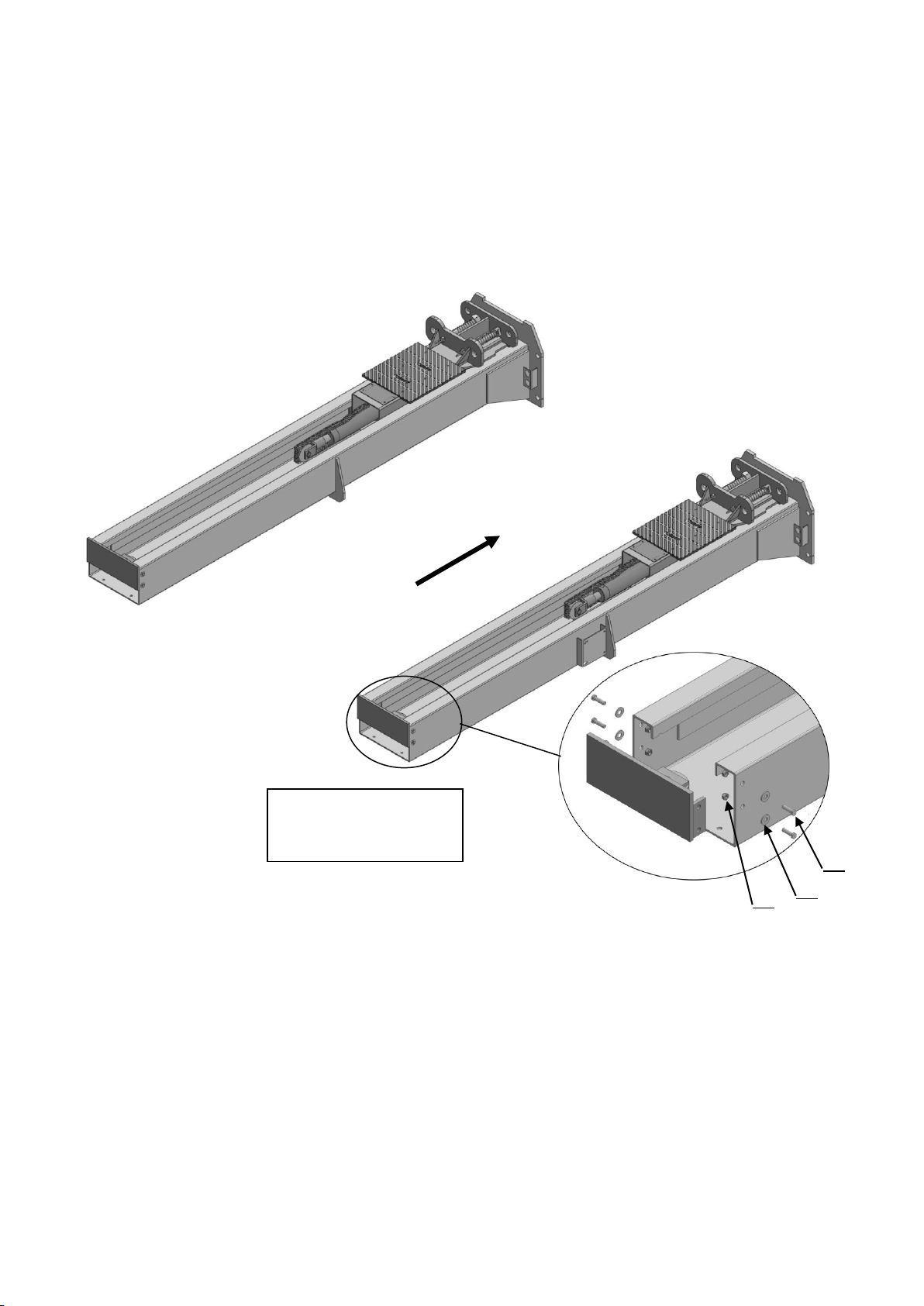

D. Install Columns

Lay down two columns on the installation site parallel, position the powerside column

according to the actual installation site. Usually, it is suggested to install powerside

column on the front-right side from which vehicles are driven to the lift, then install the

top plates (See Fig.13).

Car-in direction

Powerside column

Offside column

Assemble top-plate

using M12*30 hex bolt

with nut and washer.

Fig. 13
