Atlona AT-DVI-31 Manuale utente

Atlona

3-in 1- out

DVI Switcher

AT-DVI-31

Operation Manual

Application:

Atlona™ AT-DVI-31 DVI Switcher is a high performance digital HD

signal processor that designed for use in switching between various DVI

sources such as satellite receiver, DVD player and PCs for sharing one TV

display.

Features

* HDCP 1.1 and DVI 1.0 compliant

* The unit has the function of signal enhancer to improve the signal quality

after long distance transmission.

* LED indicators

* Ideal for home theater integration.

* Supports high resolution:

PC:VGA, SVGA, XGA, SXGA and UXGA 1600X 1200,&

DTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p @ 60Hz

* Remote control

* Easy to install and simple to operate

* Low cost solution for home theater integration

* Plug-and-Play. No software installation

* AT-DVI-31 can be controlled either through input selection button on the

front panel or using an included infrared remote control.

Operation Controls and Functions

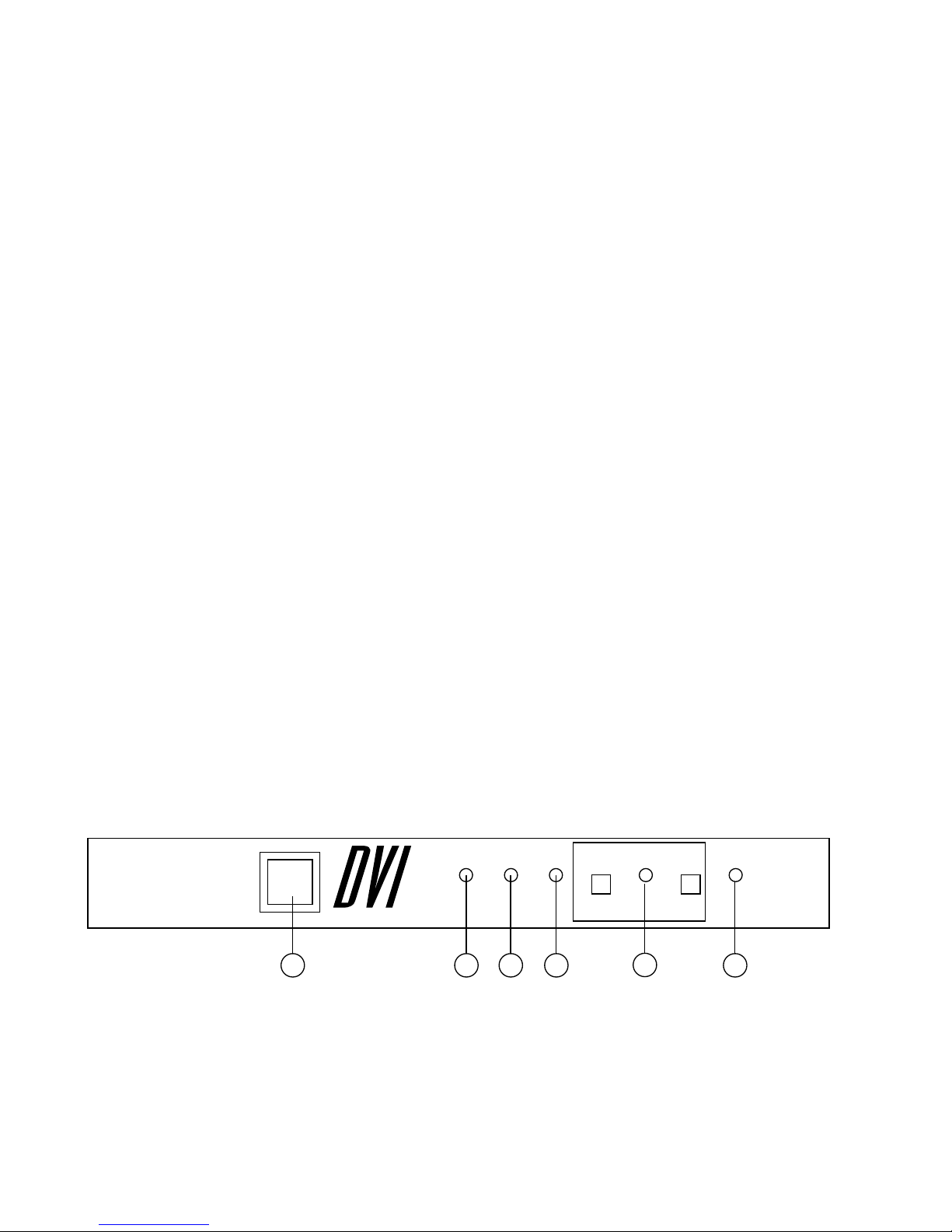

Front Panel

INPUT

123 POWER

SIGNALENHANCE

AT-DVI-31 3x1 DVI Switcher

1256

2 3 4

1. IR sensor: Infrared remote control sensor.

2. LED 1: When it lights up, it means source 1 is selected.

3. LED 2: When it lights up, it means source 2 is selected.

4. LED 3 : When it lights up, it means source 3 is selected.

5. Signal Enhance: After long distance transmission you can press this button to

enhance the signal.

6. Power: When power LED lights up, the unit works on.

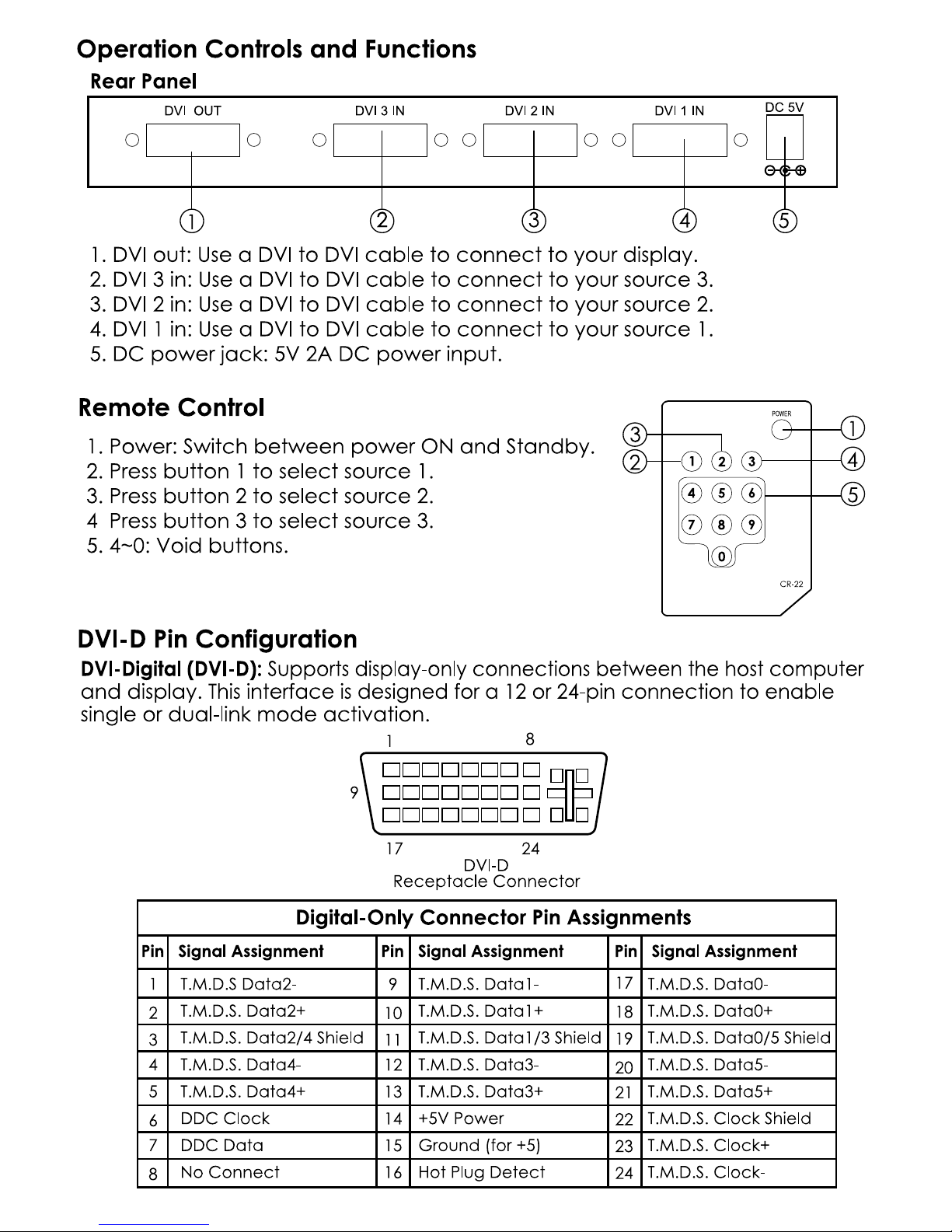

Package Includes

- The AT-DVI-31 unit

- IR remote control

- 5VDC power supply with world plug adapters

Specifications:

* Frequency bandwidth: 1.65Gbps(Single link)

* Inputs: 3 DVI-I female ports (Single link)

* Output: 1 DVI-I female port (Single link)

* Power supply: 5VDC 2A/ center positive

* Weight: 0.57kgs

* Dimension: 105(W) x20(L) x 25(H)mm

*Max Resolution: 1080p ( 1920 x 1200 )

Plasma, LCD

or any monitor

with DVI input

DVD

Output Input 3 Input 2 Input 1

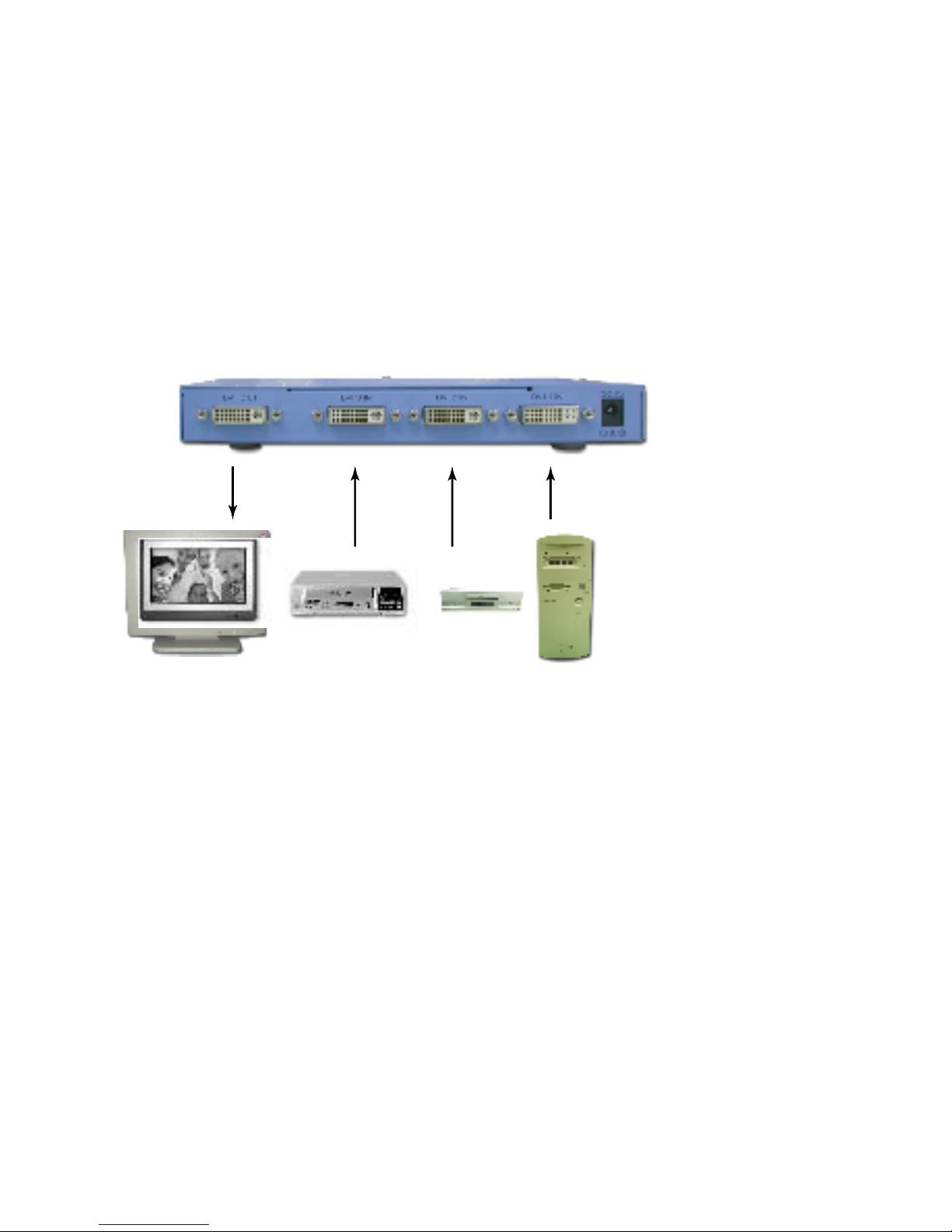

Connection and Installation

Trouble Shooting Guide

When there is no picture present, please check:

1. Whether all connectors connect well or not?

2. Whether the connecting cable is damaged?

Technical Support:

Telephone (408) 954-8782

Fax (408) 954-8792

Technical Support Hours: 9:00 AM to 6:00 PM Monday thru Friday.

Write To:

Atlona Technologies

2151 O'Toole Ave Unit I; San Jose, CA 95131 USA

STB
