ATN OTS-15 Manuale utente

operator’s manual

Important Export Restrictions! Commodities, products,

technologies and services contained in this manual are

subject to one or more of the export control laws and

regulations of the U.S. Government and they fall under the

control jurisdiction of either the US Department of State

or the US BIS-Department of Commerce. It is unlawful

and strictly prohibited to export, or attempt to export or

otherwise transfer or sell any hardware or technical data

or furnish any service to any foreign person, whether

abroad or in the United States, for which a license or written

approval of the U.S. Government is required, without

first obtaining the required license or written approval

from the Department of the U.S. Government having

jurisdiction. Diversion contrary to U.S. law is prohibited.

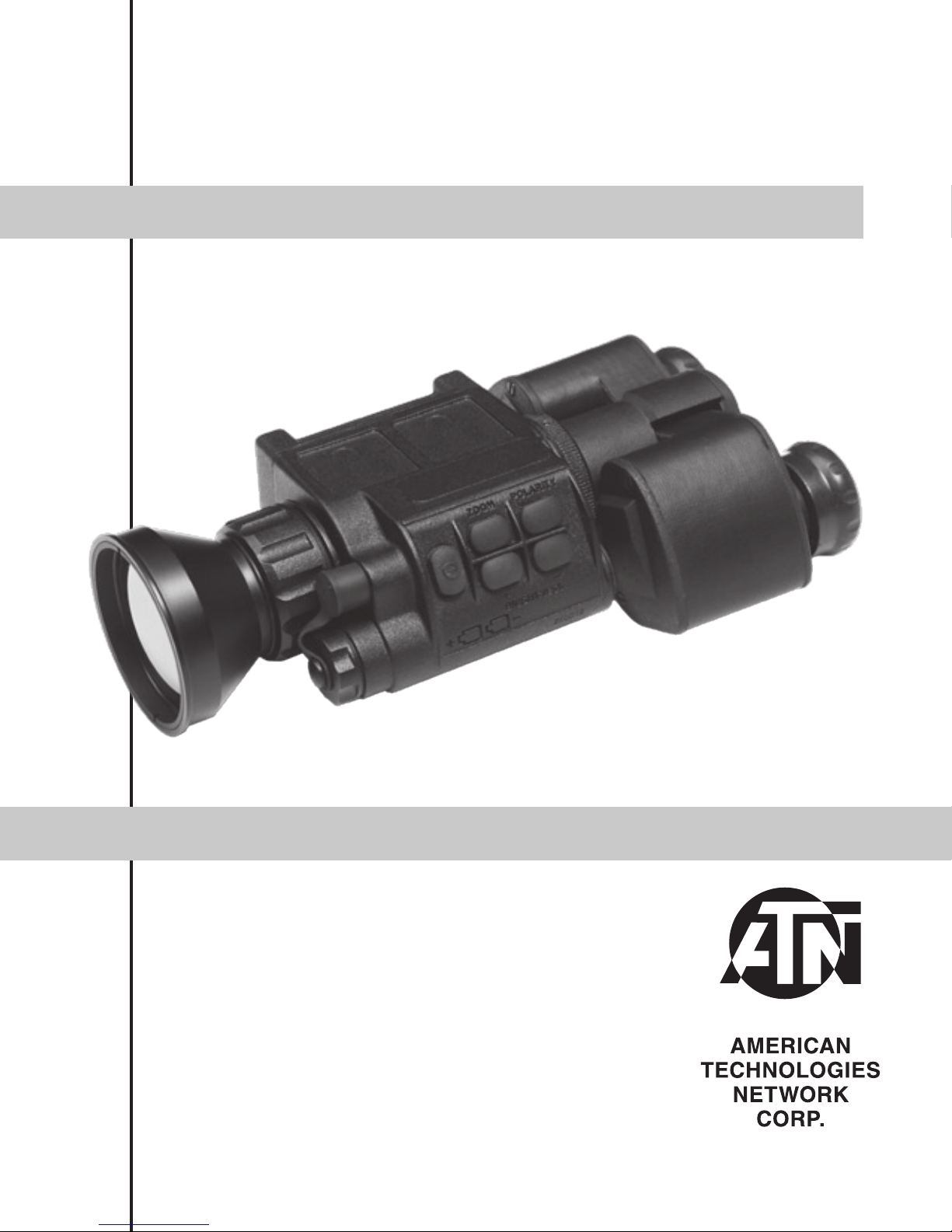

ATN OTS-15

THERMAL IMAGING SYSTEM

ATN OTS-15 OPERATOR’S MANUAL (REV. 1, NOVEMBER 2010)

The information in this manual furnished for information use only, is subject to

change without notice, is not to be construed as a commitment by ATN Corp.

ATN Corp. assumes no responsibility or liability for any errors or inaccura-

cies that may appear in this book.

www.atncorp.com/warranty

SAFETY SUMMARY

STUDY CAREFULLY THIS MANUAL BEFORE TURNING ON

AND OPERATING THIS PRODUCT.

CAUTIONS

The ATN OTS-15 thermal imaging systems are precision

optical-electronic instruments and requires careful handling.

To provide safe use of the systems the following instructions

should be observed:

• Donotdismantlethedevice.

• Keepthedeviceclean;protectitfrommoisture,sharptem-

perature drops and shocks.

• Becarefulnottotouchtheglasssurfaces.Ifyouputfinger-

prints on, or contaminate the glass surfaces, use only clean

and soft materials to clean it.

• Donotleavethedeviceinonpositionduringstopsinopera-

tion.

• Removethebatteryfromthedevicefortheperiodofstor-

age.

This producT conTains naTur al rubber laTex which

may cause allergic reacTions

CAUTION:

WARNING

Do not permanently attach the camera to dynamic -mount applica-

tions that continuously transmit vibration (such as on vehicles or

heavy machinery).

WARNING

Do not point the camera directly at any high-intensity objects that

you must not view with your eyes (such as the sun or a welding

arc). If you do, you will damage the camera.

WARNING

Operating OTS outside of its specified operating temperature

range or voltage range can cause permanent damage and will

void the warranty.

WARNING

Use the power button to turn the camera off before you remove

power (remove batteries or disconnect external power supply).

WARNING

OTS operates over a wide operating temperature range (-20°C

to +50°C). Not all AA batteries are specified over this same tem-

perature span. Check the manufacturer’s specifications of your

selected battery to verify the valid temperature range.

WARNING

Do not use any battery other than a CR-123A lithium battery. DO

NOT use any battery(ies) providing a (combined) voltage greater

than 3.0 volts.

WARNING

Do not install batteries of different types (lithium with lithium-ion

rechargeable). All batteries must be of the same type.

WARNING

Always replace ALL 2 batteries. If you install new batteries with

used batteries, the result may be dangerous.

WARNING

Do not replace batteries in a possibly explosive environment,

such as a gas station (or any place where you must turn off your

vehicle engine). If you do, sparks can cause an explosion.

WARNING

Remove the batteries before you store the camera for extended

periods (2 weeks or more).

WARNING

Do not carr y bat teries in pockets containing metal objects such as

coins, keys, etc. Metal objects can cause the bat teries to shor t cir-

cuit and become very hot. In the case of lithium batteries, a short

circuit could cause them to explode.

WARNING

Observe battery manufacturer’s guidelines for safe handling and

proper disposal of batteries.

EQUIPMENT LIMITATIONS

•TheOTSdetectorspectralband(7to14mkm)providesabetter

penetration through smoke, smog, dust, water vapor etc.

•Infraredradiationdoesnottravelthroughglassandtherefore

the monocular does not sense objects if they are behind a glass

window.

TABLE OF CONTENTS

pg.

SECTION I. INTRODUCTION 1-1

1.1 General Information 1-2

1.1.1. Scope 1-2

1.1.2. Reports 1-2

1.1.3. Storage 1-2

1.1.4. WarrantyInformation 1-3

1.2. Description and Data 1-5

1.2.1. Description 1-5

1.2.2.OTSStandardComponents 1-7

1.2.3. OTS Optional Components 1-9

1.2.4.Specifications 1-10

1.2.5. Mechanical Functions 1-11

1.2.6. Optical Functions 1-12

1.2.7. ElectricalFunctions 1-12

SECTION II. ASSEMBLY AND PREPARATION 2-1

2.1. Preparation 2-2

2.1.1. Preparation for use 2-2

2.1.2. Examination for operation 2-3

2.1.3. Setting 2-3

2.2. Assembly 2-5

2.2.1. External power source 2-5

2.2.2. Output 2-5

2.2.3. 2X Afocal Lens 2-6

SECTION III. OPERATION 3-1

3.1. General Information 3-2

3.1.1. General 3-2

3.1.2. Controls and Indication 3-2

3.2. Operating procedure 3-4

3.2.1.TurningOn 3-4

3.2.2.Focusing 3-4

3.2.3. Color modes 3-5

3.2.4.Brightness 3-5

3.2.5. Color Mode Button 3-6

3.2.6. Shut Down Operations 3-6

SECTION IV. MAINTENANCE INSTRUCTIONS 4-1

4.1. Preventive Maintenance Checks

and Services (PMCS) 4-2

4.1.1. PurposeofPMCS 4-2

4.1.2. FrequencyofPerformingPMCS 4-2

4.2. Troubleshooting 4-6

4.2.1.General 4-4

4.2.2.TroubleshootingProcedures 4-4

4.3. Maintenance Procedures 4-6

4.3.1. ScopeMaintenance 4-6

4.3.2.CleaningProcedures 4-6

4.3.3.PreparingforExtendedStorage 4-7

Appendix A. Spare Parts List A-1

For Technical Information INFO-1

iii

1-1

SECTION I

INTRODUCTION

1-2

1.1 GENERAL INFORMATION

1.1.1. SCOPE

This manual contains instructions for use in operating and main-

taining the ATN OTS-15 thermal imaging systems. Throughout

this manual, the ATN OTS-15 will be referred to as the scope or

OTS.

1.1.2. REPORTS

Reports from the user on recommendations for improvements are

encouraged. Send reports to the address below.

American Technologies Network Corp.

1341SanMateoAvenue

SouthSanFrancisco,CA94080

(800)910-2862

(650)989-5100

(650)875-0129fax

info@atncorp.com

www.atncorp.com

1.1.3. STORAGE

Storage of OTS should be done in the factory packing and after a

thoroughPMCSasoutlinedinSection4.1.ofthismanual.Thiswill

ensure the scope remains in mission ready condition during stor-

age. Battery should be stored separately from the scope.

The scope should not be placed on the floor, in any area exposed

to high temperatures or direct sunlight. Presence of acid and al-

kaline vapor, as well as of other aggressive admixtures in the air

is unacceptable.
