FV12 Torque transmitter use instructions

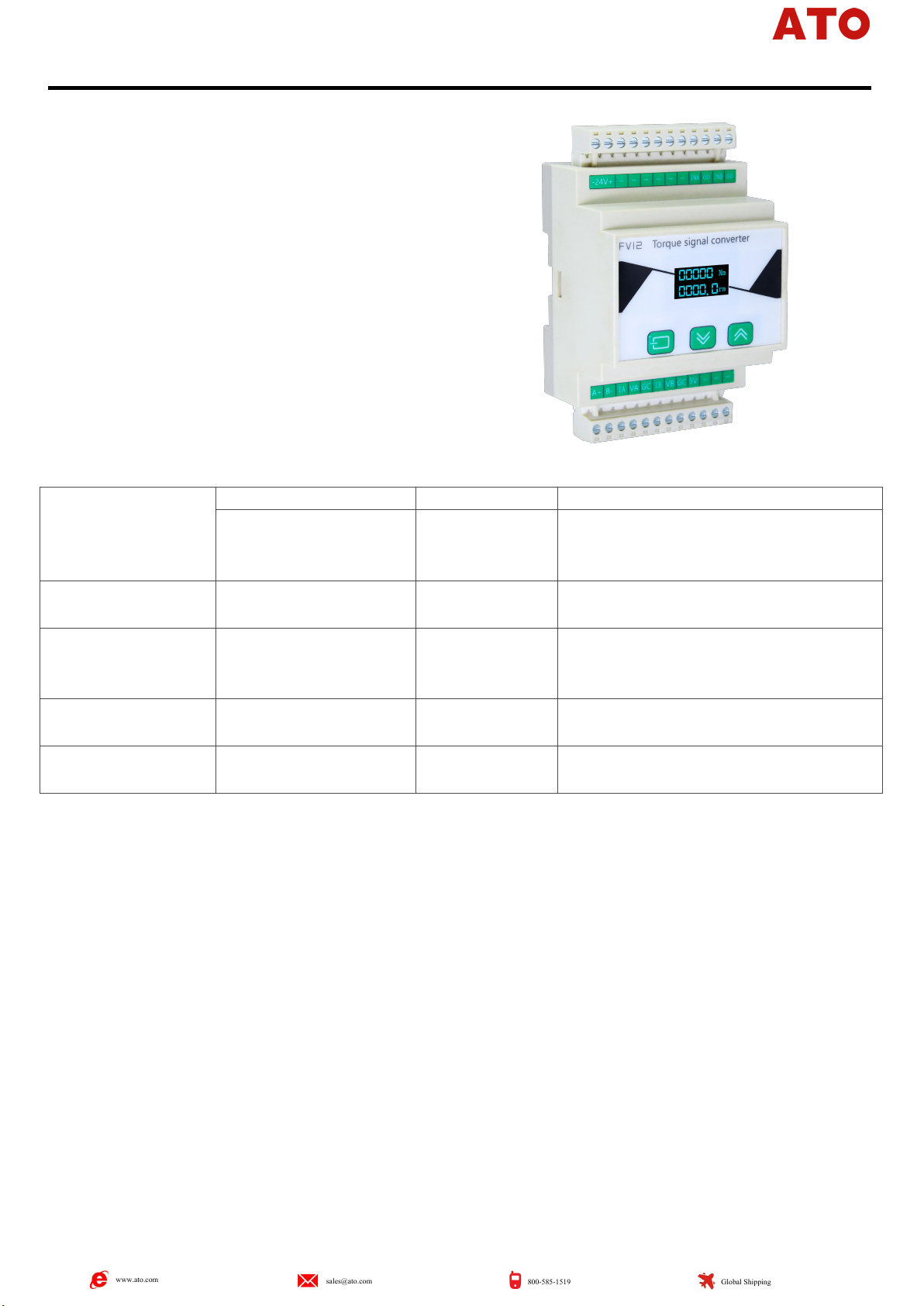

1. brief introduction：
The instrument uses the ARM kernel processor as the main
controller. Connecting to the dynamic torque sensor with the
signal output as the frequency, you can quickly read the current
torque value, the default torque frequency acquisition speed
is 100 times per second, with an OLED screen, showing the
current torque and speed value, and can also display the current
input frequency. Support torque to current or voltage with
speed. Supports the RS485 output. The RS485 can be directly
connected to our UPC to obtain the curve data, or it can also
be incorporated into the RS485 network using the MODBUS RTU.
Read the value of torque and rotational speed in real time.
Current and voltage output: 4-20MA, 4-12-20MA, 0-10V, 0-5-10V,
+ -5V.
2. technical parameter：
work
environment
certainty of
measurement
temperature ：-20-55℃
show
OLED (128*64)
humidity ：20-90％RH
supply
voltage
For 12-30V, 24V power supply of its current
<120MA
picking rate
±0.05％F.S
consumed
power
Less than or equal to 2.5W
levels of
protection
100 Every second
Torque
display
range
-99999～99999
Torque input
signal
IP65(Front panel
protection)
RPM display
range
0～99999
work
environment
3000～18000Hz
Speed input
signal
1—20000Hz
3. material particulars：
Do not use life-related devices such as atomic energy devices and medical devices.
The instrument is equipped with the main power supply fuse, but please also install the fuse and other safety circuit
breakers in the main power supply circuit.
Please observe the parameters and precautions recorded in the instructions.
Do not use it in flammable and explosive liquid or gas places.
Do not remove or transform the product, which may cause electric shock, fire and other safety accidents.
The installation, commissioning and maintenance of the product shall be conducted by qualified engineering personnel.
If there is any change in this manual, it will be corrected at any time, and the latest version of the manual shall
prevail. If you have any questions, please contact our company as soon as possible.
The Company is not liable for any direct or indirect loss other than the product itself.
4. pay attention to：
Do not connect the signal output input terminal directly to the AC220V power supply.
Please mark the normal connection corresponding terminal line according to the meter.
Connect the signal output input terminal without the power supply to avoid electric shock.
Note that DC24V power.
Please note that carefully confirm that the terminal line is correct before turning the power on.
5. Keynote introduction
：Set the menu interface switch, and set the data display interface switch.
：Switch the setting parameters and switch the parameter setting bits.
：Set the parameter current position and zero clearance torque value.

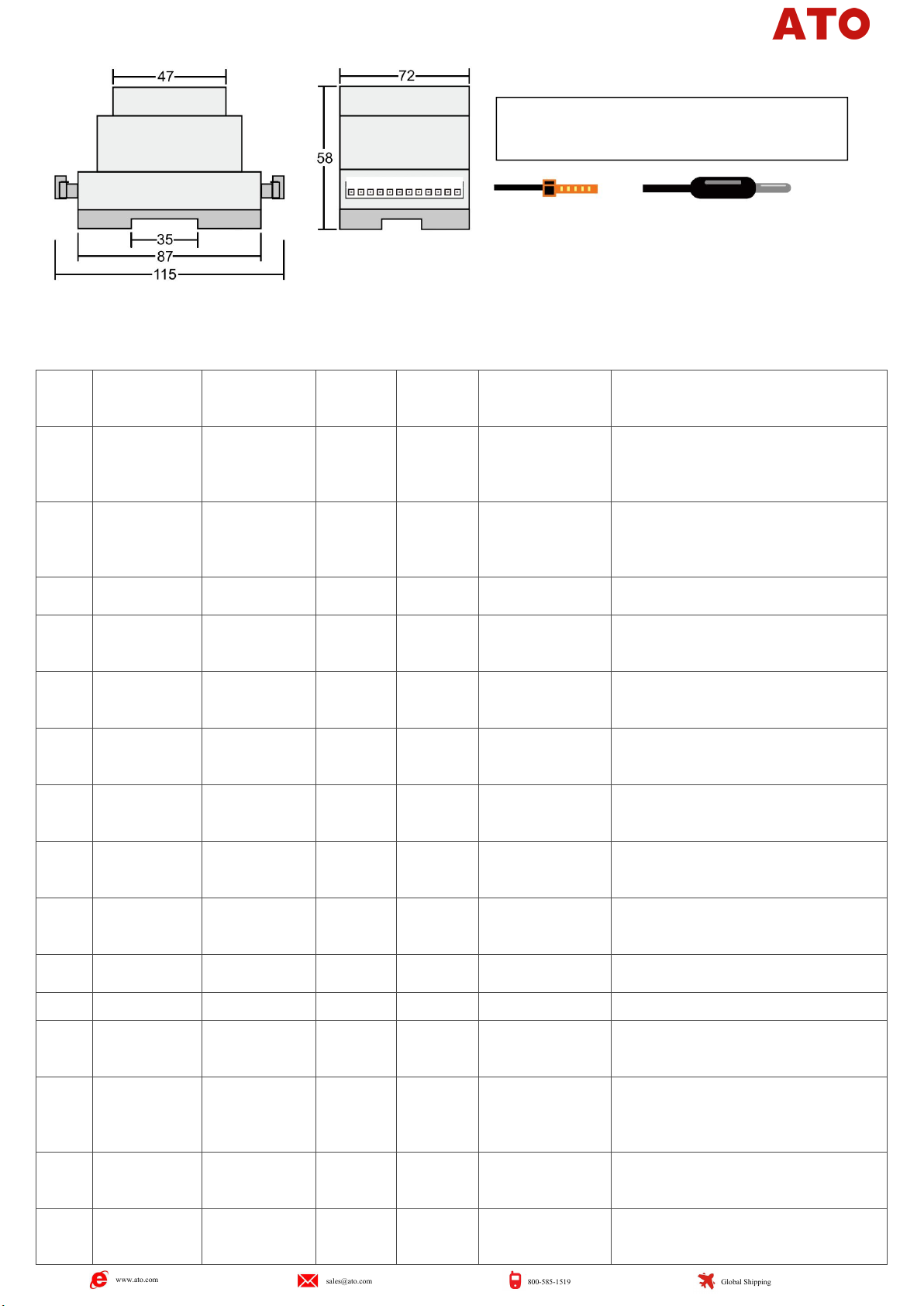

6. Overall dimension and opening size
7. Parameter description：
Order
numbe
r
Name
Span
default
value
mailing
address
Adapter to the
communication
function code
explain
01
digital filtering
1~99
30
04H
0x03 , 0x10
When the torque measurement fluctuation is
large, increase the setting value appropriately.
The larger the setting value, the slower the
display refresh speed is.
02
Torque degree
0~4
0
06H
0x03 , 0x10
Setting to 0 indicates a minimum degree of
torque change of 1.
1: Represents the change amount of 2.2:5
Changes.3:10 Changes.4:20 Changes.
03
Power zero
000000~full
range
0
08H
0x03 , 0x10
The torque zero is set automatically
established after the instrument is charged.
04
display mode
0~99
Factory
commissio
ning
0AH
0x03 , 0x10
Modify the reserved location.
05
Torque range
0~99999
Factory
commissio
ning
0CH
0x03 , 0x10
Actual range of torque.
06
Torque decimal
0~4
Factory
commissio
ning
0EH
0x03 , 0x10
Number of torque decimal places.
07
Torque zero
frequency
00000~99999
Factory
commissio
ning
10H
0x03 , 0x10
Torque sensor zero-point frequency value.
08
Torque
frequency upper
limit
00000~99999
Factory
commissio
ning
12H
0x03 , 0x10
Frequency value corresponding to the positive
full range.
09
Lower limit of
torque
frequency
00000~99999
Factory
commissio
ning
14H
0x03 , 0x10
Frequency value corresponding to the
negative full range.
10
Torque
direction
0~1
0
16H
0x03 , 0x10
Positive and negative switching of torque
values
11
Speed decimal
0~1
0
18H
0x03 , 0x10
Number of rotational speed decimal places.
12
Single circle
pulse
000~999
Factory
commissio
ning
1AH
0x03 , 0x10
The torque sensor turns a circle, the number
of pulses at the rotational speed.
13
Change to send
way
0~1
0
1CH
0x03 , 0x10
The 0 It means that the transmission output is
not directional.1 Represents that the
transmission output has a direction, when the
zero point is generally greater than 0.
14
Torque transfer
zero point
0~17999
Factory
commissio
ning
1EH
0x03 , 0x10
The torque value is 0.
15
Torque is full
0~17999
Factory
commissio
ning
20H
0x03 , 0x10
Output point of the transmission when the
torque value is the range maximum value.
Cable specification: 0.3-0.5mm2 multiple flexible cable
Shark tooth E0508 tube type pre-insulated end
16 Speed range 0~99999 6000 22H 0x03 , 0x10 Maximum rotational speed measuring range.
17 Speed to zero 0~17999
Factory
commissio
ning
24H 0x03 , 0x10 The transmission and output point when the
speed value is 0.
18 The speed
changes to full 0~17999
Factory
commissio
ning
26H 0x03 , 0x10 Output point of the transmission when the
speed value is the maximum range value.
19 Communication
mode 0~1 0 28H 0x03 , 0x10
The communication mode is 1, which means
that the output mode is modbus_RTU, and the
communication mode is 0, which means that
the output mode is ASCII active upload
20 parity check bit 0~2 0 2AH 0x03 , 0x10 0 Is no check bit, 1 odd, 2 parity
21 data bit 0~1 0 2CH 0x03 , 0x10 0 For 8 data bits and 1 means 9 data bits
22 stop bit 0~1 1 2EH 0x03 , 0x10 RS485 communication stop, 1 indicates stop
1 and 0 indicates stop 2.
23 mailing address 0~128 1 30H 0x03 , 0x10 The Modbus_RTU communicates with the
current meter address.
24 Baud rate 0~4 0 32H 0x03 , 0x10
RS485 Communications Baud rate.0: Turn off
the communication, 1:4800. 2:9600. 3:19200.
4:38400
25 High and low in
the front 0~1 0 34H 0x03 , 0x10 0 High means the top, 1 means the top.
zero clearing 36H 0x05 , 0x10 Establish the current torque zero,
communication write 00
factory data
reset 38H 0x05 , 0x10 Return to the factory parameters,
communication write 00
Real-time
torque 00H 0x03 Real-time torque value.
Real-time speed 02H 0x03 Real-time speed value.
Note: (The parameter address offset value is 4000, and a multiple of 4000 increase can also read the current value
directly.)
8. Basic operation instructions：
Modify parameters：Long press for a second to enter the menu, press again, you can switch back and forth in several
parameter interfaces. Press the key can switch the modification bit of the current parameter, and the long press can jump
around the parameters in the current display interface. Press key to modify the current bit of the current parameter. After
the modification is completed, you can directly jump back with the key to the main interface, and automatically save the
modified parameters.
Displays the interface switch：There are three display interfaces, the main display interface shows the current torque
speed, the second display interface shows the torque frequency, the third display interface shows the speed frequency, and
the three display interface can switch around after pressing the key in the main interface.
Modify numerical filtering：When customers need more stable torque values or react to faster torque values, they can
turn the digital filtering up or down. The larger the digital filtering, the more lagging and stable the torque value changes.
When the digital filter value is changed to 1, the torque value is the fastest reaction speed, at 100 times per second.
Curves can be collected in real time using MODBUS RTU or computer protocol.
Torque value zero：Press the long key at the main interface to establish the zero point.
factory data reset：This table power time is pressed on the key to restore the factory setting.
、Newsletter profile
The instrument data is 32 bits, with the high level before and the low level after, please read the multiple of 2. This instrument is equipped with
RS485 interface, which can use the company autonomous protocol and modbus RTU protocol. The communication mode set to 0 indicates the
company autonomous protocol, which is applicable to connect the company upper computer. Communication mode set to 1 indicates using the
modbus RTU protocol. Changing the port rate needs to take effect after a restart.
Communication adopts the instrument active upload protocol：The protocol has six bytes, D0~D5, D0D1 two bytes for torque, D2D3 two bytes
for rotational speed, and D4D5 for the CRC16 check bit of the first four bytes of data. The highest position of D2 indicates positive or negative
torque value, and 1 indicates negative torque value.0 Is a positive number. Depending on the Baud rate, the protocol uploads data at different
speeds, 9600 —— 50 times, 19200 —— 19200, and 200 times 38400 —— per second.
Communication uses the MODBUS-RTU protocol：Address domain + functional domain + data domain + check domain
functional domain ：
function code
meaning
action
0x03
Read the data register
Read the data register values
0x05
Modify the amount of switch
Quickly modify the switch
quantity value
0x10
Modify the data register
Override the multibit data
register value
（Note: 0x05 function code only supports reset and recovery operation. When the read torque data is negative, the data is the secondary
complement code, and the number is reduced by 1, which is the absolute value）
for instance
transmit by radio：01 03 00 00 00 04 44 09
Return data：01 03 08 FF FF FF FF 00 00 00 00 D5 C7 It indicates a torque of-1 and a speed of 0.
Read the data register
address funtion Data
start reg hi
Data
start reg lo
Data # of
Reg hi
Data # of
Reg lo
Crc-16 lo Crc-16 hi
0x01 0x03 0x00 0x00 0x00 0x02 CRC0 CRC1
Modify the amount of switch
address funtion Data
start reg hi
Data
start reg lo
Data # of
Reg hi
Data # of
Reg lo
Crc-16 lo Crc-16 hi
0x01 0x05 0x00 0x00 0xFF 0x00 CRC0 CRC1
Modify the data register
addres
s
funtion Data
start reg
hi
Data
start reg
lo
Data #
of
Reg hi
Data #
of
Reg lo
Byte
count
Value
DATA1
Value
DATA2
Value
DATA3
Value
DATA4
Crc-16
lo
Crc-16
hi
0x01 0x10 0x00 0x00 0x00 0x02 0x04 0x00 0x00 0x03 0xE8 0xF3 0x22
address: From the machine address function: function code
Data start reg hi: Register start address is high bytes Data start reg lo: Register Start Address Low bytes
Data # 0f reg hi: Read the register number of high bytes Data # 0f reg lo: Read the register number is low in bytes
Crc -16 lo: Check code low byte Crc -16 hi: Calibration code high byte
Note: The number of bytes sent or received once cannot exceed 32.
、Transform output
This instrument is standard equipped with current and voltage transmission output, transmission output resolution of 1 / 16384, output mode of
4-20MA, 4-12-20MA, 0-10V, 0-5-10V, ±5V.
Parameter introduction
Transmission mode: Transmission mode set output mode is data directional output or absolute value output. The transmission mode 0 means the
transmission to the absolute value mode output, and the transmission mode 1 indicates that the transmission has a directional output, which is
generally used on the 0-5-10V transmission. The directional output is only effective when the transmission source is to torque.
Transmission zero point: The change of the transmission zero point will lead to the change of the zero-point output voltage and the output current,
which has been adjusted to the appropriate value before leaving the factory.
Supply capacity: Changing the "supply capacity" will result in the change of the maximum output voltage and the maximum current, with a
maximum supply capacity of 16383.
Range: the torque sensor range or the speed range, modify the range can change the change rate of the transmission output, corresponding to the
current used torque sensor range.
11、Calibration Settings
The first step is to input the current sensor range, with 20NM for example, a range set to 2000 and a display accuracy of 20.00.
Step 2 Long press the key to establish the current torque zero. Or enter the parameter to modify the torque zero frequency
The third step is the frequency of the sensor's full range output, i. e., the upper and lower limit frequencies, in Hz. This calibration operation is
complete.

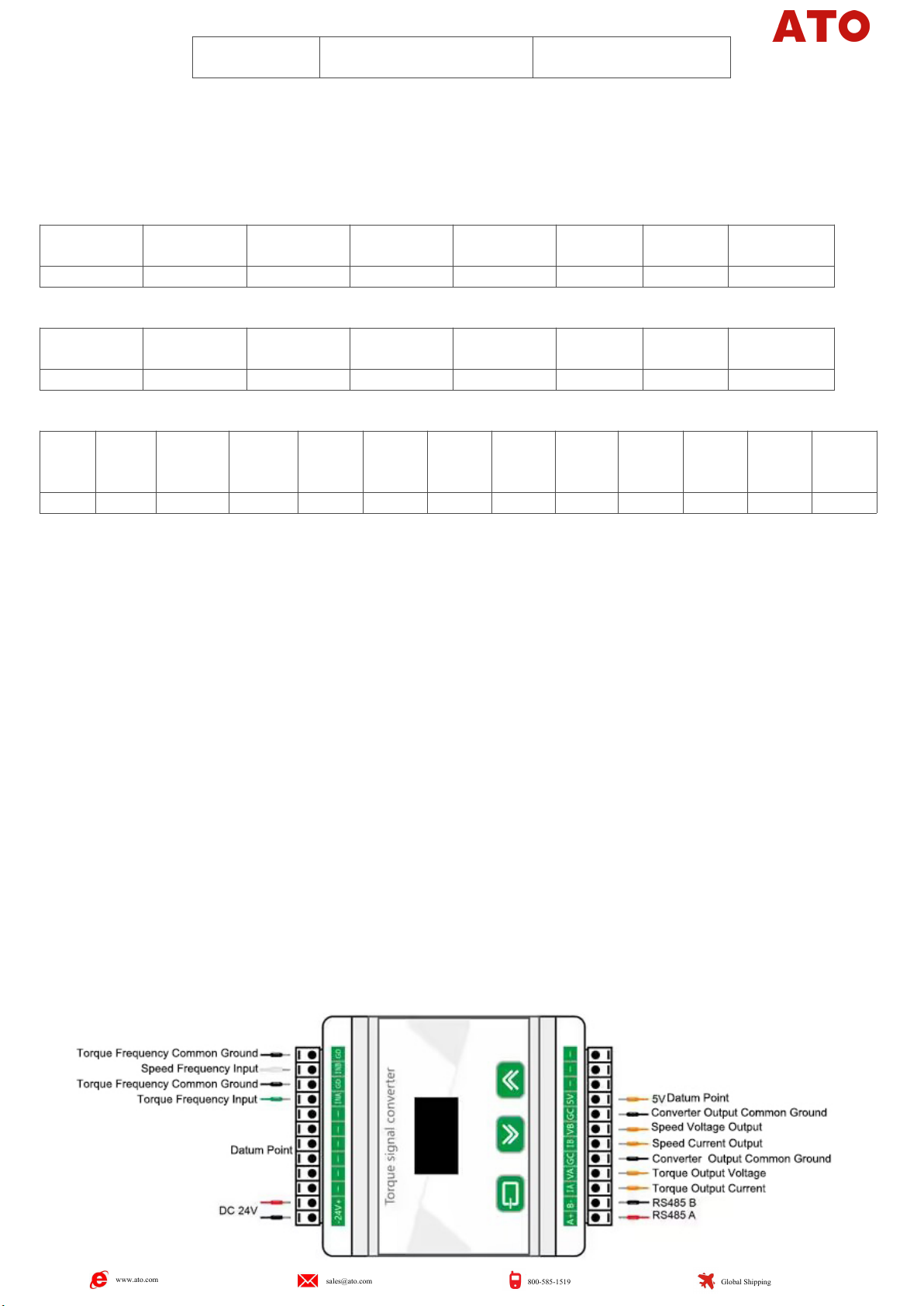

12、Connection definition
