ATOMSTACK A5 M50 Pro Manuale utente

ATOMSTACK Air Assist Kit User Manual

Note: The picture is for reference only, the actual product shall prevail. F03-0046-0AA1 Version:C

For more information, please scan the QR code

English

Deutsche

Français

Parts List

NO. 1 2pcs

This is parts collection for various models, not each model will use all parts in the sheet.

Pump trachea M3 self-tapping

screws

Inner hexagon

screwdriver

PH1 Phillips

screwdriver

Set screw

NO. 1-1 NO. 1-2 NO. 1-3 NO. 2 NO. 2-1

Power

Adapter

Foot pad 2pcs

Atomstack A5 10W

Atomstack A5 20W

Atomstack A5 30W

Atomstack A5 Pro Installation of Air Guide Hood for Four Models

1. Remove the current acrylic

shields 2. Rotate the laser backward 180° 3. Remove the set screw 4. Rotate the current air guide hood

counterclockwise to remove it.

5. Find NO.1 from the accessories.

Install it as shown

The air

guide

hood tube

mouth is

on the left

6. Tighten the self-tapping screws

with a PH1 Phillips screwdriver

7. Find NO.1-1 from the accessories

and install it as shown.

8. Insert the tube and fixed

it with a tie

Installation of Air Guide Hood

for Eight Models

Atomstack A5

M50 Pro AtomStack P9 M40 Atomstack X7 Pro AtomStack P9

M50

AtomStack A10 PRO Atomstack A5 M50 Atomstack S10 Pro Atomstack X7

1. Remove the set screw

from the right side of the

laser and remove the

current filter glass or

acrylic shield.

2. Remove the

current air guide

hood.

3. Find NO.1 and NO.1-2 from the

accessories and install them at the

same time as shown.

4. Fix the air guide

hood as well as the

filter glass.

5. Insert the tube.

1. Remove the

set screw from

the right side of

the laser and

remove the

current filter

glass or acrylic

shield.

2. Remove the

current air guide

hood.

5. Insert the tube.

NO. 1 NO. 1-3 NO. 2 NO. 2-1

Combination one Combination two

locate the

combination which

contains the wind

deflector matches

your model( If the

bottom surface of

the glass and the

laser is flush after

assembly, proves

this wind deflect

matches your

model), choose this

combination.

3-1 3-2

4. Install the

combination matches

your model, mount the

air guide hood and the

glass at the same time.

If your model is AtomStack A5 Pro+ or AtomStack P7 M40, you need to choose one of

the following 2 combinations to support your model.

Equipment installation and use

1. Tear off the adhesive protect

paper from the silicone pad, align

the positioning posts on the

silicone pad with the mounting

holes on the pump, and paste the

silicone pad to pump body.

2. Insert the air tube into the

air pump port

3. The tube on the machine needs

be fixed with the connecting line by

the nylon tie. Be careful not to fix it

too tight to block the tube.

DC power

interface

Speed-

adjusting(switch)

knob

Precautions for Use

Be careful not to get the tube stucked by the

wheels.

Please do not bend the tube too

much to make the tube blocked.

Please note the tube cannot be bent

too much to make the tube blocked.

After using the air guide hood of air assist ,please clean the adhesions on the air outlet to prevent

from accumulating for a long time to affect the further use.

Customer Service:

Ø For detailed warranty policy,please visit our official

website at: www.atomstack.com

Ø For technical support and service,please email

support@atomstack.com

Manufacturer: Shenzhen AtomStack Technologies Co., Ltd.

Address: 17th Floor, Building 3A, Phase II, Intelligent Park, No. 76,

Baohe Avenue, Baolong Street, Longgang Dist., Shenzhen, 518172,

China.

Scan the code to enter the discussion group.

Scanner APPLICATION:

QR code reader/ Barcode scanner or any APP with scanner.

ATOMSTACK Air Assist Kit Benutzerhandbuch

Hinweis: Das Bild dient nur als Referenz, das tatsächliche Produkt hat Vorrang

Für weitere Informationen scannen Sie bitte den QR-Code

English

Deutsche

Français

Liste der Einzelteile

NEIN. 1 2St

Dies ist eine Teilesammlung für verschiedene Modelle, nicht jedes Modell verwendet alle Teile im Blatt.

Pumpe Luftröhre

selbstschneiden

de Schrauben

Innensechskant-

Schraubendreher

PH1Kreuzschlitzs

chraubendreher

Feststells

chraube

NEIN. 1-1 NEIN. 1-2 NEIN. 1-3 NEIN. 2 NEIN. 2-1

Netzteil

Fußpolster 2St

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali ATOMSTACK Incisore

ATOMSTACK

ATOMSTACK MAKER AC1 Manuale utente

ATOMSTACK

ATOMSTACK M100 Manuale utente

ATOMSTACK

ATOMSTACK A5 10W Manuale utente

ATOMSTACK

ATOMSTACK X20 Pro Manuale utente

ATOMSTACK

ATOMSTACK P7 Series Manuale utente

ATOMSTACK

ATOMSTACK Befon A5 Pro Plus Manuale utente

ATOMSTACK

ATOMSTACK A 5 Pro Manuale utente

ATOMSTACK

ATOMSTACK X7 Pro Series Manuale utente

ATOMSTACK

ATOMSTACK A5 Manuale utente

ATOMSTACK

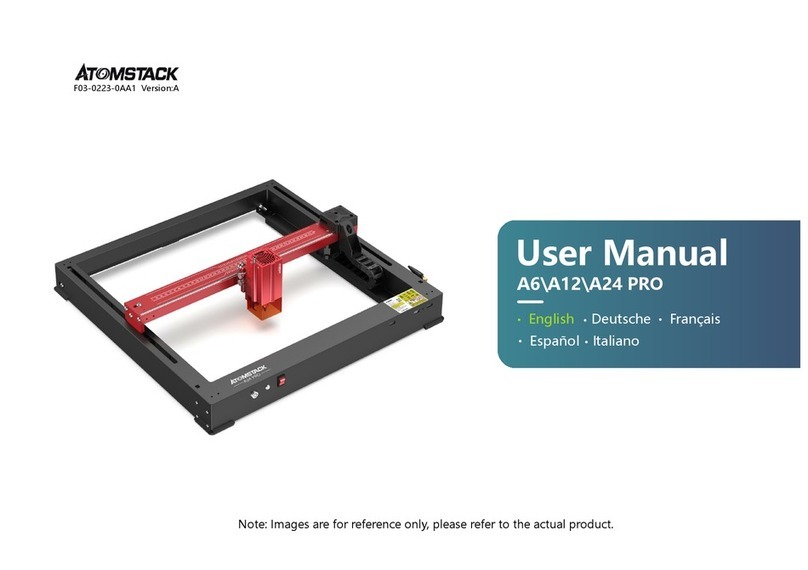

ATOMSTACK A6 PRO Manuale utente
