ATTICAUDIO PASSIVE RE-AMP Manuale utente
INSTRUCTION MANUAL
PASSIVE RE-AMP
TRANSFORMER ISOLATED
5
6
6
3
2
1
2
1
4
1
2
3
4
5
6

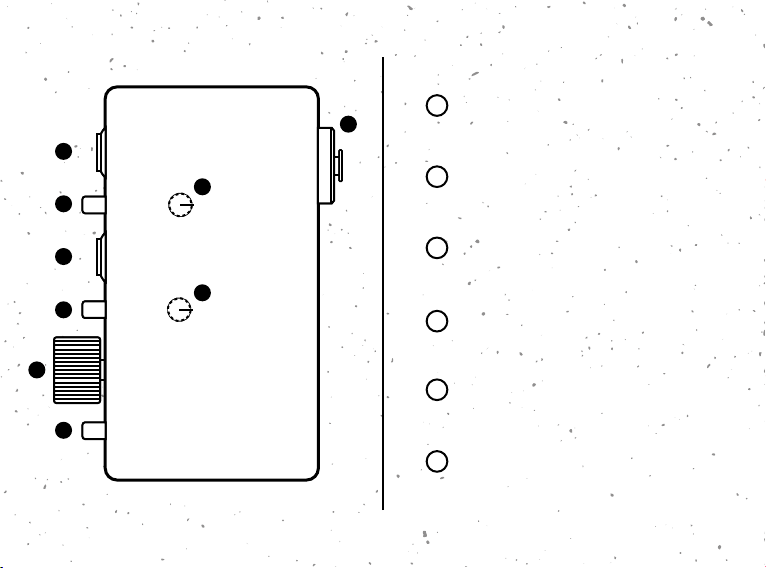

BALANCED LINE XLR/JACK INPUT
PHASE OUTPUT
OUT OF PHASE Ø WHEN PUSHED IN
GROUND LIFT
GROUND DISCONNECTED WHEN PUSHED IN
OUTPUT LEVEL
UNBALANCED OUTPUT
TO AMPLIFIER OR PEDAL INPUT
OUTPUT IMPEDANCE ADJUSTMENT
INTERNAL TRIMPOTS
BALANCED LINE OUT
TO RE-AMP INPUT
INSTRUMENT TO INST/HI-Z INPUT
RE-AMP OUT TO
EFFECTS AND AMPLIFIER
GUITAR/BASS/SYNTH/ETC.

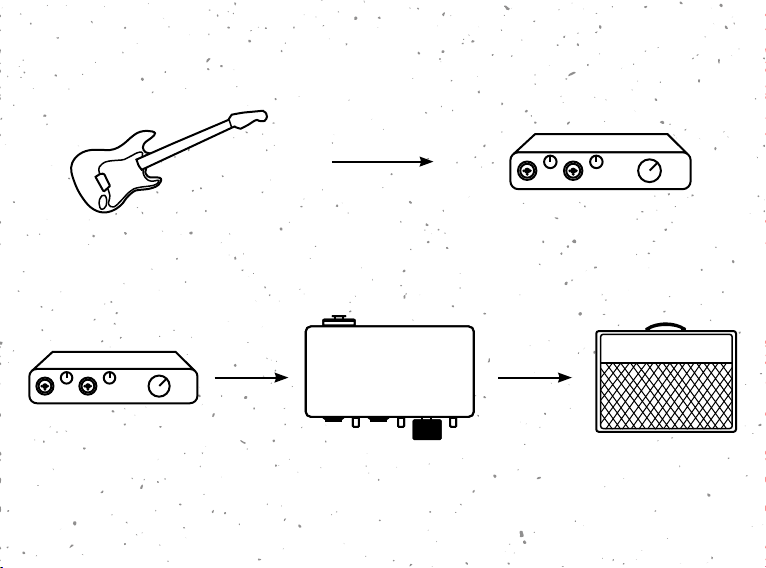

RECORD A DI/CLEAN TRACK USING AN AUDIO INTERFACE
A DI BOX MAY OPTIONALLY BE USED TO PLAY THROUGH THE AMPLIFIER AT THE SAME TIME
RE-RECORD THE THE TRACK WHILST PLAYING IT THROUGH THE RE-AMP AND AMPLIFIER
RE-AMPING A DI TRACK
BALANCED LINE OUT
TO RE-AMP INPUT
EFFECT TO
INST/HI-Z INPUT RE-AMP OUT TO
EFFECTS

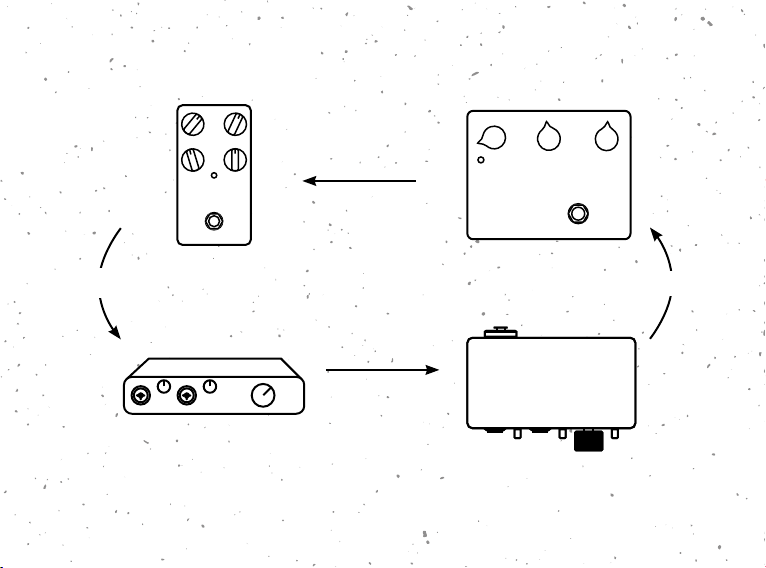

USING EFFECT PEDALS AS OUTBOARD GEAR
EXPAND YOUR MIXING TONAL POSSIBILITIES BY RE-RECORDING DRUMS, VOCALS AND
SYNTHS TRACKS THROUGH GUITAR PEDALS OR AMPLIFIERS
OUTPUT
IMPEDANCE
FULL
(25kΩ)
HALF
(12.5kΩ)
ZERO
(0Ω)
1. REMOVE THE BACKPLATE BY UNSCREWING THE FOUR SCREWS AT THE BACK OF THE
ENCLOSURE
2. THE IMPEDANCE CAN BE SET SEPARATELY FOR THE TWO DIFFERENT OUTPUTS AS
INDICATED ON THE PCB
3. USING A SMALL FLAT SCREWDRIVER, START WITH THE IMPEDANCE AT NOON AND
INCREASE OR DECREASE THE IMPEDANCE ACCORDING TO WHAT SOUNDS BEST
NOTE THE OUTPUT IMPEDANCE IS EXPECTED TO HAVE A MORE AUDIBLE EFFECT WITH A LOW OUTPUT LEVEL AND
ANALOG PEDALS SUCH AS FUZZ OR DISTORTION. LEAVE THE IMPEDANCE AT NOON FOR GUITAR AMPLIFIERS.

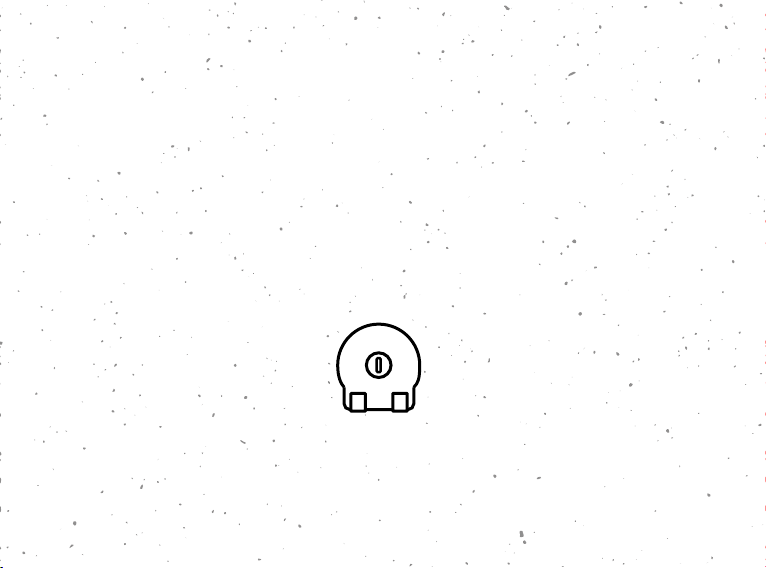

ADJUSTING THE INTERNAL OUTPUT IMPEDANCE
