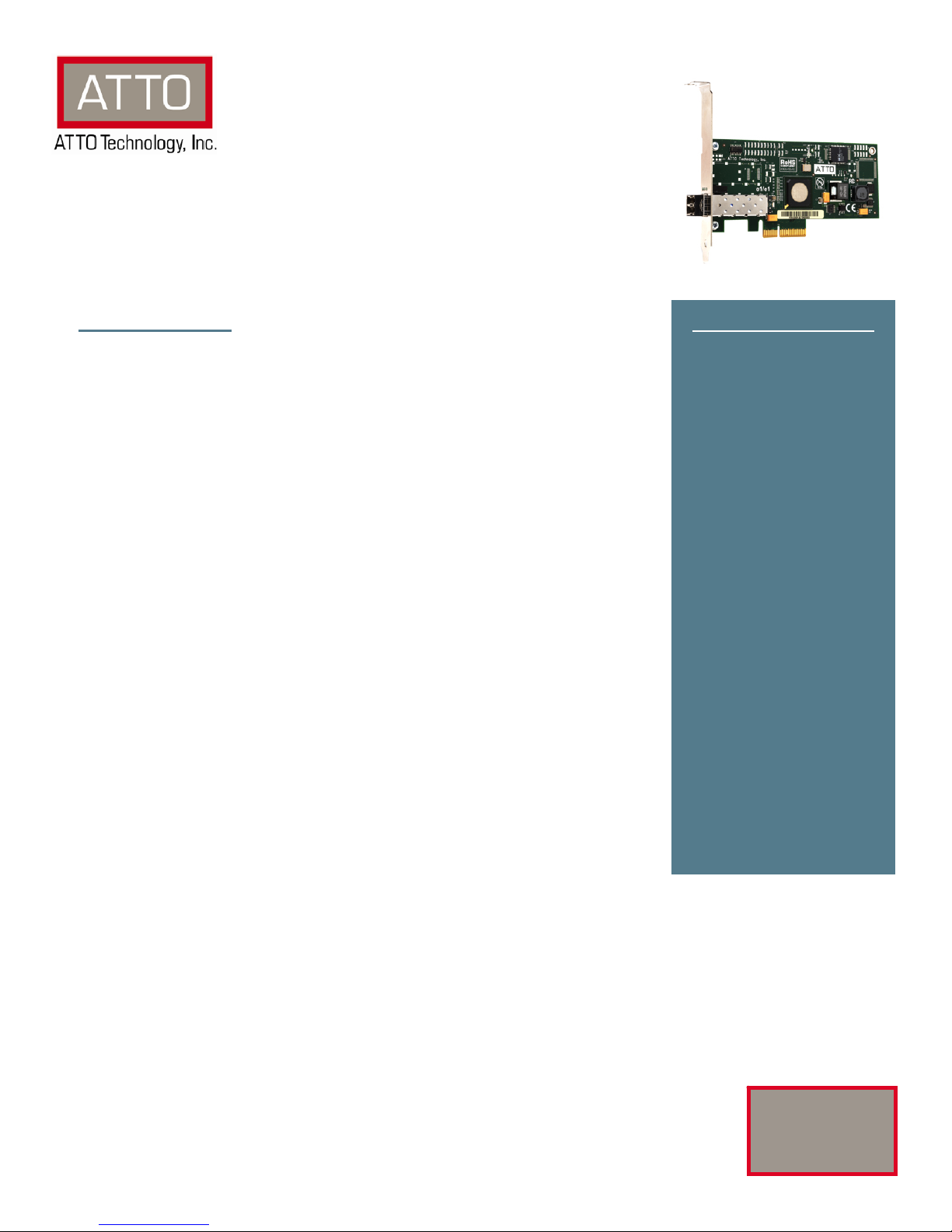

Celerity FC-41EL

Host Adapter

Single-channel, PCI Express to

4-Gigabit Fibre Channel Host Adapter

The Celerity FC-41EL provides connectivity for

next generation storage technology. PCI Express

interconnect and 4-Gigabit Fibre Channel, the FC-

41EL provides a cost-effective choice for high

throughput client and server environments.

The FC-41EL is capable of supporting digital

content creation, tape streaming and backup,

rich content delivery and complex database

applications.

The FC-41EL takes advantage of the latest in host

interconnect technology – PCI Express – a serial,

high-speed connection that supports aggregate

throughput up to 1 GB/second (x4 PCIe). The

FC-41EL leverages device drivers developed for

Celerity FC family of products to simplifying user

installation and support.

To ensure easy integration, the FC-41EL leverages

the existing Celerity FC software and hardware

architectures. The result is industry-leading

quality and a stable, field upgradeable software

architecture. It is fully backward compatible with

installed Fibre Channel infrastructure allowing you

to protect existing investments.

ATTO Celerity host adapters are an integrated

family of advanced storage connectivity solutions

that are designed to provide reliable connectivity,

intelligence and scalability. Meeting tomorrow’s

connectivity needs today, Celerity FC host

adapters extend the capabilities of software and

hardware, increase overall system performance

and drive intelligence all the way to the edge of the

SAN. Celerity, a platform for advanced storage

connectivity.

Technical Highlights

• Single-channel 4-Gigabit

Fibre Channel Host

Adapter

• Features a 1 GB/second,

high-performance x4 PCI

Express (PCIe) host

connection

• Proven industry

interoperability

• Low-profile form factor

• Driver support for

Microsoft Windows®,

Linux and Mac®OS X

• Backward compatible

with 2-Gb and 1-Gb

legacy Fibre Channel

Products

• RoHS Compliant

• 3-year standard

product warranty

Blazing Fast Performance

• Industry proven performance

for HD video applications;

capable of running a single

uncompressed stream or

multiple compressed streams

of HD video

• Delivering the latest in 4-Gb

Fibre Channel performance

Smooth Data Streaming

• Alleviate data transfer

bottlenecks and move data

more efficiently while

managing latency

• Maximize data flow using the

fastest bus interconnect and

bus management technology

One Click Installation

• Save time with factory preset

configurations for plug and

play operation

• Simplify installation,

management and monitoring

with a multi-platform

Configuration Utility featuring

an intuitive GUI

Celerity FC-41EL

Rev 03/08

Technical Specification Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

(716) 691-1999

Hardware Specifications

Fibre Channel Interface • Single independent FC port

• 4-Gigabit FC data-transfer rates

• Supports all FC topologies; direct fabric, arbitrated loop and point-to-point

• ANSI Fibre Channel: FC-PH, FC-FCP, FC-AL, FC-AL2, FC-PLDA, FC-FLA

• Flash ROM for easy field upgrades

• FC Class 3 Support

• Local management and diagnostics

• Buffer Credits: 4

Advanced FC Capabilities • Supports initiator mode only (target mode not supported with FC-41EL)

• Backward compatible with 2-Gb and 1-Gb Fibre Channel

Host Bus Specifications • x4 mechanical and x4 electrical PCI Express interconnect

• Supports PCI Express Base Spec 1.0a

• Supports PCI Express CEM Spec 1.0a

External Connectivity • Easy-to-install full height connection bracket

• External LEDs for on-line and speed status

• Single (1) pluggable optical LC SFP connector included

Software Specifications

Driver Support • Windows Server 2003, 2008, XP, Vista

• Red Hat Linux (2.4 and 2.6 Kernel)

• SUSE Linux (2.6 Kernel)

• Mac OS X (10.4.x & 10.5.x) for Mac Pro systems only

• ATTO Express Power Center software not supported with FC-41EL

Agency Approvals

Safety and Environmental • FCC Rules, Part 15, Class B

• CE Mark: CISPR 22:2002/EN55022:2002, Class B

Environmental & Physical Specifications

Dimensions • Conforms to PCI Express Low Profile form-factor specs

• Length 5.600”

• Height 2.712”

Operating Environment • Temperature: 0-45° C (32°-113°C)

• Humidity: 5 - 95% non-condensing

Storage Environment • Temperature: -40°-70°C (-40°-157°F)

• Humidity: 5 - 95% non-condensing

Power • 12V @ 0.5A max

Airflow • 100 lf/m (min) recommended

Optical Cabling • 50/125µm up to 150m @ 4-Gb

• 50/125µm up to 300m @ 2-Gb

• 50/125µm up to 500m @ 1-Gb

Ordering Information

Model Number • CTFC-41EL-000 (RoHS)

RoHS Compliant Yes

Celerity FC-41EL

Host Adapter

Celerity FC-41EL
