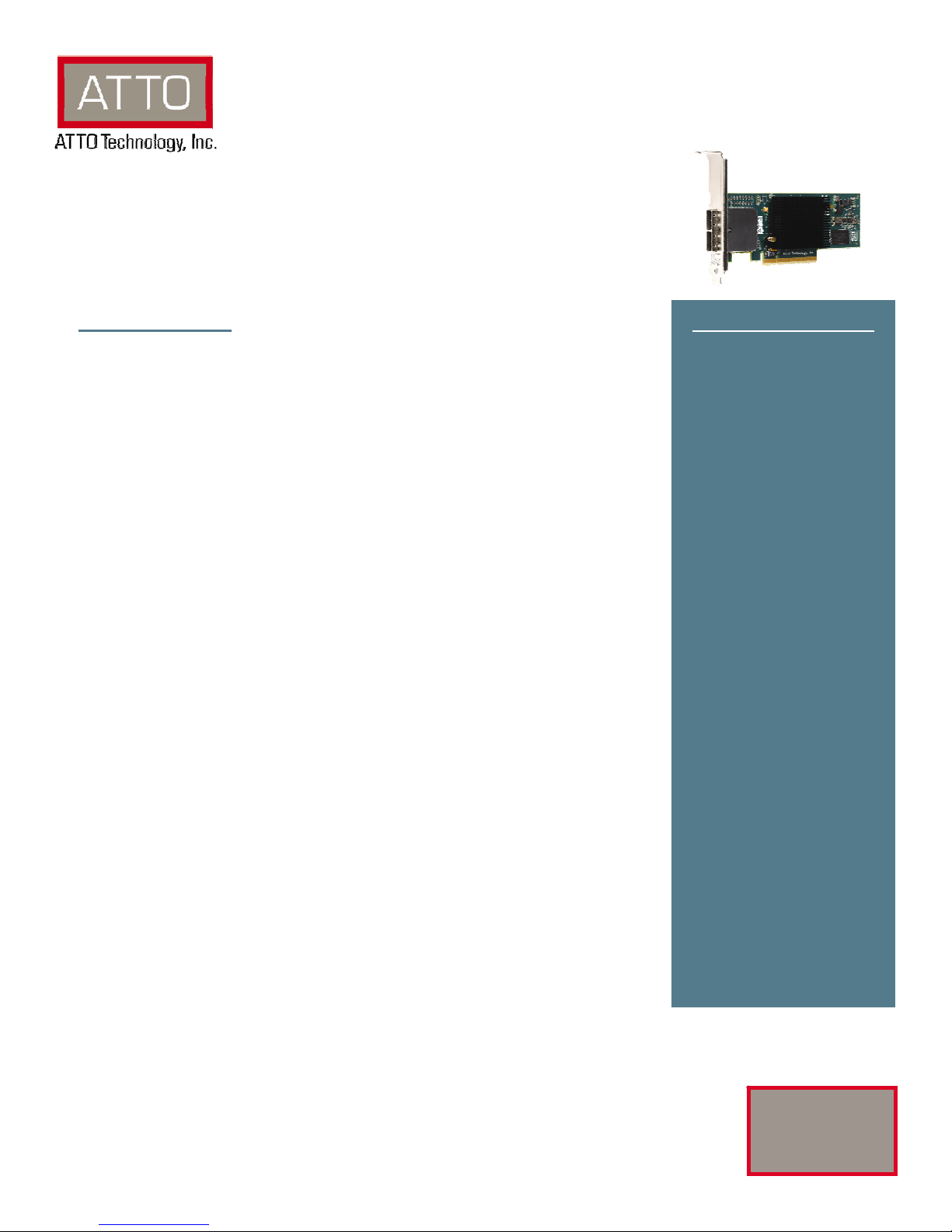

Technical Specification Host Adapter

3-Gb SAS/SATA II Connectivity

ATTO introduces the ExpressSAS H380 Low-

Profile Host Adapter. Providing 3-Gb SAS/SATA II

connectivity and eight external ports, the ATTO

SAS Host Adapter is ideal for both IT and digital

video environments that require a high level of

performance.

The ATTO ExpressSAS host adapter product

family provides enhanced reliability and

performance thanks to more than 15 years of

experience with SCSI hardware and storage

connectivity solutions. Using the latest in PCI

Express bus technology and an eight external port

configuration, the ATTO ExpressSAS H380 Host

Adapter delivers blazing fast performance with

transfer rates of up to 3-Gb per second per port.

The ATTO ExpressSAS Host Adapters are

engineered for the most stringent IT server and

digital media workgroup environments and are

compatible with multiple operating systems,

applications, and drives.

An easy-to-use utility enables management,

monitoring, and configuration. ATTO also

incorporates it’s field proven Advanced Data

Streaming (ADS™) technology to meet the most

demanding performance requirements of data

intensive applications. In addition, ATTO provides

industry standard PCIe to SAS control using Serial

SCSI Protocol (SSP), Serial ATA Tunneling

Protocol (STP), and Serial Management Protocol

(SMP).

Technical Highlights

• x8 PCIe host interface

• True low-profile form

factor

• 8 external ports

• Outstanding performance

with up to 3-Gb/sec per

port

• SAS, SATA and SATA II

connectivity

• Supports up to 256 SAS/

SATA drives

• Exclusive Advanced Data

Streaming (ADSTM)

technology

• User friendly configura-

tion utility

• Driver support for

Windows®, Linux and

Mac®OS X

• RoHS Compliant

• 3-year standard

product warranty

Blazing Fast Performance

• Up to 3-Gb/sec per port

transfer rates with SAS, SATA

and SATA II attachment

• Increased bandwidth through

x8 PCI Express host interface

• Point-to-point technology

delivers full throughput to

each connected storage

device

Smooth Data Streaming

• Alleviate data transfer

bottlenecks and move data

more efficiently while

managing latency with

ATTO’s exclusive ADS™

technology

• Improve I/O through

optimized data movement

One Click Installation

• One-click installation allows

for quick and easy set-up

• Simple host based utility for

effortless configuration

• BIOS setup utility provides

flexibility for custom

applications

ExpressSAS H380 Host Adapter

ExpressSAS H380

Low-Profile SAS Host Adapter

Rev 7/08

Technical Specification Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

(716) 691-1999

Hardware Specifications

Applications • Support for IT server and digital media workgroup solutions requiring high-bandwidth and reliability.

Applications include audio/video, VOD, fixed content, database and other data intensive environments.

Maximum Transfer Rate • Up to 3-Gb/sec per port

Advanced Capabilities • Device support for SAS, SATA and SATA II

• User friendly GUI for quick and easy configuration

• Advanced management functions

• PC BIOS bootability

PCI Bus Specifications • x8 PCI Express host interface

• Supports PCI Express Base Spec 1.0a

Connectors • Two x4 External (SFF-8088) Mini SAS connectors

Software Specifications

Driver Support • Windows® Server 2003, 2008, XP, Vista

• Mac®OS X (10.4.x & 10.5.x)

• Linux (Red Hat and SuSE)

Agency Approvals

Safety and Environmental • FCC Rules, Part 15, Class B

• CE Mark: CISPR 22:2002/EN55022:2002, Class B

Compliancy • RoHS Compliant

Environmental & Physical Specifications

Dimensions • Conforms to PCI low-profile form factor specifications

• Length 5.600”

• Height 2.713”

Operating Environment • Temperature: 0-60° C (32°-140°F) at 300 lf/m airflow

• Temperature 0-40° C (32° - 104°F) at 150 lf/m airflow

• Humidity: 5 - 95% non-condensing

Storage Environment • Temperature: -40°-70°C (-40°-157°F)

• Humidity: 5 - 95% non-condensing

Power • 12V @ 0.59A max.

• 3.3V @ 0.87A max.

Airflow • 150 lf/m (min) recommended

Ordering Information

Model Number • ESAS-H380-000 (Includes standard height and low-profile bracket)

ExpressSAS Low-Profile Host Adapter

3-Gb SAS/SATA II Connectivity

ExpressSAS H380 Host Adapter
