Product Features

Tech-

For More Information:

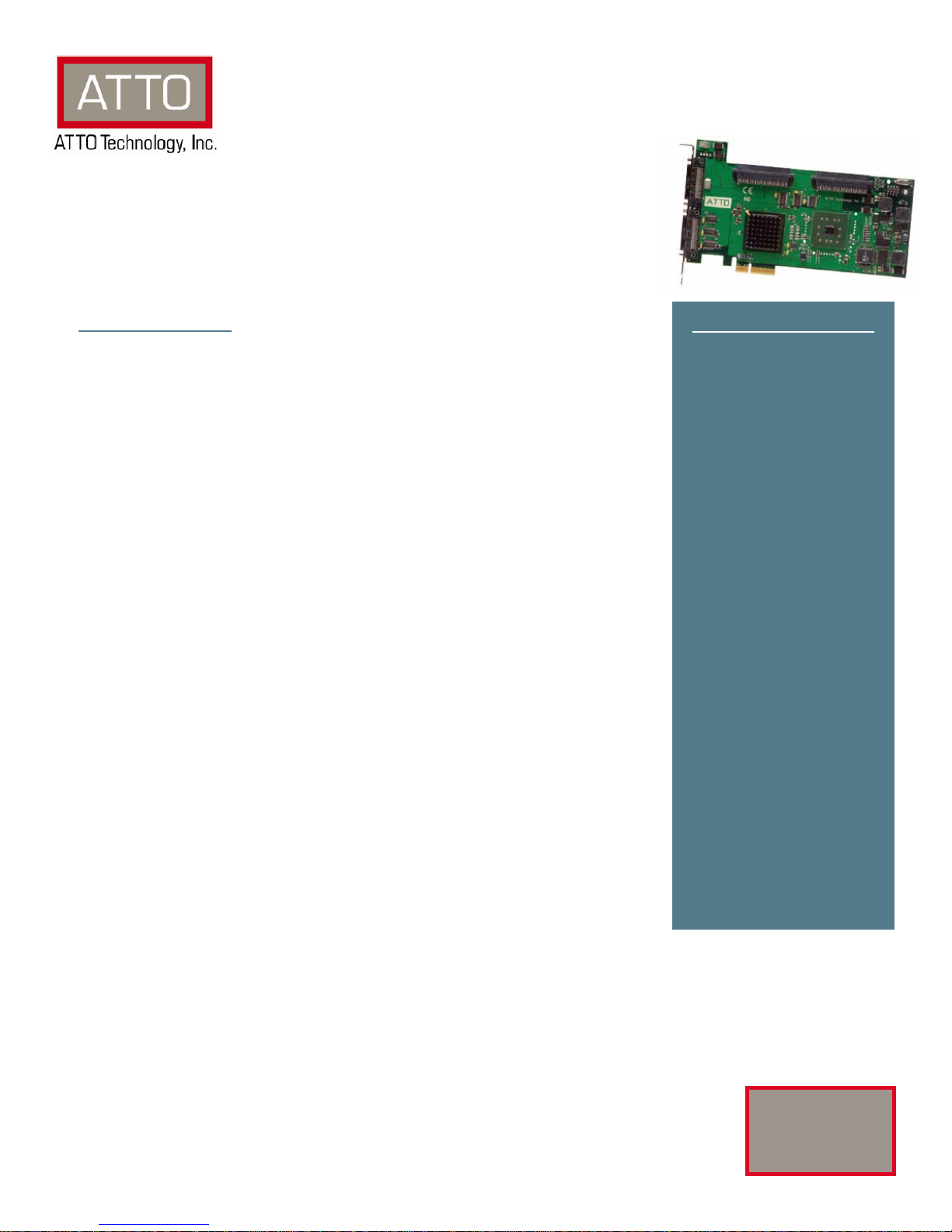

ExpressPCI UL5D

Host Adapter

Dual-channel Ultra320

SCSI PCI Express Host Adapter

The ATTO ExpressPCI UL5D, an ATTO Ultra320

SCSI host adapter, offers high-performance

provided by Ultra320 and ATTO-designed

performance enhancing technologies. The UL5D

SCSI host adapter aids users dealing with the

reality of today’s data-intensive environments,

including video-editing applications requiring

support for multiple streams of 10-bit high-

definition video.

Additionally, the ExpressPCI UL5D offers support

for the next generation of PCI bus technology with

a 4-lane PCI Express (PCIe) interconnect. The

high-bandwidth provided by a PCI Express

interconnect ensures the UL5D can operate at

speeds up to 640 MB/sec. The combination of

Ultra320 SCSI and PCI Express makes the UL5D

ideal for high-end workstations running high-

volume, mission critical applications such as

messaging and databases.

ATTO host adapters offer ATTO’s exclusive Ad-

vanced Data Streaming (ADSTM) technology, and

the ExpressPCI UL5D is no exception. By

effectively managing latency and allowing for fast

and efficient data movement, utilization of the CPU

is reduced, freeing it up to perform other mission

critical tasks.

The ExpressPCI UL5D is the industry’s first choice

for high-speed SCSI host adapters. By offering

support for Ultra320 SCSI and PCI Express, in

addition to ATTO-designed technologies such as

ADS, the ExpressPCI UL5D offers both the

performance and feature set necessary for data-

intensive applications.

Technical Highlights

• Ultra320 SCSI

• Up to 320 MB/sec. per

channel data-transfer

rates

• Dual independent SCSI

channels (2 internal and

2 external connector

availability)

• x4 PCI Express

• Driver support for

Windows®, Linux ,

Novell Netware®and

Mac®OS X

• Exclusive ADSTM

technology

• Supports up to 30 SCSI

bus IDs

• Up to 12 meter cable

lengths

• RoHS Compliant

• 3-year standard

product warranty

• Maximize data throughput

with dual channel connectivity

aggregating performance

across multiple SCSI ports

• Leveraging the latest in SCSI

storage connectivity, the

UL5D delivers up to 640 MB/

sec. data throughput, making

it twice as fast as Ultra160

SCSI.

Smooth Data Streaming

• Maintain accessibility to

mission-critical data by

transparently redirecting data

requests through alternate

channels.

• Alleviate data transfer

bottlenecks and move data

more efficiently while

managing latency with

ATTO’s exclusive ADS™

technology.

One Click Installation

• Save time with factory preset

configuration for plug and play

operation.

• Simplify installation,

management and monitoring

with a multi-platform

Configuration Utility featuring

an intuitive GUI.

ExpressPCI UL5D

Rev 10/08

Technical Specification Power Behind the Storage

For More Information:

Hardware Specifications

SCSI Interface • 320 MB/sec. per channel data-transfer rates

• Two (2) external VHDCI and two (2) internal high-density connectors per channel

• Low Voltage Differential (LVD) signaling

• Support for tagged command queuing

• Backward compatible with Ultra160, Ultra2, Ultra/WIDE, Fast/WIDE & Narrow SCSI devices

Advanced SCSI • Supports dynamic bus rescan (OS X) •Quick Arbitration Select (QAS)

• Double transition clocking •ASPI compliant (for PC users)

• Domain validation •Bootable from attached disks

• Cyclical Redundancy Checking (CRC) •Support for disconnect/reconnect

• Packetization •Support for multiple block sizes

General Characteristics • Automatic termination

• Upper-byte termination for Narrow devices

• Flash ROM for easy field upgrades

• Plug and play compatible

• Includes ATTO ExpressPro-ToolsTM & ATTO Configuration Tool formatting & utility software

Software Specifications

Driver Support • Windows®Server 2003, 2008, XP, Vista

• Mac®OS X (v10.4.x & 10.5.x)

• Linux (Fedora, Red Hat and SuSE)

• Novell Netware®v6.5

Advanced Data Streaming (ADSTM) • Improved PCI system bandwidth use

• Optimized SCSI-3 algorithms

• Tagged command queuing

• Embedded RISC I/O processor

RAID Options • RAID 0 support with ATTO Express Power Center or ExpressStripe RAID software utilities

Agency Approvals

Safety and Environmental • FCC Rules, Part 15 Sub-Part B, Class A

• CE Mark: CISPR 22 / EN 55022, Class A

Environmental & Physical Specifications

Dimensions • Length 7.5”

• Height 4.376”

Operating Environment • Temperature: 0-45° C

• Humidity: 10-90% non-condensing

• Airflow: 100 LFM (min)

Reliability • MTBF = 675,000 hours

• MTTR < 15 Minutes

Power • 1.61 typical/ 2.03 max. Amps @ + 3.3 VDC

• 0.65 typical/ 1.46 Amps @ + 12.0 VDC

RoHS Compliant • Yes

Ordering Information

Model Number • EPCI-UL5D-0R0 (RoHS)

Host Bus Specifications • x4 PCI Express interconnect

• Supports PCI Express Base Spec 1.0a

• Supports PCI Express CEM Spec 1.0a

• PCI Express to PCI/PCI-X Bridge spec 1.0

ExpressPCI UL5D

Host Adapter

ExpressPCI UL5D
