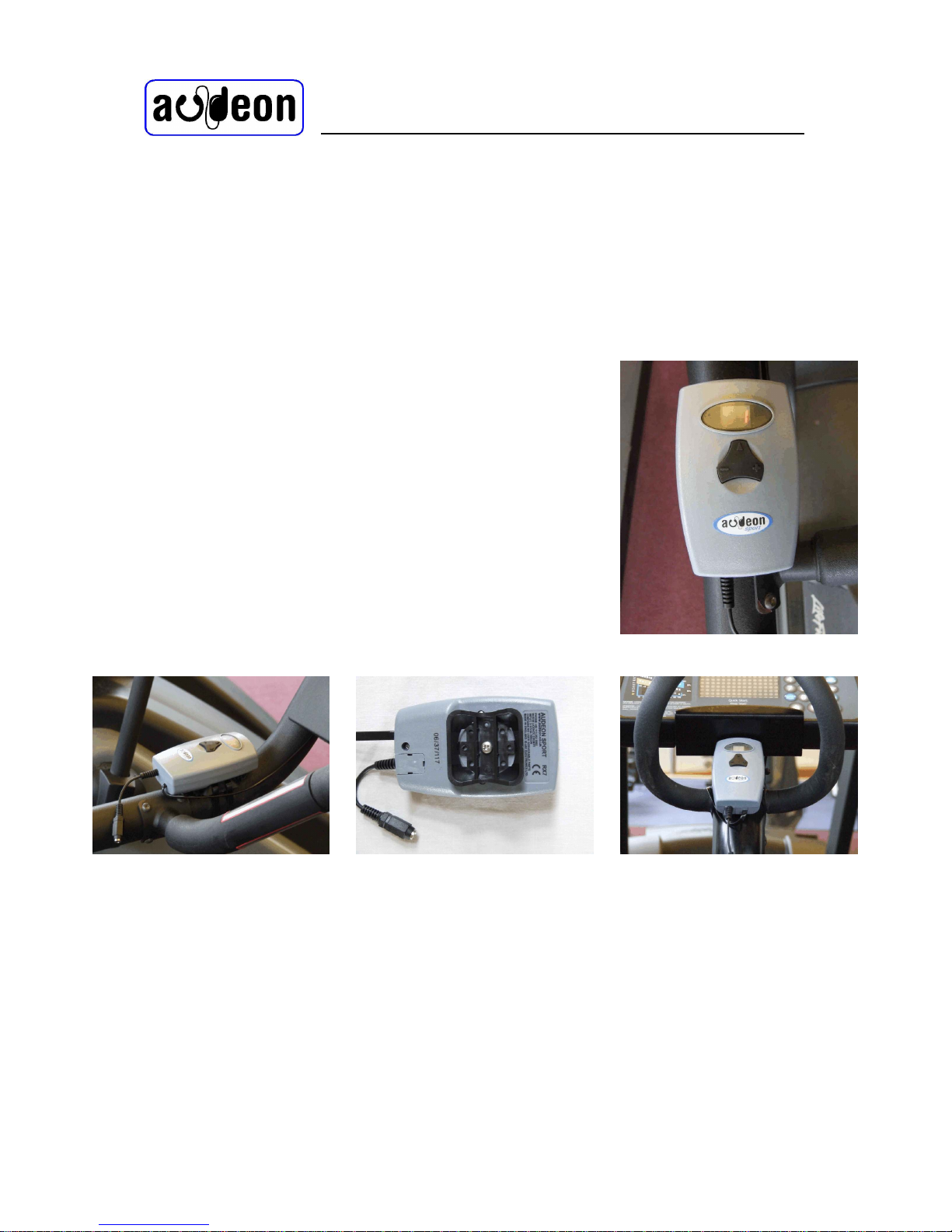

RX7 Receiver - Installation, Commissioning
and Maintenance
Page 7 of 7
Appendix I Standard Channel Plan - Radio Frequencies
ISM licence free band UHF channel 70
Channel 1 863A10 MHz
Channel 2 863A35 MHz
Channel 3 863A60 MHz
Channel 4 863A85 MHz
Channel 5 864A10 MHz
Channel 6 864A35 MHz
Channel 7 864A60 MHz
Channel 8 864A85 MHz
TV channel 69 (licence required from JFMG in UK)
Channel 9 854A60 MHz
Channel 10 855A90 MHz
Channel 11 856A90 MHz
Channel 12 857A60 MHz
Channel 13 858A70 MHz
Channel 14 859A30 MHz
Channel 15 860A20 MHz
Channel 16 861A00 MHz
Appendix ii Reallocation of channels - Alternate Frequency Plans
Selectedfrequenciesareassignedtoconsecutivechannelnumbers.Eachfrequencynumberreferstothechannel
number associated with the required frequency in the standard frequencyplan (appendix i)
Plan No. Frequencies selected Last Channel No.
1 1 1
21 & 3 2
31, 3, & 6 3
41, 3, 6 & 8 4
51, 2, 4, 6 & 8 5
61, 2, 4, 5, 7 & 8 6
71, 2, 3, 4, 5, 6 & 7 7
81, 2, 3, 4, 5, 6, 7, & 8 8
91, 2, 3, 4, 5, 6, 7, 8 & 9 9
10 1, 2, 3, 4, 5, 6, 7, 8, 9 &10 10
11 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 &11 11
12 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11 &12 12
13 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12 & 13 13
14 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13 & 14 14
15 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14 & 15 15
16 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,11, 12, 13, 14, 15 &16 16
