Audi R8
Quick reference guide
Fuel tank flap
To open:
Press the switch
on the driver’s door.
To close:
Press the tank flap until
you hear it click into
place.
Engine oil
The correct oil specifications and
engine oil capacity are listed in the
Performance, weights and dimen-
sions section of the
Owner’s Manual.
Fuel
(see sticker)
Tyre pressures
(see sticker on door
pillar on driver side)
Warning triangle
The compartment for the
warning triangle is located
beneath the luggage
compartment floor.
Luggage lid
To open:
Press the button on
the remote control key or on the
driver's door. The lid will spring
open slightly. Press the release
flap between the radiator grille
and the luggage lid and lift
the lid.
To close: Lower the luggage lid
and press it into the catch.

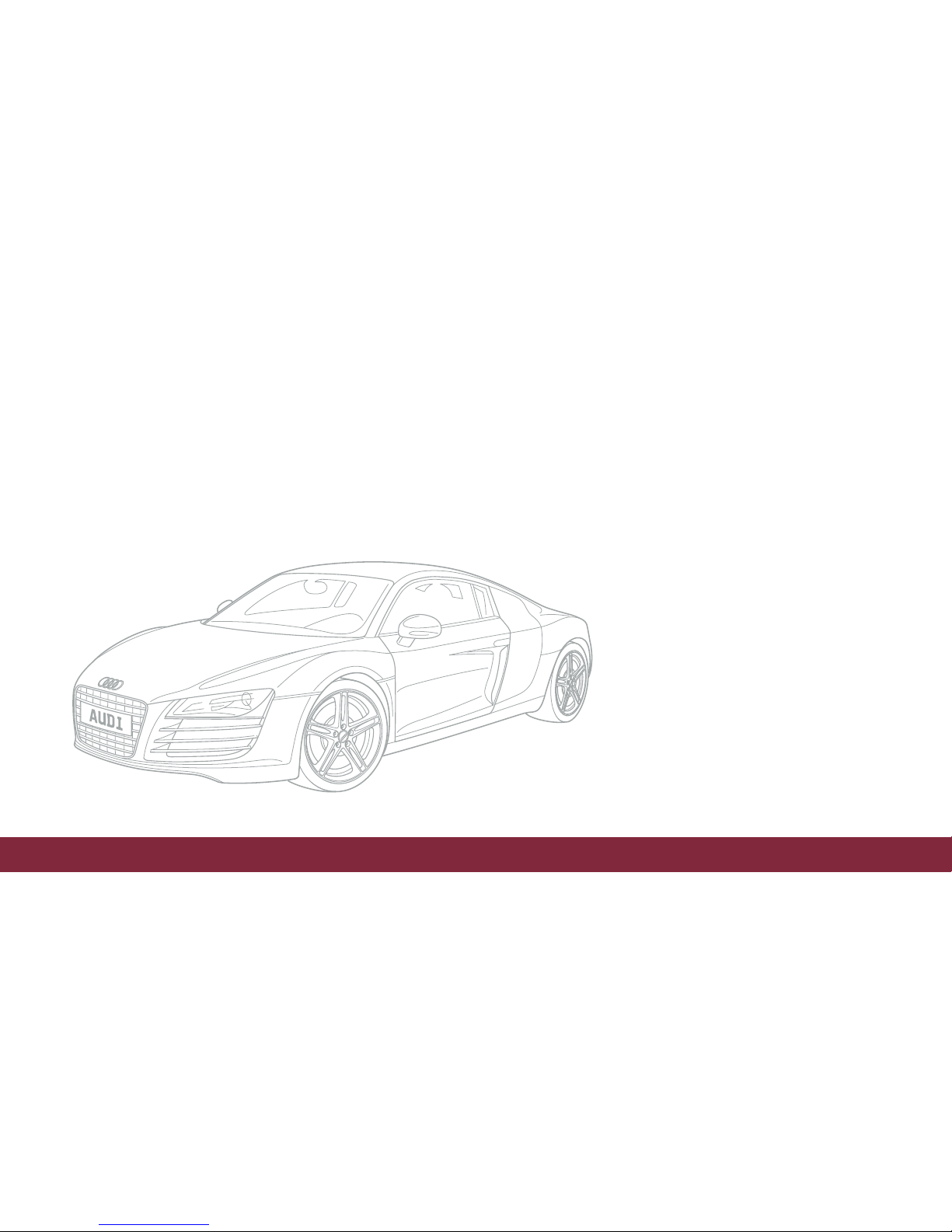

Welcome
Dear Audi Driver,
This quick reference guide gives you an
overview of the main features and
controls of your vehicle. However, it
cannot replace the detailed Owner’s
Manual which contains important
information and safety warnings.
Please refer to your Owner's Manual for
detailed information on your vehicle.
You will find everything you need to
know about the radio, CD, navigation
and telephone functions in the Operating
Manual for your navigation system.
We wish you safe and enjoyable
motoring with your new Audi.
AUDI AG
Controls and displays
Electric windows
To set the desired position:
Press/pull to the first stop and hold.
”One-touch” function:
Press/pull briefly to the second stop.
Adjuster for exterior mirrors
Turn the adjuster for:
Left exterior mirror
Exterior mirror heating
Right exterior mirror
Exterior mirror retraction
Press the adjuster to move the mirror glass
in the desired direction.
Unlock switches for:
Luggage lid
Tank flap
3
1
2
10
13
1
2
3
5
4
6
7
8
9 9
11
12
Overview
Buttons for:
Audi magnetic ride
Electronic stabilisation
program
Hazard warning lights
Rear spoiler
parking system for
activation/deactivation
of parking aid
Warning lamp for front
passenger’s airbag
Handbrake
ESP
OFF
19
P
20
21
Door handle and central
locking switch
Lock
Unlock
Bonnet lock release
Light switch
Cruise control system
Turn signal and main beam
lever
Controls on multi-function
steering wheel
Instruments and warning/
indicator lamps
10
9
8
4
5
7
6
Steering wheel position
adjuster
Ignition lock
Windscreen wipers/washer
and buttons for on-board
computer
Navigation system
Air conditioner
Front passenger’s seat
heating
Driver’s seat heating
Gear lever or selector lever
for Rtronic
18
17
16
15
12
14
13
11
14
15
16
17
18
19
20
21
8
7
6
4
123
5
Manual seat adjustment
To move seat backwards or forwards:
Lift the lever and move the seat.
Then release the lever and move the
seat further until the catch engages.
To adjust lumbar support:
Press the appropriate part of the
switch.
To adjust seat height:
Pull up or press down the lever
repeatedly.
To adjust backrest:
Take your weight off the backrest
and turn the knob.
To release backrest:
Pull the lever upwards and fold the
backrest forwards.
5
8
7
6
4
Adjusting head restraints
Take hold of the sides of the head
restraint with both hands and move it up
or down as required. The top of the head
restraint should be at eye level or higher.
Seat adjustment
Electric seat adjustment
To adjust lumbar support:
Press the appropriate part
of the switch.
To adjust seat height and move seat
backwards or forwards:
Front of seat cushion up/down
Rear of seat cushion up/down
Seat up/down
Seat forwards/
backwards
To adjust backrest:
Backrest further
upright/further
reclined
1
3
2
Sitting position
Sit in a normal upright position and
do not sit too close to the steering
wheel. If necessary, also adjust the
position of the steering wheel.
min.
25 cm
First steps
Starting the engine
Switching on the ignition/starting the engine
Insert the key into the ignition lock.
To switch on the ignition: Turn the
key to position .
To start the engine (on vehicles
with manual gearbox): Press
the clutch and turn the key
to position until the engine
starts.
To start the engine (R tronic):
Press the brake pedal and turn
the key to position until the
engine starts.
To switch off the engine: Turn the key
to position .
0
2
2
1
R tronic
Automated manual gearbox
The clutch mechanism and gear
changes are controlled electronically.
You can drive in automatic mode
or shift gears yourself manually.
A - Automatic and manual gear selection
pBriefly press the selector lever to position A.
The gears are changed automatically.
pBriefly press the selector lever forwards (+) to shift up a gear.
pBriefly pull the selector lever back (-) to shift down a gear.
N - Neutral
pPress the selector lever from position Atowards the right (N) or
from reverse gear (position R) towards the left (A).
R - Reverse gear
pWith the vehicle stationary (engine idling), press the brake pedal and briefly
press the selector lever from position Nto R.
Sport function
Press the button to activate/deactivate the sport function.
In the sport function mode, the engine’s power reserves are utilised fully.
SPORT
N
R
+
–
A
N
Air conditioner
Switches for air conditioner
Control on left: Temperature selection
Control in middle: Switching air conditioner on/off and
regulating blower speed.
Control on right: Air distribution
Automatic mode
Set the desired temperature and
press the button.
Air recirculation
Circulates and filters the air in the interior
of the vehicle
Switching air cooling system on/off
Defrosting windscreen and side windows
Rear window heating
AC
AUTO
Audi magnetic ride
Two suspension systems in one vehicle
Normal driving mode: Comfort-oriented suspension
Sport driving mode: Performance-oriented suspension
Press the button to activate/deactivate the mode.
Technology
When the system is switched on, the indicator
lamp appears in the instrument cluster.
To switch on/off: Pull/press lever .
To set speed: Press button .
To adjust stored speed: Press lever up (faster)
or down (slower).
1
2
Cruise control system
2
1
Rear spoiler
To increase stability
The down force of the rear axle
increases when the rear spoiler is extended.
Automatic mode:
The rear spoiler extends at speeds above 100 km/h
and retracts at speeds below 35 km/h.
Manual mode:
Briefly press the button to extend the rear spoiler.
Briefly press the button again (while driving between
20 km/h and 100 km/h) to retract the rear spoiler again.
Press and hold the button (while driving below
20 km/h) to retract the rear spoiler.
1
2
2
Audi Navigation System plus
Components
Driver information system
Multi-function steering wheel
Scroll the left thumbwheel to select a menu item in
the driver information system. Press the thumbwheel to
confirm the selection.
Press the MODE button to switch between the active
audio source and the navigation and telephone functions.
Briefly press the button to switch on the speech
dialogue system.
Speak after the <beep> e.g. say <Help> to call up the
possible operating commands.
Press and hold the talk button to switch off the speech
dialogue system.
Scroll the right thumbwheel to adjust the volume.
If you press the right thumbwheel, the last navigation
cue will be repeated.
