AudioBahn ABP102N Manuale utente

DUAL SUB BANDPASS SYSTEM

ABP102N / ABP122N

OPERATING INTSTRUCTIONS

PLEASE RETAIN MANUAL FOR FUTRE USE AND REFERENCE

QUALITY, RLIABILITY, & PURE BLISS

Features and Specifications



ABP122N

Dual 12" Tuned

Bandpass System

ABP102N

Dual 10" Tuned

Bandpass System

High Quality MDF Construction

Black Carpeted Covering

3/8" Plexiglass Window

Blue Interior Neon Lighting

Audiobahn Embroidery

Dual 12” IMPP Cone with EPDM

Rubber Surround

50 oz. Strontium Magnet

2" 4-Layer Voice Coil

Bumped Back Plate

Extended & Vented Pole Piece

Gold Binding Post Terminals

Power Handling: 800 Watts RMS

Sensitivity: 103dB

Frequency Response: 28Hz-150Hz

Impedance: 4 Ohm Stereo

Dimensions:

High Quality MDF Construction

Black Carpeted Covering

3/8" Plexiglass Window

Blue Interior Neon Lighting

Audiobahn Embroidery

Dual 10” IMPP Cone with EPDM

Rubber Surround

50 oz. Strontium Magnet

2" 4-Layer Voice Coil

Bumped Back Plate

Extended & Vented Pole Piece

Gold Binding Post Terminals

Power Handling: 600 Watts RMS

Sensitivity: 102dB

Frequency Response: 32Hz-150Hz

Impedance: 4 Ohm Stereo

Dimensions:

14 7/8"(H) x 29 1/2"(W) x 17 5/8"(D)

Wiring And Hookup



The box can be wired in 1) a stereo configuration (each sub wired to a different channel) or 2) a mono

configuration (both subs wired together to a single channel of an amp, or two bridged channels of an

amp). Looking at the back of the box you will see each side's terminals. The left terminal is negative (-)

and the right terminal is positive (+) for each set. If wiring in stereo mode, you will have a 4 ohm stereo

load. If you wire the subs together in mono mode, you will see a 2 ohm load if wiring in parallel, and an

8 ohm load if wiring in series. Please see the Tech Tips section of this manual for wiring diagrams.

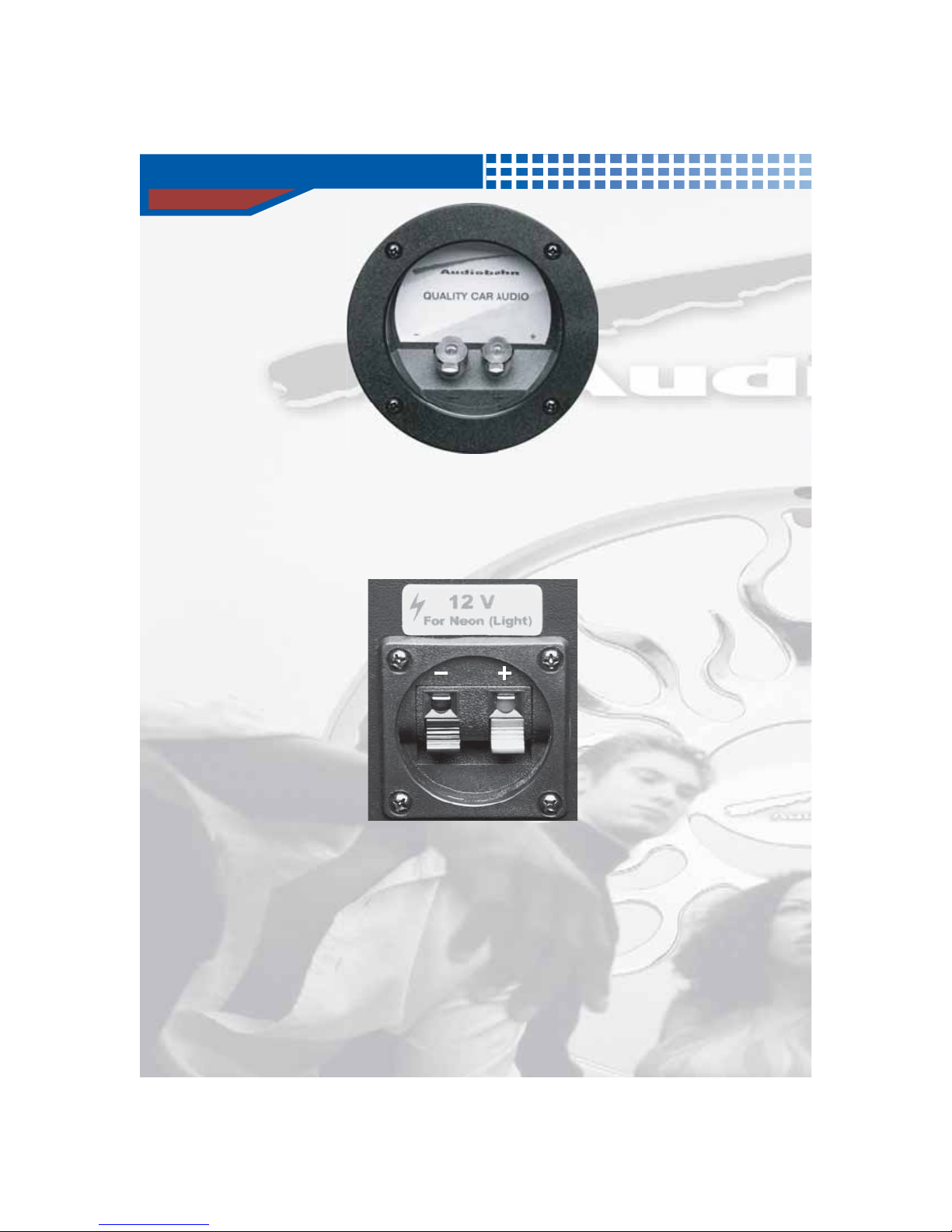

Your bandpass box also comes with another terminal that looks like the one pictured above. You need

to hook this up to a 12 volt power source and a ground. The power (+) is on the right side and the

ground (-) on the left side. You may want to wire this up to a switch so you can turn the neon light on

and off. You can wire it up to the remote wire so the neon light turns on when you turn your stereo on.
