AudioBahn AWC10T Manuale utente

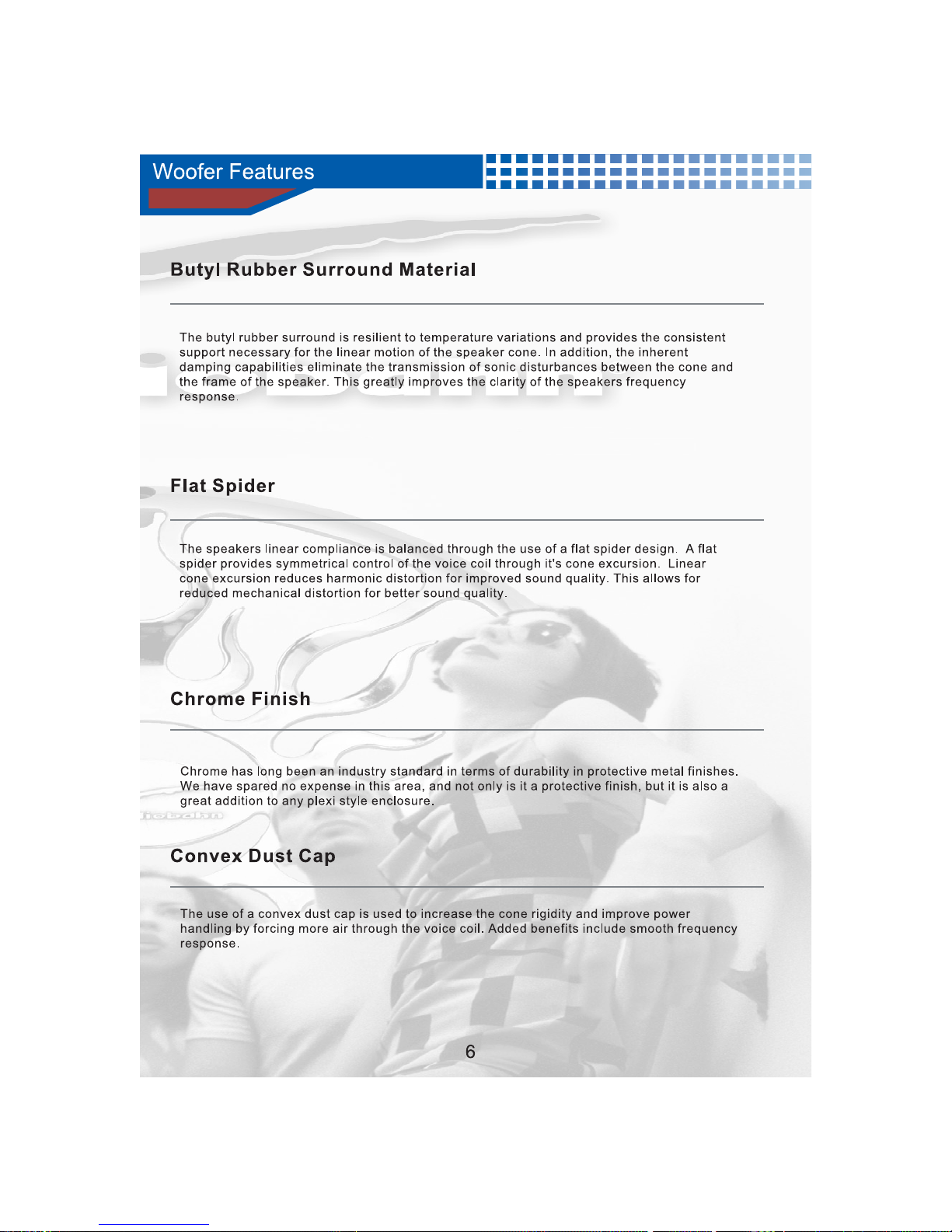

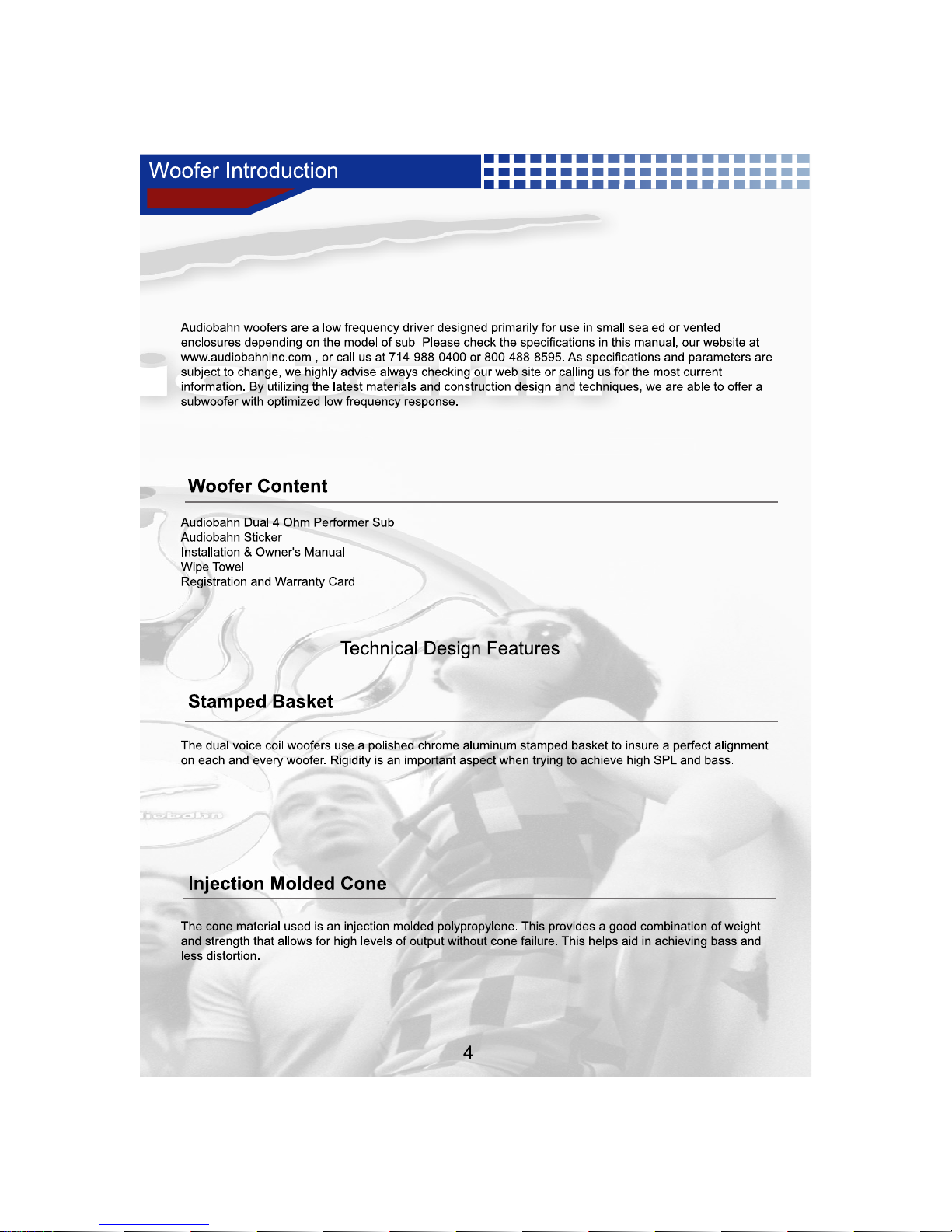

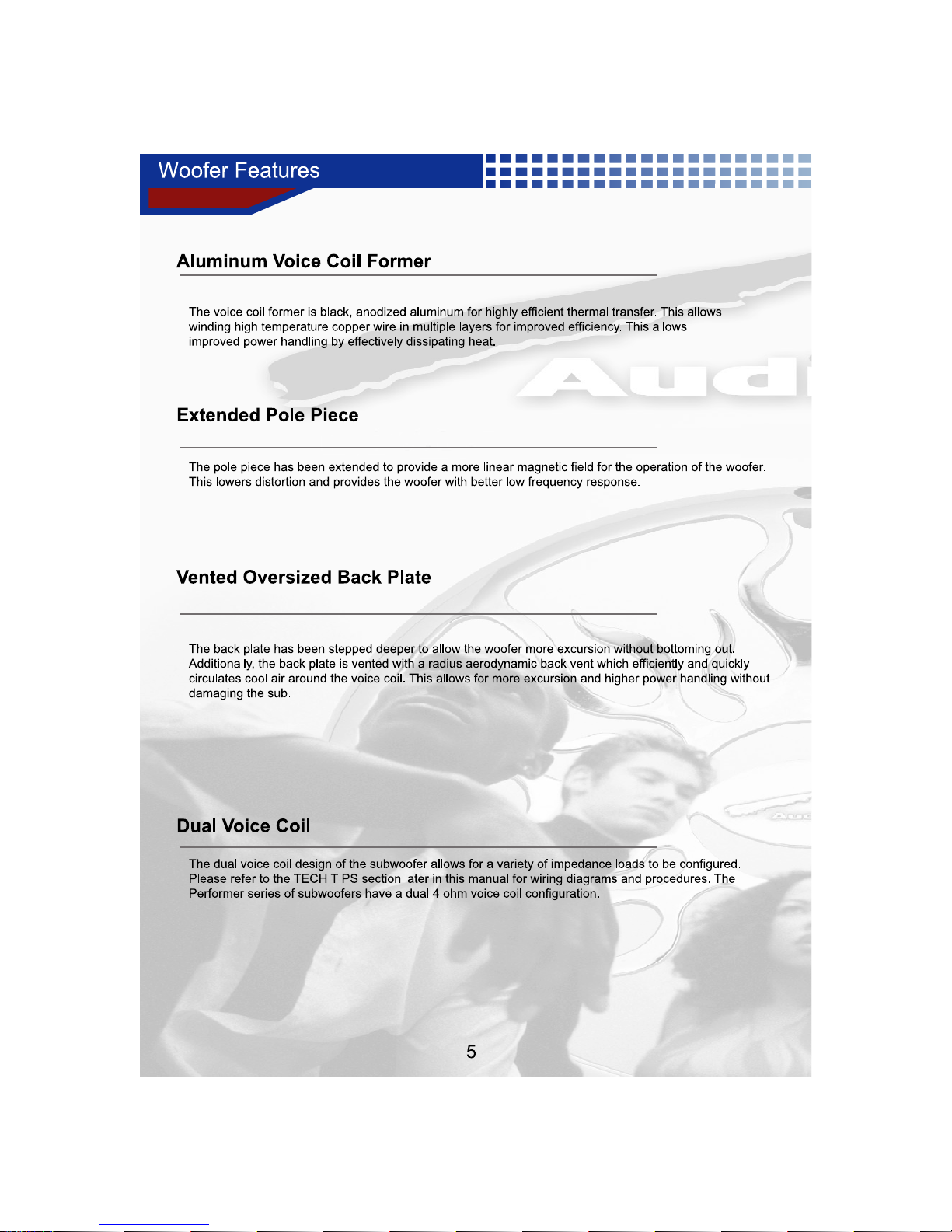

Theile / Small Parameters

7

Model # AWC10T AWC12T

Fs 32.6 Hz 31.4 Hz

Qts 0.55 0.59

Qes 0..65 0.71

Qms 3.78 3.57

Vas(Liters) 35Liters 69Liters

Vas (Cu. Ft.) 1.20 Cu.Ft. 2.45 Cu.Ft.

Re 3.2 ohms 3.3 ohms

Le 1.35 mH 1.5 mH

Mmd 109 Grams 130 grams

Xmax +/- 7mm +/- 8mm

RMS 400 watts 500 Watts

Sd 0.034 M2 0.051 M2

Freq. Resp. 25Hz-800Hz 25Hz-800Hz

Efficiency 92.5 dB 92.9 dB

EBP 50 44

Depth 4 3/4" 5 1/16"

Hole 9" 10 7/8"

Diamater 10 1/4" 12 1/2"

Displacement 0.10 Cu. Ft. 0.15 Cu.Ft.

Audiobahn Woofer Parameters

Dimensions

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Box Parameters

8

Model # AWC10T AWC12T

Ported

Air Space (Cu. Ft.) 0.65 1.3

Port Size (Inches) 2 x 6.6 3 x 7.75

Port Vel. (%) 18.52 14.96

-3dB (Hz) 40 38

Tune Freq. (Hz) 40 38

Sub Disp. (Cu. Ft.) 0.1 0.15

Port Disp.(Cu. Ft.) 0.01 0.029

Total Vol. (Cu. Ft.) 0.75 1.5

Ported

Air Space (Cu. Ft.) 1.4 2.3

Port Size (Inches) 3 x 7.25 4 x 8.4

Port Vel. (%) 9.06 8.45

-3dB (Hz) 32 32

Tune Freq. (Hz) 38 36

Sub Disp. (Cu. Ft.) 0.1 0.15

Port Disp.(Cu. Ft.) 0.026 0.055

Total Vol. (Cu. Ft.) 1.5 2.5

Ported

Air Space (Cu. Ft.) 2.35 3.3

Port Size (Inches) 4 x 7.5 (2) 3 x 5.75

Port Vel. (%) 5.26 7.57

-3dB (Hz) 30 30

Tune Freq. (Hz) 37 36

Sub Disp. (Cu. Ft.) 0.1 0.15

Port Disp.(Cu. Ft.) 0.048 0.04

Total Vol. (Cu. Ft.) 2.5 3.5

EBP

50 44

Model # AWC10T AWC12T

Sealed

Minimum (Cu. Ft.) 0.5 0.75

Maximum (Cu. Ft.) 2 2

SPL (dB) 84.6 86.7

All sealed boxes already include the displacment for the subwoofer. NR = (Not Recommended)

Audiobahn Box Specifications

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the higher the frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

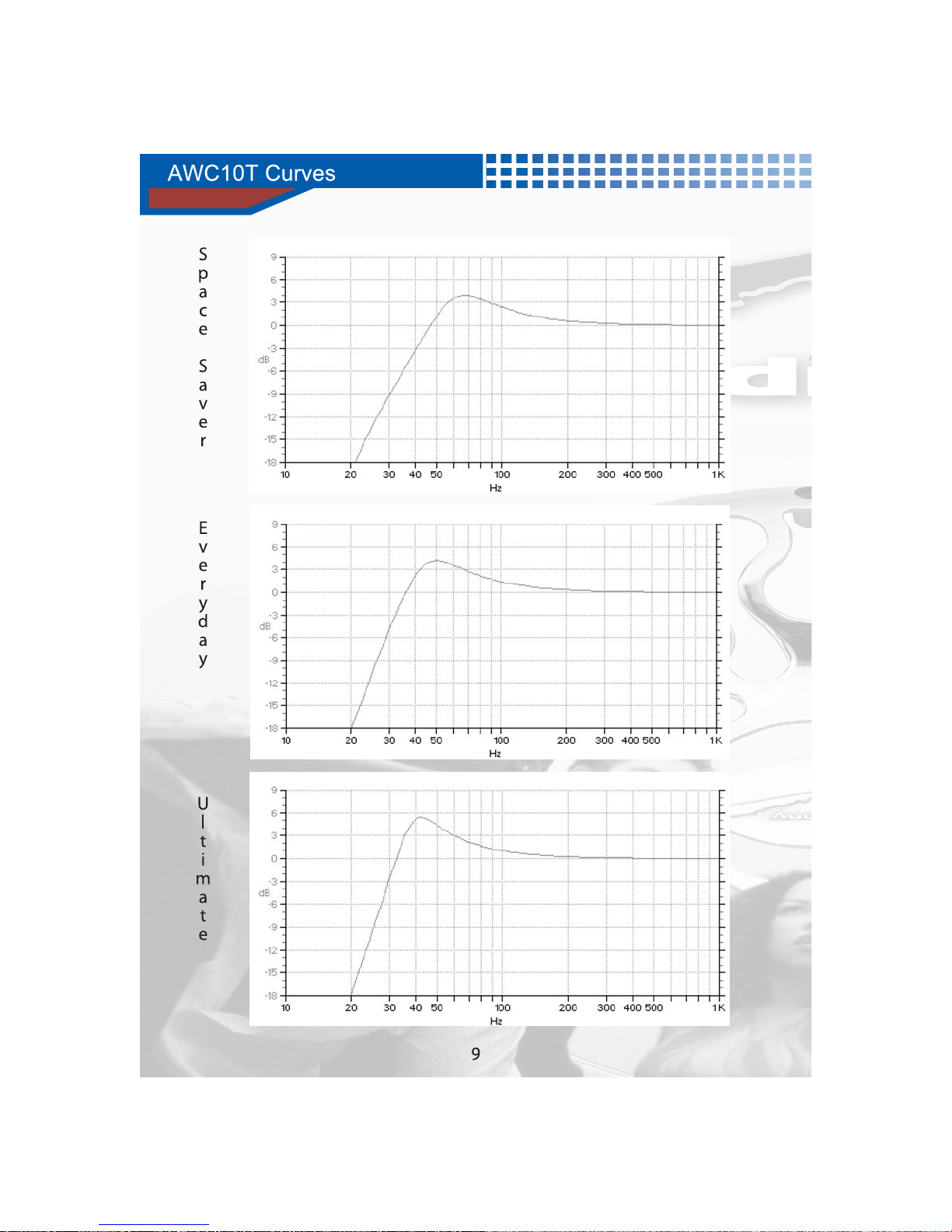

Ultimate SPL Bass Box

(not designed for competition use)

Everyday Bass Performer

Space Saver Bass Design

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise you will incur.
