Audiovox AMP-594 Manuale utente
Owner'sOwner's
Owner'sOwner's
Owner's
ManualManual
ManualManual
Manual
ModelAMP-594
150WattStereoAmplifier
INDEX
Specifications ...........................................................1
Precautions ..............................................................2
Installation Instructions .............................................3
Wiring Instructions ............................................4 - 5
Input Wiring Diagram ............................................6
Output Wiring Diagram .........................................7
Operation ..........................................................8 - 9
Warranty ................................................Back Cover
*Due to continuing improvement, Audiovox reserves the right to change features and design without notice.
HIGH PERFORMANCE STEREO AMPLIFIER
This power amplifier has been designed to provide high quality performance with
a minimum of maintenance. However, it's performance will only be as good as the
care and quality of components with which it is installed. We therefore advise that
you read these instructions very carefully to familiarize yourself with the product
and it's features.
Should you require assistance with the installation or wiring of this unit, please call
our toll-free "HELP" line at 1-800-645-4994 during the days/hours shown.
Monday-Friday
Saturday
8:30am-7:00pm Eastern
9:00am-5:00pmEastern
1-800-645-4994
HELP!
SPECIFICATIONS
Maximum Output Power:
Output Power @ 0.1% T.H.D.:
Output Impedance:
Frequency Response:
Channel Separation:
Signal / Noise Ratio:
Input Impedance:
75 wattsx2@4ohms
60 watts RMS x 2
2 - 8 ohms
10 - 50,000 Hz.±1dB
50 dB
90 dB (A-Weighted)
low-level 10K ohms
high-level 100 ohms
Input Sensitivity:
Filter Type:
Filter Slope:
Filter Crossover:
Supply Voltage:
Fuse Rating:
Dimensions (W x H x D):
low-level 200 mv. - 2 v.
high-level 2 - 10 v.
low-pass
12 dB/octave
50 - 250 Hz. (selectable)
12 volts, negative ground
10 amps.
12-1/4" x 2" x 6-1/8"
311 mm x 50 mm x 155 mm
-1-
PRECAUTIONS
1. Although this unit is designed with built-in self-protection circuits, there may be a possibility of damage if it is not wired
correctly. Please follow the wiring instructions carefully for the type of system being used.
2. The last lead to be connected is the wire to the positive (+) terminal of the battery. Connect this wire only after having
completed and checked all other connections to the amplifier.
3. By nature of its design, a power amplifier generates heat and requires good air circulation around it to dissipate that
heat. Do not install the amplifier in an enclosed area which does not permit adequate air circulation. Should the
temperature of the unit rise too high, the internal thermal sensors will shut off operation until it has cooled down
sufficiently.
4. If fuse replacement is necessary, use only fuses of the same ampere rating as originally supplied with the unit. The
use of fuses with incorrect ratings may cause serious damage to the amplifier. If fuses blow consistently, carefully
check all electrical connections to the unit.
5. Supply of adequate battery voltage is critical to the proper operation of the power amplifier. The leads to the battery
and chassis ground must be of a thick enough gauge to provide this voltage to the amplifier. We recommend
#14 gauge wire or thicker (smaller gauge #) for the battery and ground leads.
6. Make certain that the speakers to be used with this amplifier are capable of handling the output power (wattage)
of the unit. Use of speakers not rated for the output of this amplifier may cause damage to or failure of the
speakers for which Audiovox will not be liable.
-2-

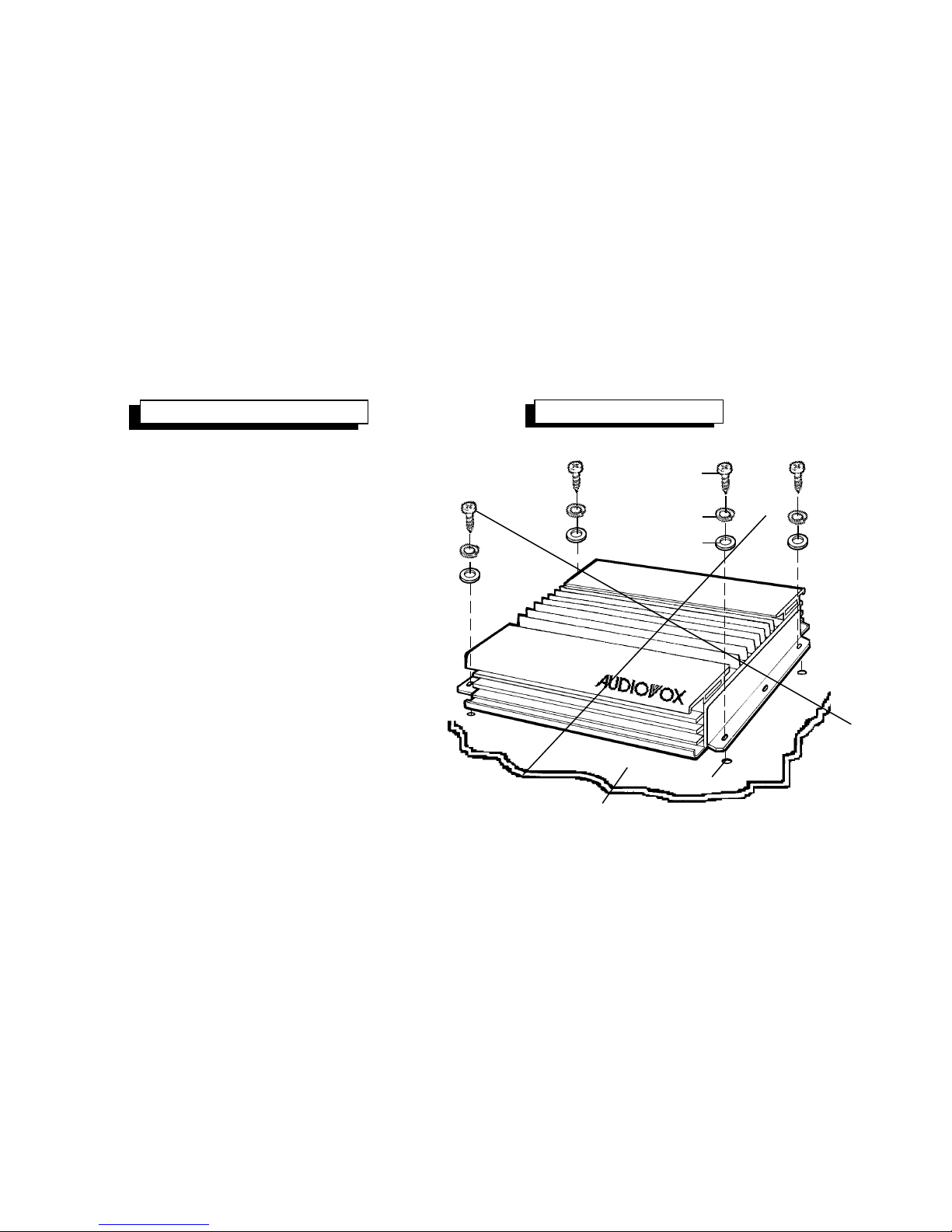

INSTALLATION INSTRUCTIONS INSTALLATION DIAGRAM
1. Select a mounting area where the amplifier will
have sufficient air circulation for proper cooling.
Inadequate air circulation will cause the temperature
of the amplifier to rise and will trigger the
thermal protection mode.
2. Place the amplifier on the mounting surface
and mark the locations of the four mounting
holes as shown in the illustration.
3. Remove the amplifier and drill a 1/8" hole at
each of the four locations.
CAUTION: Before drilling the holes, look at the
underside of the mounting surface. Always
check carefully to avoid drilling into wiring,
braces, fuel or brake lines. CHECK BEFORE
YOU DRILL !
4. Secure the amplifier to the mounting surface
using the self-tapping screws provided.
MOUNTINGSURFACE
1/8"DIA.HOLE
SELF-TAPPINGSCREW
SPLITWASHER
FLATWASHER
-3-
WIRING INSTRUCTIONS
The power and speaker wire connections for this amplifier are made via screw tightened terminal blocks. Loosen the
screw for the connection to be made and fully insert the wire (strip 1/2" of insulation from the end) into the respective
screw on the side panel (crimp-on "U" terminals are provided to simplify wiring and we recommend their use.) Tighten
the screw down to secure the wire.
1. Power Connection
The battery terminal (BATT) must be connected directly to the positive terminal of the vehicle battery to provide an
adequate voltage source and minimize noise. Connecting the battery terminal lead to any other point (such as the
fuse block) will reduce the power output and may cause noise and distortion. Use only #14 gauge or thicker (smaller
gauge #) wire for this lead and connect it to the terminal of the battery after all other wiring is completed.
2. Ground Connection
The ground terminal (GND) connection is also critical to the correct operation of the amplifier. Use a wire of the same
gauge as the power connection (#14 or thicker) and connect it between the ground terminal (GND) of the amplifier
and a metal part of the vehicle close to the mounting location. This wire should be as short as possible and any paint
or rust at the grounding point should be scraped away to provide a clean metal surface to which the end of the ground
wire can be screwed or bolted.
3. Remote Turn-On Connection
The amplifier is turned on by applying +12 volts to the remote turn-on terminal (REM). The wire lead to this terminal
should be connected to the "Auto-Antenna" lead from the car stereo which will provide the +12 volts only when the
car stereo is turned on. If the car stereo does not provide an Auto-Antenna lead, the remote turn-on lead may be wired
to an "Accessory" or "Radio" terminal in the car's fuse block. This will turn the amplifier on and off with the ignition
key, regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents,
so #20 gauge wire may be used for this application.
-4-
4. Speaker Connections
Depending on the type and number of speakers used with the amplifier, wire them to the speaker terminals as per
the appropriate wiring diagram. For most applications, #18 gauge wire should be used for the speaker leads but in
no case thinner than #20 gauge. For leads in excess of 10 feet, #16 gauge is recommended. When wiring the
speakers, pay careful attention to the polarity of the terminals on the speakers and make certain they correspond
to the polarity of the corresponding terminals on the amplifier. DO NOT ground any speaker leads to the chassis of
the vehicle.
5. Input Connections
This amplifier features both high and low-level input capability. Use either the low-level or high-level inputs, not both.
If low-level outputs are provided from the car stereo, it is recommended that the low-level inputs be used for lowest
distortion and best performance. Use good quality shielded audio cables with RCA plugs at both ends to connect
the stereo to the amplifier and keep the cable lengths to a minimum to avoid noise.
If the car stereo does not provide low-level outputs, the amplifier may be connected via the speaker (high-level)
outputs from the stereo. Wire the speaker leads from the car stereo to the 5-pin adaptor harness as shown in the
diagram (shielded cable is not required for this application) and plug the connector into the mating High-Level Input
socket on the amplifier. Carefully splice and insulate all wire connections.
CAUTION: Use either the low-level or the high-level inputs on the amplifier.
DO NOT use both input levels at the same time.
WIRING INSTRUCTIONS
-5-

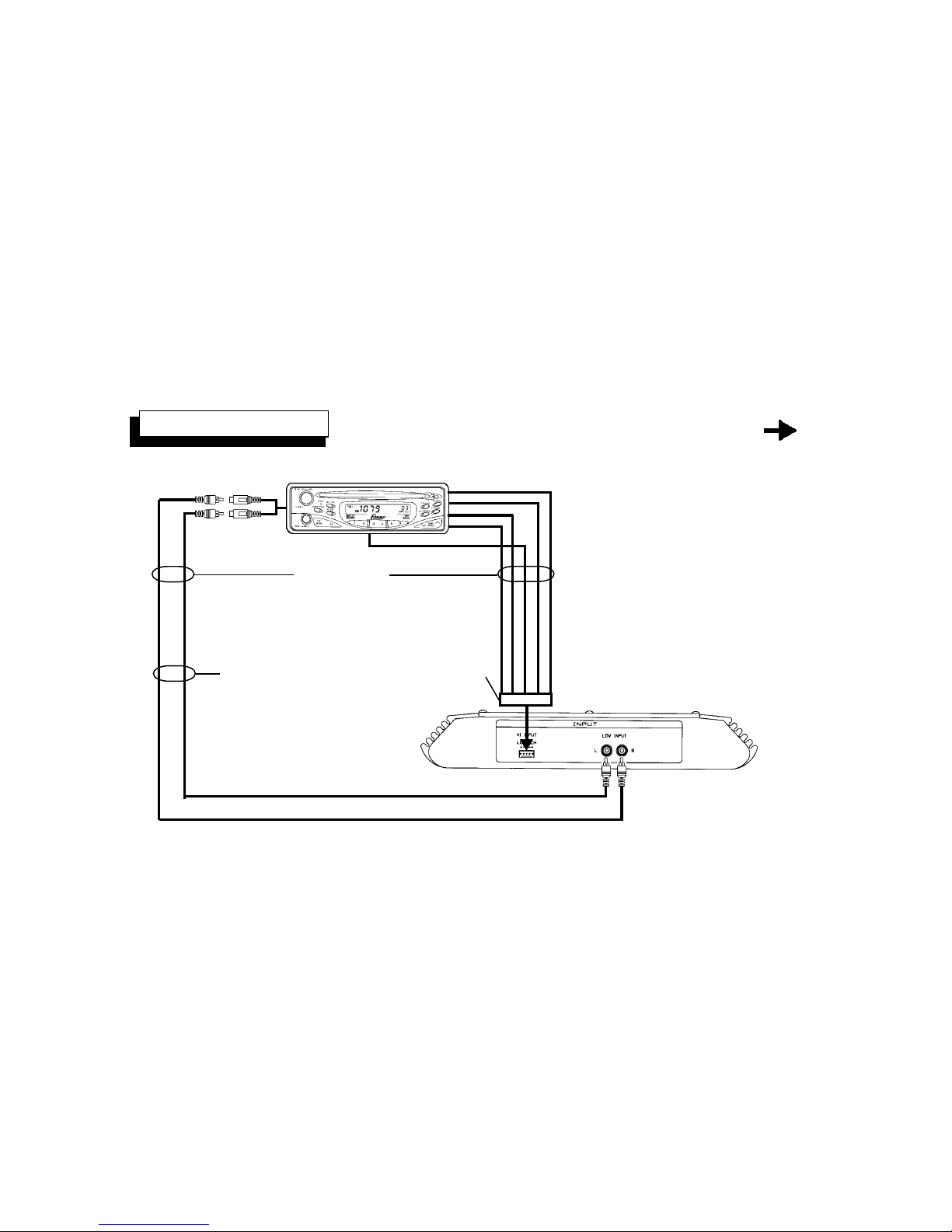

INPUT WIRING DIAGRAM
-6-
5-PIN
CONNECTOR
IMPORTANT
USE EITHER HIGH-LEVEL OR
LOW-LEVEL INPUTS, NOT BOTH.
HIGH-LEVEL
(SPEAKER) OUTPUTS
CAR STEREO
USE THIS INPUT WIRING WITH
OUTPUT WIRING ON PAGE 7
RCA TYPE
SHIELDED CABLE
(NOT INCLUDED)
RIGHT+
RIGHT-
LEFT-
LEFT+
LOW-LEVEL
RCA OUTPUTS
GREEN
WHITE
GRAY
BROWN
LEFT
RIGHT
BLACK
CHASSISGROUNDONRADIO

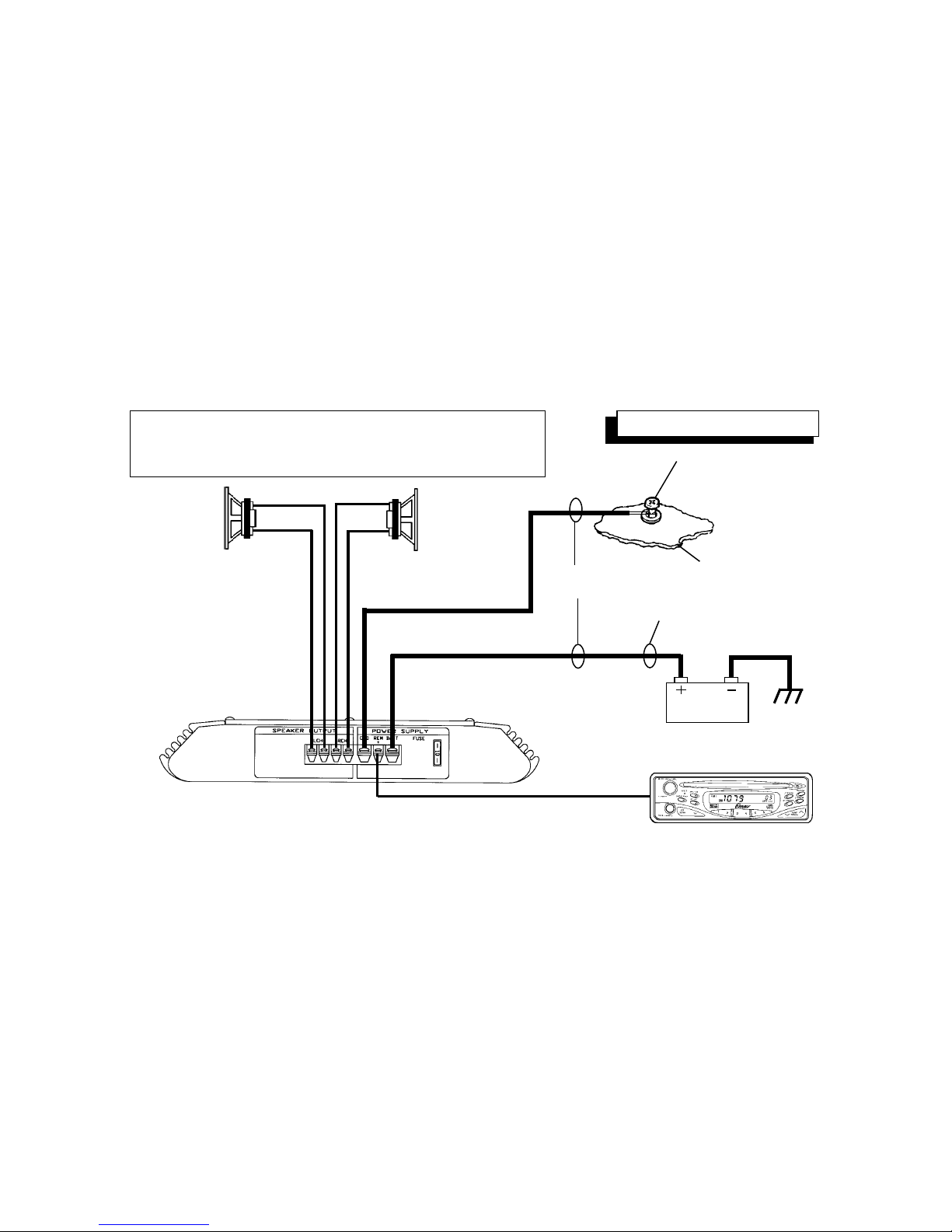

OUTPUT WIRING DIAGRAM
-7-
AUTO-ANTENNA LEAD
LEFT
SPEAKER
2 - 8 OHMS
CAR STEREO
RIGHT
SPEAKER
2 - 8 OHMS
-
+
WARNING!
THIS AMPLIFIER IS DESIGNED FOR USE WITH 2 SPEAKERS
NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 1 SPEAKER.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE AMPLIFIER.
-
+
USE #14 GAUGE
WIRE (SEE TEXT)
CONNECT THIS
WIRE LAST
EXISTING SCREW OR BOLT
CLEAN PAINT, RUST, DIRT
OR GREASE FROM AREA
FOR GOOD CONNECTION
GROUNDED METAL
SECTION OF VEHICLE
12 VOLT VEHICLE
BATTERY CHASSIS
GROUND
-8-

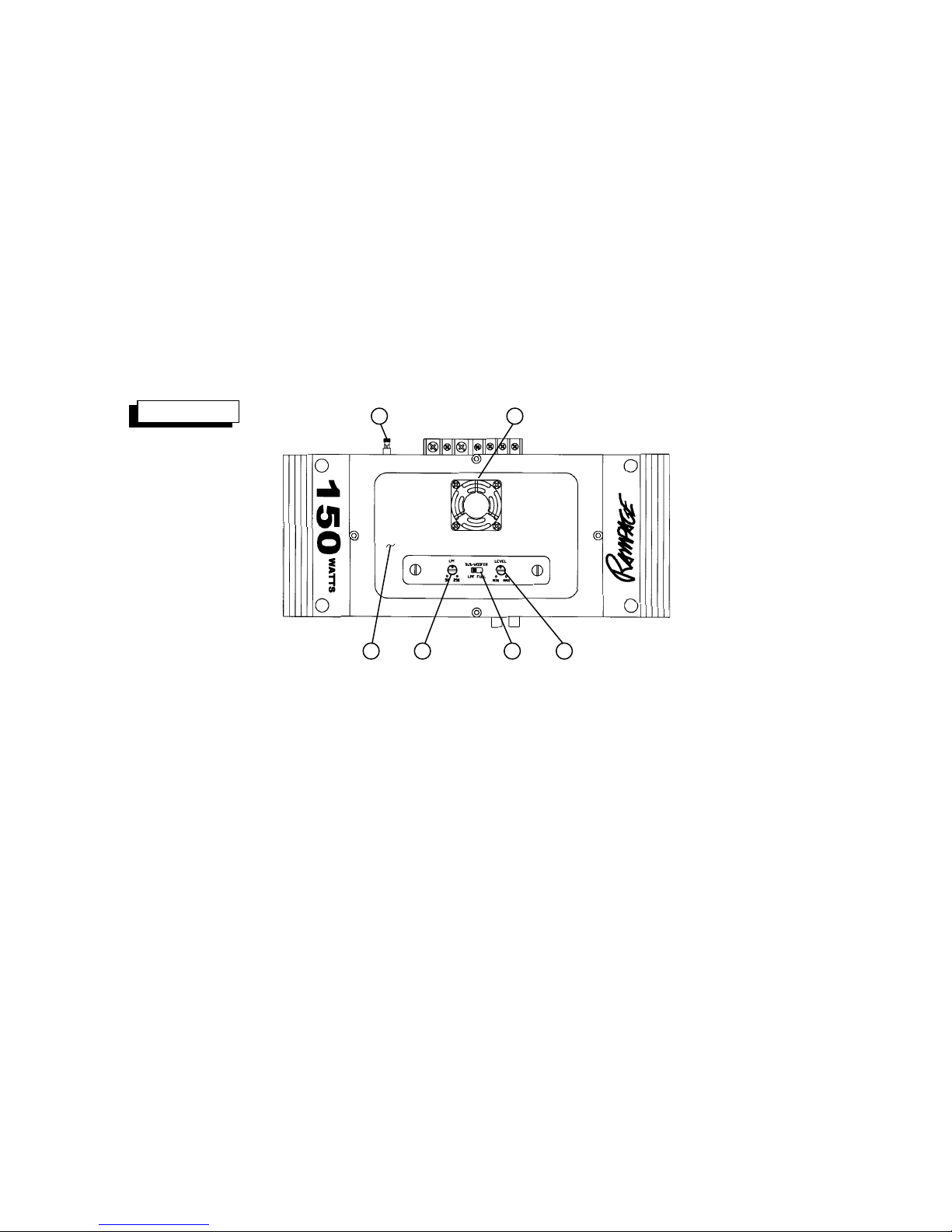

OPERATION
After initial set-up, the amplifier should not require any
further adjustment unless there is a change in the car
stereo or speaker system with which it is used.
1Power Indicator Lamps
The Power Indicator Lamps will light to indicate that
the unit is connected to the battery and that the Remote
Turn-On terminal is receiving +12 volts, thus turning
on the amplifier.
2Level (Gain) Control
The amplifier is capable of operating from sources
supplying a wide range of input levels. The Level control
should initially be set to the mid-rotation position. If it is
found that there is not enough output even when the
volume control on the car stereo is at its maximum
setting, adjust the Level control to increase the output
from the system. If, however, there is still output from the
amplifier when the car stereo volume control is at its
2341
6 5
