RECHARGEABLE
BATTERY
VBB5058
Rechargeable Battery for the VBP50 and VBP58
INSTALLATION &
1
A. Instruction
Thank you for purchasing the VBB5058, this battery is designed for use with
the Audiovox VBP50 and VBP58 “Portable DVD In Bag”. Please read the
entire manual prior to operation. The documentation will assist you in recharg-
ing the battery properly.
B. Rechargeable Battery Installation and Use
The NiMH battery pack is specially designed for your player, NiMH batteries
feature high storage capacity and low level of degradation. This means the
NiMH batteries doesn’t have “Memory Effect” and thus can be recharged safely
regardless of whether the battery is fully or only partially spent. Please fully
charge the battery prior to first use.
A full recharge takes approximately five-hours and one full charge can provide
power to the player for approximately 3 hours.
NOTE: When the DVD player is used with the battery as a power source,
ensure that the battery has been charged for at least Five hours prior to
connecting it to the DVD player.
While the battery is recharging, the light next to the DC power input will light
up RED. Once fully recharged, the light will turn GREEN. Once the light is
GREEN you may remove the wall plug.
C. Precautions related to Battery Recharge
1. Once the battery has been fully dis-charged it should be immediately
recharged (regardless of whether you plan to use Battery power again
or not) in order to maximize battery life.
2. To charge the battery, connect the power jack directly into the VBP50/
VBP58 main unit with the POWER Switch in the OFF position.
D. Using and Maintaining your Rechargeable Batteries
1. Make sure that only the AC transformer included with the Player is used
to recharge your batteries.
2. Recharge effectiveness will degrade when environmental tempera-tures
drop below 50oF (10oC) or exceed 95oF (35oC).
3. Remove Battery from the Player and store properly if the player is not to
be used for an extended period of time. For periods of two months or
2
more, recharge the Battery at least once every two months to avoid ir-
reparable damage to the Battery. If the Battery is left attached to the
Player for an extended period, recharge the battery at least once every
two weeks.
4. Avoid charging fully charged Batteries.
5. Under no circumstances short out the Battery.
6. Do not store the Battery in a metal container, or leave the battery in a
humid or damp environment.
7. Store the Battery in an airtight container with desiccant or other dehumidi-
fying agent.
E. Installing the Battery Pack
1. First, make sure the player is in “Stop” mode (OFF) and that the AC power
supply has been disconnected.
2. Close the player cover.
3. Align the battery pack with the players front edge.
4. Push the battery towards the rear of the player until it locks into
position. The lock position is indicated by a click. The Battery will fit
snugly to the player.

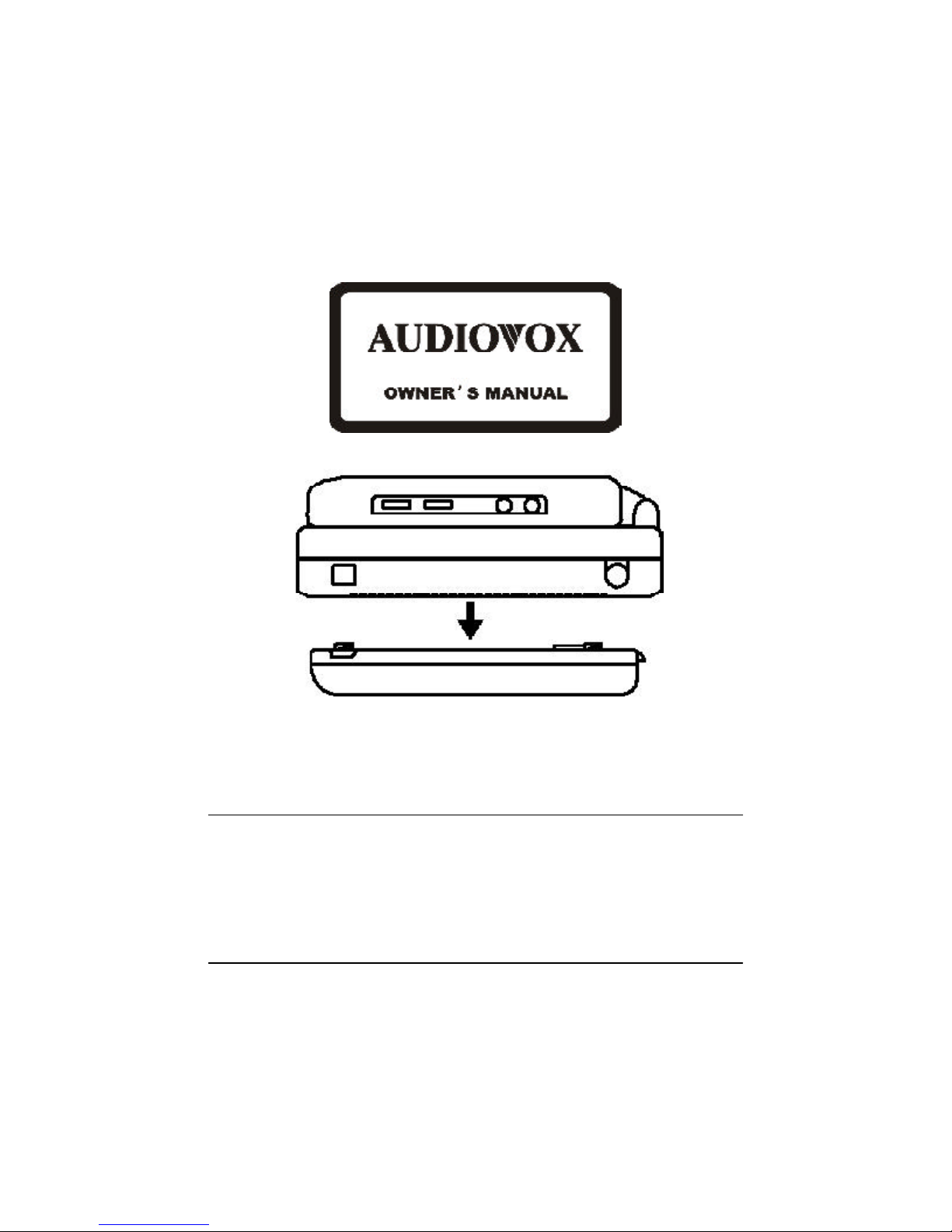

Figure 1. Installing the DVD Player Battery
3
Figure 2. Removing the DVD Player Battery
F. Removing the Battery Pack
1. First, make sure the player is in “Stop” mode and that the AC power
supply has been disconnected.
2. Close the player cover.
3. Press and release the latch on the Battery in the of the arrow.
4. Push the Battery toward the front of the player until it disengages.
G. SPECIFICATION
Dimensions (W x H x D):189 x 21 x 134mm ( 7.44” x .83” x 5.28”)
Battery Type: NiMH
Voltage: 7.2V
Capacity: 3600mAH
AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original
retail purchaser of this product that should this product or any part thereof, under
normal use and conditions, be proven defective in material or workmanship within
12 months from the date of original purchase, such defect(s) will be repaired or
replaced with reconditioned product (at the Company's option) without charge for
parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to
be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of
defect(s), transportation prepaid, to the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or
noise, to correction of antenna problems, to costs incurred for installation, removal
or reinstallation of the product, or to damage to tapes, discs, speakers, accessories,
or electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of
the Company, has suffered or been damaged through alteration, improper installa-
tion, mishandling, misuse, neglect, accident, or by removal or defacement of the
factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABIL-
ITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EX-
CEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A
PERIOD OF 30 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR
IMPLIED, WHATSOEVER. No person or representative is authorized to assume for
the Company any liability other than expressed herein in connection with the sale of
this product.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damage so the above limita-
tions or exclusions may not apply to you. This Warranty gives you specific legal rights
and you may also have other rights which vary from state to state.
12 MONTH LIMITED WARRANTY
Applies to Audiovox Video Products
U.S.A. : AUDIOVOX ELECTRONICS CORPORATION
, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 l 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
128-5918B
4
WWW
.audiovox.com
For Customer Service
Visit Our Website At
Product Information, Photos,
FAQ’s Owner’s Manuals
128-6830
© 2003 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, New York. 11788
