Audiovox WHS200 Manuale utente

Notes:

• For best results, IR transmitter must be installed as shown with the LED’s pointing toward the rear of the

vehicle (Fig. 1)

• Audio input can be connected to either a low-level fixed audio output or a variable level audio output (such as a

speaker or headphone output). If it is connected to a low-level output, only the volume control on the headphones

needs to be adjusted to control volume level. If connected to a variable level output, volume adjustment needs to be

done at both the source and at the headphones.

WHS200

Two Channel Automotive Infrared

Stereo Headphone System

Parts supplied

1. IR transmitter (1)

2. IR Transmitter harness (1)

3. IR headphones (2)

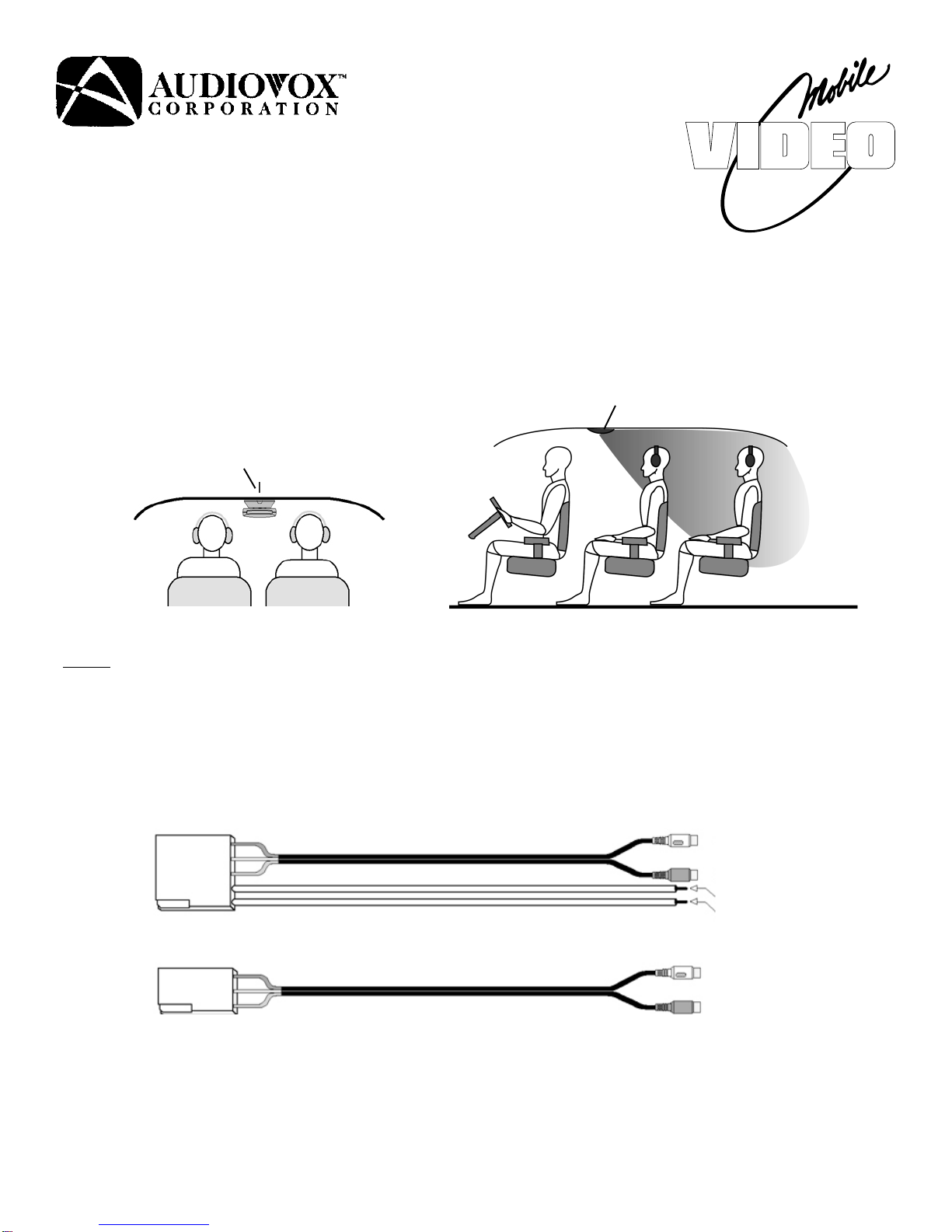

Fig. 1 TRANSMITTER

FRONT REAR

POSITION JUST ABOVE THIGH AREA OF SECOND PASSENGER

ROW SEATING

TRANSMITTER POSITIONING DIAGRAM

TRANSMITTER

POSITION IN MIDDLE OF

SEATING AREA

Wire harness with RCA connectors (Fig. 2).

1. Using dual RCA (M/M) cable (not supplied, length determined by installation) connect one end to red and white

RCA jacks. Connect the other end to low level signal source.

2. Connect pin 4 (black wire, negative) to ground of vehicle.

3. Connect pin 5 (red wire, +12 volt) to ignition source (source that supplies +12 volts when the ignition is

switched on).

Fig. 2

4. DC 12V IN + (POSITIVE)

3. DC 12V GND – (NEGATIVE)

1. LEFT RCA CHANNEL IN

2. RIGHT RCA CHANNEL IN

1. GROUND

2. WHITE

3. RED

4. BLACK

5. RED

1. GROUND

2. WHITE

3. RED

1. LEFT RCA CHANNEL IN

2. RIGHT RCA CHANNEL IN

WIRING DIAGRAM

CHANNEL B

CHANNEL A

INSTALLATION INSTRUCTIONS

IR Transmitter

1. Plug wire harness into transmitter.

2. Fasten transmitter to headliner using two short screws (make sure that screws do not puncture metal of roof).

Wireless headphones

1. Follow directions in owner’s manual for proper operation.

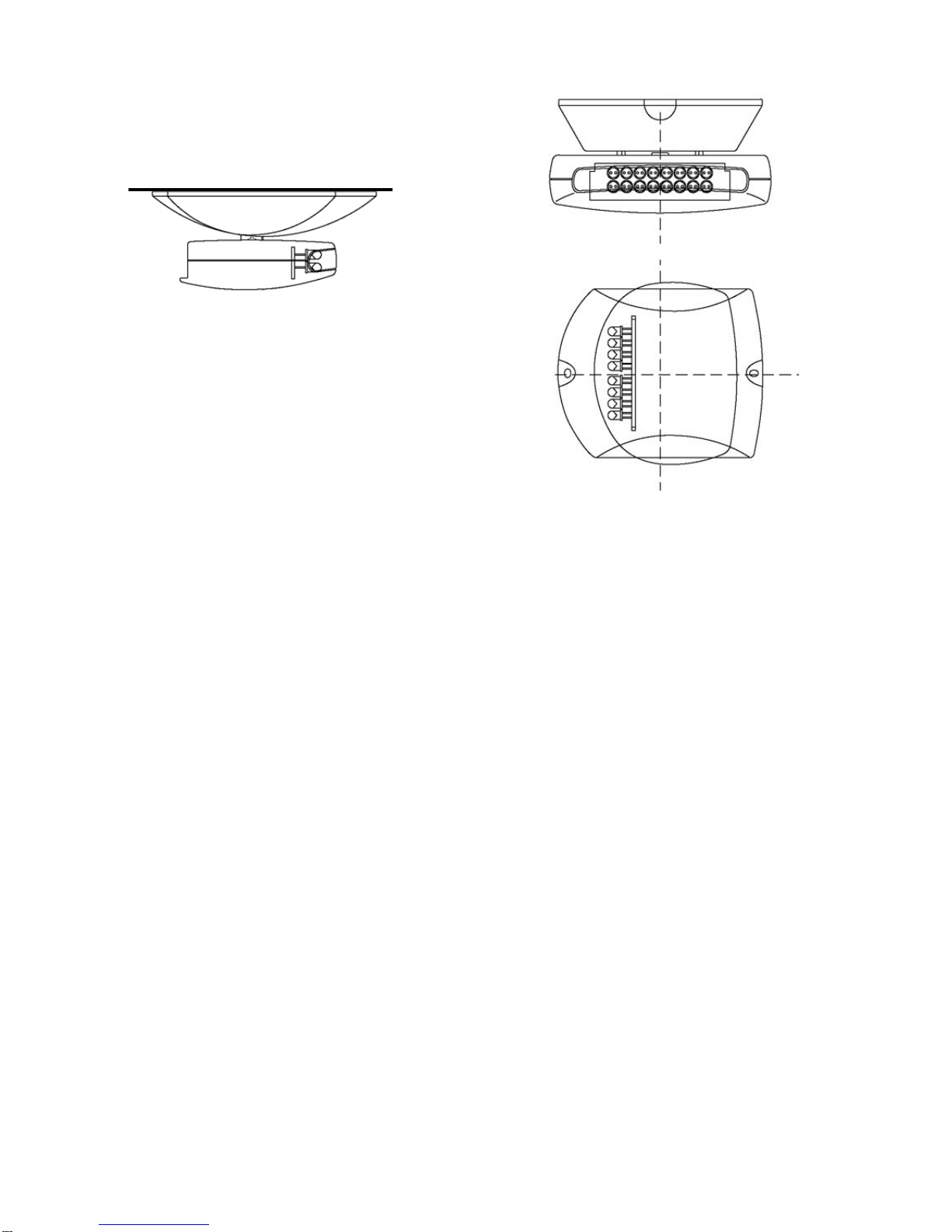

Fig. 3

TOP VIEW

SIDE VIEW

ALWAYS FACE LEDs TOWARDS REAR OF VEHICLE

IN-CAR TRANSMITTER

CEILING OF THE CAR
