Audiovox MM801 Manuale utente

MM801

8.4” LCD OVERHEAD MONITOR

OPERATIONMANUAL

POWER

MENU/

ENTER

ON OFF AUTO

DOWN

Important Notice

AnLCD paneland/or videomonitor maybe installedin amotor vehicleand visibleto the

driver if the LCD panel or video monitor is used for vehicle information, system control,

rear or side observation or navigation. If the LCD panel or video monitor is used for

televisionreception, videoorDVD play,the LCDpanelor videomonitormustbeinstalled

sothat thesefeatureswill onlyfunctionwhenthevehicleisin“park” orwhenthe vehicle’s

parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that

operates when the vehicle is in gear or when the parking brake is not applied must be

installedto therear ofthe driver’sseat whereitwill notbe visible,directly orindirectly, to

the operator of the motor vehicle. It is unlawful in most jurisdictions for a person to drive

a motor vehicle which is equipped with a screen that is located in the motor vehicle at

any point forward of the back of the driver’s seat, or that is visible, directly or indirectly,

to the driver while operating the vehicle. In the interest of safety, the MM801 should

never be installed where it will be visible, directly or indirectly, by the operator of the

motor vehicle. Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners,

Safety Precaution

For safety reasons, when changing video media it is recommended that the vehicle is

not in motion, and that you do not allow children to unfasten seatbelts to change tapes

or make any adjustments to the system. System adjustments can be accomplished

usingtheremote controlunit, whileseatbelts remainfastened. Enjoyyour Movies2 Go

entertainment system but remember-safety of all passengers remains the number

one priority.

Licensedunderoneormoreofthefollowingpatents,

PatentNOS. 5,775,762 and 5,927,784

Congratulations on your purchase of the Movies 2 Go MM801 drop-down Video

Monitor. The MM801 has been designed to give you and your family many

years of video entertainment in the mobile environment. Please read the

directions that follow to familiarize yourself with the product and to ensure

that you obtain the best results from your equipment.

NOTE: Installation options vary, see the individual owner’s manuals for

each component in your system to obtain a full understanding of each

component’s operation.

FEATURES

!8.4”TFT(ThinFilmTransistor)ActiveMatrixLCD(Liquid

CrystalDisplay)Monitor

!OSD(OnScreenDisplay)forControlofPictureQualityand

Functions

!InfraredTransmitterforOptionalIRWirelessHeadphones

!TwoAudio/VideoSourceInputs

!PowerON/OFF

!DomeLightswithBuilt-inThreeWaySwitch

!VideoDisplayON/OFFControl(whenLCDPanelisOpened

andClosed)

!FullFunctionRemoteControl

4MM801

FRONTPANELFEATURES

POWER

MENU/

ENTER

ON OFF AUTO

AUX

5MM801

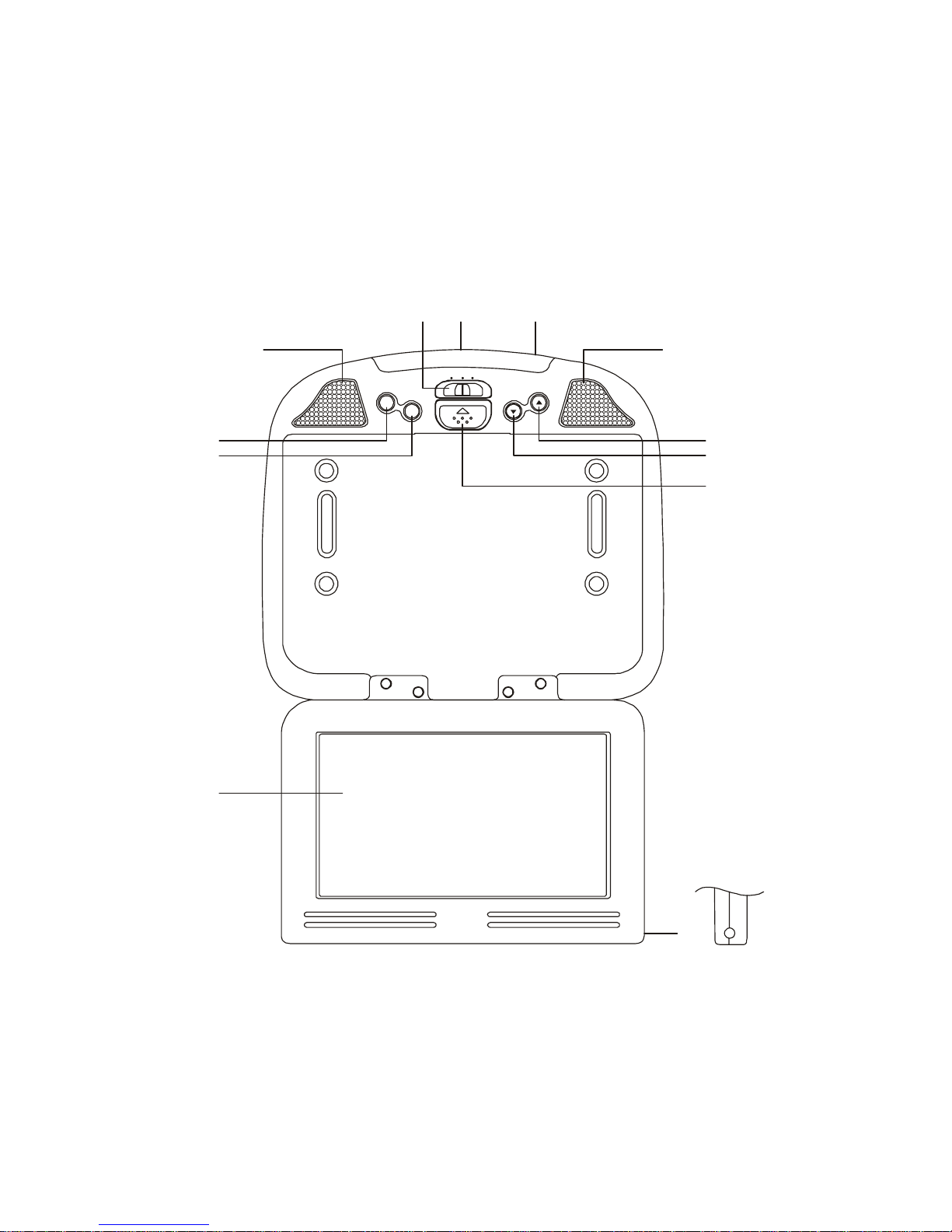

1. Infrared Transmitter – Used to transmit audio to wireless headphones.

2. Remote Sensor – For Remote Control to operation of the MM801.

3. Dome Lights – Provide additional interior illumination.

4. Three Position Dome Light Switch

• Auto – Automatically switches on the dome lights in conjunction with the

vehicle’sinteriorillumination.

• Off – The Dome lights will not turn on in this position.

• On – Turns on the Dome lights.

5. Power ON/OFF – Turn the MM801 on and off.

6. Menu/Enter Button – Pressing this button will display the OSD menu

(Brightness, Contrast, Color, Tint & Reset). After accessing the menu, it is

used as the Enter function.

7. Select Up Button – Select menu item, source selection and adjust picture

quality.

8. Select Down Button – Select menu item, source selection and adjust

picturequality.

9. Screen Release – Slides in the direction of the arrow to release the drop

down screen.

10. LCD Panel – Display the video source and the On Screen Displays (OSD).

11. AUX –AUX Input jack.

FRONT PANEL

6MM801

TURNING THE MM801 ON OR OFF

1. Sliding the screen release lock forward will unlock the LCD screen and drop

downslightly. Move thescreendownward andpivotituntilacomfortableviewing

angle is reached. The internal friction detent will hold the screen in position

while the system is in use.

2. Press the power button to turn on the MM801.

3. After the unit is turned ON and begins to display a picture, adjust the viewing

angle by pivoting the screen to optimize the picture quality. (NOTE: The video

source (DVD/VCP/Game will need to be turned on also).

4. Remember to turn the unit OFF and pivot the LCD to the locked position when

not in use.

7MM801

OPERATION

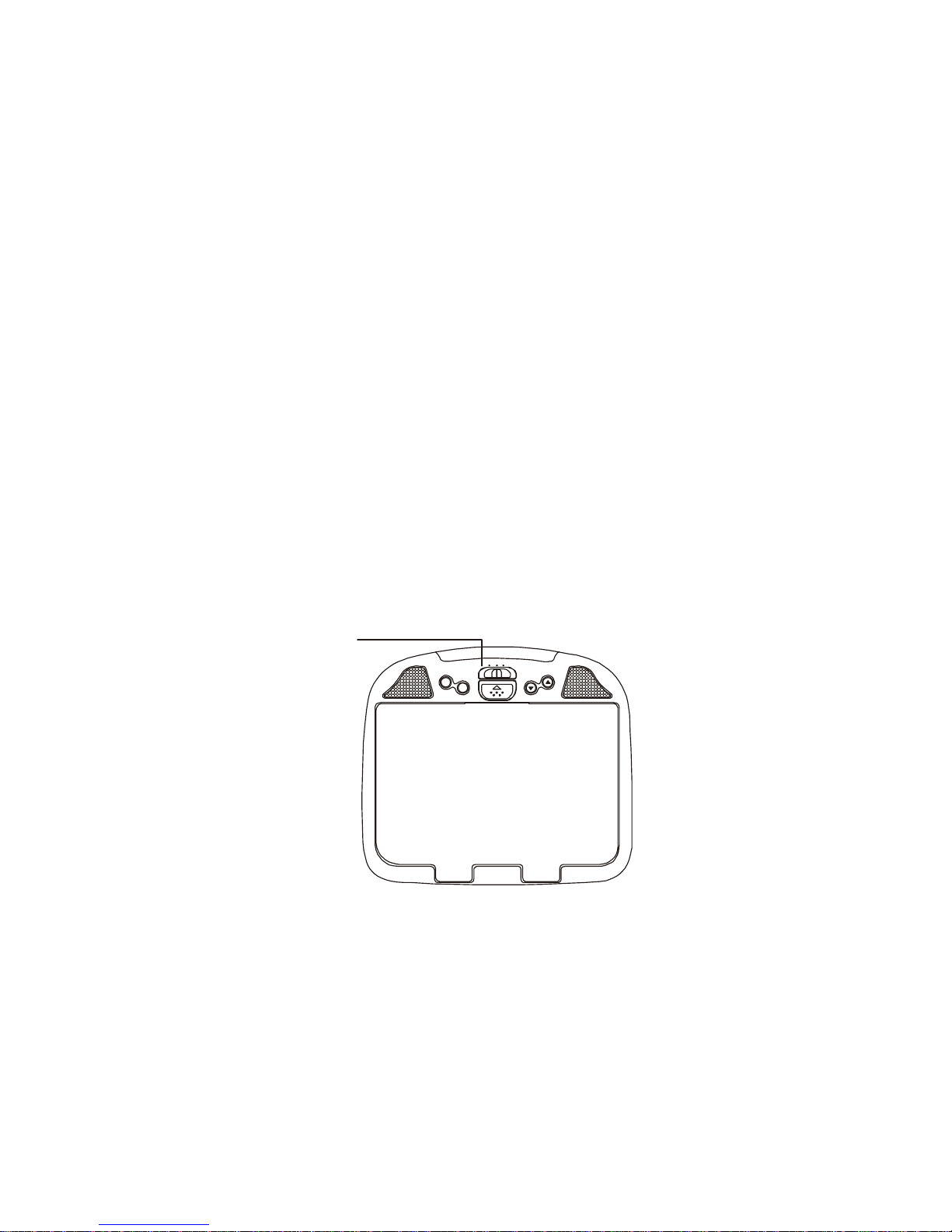

OVERHEAD DOME LIGHTS

The Dome Lights integrated into the MM801 are controlled by a three position slide

switch. Sliding the switch to the ON position will turn the lights ON. The OFF

position will prevent the lights from turning ON with the vehicle’s interior lighting,

and the auto position will allow the lights to turn ON and OFF with the vehicle’s

interior lighting. Do not leave the vehicle unattended with the dome light switch in

the ON position as this could result in a discharged battery.

Consult the Installation Manual for dome light wiring information.

POWER

MENU/

ENTER

ON OFF AUTO

Dome

Light

Switch

8MM801

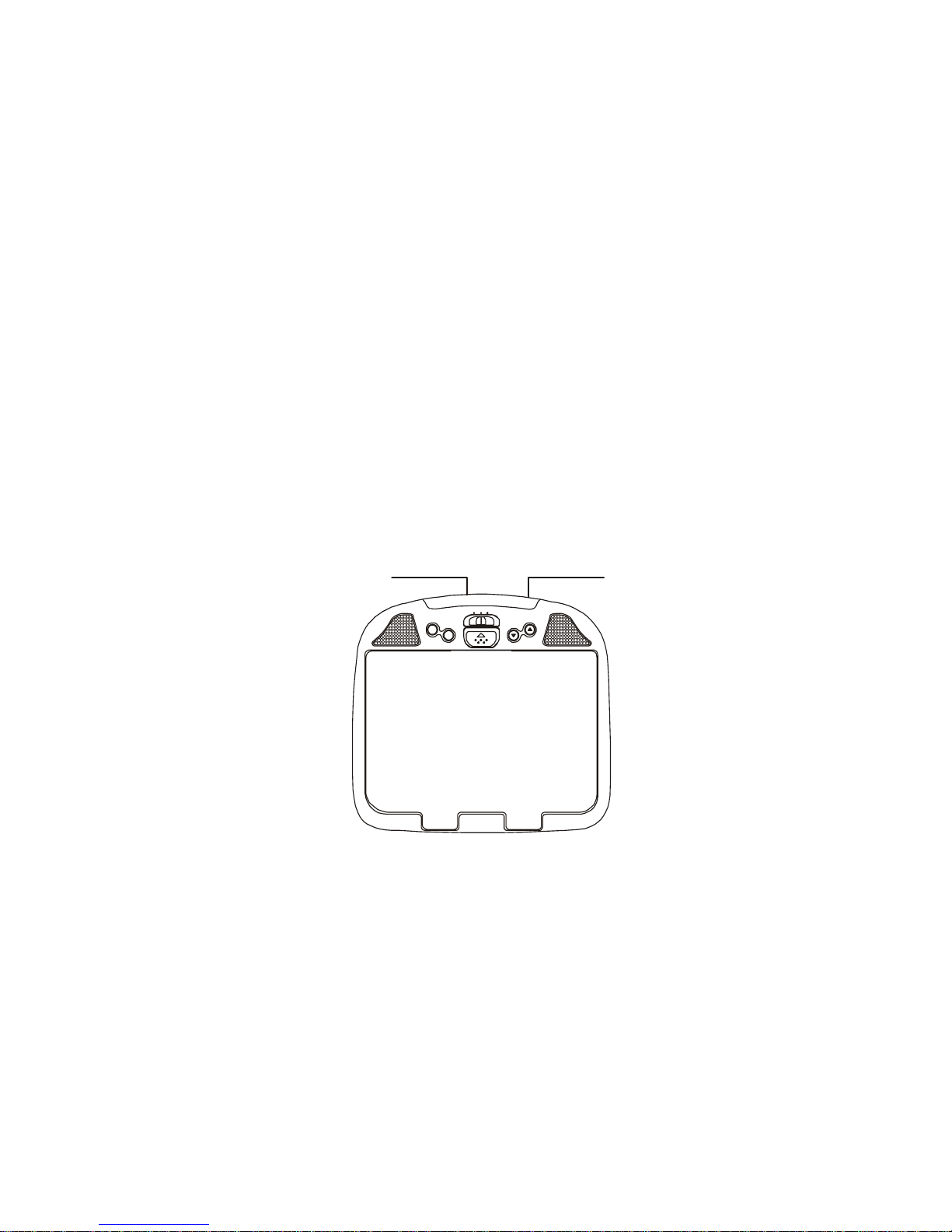

REMOTE CONTROL SENSOR

TheMM801incorporatesaninfrared sensorwillrelay signalsfromthe remotecontrol

to allow a source connected to theAV1 input to be controlled simply by pointing its

remotecontrol at theremote sensoreye. This providescontrolofsourceequipment

such as a Video Cassette Player or DVD Player. The infrared sensor can relay

signals from most manufacturer’s remote controls to its respective component

connected to the AV1 input, such as a DVD player. In this case you must use the

remote control supplied with the DVD player.

POWER

MENU/

ENTER

ON OFF AUTO

Remote Control Sensor Infrared Transmitter

9MM801

LCD SOURCE

MENU/

ENTER

STOP

PLAY

REW FWD

1 LCD : Power On / Off Button for the MM801 monitor

2 VCP : Power On / Off Button for an OptionalAudiovox VCP

3 SOURCE : Button for selection ofAV1 andAUX

4 MENU/ENTERButton

5 – : Select Down Button

6 + : Select Up Button

7 REW : ........Rewinds Tape

8 FWD : ........ Fast Forwards Tape

9 STOP : ........Stops Tape

10 PLAY : ........ Plays Tape

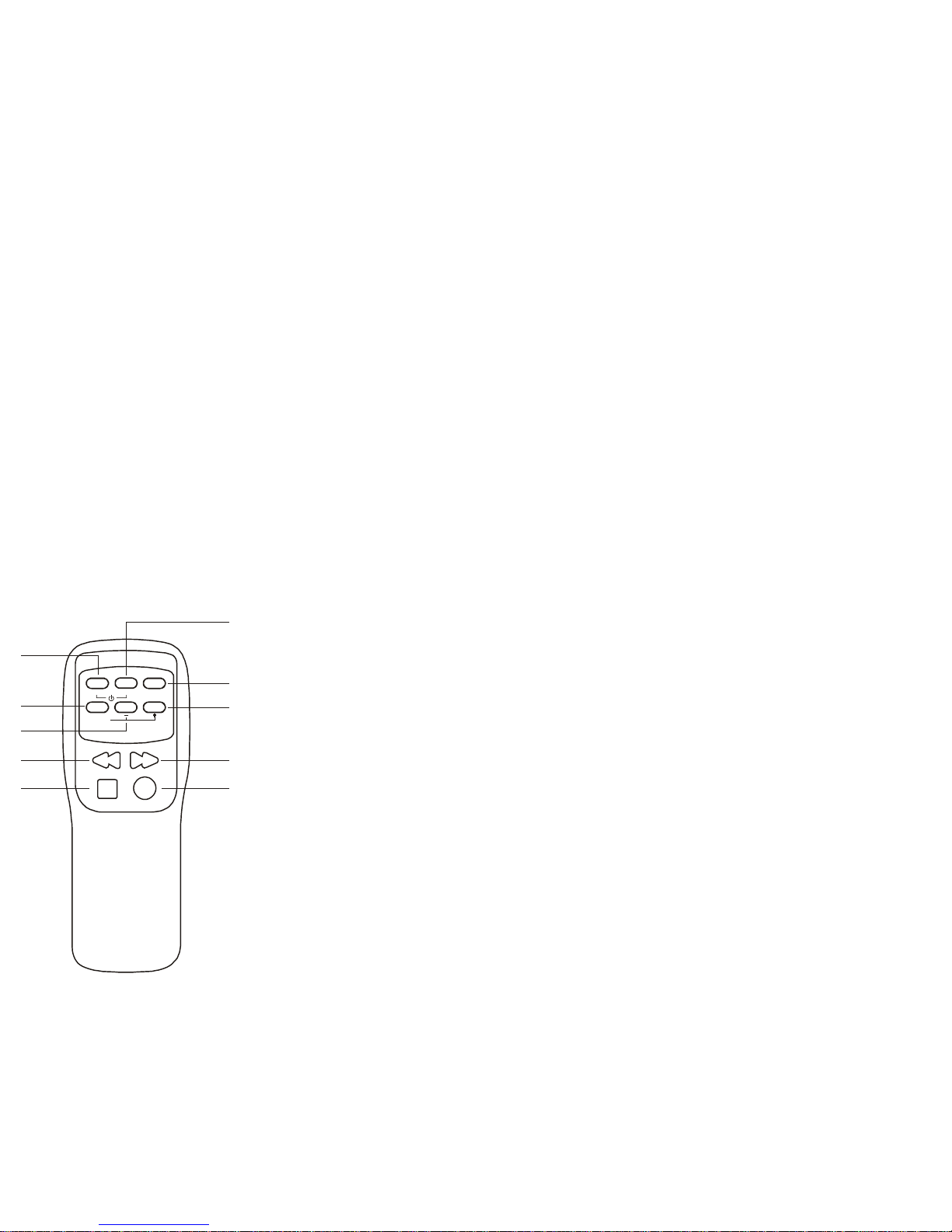

REMOTE CONTROL UNIT BUTTONS CONTROLS

10 MM801

PICTURE ADJUSTMENT

When watching the program, the quality of the picture can be adjusted to your

preference.

Press the MENU button, the main menu

will appear. Then press the UP or DOWN

buttonto selectfrom pictureadjust, source

selection or display off. Press the MENU

button again to select the item. For

example: Press MENU button, highlight

PICTURE and press the MENU button to enter the picture adjustment menu. The

PICTURE menu will appear, highlight the item you want to adjust and press the

MENU button to enter. Then press the UP or DOWN button to adjust the selected

item.

Description of Adjustment Items:-

Item Press DOWN button Press UP button

To darken the picture

Decrease the contrast

for soft color

To decrease the color

intensity

Increase the greenish

skin tones

To brighten the picture

Increases the picture

contrast for vivid color

To increase the color

intensity

Inceases the redish skin

tones

To restore the factory settings, select RESET and press the UP or DOWN

button. All of the picture adjustments (BRIGHTNESS, CONTRAST, COLOR and

TINT) will return to the factory settings.


CONTRAST

COLOR

TINT

RESET

BRIGHTNESS


CONTRAST

COLOR

TINT

RESET

BRIGHTNESS

32 BRIGHTNESS

SOURCE

DISPLAY OFF


SOURCE

DISPLAY OFF


BRIGHTNESS

CONTRAST

COLOR

TINT
