PROV710 /
PROV710 S /
PROV 710 P
DROP-DOWN VIDEO
MONITOR WITH BUILT-IN
DVD PLAYER
128-6743
OFF AUTOON
PO W ER PLA Y STO P EJEC T
Date:12/05/2003
Date: 21/5/2003-PROV710 S & PROV710 P ADDED
128-6743
2 of 26
-2-
IMPORTANT
AnLCD panel and/orvideo monitor maybe installed ina motor vehicleand visible to thedriver if theLCD panel orvideo
monitoris used for vehicle information, system control, rear orside observation or navigation. If the LCD panelor video
monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that
thesefeatureswillonly function then thevehicleis in ‘park’ orwhenthevehicle’s parking brake isapplied.
AnLCD panel or videomonitor used fortelevision reception, videoor DVD playthat operates when thevehicle is ingear
orwhen the parking brake is not applied,must be installed tothe rear of the driver’s seatwhere it will not be visible,
directlyorindirectly,totheoperator of themotorvehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth
to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Rememberto leave the dome lightswitch in the off or auto positions when the vehicle is unattended, as the
dome lights, if left on, can drain the vehicle’s battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
128-6743
3 of 26
-3-
Congratulations on your purchase of the Audiovox
PROV710/PROV710S/PROV710P DVDPlayerwith
Drop-DownVideoMonitor. ThePROV710/PROV710
S /PROV710 P has been designed to give you and
your family many years of video entertainment in the
mobile environment. Please read the directions that
follow to familiarize yourself with the product and to
ensure that you obtain the best results from your
equipment.
Please note: Installation options vary, see the
individual owner’s manuals for each component in
your system to obtain a full understanding of each
component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and
that you do not allow children to unfasten seat-belts
to change video media or make any adjustments to
the system. System adjustments can be
accomplished using the remote control unit, while
seat-belts remain fastened. Enjoy your Audiovox
entertainment system but remember-safety of all
passengers remains the number one priority.
Features
••
••
•7 Inch TFT (Thin Film Transistor) Active
MatrixLCD(LiquidCrystalDisplay)Monitor
••
••
•OSD (On Screen Display) for Control of
PictureQualityandFunctions
••
••
•FullFunctionRemoteControl
••
••
•Infrared Transmitter for IR Wireless
Headphones
••
••
•OneAudio/VideoInput
••
••
•DomeLights withSwitch
••
••
•BacklitControlsforLowLightOperation
128-6743
4 of 26
-4-

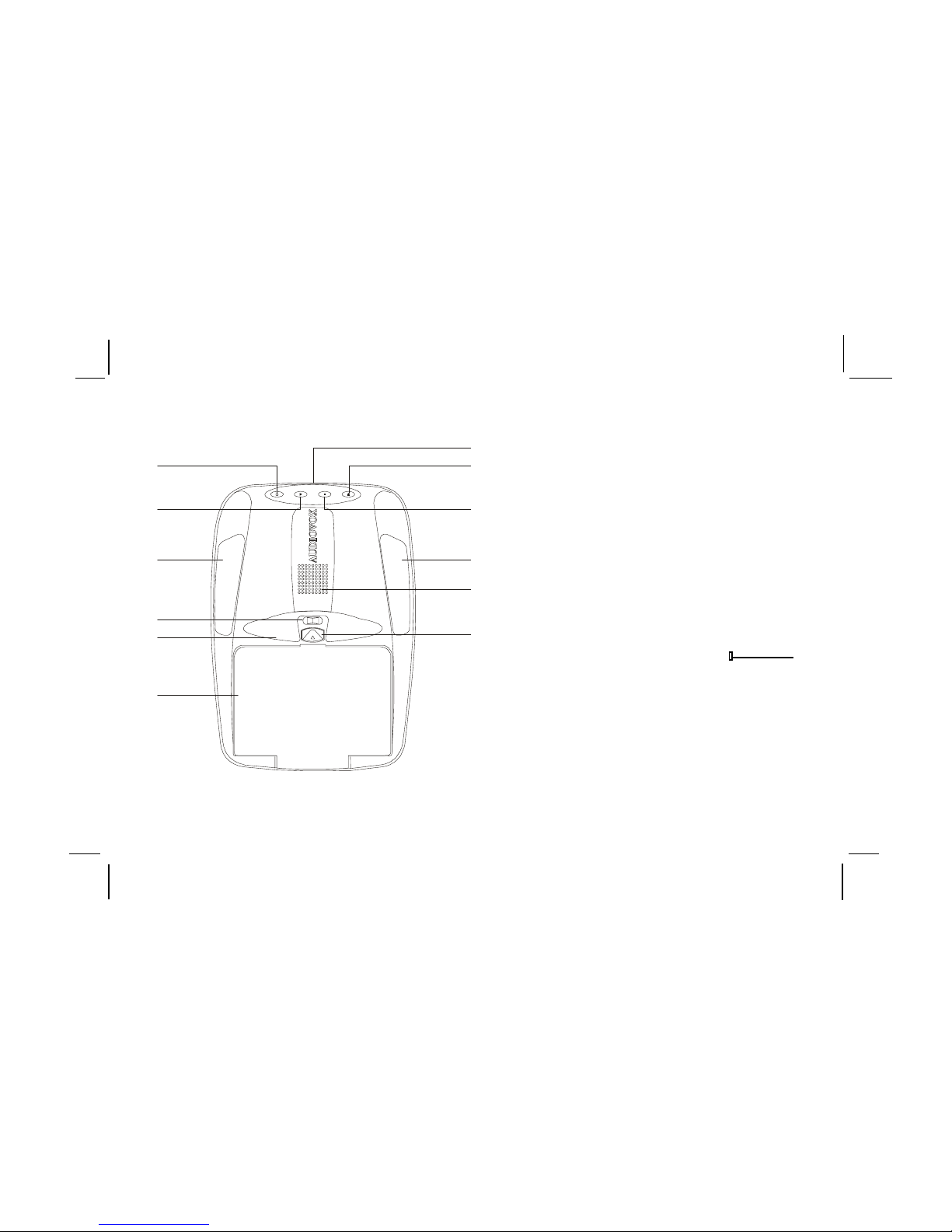

Controls and Indicators Diagram
OFF AUTOON
POW ER PLAY STOP EJECT
1
2
4
53
66
7
8
9
10
11
ClosedPosition Open Position
13
128-6743
5 of 26
-5-
Main Function Descriptions
1. DVD disc insertion slot.
2. Eject ( ) Button – Ejects disc.
3. Stop ( ) Button – Pressing this button will stop playback.
4. Power Button – Bright red when system is on, dim when off.
5. Play ( ) Button – This button is used to enter the play mode.
6. Dome Lights – provide additional interior illumination.
7. Three position Dome Light Switch
•Auto –Automatically switches on the dome lights in conjunction with the vehicle’s interior illumination.
•Off – The dome lights will not turn on in this position.
•On – Turns on the dome lights.
8. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote
control to operate the PROV710/PROV710 S /PROV710 P OSD (On Screen Display) and to control other
accessories in the system.
9. Drop Down LCD Panel.
10.Screen Release – Moves in direction of the arrow to release the drop down screen.
11.PROV710/PROV710 S /PROV710 P Ventilation Opening.
12.Source Select Button - Allows the user to select the source: DVD and AV1.
13.LCD Panel Shut-Off Switch
128-6743
6 of 26
-6-

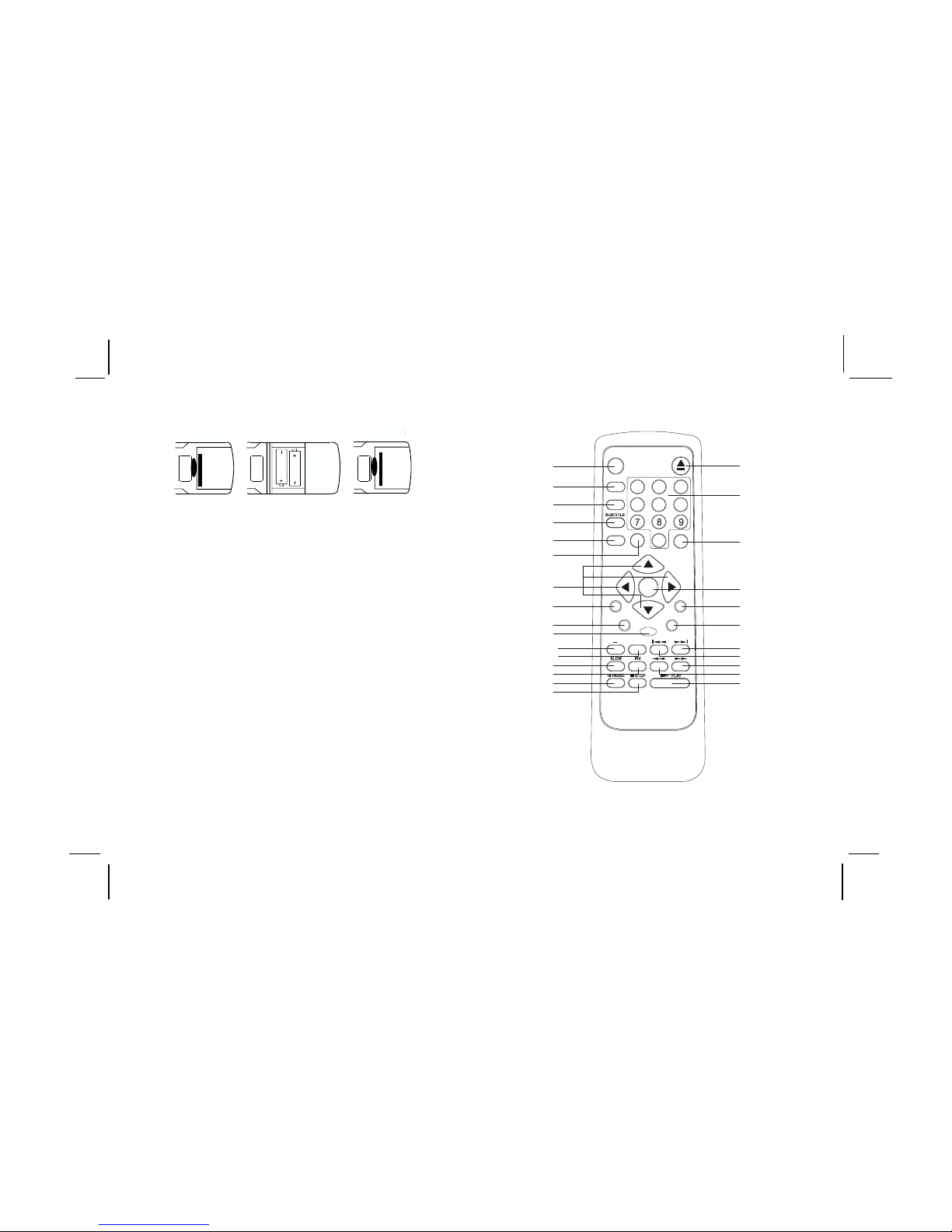

Remote Control Operation
Battery Installation
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turn the Remote Control face down. Using a
fingernail, lift the battery cover off.
2) Install two “AAA” batteries as shown. Make
sure that proper polarity (+ or -) is observed.
3) Align the cover tabs with the remote control
and press down until the cover clicks.
The remote control will operate the PROV710/
PROV710S /PROV710 P. It is not a universalremote
control and will not control equipment from other
manufacturers
MENU
RETURN
A-B
REPEAT
SETUP
+
DVD
POW ER
EJECT
DISPLAY
ANG LE
AUDIO
SOURCE
ZOOM
1
4
2
5
3
6
0
Enter
1
2
3
4
5
6
7
8
9
10
11a
11b
12
13
14
15
16
17
18
21
22
23
24
25
19
20
26
128-6743
7 of 26
-7-
DVD Function Descriptions
*Function control is available on the unit and the remote control.
1. DVD POWER ON/OFF Button*
Press this button to turn the PROV710/PROV710 S /PROV710 P on.
Press the button again to turn the PROV710/PROV710 S /PROV710 P off.
2. DISPLAY Button
Press to display DVD Disc current information.
Press DISPLAY button DVD Player Perform
Once TITLE Elapsed Time
Twice TITLE Remain Time
3 times CHAPTER Elapsed Time
4 times CHAPTER Remain Time
5 times Display is turned off
3. ANGLE Button
Press to display & select the camera angles. Each time you press the button, the angle changes.
Note:The number ofangles vary fromdisc to disc. Not all disc’s containthis option
4. SUBTITLE Button
Press to display & select the subtitle language in DVD. Each time you press the button, the subtitle language
changes.
Note:The type& numberof languagesfor subtitlesvary fromdisc todisc.
5. AUDIO Button
128-6743
8 of 26
-8-
6. ZOOM Button
Press this button to zoom the picture.
Press ZOOM button OSD DVD Player Perform
Once ZOOMx2 ZOOM picture 2 times
Twice ZOOMx3 ZOOM picture 3 times
3 times ZOOMx4 ZOOM picture 4 times
4 times ZOOMx1/2 Reduce picture to 1/2
5 times ZOOMx1/3 Reduce picture to 1/3
6 times ZOOMx1/4 Reduce picture to 1/4
7 times ZOOM OFF Normaldisplay
7. CURSOR Button ( )
Use these buttons to do items selection.
8. MENU Button
Allows the user to access main menu.
9. RETURN Button
Press to return to the main page.
5. AUDIO Button
Presstodisplay& selectAUDIOlanguage&channel.Eachtimeyou press thebutton,thelanguageorchannelchanges.
Note: The languages & channel you can select are vary from disc to disc.
128-6743
9 of 26
-9-
10. A-B REPEAT Button
Allows the user to repeat play of a DVD or CD from point A to point B.
11a. Select Down (-) Button
Used this button to make picture adjustments in picture select mode.
b. Select Up (+) Button
Used this button to make picture adjustments in picture select mode.
Description of Adjustment Items:-
Item Press Select Down(-) button Press Select Up(+) button
CONTRAST
BRIGHTNESS
TINT
COLOR
12. SLOW Button
The DVD viewing speed will be reduced at 1/2, 1/4, 1/8 and 1/16 times the normal speed.
Decrease the contrast
for soft color
To darken the picture
Increases the
greenish skin tones
To decrease the color
intensity
Increase picture
contrast for vivid color
To brighten the picture
Increases the redish
skin tones
To Increase the color
intensity
128-6743
10 of 26
-10-
13. PIX Button (PICTURE SELECT)
Each time this button is pressed, the on screen picture adjustment display the “adjustment bars” for CONTRAST/
BRIGHTNESS, COLOR or TINT. Once the desired adjustment bar is displayed, use the Select up/Select Down
buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or
if any other button is depressed.
14. PAUSE ( ) Button
DVD disc play will be paused.
15. STOP (
) Button *
DVD disc play will be stopped.
16. EJECT(
) Button *
The disc will be ejected disc from disc compartment.
17. NUMBERS Buttons
Allows the user to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting.
18. SOURCE Button*
Video signals from video equipment connected to the audio / video input can be displayed on the monitor by
pressingthis button. Eachtime the button is pressed,the audio /video sourcewill change inthe following sequence:
DVDandAV1.
19. ENTER Button
Used to implement setting selected.
