Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a screen that is located

in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the

driver while operating the vehicle. In the interest of safety, the PROV716/PROV716T/PROV716G should never be

installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Donotuseanyabrasivecleaners,theymayscratchthescreen. Useonlyalightlydampenedlintfreeclothtowipethe

screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television

reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal

strength. Televisionviewinginastationaryvehiclewill result in an improvement, but may still be marginal due tosignal

strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by

weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color

loss.

Congratulations on your purchase of the Audiovox

PROV716/PROV716T/PROV716G DVD Player with

Drop-Down Video TV/Monitor. The PROV716/

PROV716T/PROV716G has been designed to give

youandyourfamilymanyyearsofvideo entertainment

inthe mobile environment. Please readthedirections

that follow to familiarize yourself with the product and

to ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

••

•7InchTFT(ThinFilmTransistor)ActiveMatrix

LCD(LiquidCrystalDisplay)Monitor

••

•OSD(OnScreenDisplay)forControlofPicture

QualityandFunctions

••

•Built-in TV Tuner

••

•FullFunctionRemoteControl

••

•Six Frequency FM Modulator with remote

controlandOSD

••

•Dual Channel Infrared Transmitter for IR

WirelessHeadphones(SatelliteRadioReady)

••

•TwoAudio/VideoInputs

••

•Headphone/SpeakerAmplifier

••

•TwoHeadphoneJacks

••

•ForwardandSideRemoteSensor

••

•DomeLightswithSwitch

••

•BacklitControlsforLowLightOperation

••

•LastPositionMemory forDVD

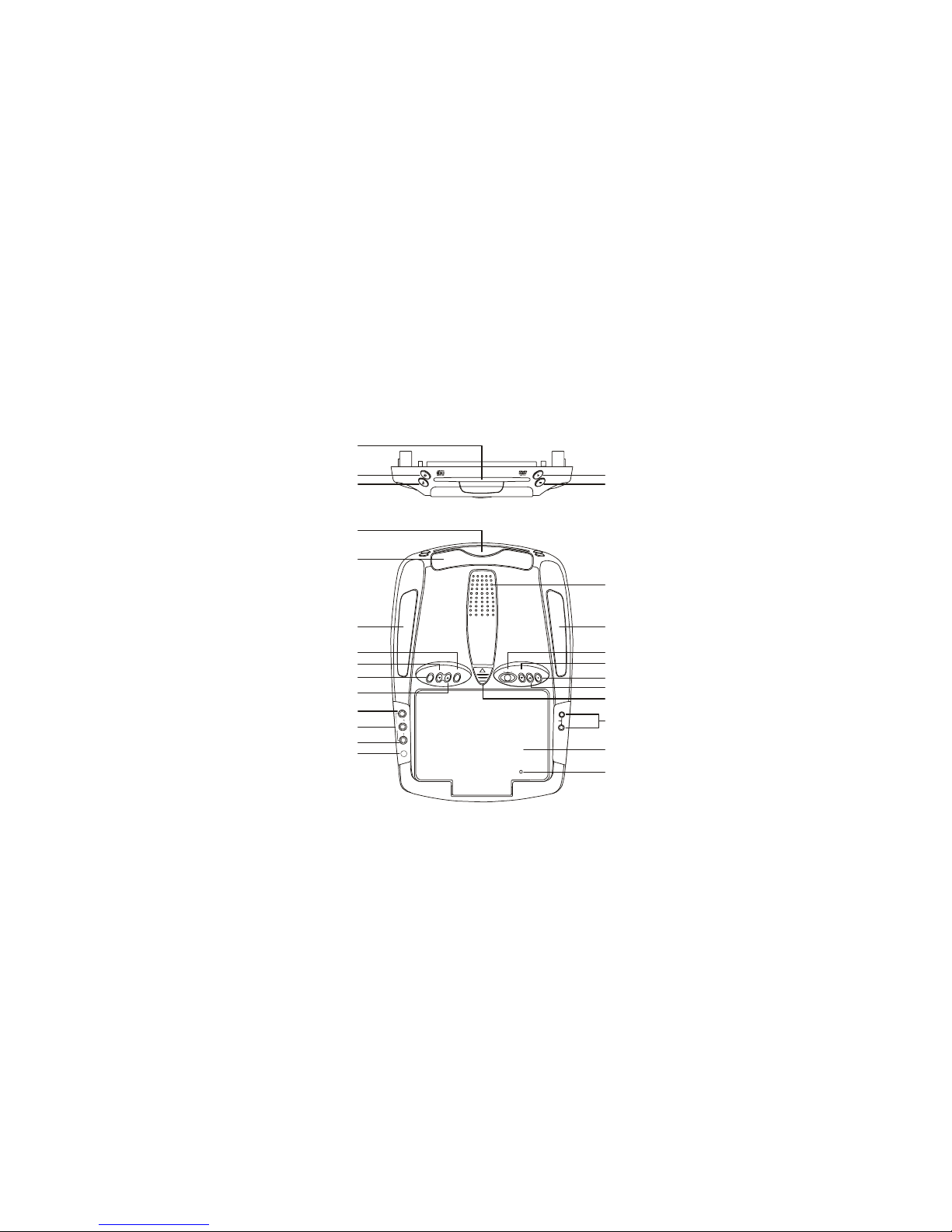

Controls and Indicators Diagram

NOTE : ScreenModeButton

Located on inside with

screenintheclosedposition.

CHAN NEL SOURC E VOLUME FM

SELECT

ON OFF AUTO

AUTO

PROG

HEADPHONES

NPUT

AUDI

DEO

POW ER

EJECT

PLAY

STOP

Main Function Descriptions

1. DVD Disc insertion slot – For loading Disc.

2. POWER Button – Bright red when system is on dim when

off.

3. EJECT ( ) Button – For ejecting discs from the disc

compartment.

4. PLAY ( ) Button – This button is used to enter the play

mode.

5. STOP ( ) Button – To stop playing.

6. Infrared Transmitter and Sensor – Use to transmit audio

to wireless headphones. Also allows the remote control to

operate the PROV716/PROV716T/PROV716G and to

control other accessories in the system.

7. PROV716/PROV716T/PROV716G Ventilation Opening.

8. Dome Lights–Provideadditional interior illumination.

9. SOURCE Select – Used to select one of the four sources

(TV,AV1,AUX,DVD).

10. CHANNEL ( ) Button –Use this button to decreasethe

channel number to the desired number. Note : When TV

function is selected.

11. AUTO PROGRAM Button –Allows the user to scan and

store active TV stations into memory.

12. CHANNEL( )Button – Use this button to increase the

channel number to the desired number. Note : When TV

function is selected.

13. Auxiliary Audio Right Input.

14. Auxiliary Audio Left Input.

15. Auxiliary Video Input.

16. Side Remote Sensor Eye – Allows the remote control to

operate the PROV716/PROV716T/PROV716G, control

volume to wired headphone jacks and control the other

accessories.

17. Screen Mode Button – Allows the user to change the

screen format (Aspect Ratio, 4:3 or 16:9)

18. Drop Down LCD Panel.

19. Headphone Jack – Allow the use of wired headphones

witha 1/8” plugfor listening tovideo program audio.

20. Screen release – Moves indirectionofthe arrow to release

thedrop down screen.

21. VOLUME( )Button–Usethisbuttontoraise the volume

leveloftheheadphonejacks. Itisalsousedtomakepicture

adjustments in picture select mode. Note : Audiovox

recommendstheuse of the AudiovoxHP275Headphones

whenusingwiredheadphones.

22. FM Select Button – Each time this button is pressed will

switched FMM cycles through (FM OFF – POD AUDIO –

SATAUDIO) and the frequency of the channelofmodulator

willremain same.

23. VOLUME ( ) Button – Use this button to decrease the

volume level of the headphone jacks. It is also used to

make picture adjustments in picture select mode.

Note:These buttons will not affect the volume of wireless

headphonesorthewiredRFmodulator. When using these

devices the volume must be adjusted with the wireless

headphonevolumecontrolorwithyourradio’svolumecontrol

(see page 15, Wireless Headphones, or page 16, Wired

FMModulator).

24. Three position Dome Light Switch

• Auto – Automatically switches on the dome lights in

conjunctionwith the vehicle’sinterior illumination.

• Off – The dome lights will not turn on in this position.

• On – Turns on the dome lights.

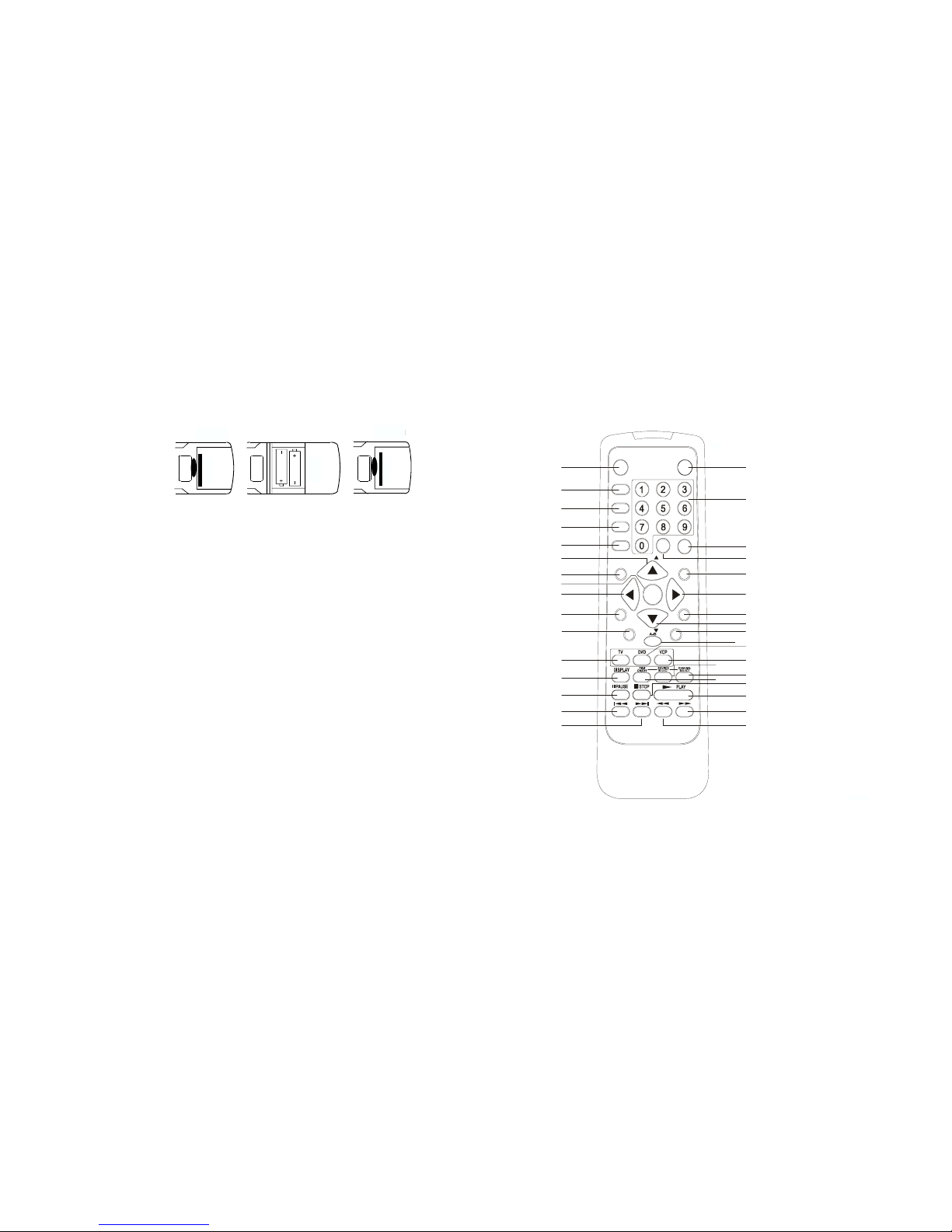

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the PROV716/

PROV716T/PROV716G and most Audiovox VCP’s.

It is not a universal remote control and will not control

equipment from other manufacturers.

If a universal remote control is to be used with the

PROV716/PROV716T/PROV716G,choosetheremote

encoding scheme for Audiovox Televisions when

programming the remote control.

POW ER

SOURCE

RETURN

ETUP

PIX

Enter

ERASE/

WRITE

SKIP/

AUTO

MEMORY

VOL

–+

MUTE

REPEAT

EJECT

DVD Function Descriptions

*Function control is available on the unit and the remote control.

1. POWER Button*

Pressthis button to turnthePROV716/PROV716T/PROV716G on. Press the buttonagainto turn the PROV716/

PROV716T/PROV716G off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,

TV,AV1 andAUX.

3. AUTO MEMORY Button (AUTO PROGRAM Button)*

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signals of sufficent levels are automatically stored.

4. SKIP/SEARCH Button

This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP

mode is disable, the TV will stop on all active channels.

5. ERASE/WRITE Button

While tuned to a channel, pressing this button will store or erase the channel from memory.The stored channel

numbers are displayed in “GREEN” on the LCD display screen, and the non-stored channel numbers are in

“RED”.

6. Channel Up ( ) Button*

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores sound to the previously set level.

8. ENTER Button

Used to implement setting selected.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to return to the menu while PBC on.

Note:Thisfunctiononlypresent on VCD2.0.

12. TV Mode Select Button

Switches certain function keys on the remote control for TV functions.

13. DISPLAY Button

Press to display DVD Disc current information.

PressDISPLAYbutton DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times DisplaycurrentAUDIOlanguage &channel

4 times Display current surround status

5 times Display currentANGLE

6 times DisplayA-B current status

7 times Display REPEAT current status

8 times Display is turn off

ForTitle& Chapter,use cursor buttonstodotitle/chapterselection,then press Enter button to implementtheselection.

For Subtitle, Audio, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options may vary

fromdisctodisc.

14. PAUSE ( ) Button*

Allows the user to pause the playback.

15. PREVIOUS ( ) Button

Allows the user to return to the previous chapter or track.

16. NEXT ( ) Button

Allows the user to skip to the next chapter or track.
