Congratulations on your purchase of the

Audiovox VOH1502 drop down TV/Video

Monitor. The VOH1502 has been designed to

give you and your family many years of video

entertainment in the mobile environment. Please

read the directions that follow to familiarize

yourself with the product and to ensure that you

obtain the best results from your equipment.

NOTE: Installation options vary. See the

individual Owner’s Manuals for each component

in your system to obtain a full understanding of

each component’s operation.

WARNINGS

vDo not use any solvents or cleaning materials

when cleaning the video system.

vDo not use any abrasive cleaners, they may

scratch the screen. Use only a lightly

dampened lint free cloth to wipe the screen if

it is dirty.

vLock the LCD screen in the fully closed

position when not in use.

vBefore putting on headphones always adjust

the volume setting to the lowest position.

vRemember to leave the dome light switch in

the off or auto positions when the vehicle is

unattended, as the dome lights, if left on, can

drain the vehicle’s battery.

vDo not put pressure on the screen.

vDo not allow children to touch or scratch the

screen, as it may become dirty or damaged.

IMPORTANT NOTICE

An LCD panel and/or video monitor may be

installed in a motor vehicle and visible to the

driver if the LCD panel or video monitor is used

for vehicle information, system control, rear or

side observation or navigation. If the LCD panel

or video monitor is used for television reception,

video or DVD play, the LCD panel or video

monitor must be installed so that these features

will only function then the vehicle is in ‘park’ or

when the vehicle’s parking brake is applied.

SAFETY PRECAUTION

For safety reasons, when changing Video Media

it is recommended that the vehicle is not in

motion, and that you do not allow children to

unfasten seat belts to change Video Media or

make adjustments to the system. System

adjustments can be accomplished using the

Remote Control while seat belts remain fastened.

Enjoy your Audiovox entertainment system but

remember safety of all passengers remains the

number one priority.

TELEVISION RECEPTION

This entertainment system is designed primarily

for viewing pre-recorded movies or playing video

games. Television reception in a moving vehicle

will be limited and in some areas will not be

possible due to weak and variable signal

strength. Television viewing in a stationary

vehicle will result in an improvement, but may still

be marginal due to signal strength. The quality

of the picture will not be consistent with home TV

reception. Reception may be affected by the

weather and distance from the TV station. A

weak signal may cause the picture to roll, be

snowy, or cause some color loss.

FEATURES

•15” TFT (Thin Film Transistor) Active Matrix

LCD (Liquid Crystal Display) Monitor

•OSD (On Screen Display) For Control Of

Picture Quality And Functions

•Full Function Remote Control

•Television Tuner

•Remote Sensor Eye

•Four Audio / Video Source Inputs

•Speaker Amplifier

•Back-Lit Controls For Low Light Operation

•Dual Channel Infrared Wireless Headphone

Transmitter

•Dual Dome Lights

•Jack for Optional 49 Mhz RF Transmitter (for

Wireless 49 Mhz RF Headphones)

FRONT PANEL CONTROLS

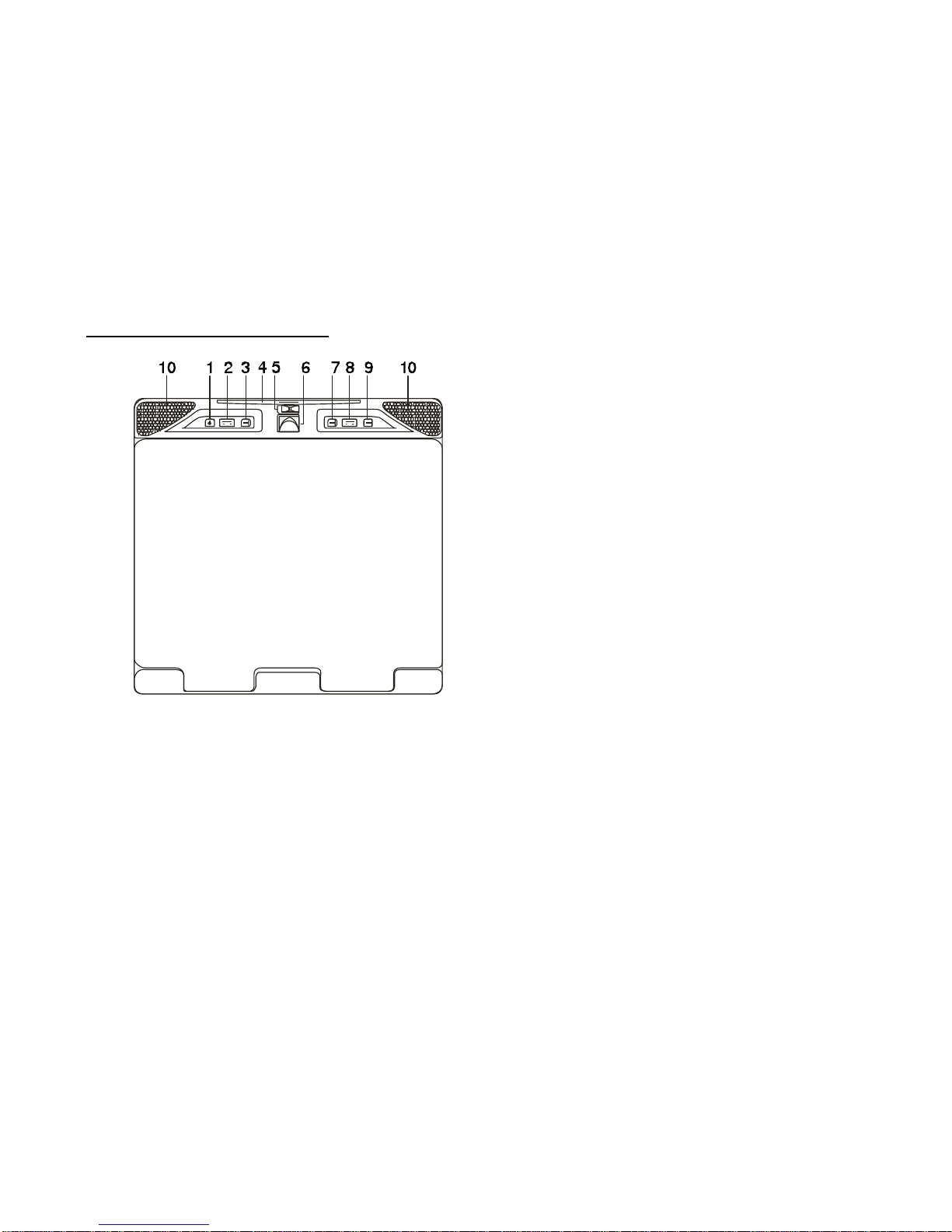

Figure 1. FRONT PANEL CONTROLS

POWER

2. VOLUME p/q

3. TV/AV

4. INFRARED RECIEVER AND

INFRARED TRANSMITTER

THREE POSITION DOME LIGHT

SWITCH

6. SCREEN RELEASE

7. MENU

8. CHANNEL p/q

9. ENTER

10.DOME LIGHT

FRONT PANEL CONTROLS

(See Figure 1)

1. Power Button –Turns the Monitor ON and

OFF.

2. Volume p/q–Controls the volume of the

external Speakers or wired Headphone

jacks if connected. Also, used to adjust the

picture control setting when “contrast”,

“bright”, “sharpness”, “color” or “tint” is

displayed on the screen.

3. TV/AV –Each time the button is pressed

the Audio/Video source will change in the

following sequence TV, AV1, AV2 and

AUX.

4. Sensor Eye –Allows the remote control to

operate the VOH1502’s OSD system (On

Screen Display). Also used to control A/V

accessories that are connected to the

VOH1502 using the accessory cable

(P/N 8010703).

5. Three Position Dome Light Switch

•Auto –Automatically switches on the

dome lights in conjunction with the

vehicle’s interior illumination.

•Off –The Dome lights will not turn on in

this position.

•On –Turns on the Dome lights.

6. Screen Release*–Slides in the direction

of the arrow to release the drop down

screen.

7. Menu Button –Press the MENU button,

The MENU display appears. Use the

channel pand qbuttons to highlight the

desired function, then press the ENTER

button to confirm your selection.

8. Channel p/q–Changes the TV channel

(Also used to scroll Up/Down through the

menu options).

9. ENTER Button –Use this button to

confirm your selectionfrom the menu

options.

10.Dome Lights –Provide additional interior

illumination.

*Due to the size and weight of the LCD display, it

is recommended that you support the screen with

one hand while releasing it from the closed

position with the otherhand.

BATTERY INSTALLATION

(See Figure 2)

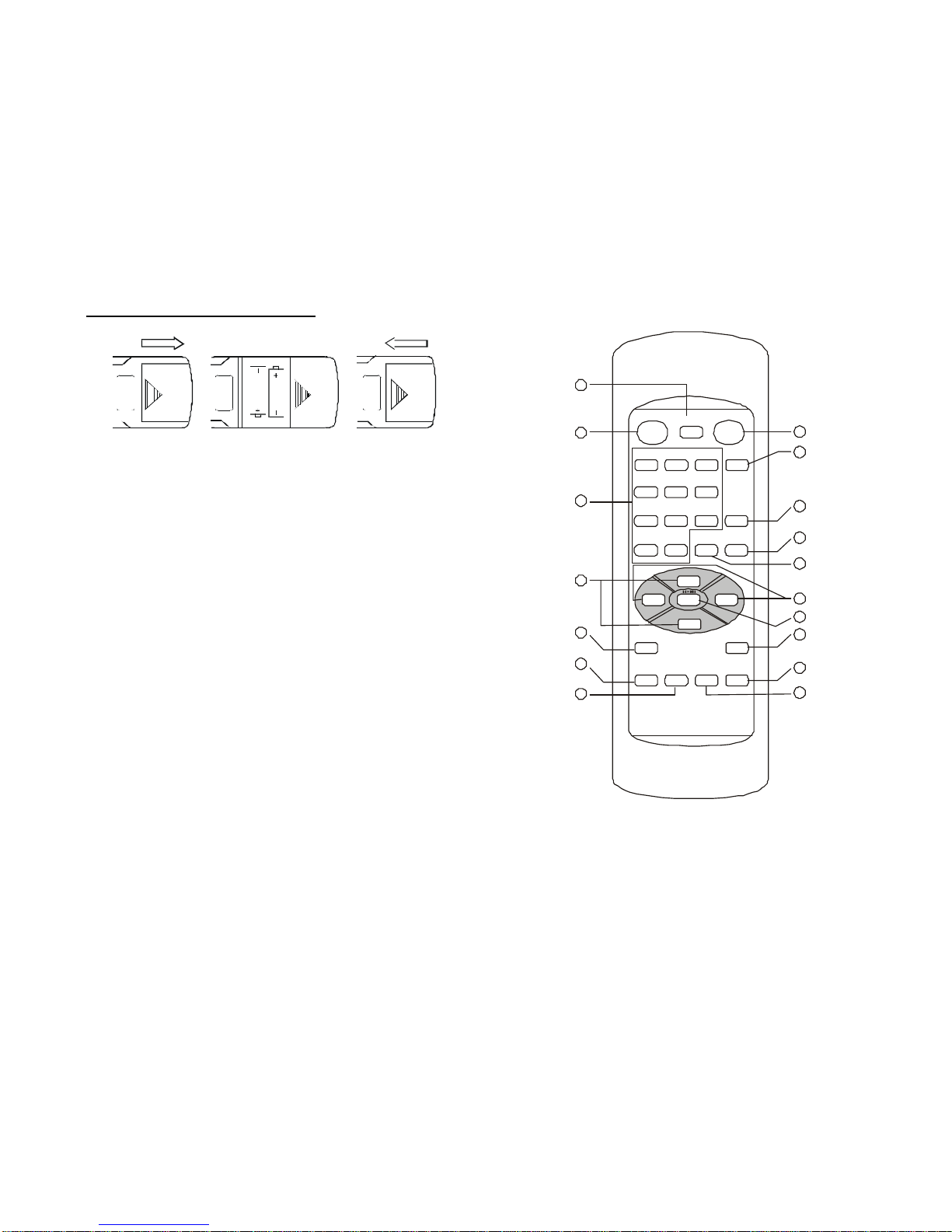

Figure 2. BATTERY INSTALLATION

Before attempting to operate the Remote

Control, install the batteries as described below.

1) Turn the Remote Control face down. Press

down on the ridged area of the battery

cover, and slide it off.

2) Install Two “AAA” batteries as shown.

Make sure that proper polarity (+ or -) is

observed.

3) Slide the cover back until it clicks into

position.

The Remote Control will operate the AUDIOVOX

VOH1502 as well as AUDIOVOX Televisions and

VCP’s. It is not a universal remote control and

will not control equipment from other

manufacturers.

If a universal Remote Control is used with the

VOH1502, choose the remote control encoding

scheme for Audiovox Televisions when

programming the remote.

Figure 3. REMOTE CONTROL OPERATION

456

TV POWER

TV/VIDEO

MUTE


SELECT ENTER

PLAY

REW F.FWD REPLAY STOP

VCP POWER

VOL . +VOL. –

ERASE/

ADD

AUTO

PROGRAM

2 3

REMOTE CONTROL OPERATION

(See Figure 3)

Monitor Controls:

1.TV POWER

Press this button to turn on the VOH1502.

Press the button again to turn the set off.

2.Direct Access (0-9,1--) Number Buttons

Use these buttons to select a channel. The

channel number chosen will be displayed

on the screen for about four seconds. To

select channels 0-99, press two number

buttons. For example, to select channel 8,

press 0,8. To select channels above 100,

press the 1—button, then the number

buttons for the last two digits of the

channel. For example, to select channel

115, press 1--, 1, 5.

3.CHANNEL p/qButtons

Use these buttons to advance to the next

higher (p) or lower (q) channel. (Also

used to scroll Up/Down through the menu

options).

4.VOLUME +/ –Buttons

Use these buttons to raise or lower the

volume level of the Wired Headphones or

External Speakers if installed. They are

also used to make adjustments in the

picture select mode.

NOTE: These buttons will not affect the

volume of wireless headphones or a wired

RF modulator. When using these devices

the volume must be adjusted with the

headphone volume control or with your

radio’s volume control.

5.MENU Button

Press the MENU button. The MENU

display appears. Use the channel pand

qbuttons to highlight the desired function,

then press the ENTER button to confirm

your selection.

6.TV/VIDEO Button

Press this button to access the

AUDIO/VIDEO inputs. As the button is

pressed, the on screen display will cycle as

follows:

7.MUTE Button

Press this button to turn the TV sound off.

Press the button again to restore the sound

to the previously set level. MUTE may also

be released by pressing the VOLUME +/–.

8.ERASE/ADD Button

When tuned to a channel press this button

to store or erase the channel from memory.

AV 1

AV 2 AUX

The stored channel numbers are displayed

in GREEN on the screen and the erased

channel numbers are displayed in RED.

NOTE: This function is also available in the

menu options under “Auto-Program”

9.AUTO PROGRAM Button

Select the correct antenna input (see page

12, Setting the “Antenna Input”) Press the

AUTO PROGRAM button. All of the

channel numbers for TV or CABLE TV will

be scanned. The active channels will be

detected and automatically stored in

memory.

NOTE: This function is also available in the

menu options under “Auto-Program”

10.ENTER Button

Use this button to confirm your selection

from the menu.

11.PICTURE SELECT Button

Each time this button is pressed the on-

screen picture adjustment display cycles

through “adjustment screens” as follows:

Then use the VOLUME +/-buttons to raise

(+) or lower (-) the level. The display will

automatically turn off if adjustments are not

made within five seconds.

BRIGHTNESS CONTRAST COLOR SHARPNESS TINT

VCP CONTROLS

1. VCP POWER Button

This button is used to turn an optional

AUDIOVOX VCP ON and OFF.

2. ”REW” REWIND Button

If this button is pushed while the tape is

stopped, the tape will rewind. If this button

is pushed while the tape is playing, the VCP

will go into rewind search mode. For more

information on search feature of the VCP,

consult VCP owner’s manual.

3. PLAY Button

Press this button to activate play mode

while a tape is loaded into the VCP. This

button may also be used to disengage

search and pause modes. For more

information, consult the VCP owner’s

manual.

4. ”F.FWD” FAST FORWARD Button

If this button is pushed while the tape is

stopped, tape will fast forward. If this

button is pushed while the tape is playing,

the VCP will go into fast forward search

mode. For more information on search

feature of the VCP, consult the VCP

owner’s manual.

5. STOP Button

Press this button to stop the videotape.

6. REPLAY Button

Press this button will rewind the videotape

and immediately begin playback when the

videotape is fully rewind.

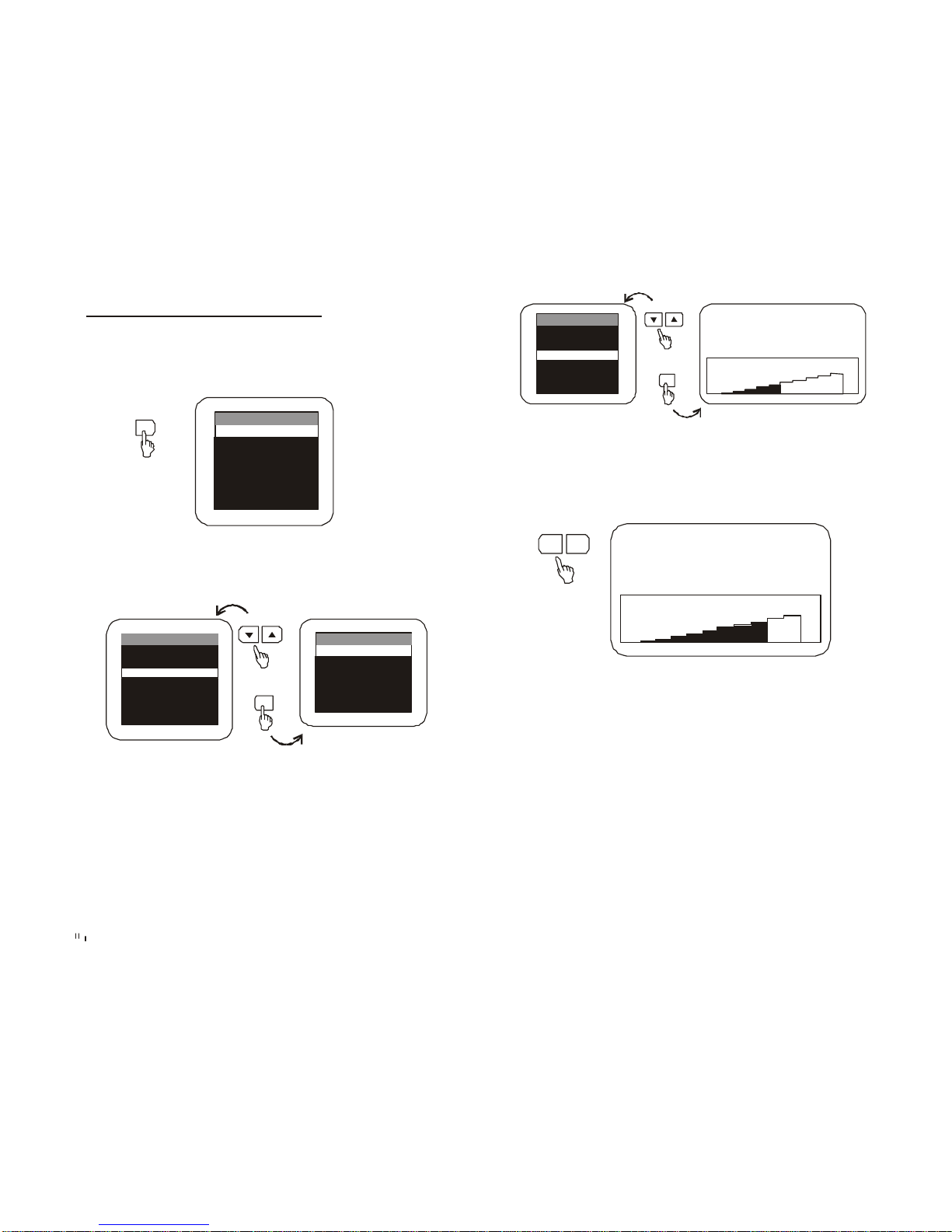

ADJUSTING THE PICTURE

When watching TV programs, the quality of the

picture can be adjusted to suit your taste.

1. Press MENU. The main menu appears.

2. Press either CHANNEL por qto highlight

the function.

Make sure the highlight bar is on SET

PICTURE and then press ENTER

3. Select the item to adjust. For example:

To adjust brightness, press CHANNEL por

qtohighlight BRIGHTNESS and press

ENTER.

4. Adjusting the level:

Press VOLUME –todecreasethebrightness.

Press VOLUME +to increase the brightness.

5. To adjust other items, repeat all above.

Note: The menu display disappears from the

screen if you do not press +or –within a few

seconds.

Whenever a menu or display disappears from

the screen, the +and –buttons return to the

volume adjustment buttons.

If you only want to adjust the picture, you can

use the remote control, simply press the

PICTURE SELECT.

CHANNEL

32 BRIGHTNESS

ENTER


CONTRAST

SHARPNESS

TINT

RESET

–

BRIGHTNESS

COLOR

SET PICTURE

AUTO

PROGRAM

MAIN MENU

SELECT VIDEO

CLOSED CAPTION

SET PICTURE

AUTO-PROGRAM

ANTENNA INPUT

V-CHIP PROTECT

SET PASSWORD

CHANNEL

ENTER

MAIN MENU

SET PICTURE

SELECT VIDEO

CLOSED CAPTION

AUTO-PROGRAM

ANTENNA INPUT

V-CHIP PROTECT

SET PASSWORD


CONTRAST

BRIGHTNESS

SHARPNESS

TINT

RESET

COLOR

VOLUME

50 BRIGHTNESS

–

Indice

Altri manuali Audiovox Sistema video per auto

Audiovox

Audiovox PROV715 Manuale utente

Audiovox

Audiovox LCM7020PKG Manuale utente

Audiovox

Audiovox MMD7HRPKG - Movies2Go - DVD Player Manuale utente

Audiovox

Audiovox Mobile Video HR7010PKG Manuale utente

Audiovox

Audiovox FP1210 Manuale utente

Audiovox

Audiovox AVXMTG13UA Manuale utente

Audiovox

Audiovox VOH683 Manuale utente

Audiovox

Audiovox VOD10 - Car - Overhead LCD Monitor Manuale utente

Audiovox

Audiovox VME 9512 TS - Manuale utente

Audiovox

Audiovox DVD1627 Guida alla pianificazione

Audiovox

Audiovox VOD1023 - 10.2 Inch Dropdown Mobile Video... Manuale utente

Audiovox

Audiovox Movies 2 Go AVXMTGHR1M Istruzioni per l'installazione e il funzionamento

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manuale utente

Audiovox

Audiovox Mobile Video 128-8810 Manuale utente

Audiovox

Audiovox VBP4000 - VBP 4000 DVD Player Manuale utente

Audiovox

Audiovox AVXMTG10U Manuale utente

Audiovox

Audiovox Movies2Go MMD100 Guida rapida

Audiovox

Audiovox VE926 - VE - 926 Manuale utente

Audiovox

Audiovox MM92HR Manuale utente

Audiovox

Audiovox VM9312 Manuale utente

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manuale utente

Audiovox

Audiovox Movies2Go 128-8290 Manuale utente

Audiovox

Audiovox Movies 2 Go MMD70 Manuale di servizio

Audiovox

Audiovox Mobile Video VOD128A Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
