Warnings
Donotuseanysolventsorcleaningmaterialswhencleaningthevideomonitor.Useonlyalightlydampenedlintfreeclothtowipe
the screen if it is dirty. Lock the LCD screen in the fully closed position when not in use.
Rememberto leave thedome light switchin the offor auto positionswhen the vehicleis unattended, asthe dome lights,if left on,
candrainthe vehicle’s battery. Television Reception
Thisentertainmentsystemisdesignedprimarilyforviewingprerecordedmoviesorplayingvideogames. Televisionreceptionina
movingvehiclewillbelimitedandinsomeareaswillnotbepossibleduetoweakandvariablesignalstrength. Televisionviewingin
astationary vehicle will resultinanimprovement,butmaystillbe marginal due tosignalstrength. Thequalityofthepicturewillnot
be consistent with home TV reception. Reception may be affected by weather and distance fromTV station. Aweak signal may
cause the picture to roll, be snowy, or cause some color loss.
Licensedunder one ormore of the followingpatents,
PatentNOS. 5,775,762 and5,927,784
Important Notice
AnLCDpaneland/orvideomonitormaybeinstalledina motorvehicleandvisibletothedriveriftheLCDpanelorvideo monitoris
used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for
television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function
whenthevehicle is in“park” orwhenthe vehicle’s parking brakeisapplied.
AnLCDpanel or videomonitor usedfortelevisionreception, video orDVD playthatoperateswhen the vehicleis ingearorwhen
theparkingbrakeisnotappliedmustbeinstalledtotherearofthedriver’sseatwhereitwillnotbevisible,directlyorindirectly,tothe
operatorofthemotorvehicle.Itisunlawfulinmostjurisdictionsforapersontodriveamotorvehiclewhichisequippedwithascreen
that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the
driverwhileoperatingthevehicle. Intheinterestofsafety,theVOD1022shouldneverbeinstalledwhereitwillbevisible,directlyor
indirectly, bythe operator of the motor vehicle.
128-7094
3 of 31
-3-
Congratulations on your purchase of the Audiovox
VOD1022DVDPlayerwithDrop-DownVideomonitor/
TV. The VOD1022 has been designed to give you
and your family many years of video entertainment in
the mobile environment. Please read the directions
that follow to familiarize yourself with the product and
to ensure that you obtain the best results from your
equipment.
Please note: Installation options vary, see the
individual owner’s manuals for each component in
your system to obtain a full understanding of each
component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and
that you do not allow children to unfasten seat-belts
to change video media or make any adjustments to
the system. System adjustments can be
accomplished using the remote control unit, while
seat-belts remain fastened. Enjoy your Audiovox
entertainment system but remember-safety of all
passengers remains the number one priority.
Features
••
••
•10.2” TFT Active Matrix Color LCD Monitor
••
••
•Built-In DVD Player
••
••
•DVD/CD/MP3 compatible
••
••
•On Screen Display
••
••
•16:9 and 4:3 Screen Mode (switchable)
••
••
•IR Remote Repeater for AV1 Inputs
••
••
•Dual IR Sensors
••
••
•Remote Control
••
••
•Four Source Selection (DVD/TV/AV1/AUX)
••
••
•AUX Input for Game or Camcorder
••
••
•6 Frequency FM Modulator
(Remote Control Accessible)
••
••
•Dual Headphone Jacks
••
••
•Built-In TV Tuner
••
••
•Built-In Dual IR Transmitter
••
••
•Built-In Dome Lights with Switch
••
••
•Last position memory for DVD
128-7094
4 of 31
-4-

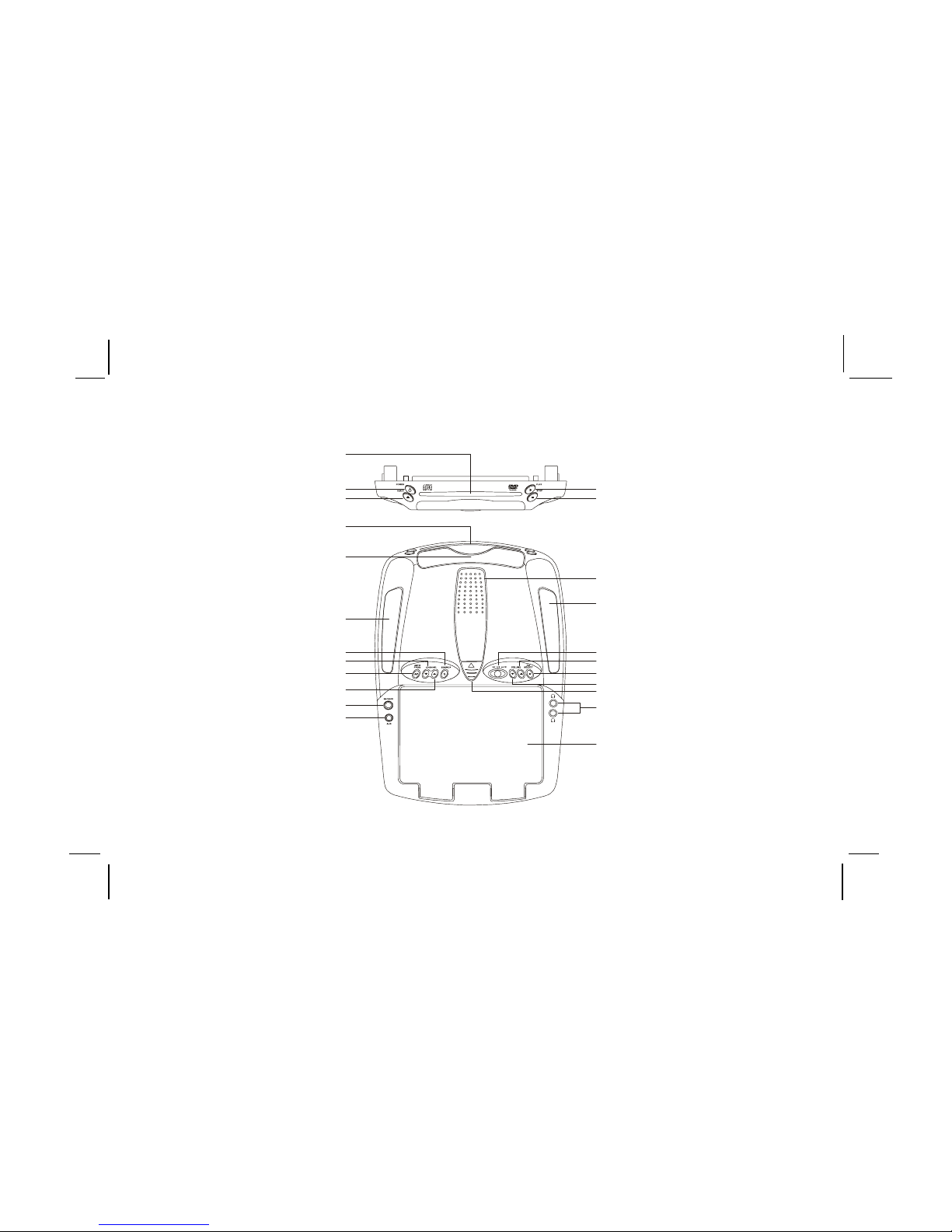

Controls and Indicators Diagram
1
2
3
1
6
8
9
10
11
12
13
14
4
5
7
8
21
20
19
18
17
16
15
128-7094
5 of 31
-5-
Main Function Descriptions
1. DVD Disc insertion slot – For loading Disc.
2. POWER Button – Bright red when system is on dim when
off.
3. EJECT ( ) Button – For ejecting discs from the disc
compartment.
4. PLAY ( ) Button – This button is used to enter the play
mode.
5. STOP ( ) Button – To stop playback.
6. Infrared Transmitter and Sensor – Use to transmit audio
to wireless headphones. Also allows the remote control to
operate the VOD1022 and to control other accessories in
the system.
7. VOD1022 Ventilation Opening.
8. Dome Lights –Provide additional interior illumination.
9. SOURCE Select – Used to select one of the four sources
(TV,AV1,AUX,DVD).
10. CHANNEL ( ) Button –Use this button to decrease the
channel number to the desired number. Note : When TV
function is selected.
11. AUTO PROGRAM Button –Allows the user to scan and
store active TV stations into memory.
12. CHANNEL( )Button – Use this button to increase the
channel number to the desired number. Note : When TV
function is selected.
13. Side Remote Sensor Eye – Allows the remote control to
operatethe VOD1022,control volume towired headphone
jacks and control the other accessories.
14. AUX Input (Use with supplied A/V adapter)
••
••
•AuxiliaryAudio RightInput.
••
••
•AuxiliaryAudio LeftInput.
••
••
•AuxiliaryVideo Input.
15. Drop Down LCD Panel.
16. Headphone Jack – Allow the use of wired headphones
witha 1/8” plug forlistening to video programaudio.
17. Screen release –Movesin direction ofthe arrowto release
thedrop down screen.
18. VOLUME ( ) Button – Use this button to decrease the
volumelevel of the wired headphonejacks. It is also used
to make picture adjustments in the picture select mode.
128-7094
6 of 31
-6-
19. FM Select Button – Each time this button is pressed the
FMModulator will cyclethrough the following options:(FM
OFF – POD AUDIO – SAT AUDIO) The frequency of the
FMmodulator will remain same.
20. VOLUME( )Button –Use thisbutton toraise thevolume
levelof the wiredheadphone jacks. It isalso used tomake
picture adjustments in the picture select mode. Note :
Audiovox recommends the use of the Audiovox HP275
Headphoneswhenusing wiredheadphones.
21. Three position Dome Light Switch
• Auto – Automatically switches on the dome lights in
conjunctionwith the vehicle’s interiorillumination.
• Off – The dome lights will not turn on in this position.
• On – Turns on the dome lights.
Note:Thevolume buttonswillnoteffectthevolumeofthe wireless
headphonesorthe wiredFM modulator. Whenusing these
devices the volume must be adjusted with the wireless
headphonevolumecontrolorwithyourradio’svolumecontrol
(see page 15, Wireless Headphones, or page 16, Wired
FMModulator).
128-7094
7 of 31
-7-

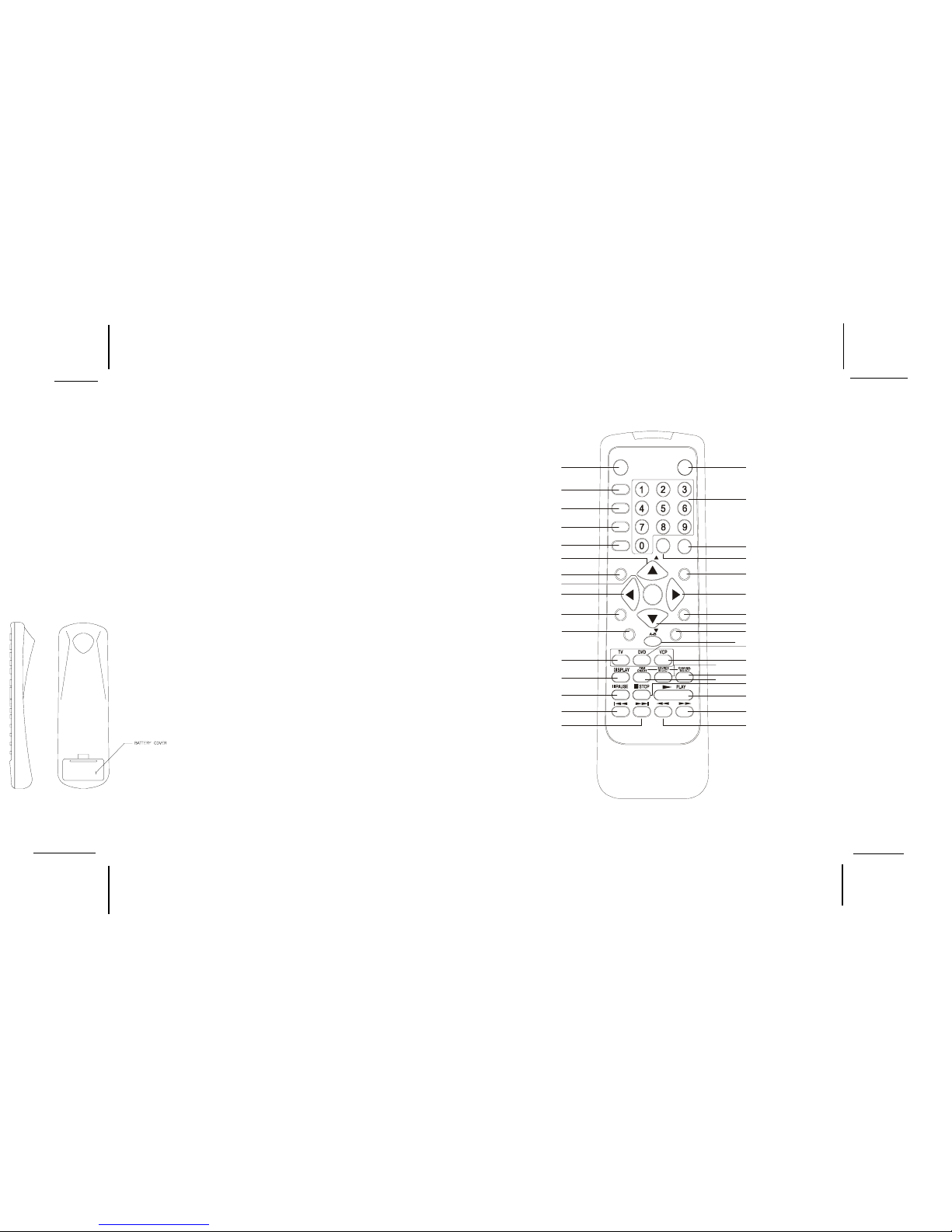

Remote Control Operation
POWER
SOURCE
MENU
RETURN
SETUP
PIX
Enter
ERASE/
WRITE
1
2
3
4
5
10
6
13
14
15
17
27
SKIP/
SEARCH
AUTO
MEMORY
VOL
–+
MUTE
CH
CH
REPEAT
7
8
9
11
12
16
18
19
20
21
22
23 24
25
26
28
29
30
31
35
34
33
EJECT
32
Battery Installation
Before attempting to operate your Remote Control, install the
batteriesas described below.
1) Turn the Remote Control face down. Using a fingernail,
liftthe battery cover off.
2) Install two “AAA” batteries as shown. Make sure that
properpolarity (+ or -)is observed.
3) Align the cover tabs with the remote control and press
down until the cover clicks.
Theremote control willoperate the VOD1022and mostAudiovox
VCP’s. It is not a universal remote control and will not control
equipmentfrom othermanufacturers.
128-7094
8 of 31
-8-
Remote Control Function Descriptions
*Function control is available on the unit and the remote control.
1. POWER Button*
Press this button to turn the VOD1022 on. Press the button again to turn the VOD1022 off.
2. SOURCE Button*
Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by
pressing this button. Each time the button is pressed, the audio / video source will change sources in the
followingorder: DVD, AV1,AV2andAUX.
3. AUTO MEMORY Button (AUTO PROGRAM Button)*
When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with
signals of sufficent levels are automatically stored.
4. SKIP/SEARCH Button
This button selects betweeen SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on
channels that are programmed into memory when the CHANNEL UP/DOWN buttons are used. When in the
SEARCH mode, the TV will stop on all active channels.
5. ERASE/WRITE Button
While tuned to a channel, pressing this button will either store or erase the channel from memory. The stored
channel numbers are displayed in “GREEN” on the LCD display screen, and the erased channel numbers are
displayed in “RED”.
128-7094
9 of 31
-9-
6. Channel Up ( ) Button*
Use this button to increase the channel number to the desired channel and to scroll upward in menu options.
7. MUTE Button
Press this button to mute the audio.
Pressing the button again restores the sound to the previously set level.
8. ENTER Button
Used to confirm a selected setting or option.
9. LEFT ( ) Button
Allows the user to shift left in the menu options.
10. MENU Button
Allows the user to access the DVD (DVD MODE) main menu and monitor menu (TV MODE).
11. RETURN Button
Allows the user to return to the menu while PBC on.
Note:Thisfunction only present onVCD2.0.
12. TV Mode Select Button
Switches certain function keys on the remote control for TV functions.
128-7094
10 of 31
-10-
13. DISPLAY Button
Press to display DVD Disc current information.
Press DISPLAY button DVD Player Perform
Once Display current TITLE & CHAPTER
Twice Display current SUBTITLE
3 times DisplaycurrentAUDIO language& channel
4 times DisplaycurrentANGLE
5 times DisplayA-B current status
6 times Display REPEAT current status
7 times Display is turn off
ForTitle&Chapter,use cursor buttonsto do title/chapter selection,then press Enter buttonto implement the selection.
ForSubtitle,Audio,Angle, A to B&Repeat, press the Enterkeyrepeatedly to change the options.Theseoptions may vary
fromdisc to disc.
14. PAUSE ( ) Button*
Allows the user to pause playback.
15. PREVIOUS ( ) Button
Allows the user to return to the previous chapter or track.
16. NEXT ( ) Button
Allows the user to skip to the next chapter or track.
