MMDV3

SLOT-IN DVD Player

Owner’s Manual

A. Welcome

Thankyouforchoosingthe MMDV3DVDPlayer.TheMMDV3isde-

signedtooptimizethe enjoymentofyourfavoriteDVDsinthemobile

environment.ThisDVDPlayerisconstructedtoprovideyearsofreli-

able,trouble-freeservice.Pleasereadthismanualthoroughlypriorto

operatingtheplayerandretainitforfuturereference.

B. Precautions

EXPLANATIONOFGRAPHICSYMBOLS

Thelightingflashwitharrowheadsymbol,withinanequilateral

triangle, is intended to alert the user to the presence of

uninsulated‘dangerousvoltage’withintheproduct’senclosure

thatmaybeofsufficientmagnitudetoconstituteriskofelectric

shocktopersons.

Theexclamationpointwithinanequilateraltriangleisintended

to alert the user to the presence of important operating and

maintenance(servicing)instructionsintheliteratureaccompa-

nyingtheappliance.

WARNING

TOREDUCETHERICKOFFIREORELECTRICSHOCK.DONOT

EXPOSETHISPRODUCTIONTORAINORMOISTURE.

SAFETY PRECAUTION

For safety reasons, when changing video media, it is recommended

that the vehicle is not in motion, and that you do not allow children to

unfasten seat-belts to change video media or make any adjustments to

the system. Enjoy your entertainment system but always remember

the safety of all passengers remains the number one priority.

IMPORTANT NOTICE

It is unlawful in most jurisdictions for a person to drive a motor vehicle

whichis equippedwith a television viewer orscreen that is located in the

motorvehicle at anypoint forward of the back of the driver’sseat, orthat

is visible, directly or indirectly, to the driver while operating the vehicle.

In the interest of safety, this system should never be installed where it

will be visible, directly or indirectly, by the operator of the motor vehicle.

1. OBJECT AND LIQUID

Do not push objects of any kind into the system through openings;

do not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

coveror block the slots andopenings with acloth or other material.

2. DISASSEMBLE

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

3. CLEANING UNIT

Whencleaning,makesurethesystemis unplugged from the power

source. Donot use anysolvents or cleaningmaterials (liquid,abra-

sive or aerosol). Clean the DVD player using only a lightly damp-

ened lint free cloth to wipe the unit if it is dirty.

4. DISC

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick paper,

tape or glue on the disc. Do not expose the disc to direct sunlight or

heat sources such as hot air ducts. Do not touch the surface of the

disc. Handle the disc by its edge. Clean the disc by wiping the disc

from the center out with a soft lint free cleaning cloth. Remove the

discfromthe unit andstore it inits case afterplaying. Some playback

operations of discs may be intentionally fixed by software producers.

Since this unit plays discs according to the disc contents the soft-

wareproducers designed, some playback features may not be avail-

able. Also refer to the instructions supplied with the discs.

5. Powering the DVD Player

This system MUST be powered from the type of switched (Acces-

sory) power indicated on the marking label (i.e. not directly from the

carbattery). Power shouldbe appliedto theunit whenthe ignitionkey

isin the Run and/orAccessorypositions. Useonly the suppliedpower

cable matching this set to avoid electric hazards.

6.Operation

Whenthetemperaturerisesdramaticallyfromaverylowtempera-

ture,moisturemaycondenseinsidetheMMDV3andcausetheDVD

playertomalfunction.IftheMMDV3doesnotoperateproperlyunder

theseconditions,leavetheMMDV3 turnedon forabout halfan hour

untilthemoistureevaporates.

C.Contents

1.MainUnit

2.Remotecontrol withone CR2025 Battery

3.CigaretteLighterAdaptorPowerCable

4.Two (2) Bracketswith four (4) Screws

5.Owner'sManual

6.RCA Cables(Red,Yellow, andWhite)

D.Controls

MainUnit(RefertoFigure1)

1.PowerButton

2.PauseButton

3.PreviousButton

4.PlayButton

5.Next Button

6.StopButton

7.EjectButton

8.RemoteControlSensor

9.S-VideoJack

10.VideoOutputJack

11.AudioLOutputJack

12.AudioROutputJack

13.MonitorPort1

14.MonitorPort2

15.DC12VJack

16.IRInputJack

Figure1

910 11 12 16 13 14 15

123456

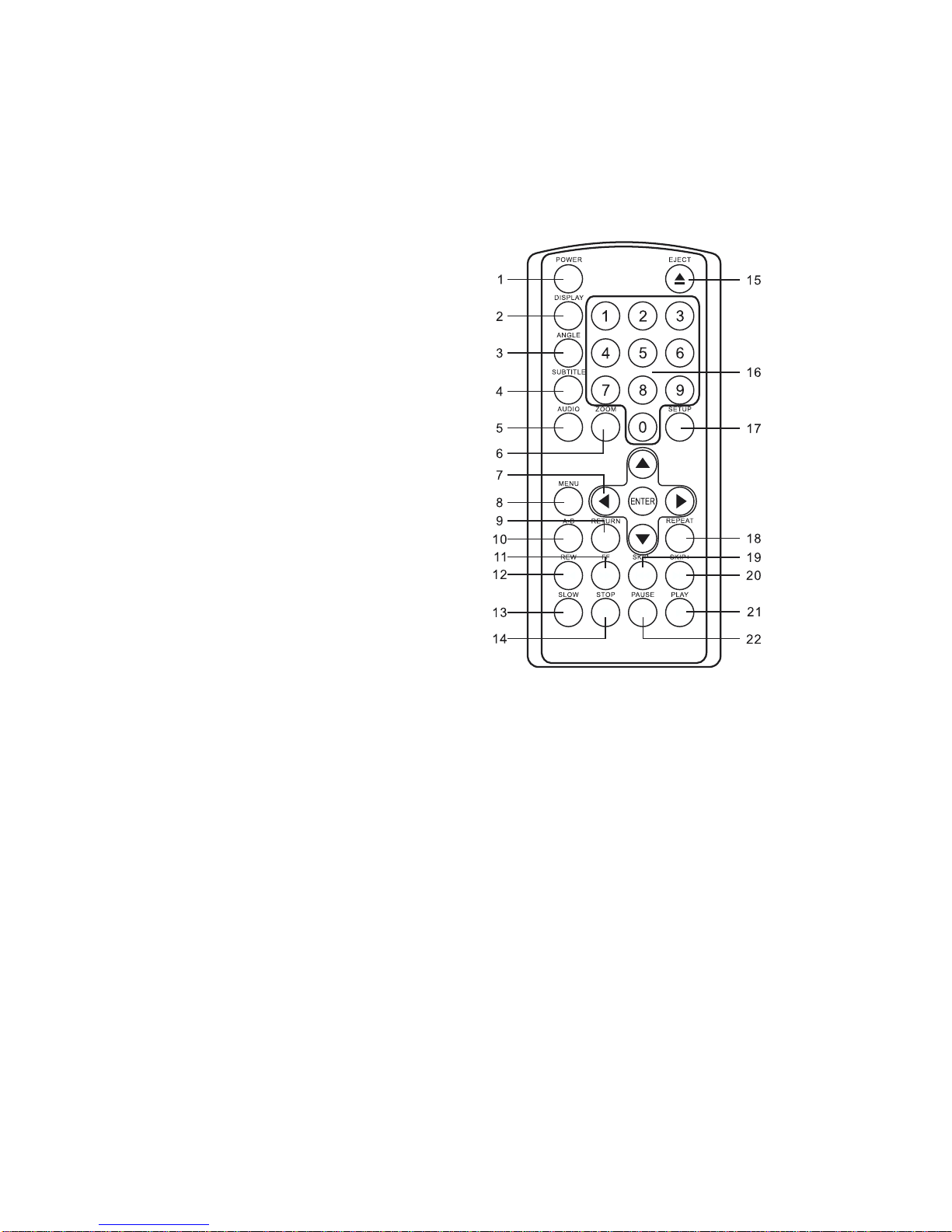

RemoteControlView

(RefertoFigure 2)

1)PowerButton

2)DisplayButton

3) AngleButton

4)SubtitleButton

5)AudioButton

6)ZoomButton

7)Up/Down/Left/Right/

EnterButtons

8)MenuButton

9)ReturnButton

10)A-BButton

11)ForwardButton

12)ReverseButton

13)SlowButton

14)StopButton

15)EjectButton

16)NumberButtons

17)SetupButton

18)RepeatButton

19)Skip-Button(Previous)

20)Skip+Button(Next)

21)PlayButton

22) Pause Button Figure 2

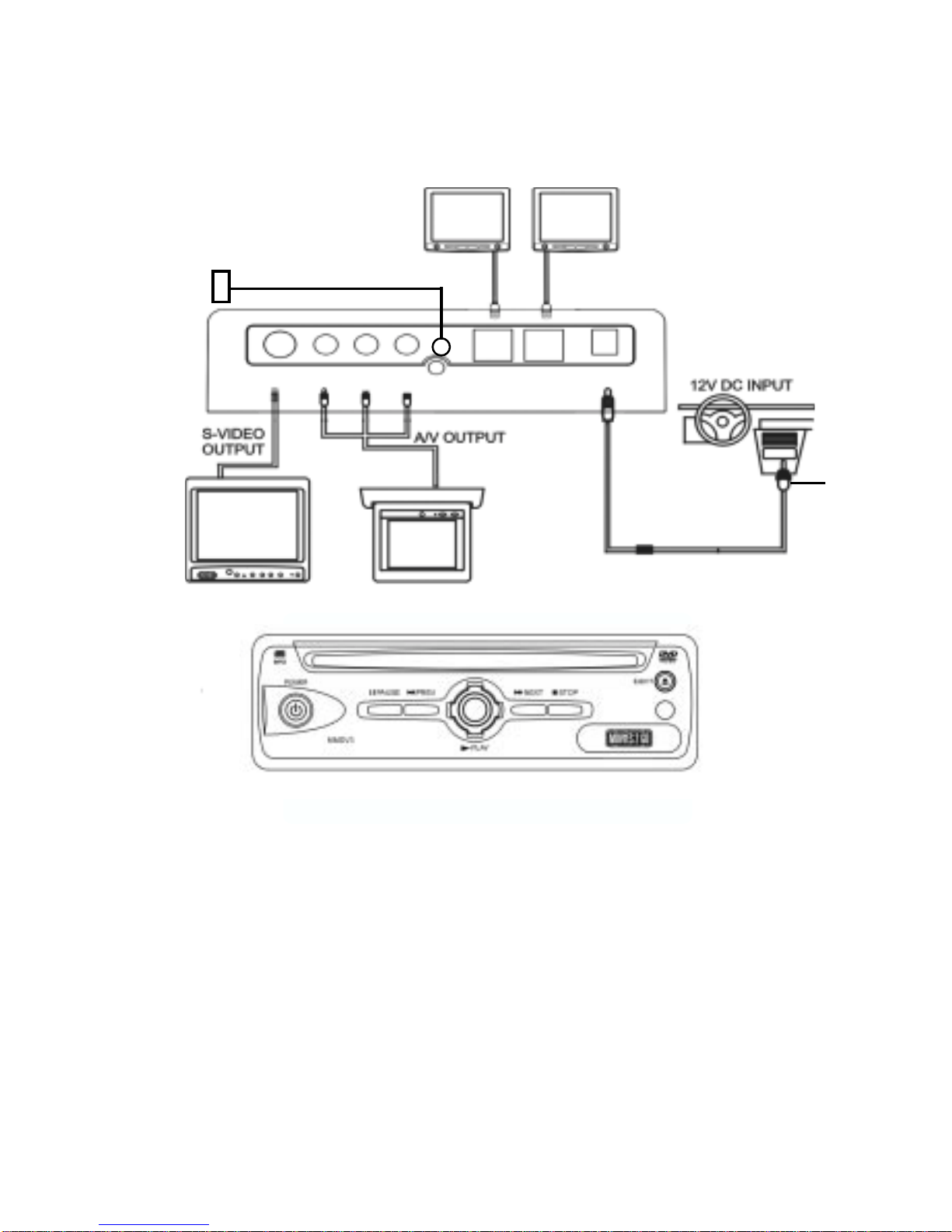

F.Connections

Figure3

1. PoweringYourDVDPlayer(RefertoFigure3)

Insertoneendofthepowercableintothe12VDCINjackonthe

rearofthe player. Plugtheotherendintothe cigarettelighter.

2. RemoteIRReceiver(Refer toFigure 3)

Plugthe1/8”jackontheremote IRcableintotheIRINjackonthe

rearoftheDVDplayer. PlacetheIRreceiveranywhereinthe

vehicletoallowremotecontrolinanylocation.

S-VIDEO OUTPUT VIDEO L AUDIO R

A/V OUTPUT MONITOR1 MONITOR2 12VDC

INPUT

MMH56B/T/G

REMOTE IR RECEIVER

Figure4

a.TheMMDV3canbeconnectedto AudiovoxOverhead

monitorsbypurchasinganadaptor(PartNumberDVRCA).

whenusinganAudiovoxaccessorycable(partnumber

8010730). Pluginthe 3RCA jacks,white(left audio)to

white,red(rightaudio)tored,andyellow(video)toyellow.

Connectthe2pin IRjacks.Connect the4pintothe 2pin

poweradapter, 4pin totheaccessorycableandthepluginto

theMMDV3powerjack.

4. ConnectingtoaMonitor

a.Matchthecolor-codedplugstotheappropriatejacksonthe

back of the DVD PlayerA/V OUTPUT jacks: Yellow (video) to

Yellow,White(leftaudio)toWhite,andRed(rightaudio)toRed.

3. ConnectingtoanAudiovoxOverheadMonitor

AUDIOVOX

DVRCA*

*OptionalWiththeMMDV3

b.Connectanyof thetwomonitorportson thebackoftheDVD

playerdirectlytotheMoviesToGoheadresthoodsModelMMH56

B/T/G. Thisis plugandplay,power,audio,videoandIRsignals

aresuppliedinoneDINcable.

c.IfyourTVhas anSVideoinputconnector,connect theDVD

PlayerusingtheS-VIDEOconnector.Thisconnectionwillhave

abetter picture.Refertothe owner'smanualsupplied with the

TVtobeused.

d.Bypurchasinganadapter (PartNumberDVRCA)the

monitorportcan beconnectedtoanymonitor.

G.Playing aDVD

After connecting power to the unit, press the power button on the

main unit momentarily. The power light will increase in brightness.

Insertthediscintotheslotonthefrontofthe unit,theunitwillloadthe

discandstartplayingautomatically;ifthere’sadiscinsidetheunit,

pressthePOWERbutton,theunitwillstartplayingautomatically.

Figure5

1. Basic Operation

POWER

EJECT

PLAY

SLOW

PAUSE

STOP

FORWARD

REVERSE

UP/DOWN/LEFT

RIGHT

ENTER

NUMBERS

RETURN

REPEAT

A-B

DISPLAY

ANGLE

SUBTITLE

AUDIO

ZOOM

SETUP

Turntheuniton/off

Eject/loadthedisc

StartPlayback

Playat1/2,1/4, or1/8 timesspeed

StillPicture

(1time)Stopat thepresentplayingpoint/

(2times)Stopplaying

Gotothenextchapter,trackorsceneduring

playback.

Gobacktotheprecedingchapter,trackor

sceneduringplayback.

Scanforward at 2, 4,6,or8 times speed

Scanbackward at 2,4,6,or 8 timesspeed

UsedforMenuNavigation

Executeitemorsetting

Selectitemorsetting

Selecting password or other numeric func-

tions.

Returntothenormaldisplayfromthescreen

savermode.

Displaytherootmenu ofthedisc

Repeatplayingtitle,chapterortrack

RepeataspecificportionfrompointAtopoint

B of the disc.

Display information (title, chapter, or track,

time,etc.)

Change the angles on the scene (Not all

DVDscontainthisfeature)

Selectthesubtitlelanguageandturniton/off

Selecttheaudiolanguage

Enlargean imageto 1.5,2,or 4timesthe

originalsize.

Displaythesetup menuforselectionofvari-

ous video and audio functions and exit the

setupmenu.
