Audiovox VOD1221 P Manuale utente
128-7431A
1 of 38
VOD705
ELECTRONICS CORP .
®
VOD1221 /
VOD1221 P /
VOD1221 S
DVD PLAYER
WITH
DROP-DOWN
VIDEO
MONITOR
128-7431A
SEL.
FM SEL.
VOL.
P
128-7431A
2 of 38
-2-
Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the
operator of the motor vehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle’s battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Television Reception
This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television reception in a moving
vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary
vehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent with
home TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, be
snowy, or cause some color loss.
Licensedunderoneormoreofthefollowingpatents,
PatentNOS. 5,775,762 and 5,927,784
128-7431A
3 of 38
-3-
Congratulations on your purchase of the AUDIOVOX VOD1221
DVD Player with Drop-Down Video /Monitor. The VOD1221 has
been designed to give you and your family many years of video
entertainment in the mobile environment. Please read the
directions that follow to familiarize yourself with the product to
ensure that you obtain the best results from your equipment.
Please note: Installationoptionsvary,see the individualowner’s
manuals for each component in your system to obtain a full
understanding of each component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you do
not allow children to unfasten seat-belts to change video media
or make any adjustments to the system. System adjustments
can be accomplished using the remote control, while seat-
belts remain fastened. Enjoy your AUDIOVOX entertainment
system but remember the safety of all passengers remains the
number one priority.
Features
· 12.1 Inch TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
· On Screen Display
· Optional TV Tuner*
· Full Function Remote Control
· Infrared Transmitter for IR Wireless Headphones.
· Three Audio / Video Inputs (AUX / AV1 / AV2 or TV**)
· Built-in DVD Player
· Two Headphone Jacks
· Built-in Five Frequency Wireless FM Modulator (***Optional
Relay Box)
· AVOutput
· Forward and Side Remote Sensor
· Dome Lights with Switch
· Backlit Controls for Low Light Operation
· Last Position Memory for DVD
· Game Port
Options
* AUDIOVOXP/NPODTVT
** When the TV Tuner (PODTVT) is installed the AV2 input
becomes inactive.
*** AUDIOVOX P/N SIRSWB
128-7431A
4 of 38
-4-

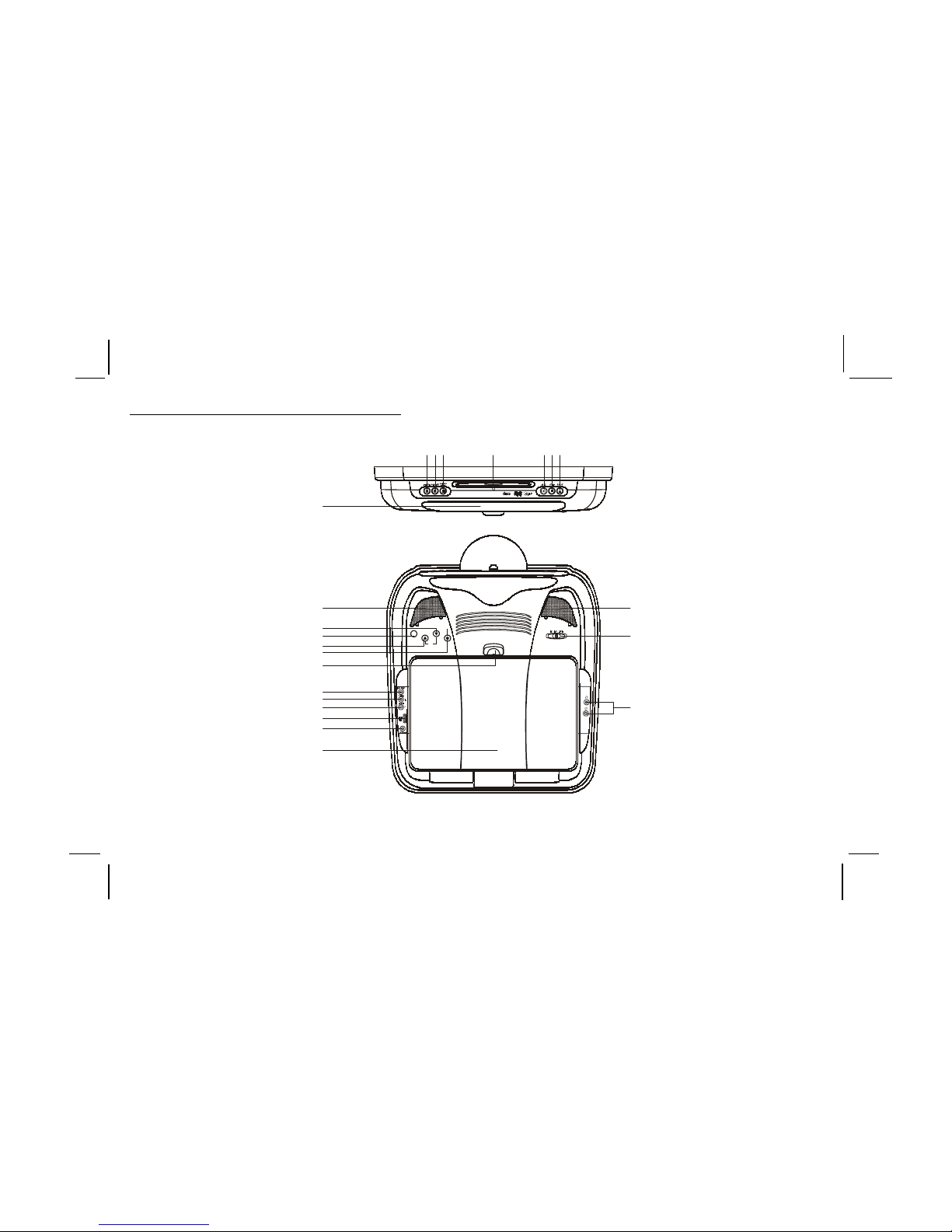

Controls and Indicators Diagram
SEL.
FM S EL .
VOL.
P
DIGITAL AU DIO
COMPACT
1234567
8
9
10
12
14
13
15
16
17
18
19
20
21
8
11
22
128-7431A
5 of 38
-5-
Control Function Descriptions
1. POWERButton – Used to turnthe systemON/OFF.Bright
red when system is on, dim when off.
2. SOURCE Select – Used to select one of the four sources
(DVD,AUX/GAME, AV1,AV2 or TV *TV Optional).
3. SCREEN MODE Button – Allows the user to change the
screen aspect ratio, 4:3 or 16:9.
4. Disc insertion slot – For loading Disc.
5. PLAY ( ) Button – This button is used to start playback
of a disc.
6. STOP ( ) Button – To stop playback.
7. EJECT ( ) Button – For ejecting discs from the disc
compartment.
8. Dome Lights – Provideadditionalinterior illumination.
9. Three position Dome Light Switch
• Auto – Automatically switches on the dome lights in
conjunctionwith the vehicle’s interior illumination.
• Off – The dome lights will not turn on in this position.
• On – Turns on the dome lights.
10. Headphone Jacks – Allow the use of wired headphones
witha 1/8” plug for listening to thevideoprogram audio.
11. Drop Down LCD Panel.
12. Remote Sensor Eye –Allows theremotecontrol to operate
the VOD1221, control volume to wired headphone jacks
and control the other accessories.
13. Game Port – Connect the supplied game controller to this
inputto play a variety of video games.
Note:When usingthe GameController,theAUX inputmust
beremoved.
14. Auxiliary Audio Left Input.
15. Auxiliary Audio Right Input.
16. Auxiliary Video Input.
17. Screen release –Movesin direction ofthe arrow torelease
thedrop down screen.
18. FM Select Button –Whenthis button is pressed it willturn
on the wireless FM Modulator and then cycle through the
available FMfrequencies (Channel 1, 88.3MHz; Channel
2, 88.7MHz; Channel 3, 89.1MHz; Channel 4, 89.5MHz;
Channel5, 89.9MHz and OFF).
128-7431A
6 of 38
-6-
19. ( ) Button –Usethis button todecreasethe volume level
ofthe wiredheadphone jacks.Also usedtodecrease levels
in the picture adjust mode.
Note:These buttons will not affect the volume of wireless
headphones or the wireless FM modulator. When using
thesedevicesthevolumemust beadjusted withthewireless
headphonevolumecontrolorwithyourradio’svolumecontrol
(seepage 16, Wireless Headphones, orpage17, Wireless
FMModulator).
20. PICTURE SELECT Button – Allows the userenter the
pictureadjustment mode.
21. ( ) Button – Use this button to raise the volume level of
thewired headphonejacks.Aliso usedtoincrease levelsin
the picture adjust mode.
22. Infrared Transmitter and Sensor – Usetotransmitaudio
tothe wirelessheadphones. Alsoallows theremotecontrol
tooperate theVOD1221and tocontrolother accessoriesin
the system.
*Consult the PODTVTInstallation/Owner’sManual for optional
TVtunerinstructions.
Note : AUDIOVOX recommends the use of the AUDIOVOX
HP275Headphones whenusing wiredheadphones.
128-7431A
7 of 38
-7-

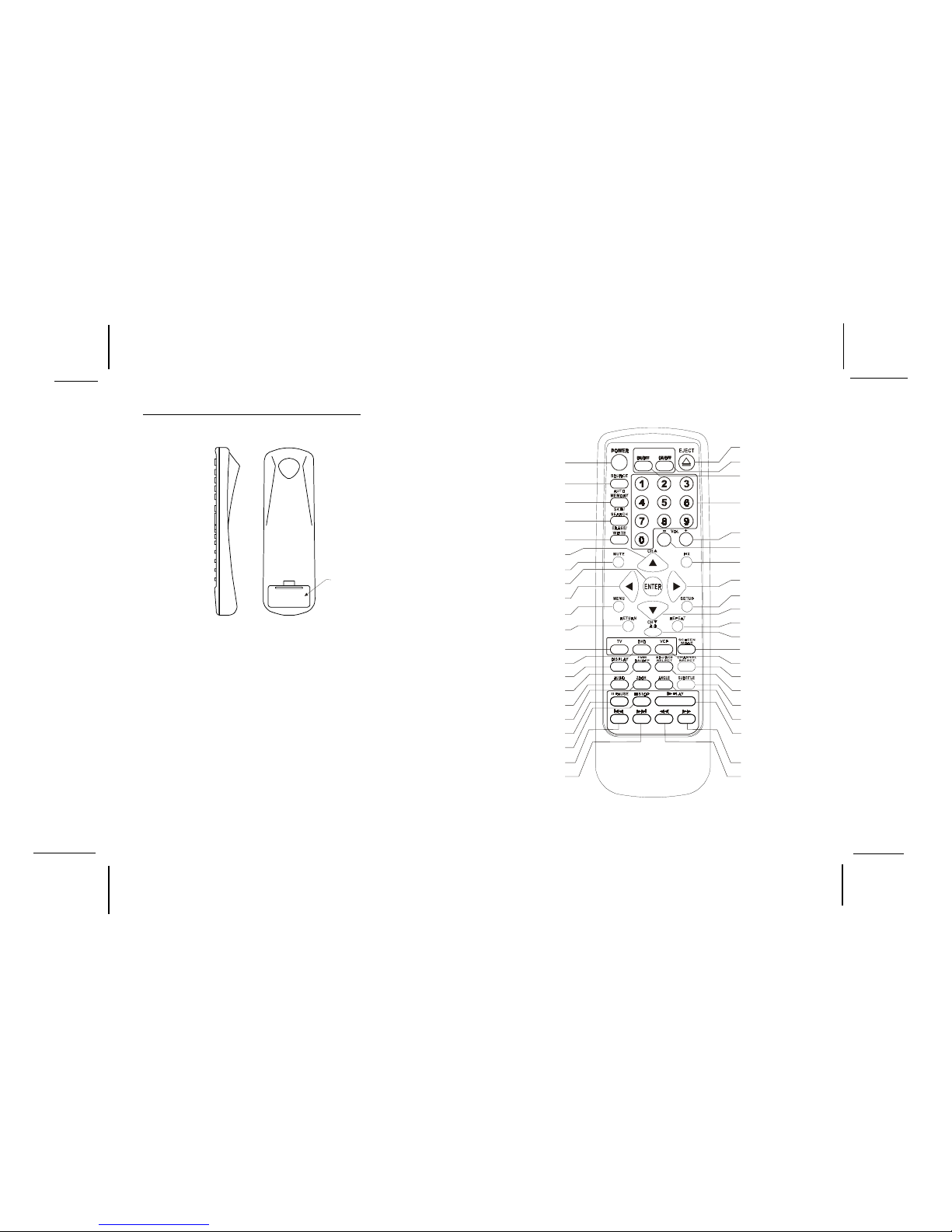

Battery Installation
Before attempting to operate your Remote Control, install the
batteriesas described below.
1)Turn the Remote Control facedown. Using a fingernail,
liftthe battery cover off.
2)Install two “AAA” batteries as shown. Make sure that
properpolarity (+ or -) isobserved.
3)Align the cover tabs with the remote control and press
down until the cover clicks.
The remote control will operate the VOD1221 and most
AUDIOVOX VCP’s. It is not a universal remote control and will
notcontrol equipment fromothermanufacturers.
Remote Control Operation
BATTERY COVER
146) 146*
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21 23
22
24
25
26
27
28
29
30
31
32
34
33
35
36
37
38
39
40
41
42
128-7431A
8 of 38
-8-
Remote Control Function Descriptions
* Function control is available on the unit and the remote control.
** Not used in this model
*** The TV Optionwillonly be displayed and theTVcontrol functions are only available iftheoptional TV Tuner (P/N PODTVT)is
installed. When the TV tuner is installed the AV2 input becomes inactive.
1. POWER Button*
Press this button to turn the VOD1221 on. Press the button again to turn the VOD1221 off.
2. SOURCE Button*
Each time the button is pressed, the audio / video source will change: DVD, AUX/GAME, AV1, AV2 or TV***.
3. AUTO MEMORY Button (AUTO PROGRAM Button)***
When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of
sufficentlevels are automatically stored inmemory.
4. SKIP/SEARCH Button**
Thisbutton selects betweeenSKIP and SEARCHmode.In “SKIP mode”the TV tunerwill tune andstopon channels thatare
programmed into memory when the CHANNEL UP/DOWN buttons are used. When the SKIP mode is disabled, the TV will
stop on all active channels.
5. ERASE/WRITE Button***
While tuned to a channel, pressing this button will store or erase the selected channel from memory. The stored channel
numbersare displayed in “GREEN” andtheerased channel numbers are displayedin“RED”.
6. Channel Up ( ) Button
Usethisbuttontoincrease the channel number*** to the desired channel and to scroll upward in menu options.
128-7431A
9 of 38
-9-
7. MUTE Button
Press this button to mute the audio.
Pressing the button again restores the sound to the previously set level.
8. ENTER Button
Used to implement a selected setting or menu option.
9. LEFT ( ) Button
Allows the user to shift left in the menu options.
10. MENUButton
Allows the user to access the DVD (DVD MODE) main menu and monitor menu (TV MODE).
11. RETURNButton**
12. TV Mode Select Button***
Switches certain function keys on the remote control for TV functions.
13. DVD Mode Select button
Switchescertainfunction keys on the remote control for DVD functions.
128-7431A
10 of 38
-10-
14. DISPLAYButton
PresstodisplayDVDDisccurrentinformation.
Press DISPLAY button DVDPlayerPerform
Once DisplaycurrentTITLE ,CHAPTER &elapsed time
Twice DisplaycurrentSUBTITLE
3 times DisplaycurrentAUDIOlanguage &channel
4 times Displaycurrentsurround mode
5 times Display currentANGLE
6 times DisplayA-B repeatstatus
7 times Display REPEAT status
8 times Displayoff
ForSubtitle,Audio, Surround,Angle,A -B& Repeat,pressEnter keyrepeatedlyto changetheoptions. Theseoptionsmay
varyfrom discto disc.
15. FM TRANSMITTER ON/OFF Button
Turns the wireless FM Modulatorpower on/off.
16. AUDIOButton
Press this button to display and select the desired AUDIO language. Each time the button is pressed, the language or track
changes.
NOTE: The languages & tracks you can select are vary from disc to disc.
