AXDVD1

DVD PLAYER

OWNER’S MANUAL

128-9004

TABLE OF CONTENTS

SAFETY INFORMATION……………………………………………………..4

FEATURES .................... ……………………………………………………..5

CONTENTS........................…………………………………………………..5

DISC NOTES………………………………..................……………………..6

Handling and Cleaning………………………………………...………………….........6

Disc Cleaning..............………………………………………...………………….........6

DVD Region Code .......………………………………………...………………….........6

INSTALLATION……………………………………………..............………..7

Remove Screws Before Installation ………………………...………………….........7

CONNECTIONS………...………………………………………….…………9

FRONT AND REAR PANEL CONTROLS, INDICATORS AND

CONNECTORS......................................................................................10

REMOTE CONTROL FUNCTIONS .........................................…..….....11

Remote Control Initial Use..... ……………………………...………………….........14

Battery Replacement ………………………………………...………………….........14

Using the Remote Control…………………………………...………………….........14

OPERATION………………………………………………………….....…...15

Basic Operation .....…………………………………………...………………….........15

DVD Operation ... ……………………………………………………..…………....…..15

TABLE OF CONTENTS

CD/MP3/VCD Operation....…………………………………………..…………....…..19

USB and Memory Card Operation ................................................................…..19

System Setup..... ……………………………………………………..…………....…..20

DVD Setup .......... ……………………………………………………..…………....…..20

System Setup Menu ...........................................................................................20

Language Setup .................................................................................................21

Audio Setup ........................................................................................................21

Video Setup ........................................................................................................21

Speaker Setup ....................................................................................................22

Digital Setup .......................................................................................................22

AV OPERATION………………………………………………………….……….……..23

TROUBLESHOOTING………………………………………...…....….…..24

SPECIFICATIONS……………………………………………………..…….25

WARRANTY .........................................................................................26

NOTES .................................................................................................27

Thank you for choosing the AXDVD1 DVD Player. TheAXDVD1 is designed to

optimize the enjoyment of your favorite DVDs in a mobile environment. This DVD

player is designed to provide years of reliable, trouble-free service. Please read this

manual thoroughly prior to operating the DVD player and save it for future reference.

SAFETY INFORMATION

Use This Product Safely.

Before attempting to connect or

operate this product, please read

the following instructions.

This DVD player has been designed and

manufactured to ensure personal safety.

Improper use can result in electric shock

or fire hazard. The safeguards

incorporated in this unit protect you if you

observe the following procedures for

installation, use and servicing. This unit

doesn’t contain any parts that can be

repaired by the user.

WARNING:

yTO REDUCE THE RISK OF FIRE OR

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS EQUIPMENT TO RAIN

OR MOISTURE.

yTO REDUCE THE RISK OF

ELECTRICAL INTERFERENCE, USE

ONLY THE RECOMMENDED

ACCESSORIES.

CAUTION:

THIS DVD PLAYER IS ACLASS I LASER

PRODUCT. HOWEVER THIS DVD

PLAYER USES AVISIBLE/INVISIBLE

LASER BEAM WHICH COULD CAUSE

HAZARDOUS RADIATION EXPOSURE.

BE SURE TO OPERATE THE DVD

PLAYER CORRECTLYAS INSTRUCTED.

USE OF CONTROLS, OR PERFORMING

ADJUSTMENTS OR PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERSAND DO NOT

ATTEMPT TO REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED

PERSONNEL.

Use the Proper Power Supply

This product is designed to operate with a

12 volt DC, negative ground battery

system.

Disc Mechanism

Avoid inserting any foreign objects into the

slot of this DVD player. Failure to observe

this may cause the DVD player to

malfunction.

FEATURES

zCompatible with PAL and NTSC. This

DVD player can play discs recorded in

either PAL or NTSC format.

zLeft/Right stereo analog audio outputs

for connection to an existing head unit

aux inputs. Video output is composite

video.

zSupplied remote control provides

multi-function operation such as

(multi-language audio-track/subtitle,

multi-angle, etc.),

zSupports Playback Control functions

such as: Play, Pause, Stop, Fast

Forward Playback, Fast Reverse.

CONTENTS

1. AXDVD1 DVD Player (1)

2. Remote Control (1)

3. CR2025 Lithium Battery (1)

4. L- Bracket (2)

5. Screws M3X15mm (4)

6. Screws M3X5mm (4)

zBacklit controls

zPlays DVD, CD and MP3 discs

zLast position memory for DVD

zUSB slot and SD card slot

zAudio/Video input jack

zAV output via RCA jacks

zTwo aspect ratios 16:9 and 4:3

7. External Remote Sensor Cable (1)

8. Audio/Video Output Cable (1)

9. Audio/Video Input Cable (3.5mm to

RCA) (1)

10. DC Power Cable (1)

11. User Manual (1)

DISC NOTES

yTo get the optimum use out of the DVD

player, make sure you read this section

completely.

Handling and Cleaning

yDirt, dust, scratches and warped discs

may cause the DVD player to

malfunction.

yDo not place stickers on discs.

yA disc should always be kept in its case

when not in use to prevent damage.

yDo not place discs in the following

places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3. Near car heaters.

4. On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the disc

surface. If the disc is quite dirty, use a

soft cloth slightly moistened with

isopropyl (rubbing) alcohol. Never use

solvents such as benzine, thinners or

conventional record cleaners as they

may damage the surface of the disc.

Note:

A disc may become somewhat

scratched (although not enough to make

it unusable) depending on the way it is

handled and conditions in the usage

environment. Scratched discs may result

in improper playback but this not an

indication of a problem with the DVD

player.

DVD Region Code

The DVD player is preset to a region code

at the factory depending on where the DVD

player is sold. A DVD from a different region

cannot be played and the DVD player will

display “WRONG REGION”.

Region 1 - USA, Canada

Region 2 - Japan, Europe, South Africa, Middle East,

Greenland

Region 3 - S. Korea, Taiwan, Hong Kong, Parts of South East

Asia

Region 4 - Australia, New Zealand, Latin America (including

Mexico)

Region 5 - Eastern Europe, Russia, India, Africa

Region 6 - China

INSTALLATION

REMOVESCREWS BEFORE INSTALLATION

Before installing the unit, please remove

the two transport screws.

The unit should be installed in a horizontal

position with the front end up at a

convenient angle, but not more than 300.

Screws are provided to attach the DVD

player to the (2) L- brackets. Fasten the

unit to the L-brackets brackets by aligning

the screw holes on the L-brackets with the

screw holes on the unit. Refer to following

figure.

Tighten the screws on each side of the

DVD player. Self tapping screws are

provided to mount the L-brackets in a

vehicle. When connecting power and

ground in a mobile video installation

ensure that the ACC and BAT wire are

fused at the point where it is connected to

the vehicle ACC and Battery wiring.

Failure to do so can result in damage to

the vehicle if a short circuit develops

between the vehicle connection point and

the mobile video product.

yChoose the mounting location where

the DVD player will not interfere with

the normal driving function of the

driver.

yBefore finally installing the DVD player,

connect the wiring temporarily and

make sure it is connected correctly

and the DVD player and the system

work properly.

yUse only the parts included with the

DVD player to ensure proper

installation. The use of unauthorized

parts can cause malfunctions.

yInstall the unit where it does not get in

the driver’s way and cannot injure the

passenger in the event of an

emergency stop.

yAvoid installing the unit where it would

be subject to high temperatures, such

as from direct sunlight or from hot air

from the vehicle heater. Also avoid

locations where the unit would be

subjected to dust, dirt or excessive

vibration.

Take out screw

before installation.

INSTALLATION

1. Powering your DVD player

(Refer to the Connections illustration)

Connect the black wire (-) to the vehicle

ground. Connect the red wire (+) to a switched

(Accessory) 12VDC source. Connect the

yellow wire to a Battery (Constant +12VDC)

connection. Plug the other end into the 12VDC

input jack on the back of the DVD player.

2. Remote IR Receiver

(Refer to the Connections illustration)

Plug the 1/8” plug on the remote IR cable into

the IR IN jack on the back of the DVD player.

3. Connecting to a Monitor

Match the color-coded plugs to the appropriate

jacks on the back of the DVD playerA/V

OUTPUT jacks: Yellow (video) to Yellow, White

(left audio) to White, and Red (right audio) to

Red.

4. Connecting an External Video Source

To connect a video game or another

audio/video source, plug the A/V cable

into the A/V input jack on the front or rear

panel of the DVD player.

CONNECTIONS

Video connections to a monitor can be done with RCA-type video connections. As a

precaution, be sure to turn off the power of the DVD player and the monitor(s) before

making any connections.

Audio connections can use either the coaxial connector (digital audio) or the RCAtype

connectors (analog audio).

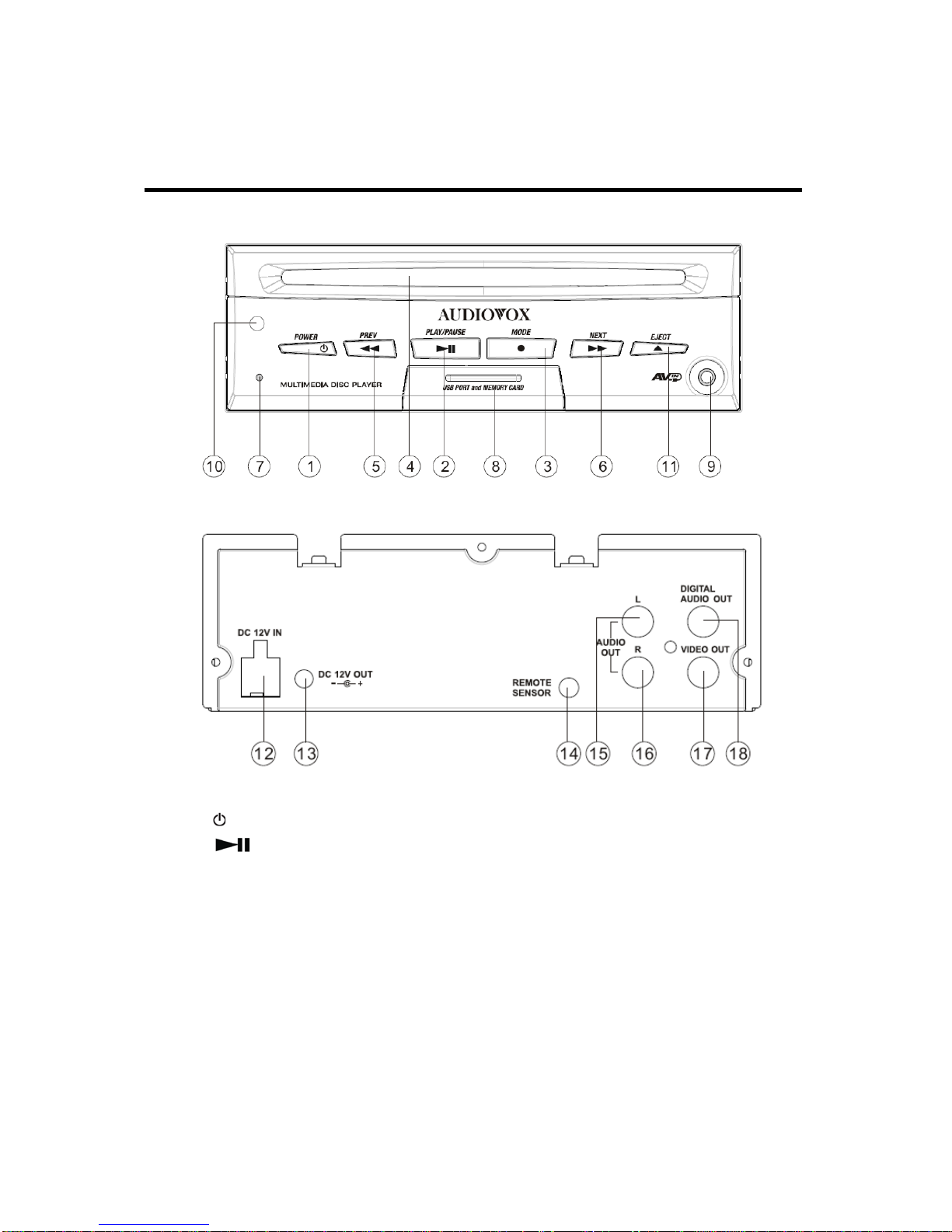

FRONT AND REAR PANEL CONTROLS, INDICATORS

AND CONNECTORS

Front panel:

Rear panel:

1. POWER button

2. (Play/Pause) button

3. MODE button

4. Disc Slot

5. WW button

6. XX button

7. Reset button

8. USB and Memory Card insert

cover

9. AV IN jack

10. Remote Sensor

11. EJECT button

12. DC 12V IN jack

13. DC 12V OUT jack

14. REMOTE SENSOR jack

(Used to connect the

external remote sensor)

15. AUDIO OUT Left jack

16. AUDIO OUT Right jack

17. VIDEO OUT jack

18. DIGITALAUDIO OUT jack

Indice

Altri manuali Audiovox Lettore DVD

Audiovox

Audiovox VOH10FR Manuale utente

Audiovox

Audiovox 3200 Istruzioni per l'installazione

Audiovox

Audiovox AVD400A - AVD 400A - DVD Player Manuale utente

Audiovox

Audiovox DVD3200 Istruzioni per l'installazione

Audiovox

Audiovox VOD715 - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox AVXMTG 10U Manuale utente

Audiovox

Audiovox VE 1020E Manuale utente

Audiovox

Audiovox VOD916 - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox DVD Home Theater System Manuale utente

Audiovox

Audiovox Dvd3100 Manuale utente

Audiovox

Audiovox AVD300T Manuale utente

Audiovox

Audiovox VOD85 - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox 1286970 Manuale utente

Audiovox

Audiovox VOD1023 - 10.2 Inch Dropdown Mobile Video... Manuale utente

Audiovox

Audiovox AVD400TA Manuale utente

Audiovox

Audiovox ADV48 Manuale utente

Audiovox

Audiovox VOD122 - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox PVS6360 Manuale utente

Audiovox

Audiovox VOH8512 Manuale utente

Audiovox

Audiovox VE920 Manuale di servizio

Audiovox

Audiovox AVDHD Manuale utente

Audiovox

Audiovox D1730 Manuale utente

Audiovox

Audiovox AVXMTG9B/P/S Manuale utente

Audiovox

Audiovox MMDV4 Manuale utente

Manuali Lettore DVD popolari di altre marche

Sony

Sony DVP-F11 Manuale utente

Philips

Philips DVP3560K/F8 Manuale utente

LENCO

LENCO DVP-740 X2 Manuale utente

JVC

JVC XV-N650BEU Manuale utente

Aiwa

Aiwa XD-DV370 Manuale utente

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuale utente

Denon

Denon DVM-1805 - DVD Changer Manuale utente

Toshiba

Toshiba SD-3815 Manuale utente

Tevion

Tevion 44330 Manuale utente

Samsung

Samsung DVD-HD860 Manuale utente

Sylvania

Sylvania DP170SL8 Manuale utente

Toshiba

Toshiba SD-P1200 Manuale utente

JVC

JVC XV-D9000E Manuale utente

Dolby Laboratories

Dolby Laboratories CP650 Manuale utente

Philips

Philips DVD737K/931 Manuale utente

Denon

Denon DVD-5900 Manuale utente

Philips

Philips DVD 951 Manuale utente

Philips

Philips DVDR3460 Manuale utente
