20” LCD TV
For assistance, please call: 1-800-619-3848
Or visit us at http://www.audiovox.com
128-7354
Contents Index
Congratulations on your purchase of this LCD TV.
We recommend that you read this manual thoroughly before use to fully enjoy the
many functions and excellent features of this unit.
Keep this manual in an easily accessible location for future reference.
Note:Screen displays and illustrations in this manual may differ from the actual
model.
Overview 3
Important safety information 4
Important safety cautions 5
Accessories 7
Identification of controls 8
Control buttons 8
Back 9
Remote control 10
Installation 12
Basic operations 19
Main on-screen-display (OSD) introduction 20
2
Operations 21
Picture adjustment 21
System setting 22
Audio setting 27
Channel setting 29
Selecting channel 31
OSD setting 32
Timer setting 33
Operations in YbPr mode 34
TV troubleshooting 36
Notices 40
Maintenance/repair 41
Specifications 42
3
Overview
General Description
This Audiovox product is a Color Active Matrix liquid Crystal Display (LCD) with an integral
Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a Thin Film
Transistor (TFT) as the active element. This TFT-LCD has a 20.1 inch diagonally measured
active display area with a native 640x480 pixel resolution. Each pixel is divided into red,
blue, and green sub-pixels which are arranged in vertical stripes. The color palette is
capable of more then 16.7 million colors.
This Audiovox product incorporates a tilt stand that can be removed for easy wall mounting.
The wall mounting compatibility of this product is completed by incorporating a VESA 100
wall mount standard bolt configuration. A separate VESA 100 compatible wall mount kit will
be required to properly secure the unit to the wall.
This units has a great viewing angle allowing the unit to be seen at almost any viewing angle
with minimal loss in picture quality. The high brightness and contrast ratio will make this TV
a pleasure to watch.
4
The lightning flash with the arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “DANGEROUS
VOLTAGE” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The Exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing instructions in
the literature accompanying the product).
This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications If this equipment does cause or receive interference, which can be determined by
turning equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the TV antenna
Increase the separation between TV and other equipment.
Connect TV into separate outlet from equipment.
Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment
Federal Communication Commission
Important Safety Information
Important Safety Cautions
When any unusual situation occurs, turn off the power supply at once and remove
the plug from the wall outlet. Contact a qualified service department in your local
area.
Do not expose this unit in the rain or spatter by liquid. Do not use this product near
water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, and the like. Do not use immediately after
moving from a low temperature to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other hazards.
Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves
and other heat generating products (including amplifiers).
Requirement of environment temperature:
o o o o
0 C~50 C for storage; 5 C~40 C for working
The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer's instructions are followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Do not place the product on an unstable trolley, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a trolley,
stand, tripod, and bracket or table recommended by the manufacturer or sold with
the product.
5
When relocating the product placed on a trolley, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surfaces can cause the
product to fall from the trolley.
The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product. Power-
supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at
doors, plugs, receptacles, and the point where they exit from the product.
If the power cord or the plug is damaged contact a qualified service department for
service.
High Voltage exists in this TV set. Do not remove the cover.
In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will prevent damage to the equipment
due to lightning and power-line surges.
The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
Don't try to push anything into the cabinet or place any vessel with water on the TV
set.
Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
6
Important Safety Cautions
7
Important Safety Cautions
Important Information Regarding use of
Video Games, Computer, captions or other
fixed images displays
The extended use of a fixed image program material can cause permanent “Shadow Image” on
the LCD panel. The background image is viewable on normal programs in the form of stationary
fixed images. This type of irreversible LCD panel deterioration can be limited by observing the
following steps:
* Reduce the Brightness and Contrast settings to a minimum viewing level
* DO NOT display the fixed image for extended periods of time
* Turn the power OFF when not in actual use
Recycling
This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of
mercury. Disposal of these materials may be regulated in your community due to environmental
considerations. For disposal or recycling information please contact your local authorities, or the
Electronics Industries Alliance Environment at: http://www.eiae.org/
Accessories
1.. FPE2000 TV unit
2.. Power adaptor (AC/DC)
3.. AC Power cord
4.. Remote Control (Model Specific)
5.. Batteries
6.. Audio/Video cable (RCA)
Identification of controls
Control buttons
Power On/
Standby
Control Panel
Power Indicator
Remote Sensor
Speaker
Select Input Signal
Menu
Volume Down/Up
Channel Down/Up
Speaker
SOURCE MENU CHCH VOL VOL
Note:
1. SOURCE
To access the SOURCE select menu
2. MENU
Press this button to access the MENU main page.
3. CH +/-
Change the TV channel.
In OSD Menu, press these buttons to choose the OSD items.
4. VOL +/-
Increase or decrease the sound volume level.
In OSD Menu, press these buttons to adjust the value or setting of each item
5. POWER ( )
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to
STANDBY.
SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the
corresponding buttons on the remote control.
This operation manual provides a description based on operating functions with the remote control.
The Power Indicator light will glow
yellow when the set is turned on,
and glows red when the set is in
the standby mode.
8
Back
RF
124567
1. DC POWER input
Connect to the DC output of the Power Adapter.
2. HDTV input (Y, Pb, Pr, Audio L, R)
Connect to the Y/Pb/Pr (or Y/Cb/Cr) and audio output jacks of a Set-Top Box or DVD player.
3. Headphone 3.5mm jack
4. AV outputs (Video, Audio L, R)
Connect to the VCR input jacks to record programs.
DC 12V -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV INHDTV IN
VIDE O VIDEO
6. S-Video input
Receive a S-Video signal from external source such as VCR or DVD player.
5. AV inputs (Video, Audio L, R)
Receive video/audio signals from external sources such as VCR or DVD player.
3
7.Coaxial cable & Antenna input
9
Identification of controls (continued)

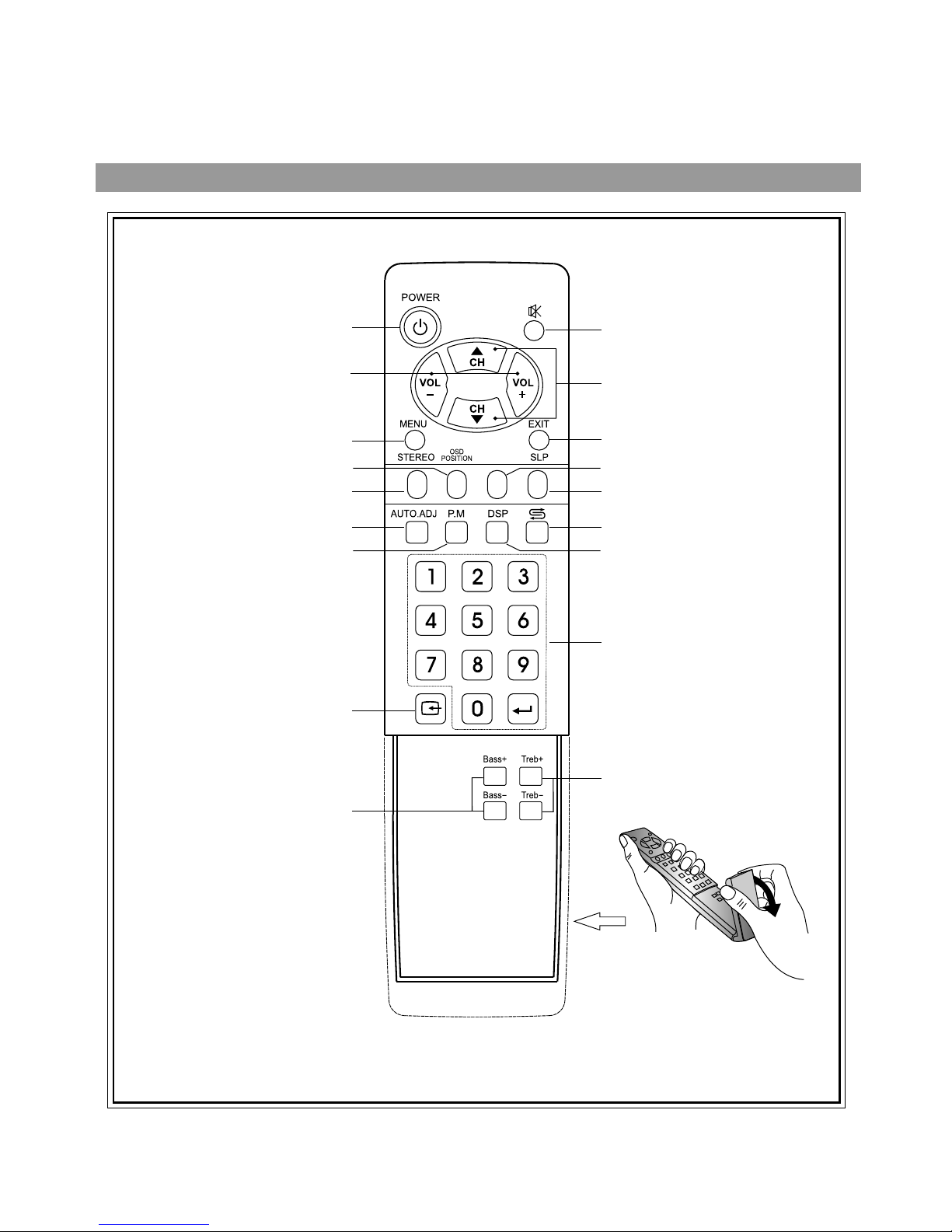

Remote Control
Display the current state
Mute
Previous channel
Auto correct picture
Channel up/down selector.
In menu operations, used
to select item.
Power on/standby
Direct channel selector
Select the input signal source
Setting sleep timer
Exit the menu
Sound preset mode selector
Change audio to mono, stereo or SAP
Volume up/down selector;
In the menu operation,
adjust the selected item
Access the menu
10
Select OSD menu position
Adjust the bass
Adjust the treble
Flip the cover open in
the arrow direction.
Select picture mode between
Bright, Nature, Soft & User
S.M
