Audiovox FPE3000 Manuale utente
Before operating the unit, please read this manual thoroughly.
FPE3000
Owner's Manual
LCD TV
128-7081
Contents
Congratulations on your purchase of this LCD TV.
We recommend that you thoroughly read this manual before use to fully enjoy the
many functions and excellent effects of this LCD TV.
Retain this manual in an easily accessible location for future reference.
Note: Screen displays and illustrations in this manual may differ from the actual
ones for better visibility.
2
Contents
Important safety cautions...................5
Identification of controls .......................8
Antenna connection............................ 12
Installation....................................13
Menu introduction......................................19
Turning On/Off / Selecting input signal......21
Operations in TV mode.....................22
Channel Preset ...................................22
Channel Select .....................................23
Picture adjustment................................24
Sound adjustment...................................25
System Setup...........................................26
Timer setting............................................28
CCD setting............................................29
V-chip setting .................................30
Adjustment in YPbPr mode........................32
Adjustment in PC mode ............................33
Troubleshooting .........................35
Specifications........................................41
3

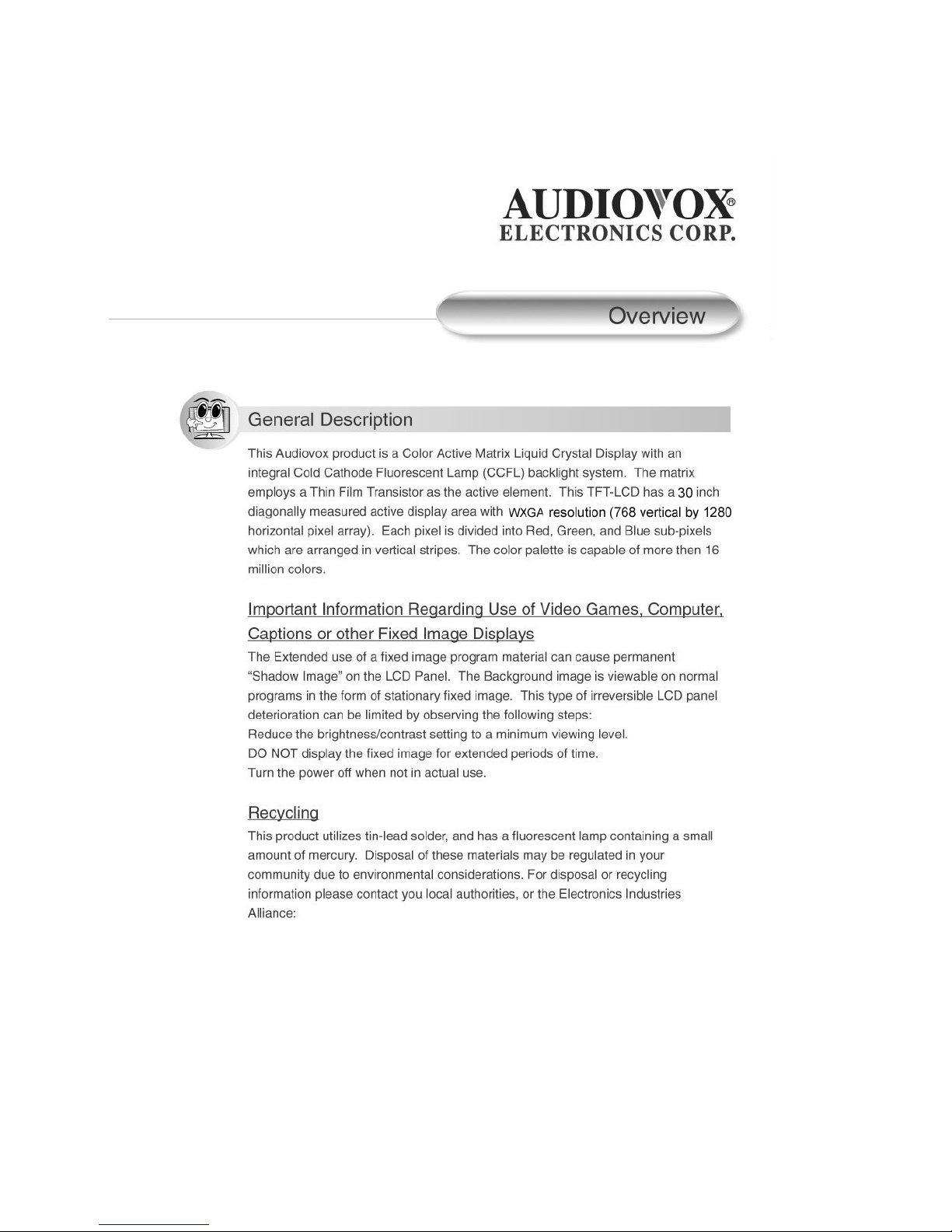

4

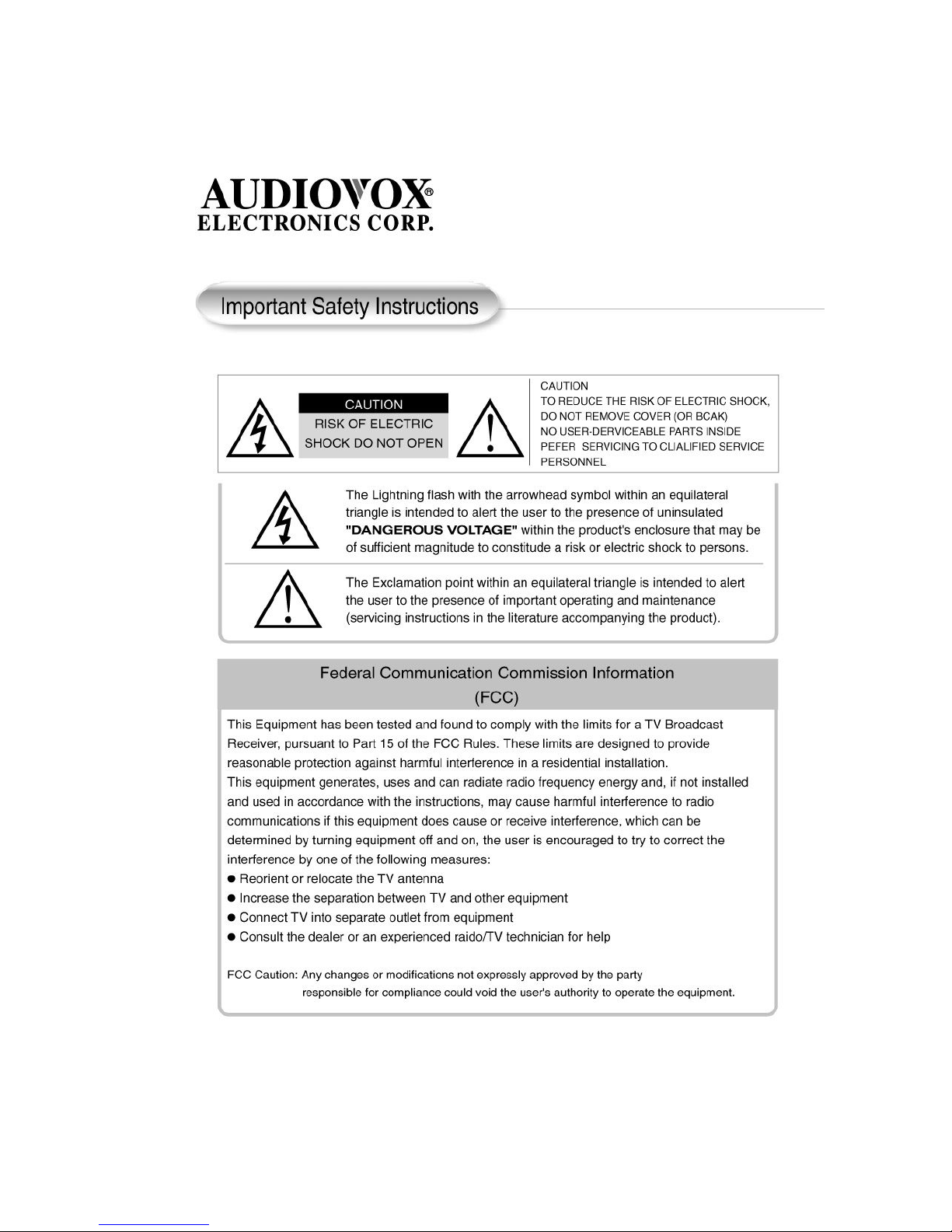

Important Safety Cautions
When any unusual situation occurs, turn off the power supply at once and remove
the plug from the wall outlet. Contact a qualified service department in your local
area.
Do not expose this unit in the rain or spatter by liquid. Do not use this product near
water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, and the like. Do not use immediately after
moving from a low temperature to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other hazards.
Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves
and other heat generating products (including amplifiers).
Requirement of environment temperature:
oo oo
20 C~50 C for storage; 0 C~40 C for working
The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer's instructions are followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Do not place the product on an unstable trolley, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a trolley,
stand, tripod, and bracket or table recommended by the manufacturer or sold with
the product.
5
This TV set operates on power of 120V, 60Hz. You must not use a power supply of any
other type.
When relocating the product placed on a trolley, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surfaces can cause the
product to fall from the trolley.
The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product. Power-
supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at
doors, plugs, receptacles, and the point where they exit from the product.
If the power cord or the plug is damaged contact a qualified service department for
service.
High Voltage exists in this TV set. Do not remove the cover.
In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will prevent damage to the equipment
due to lightning and power-line surges.
The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
Don't try to push anything into the cabinet or place any vessel with water on the TV
set.
Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
6

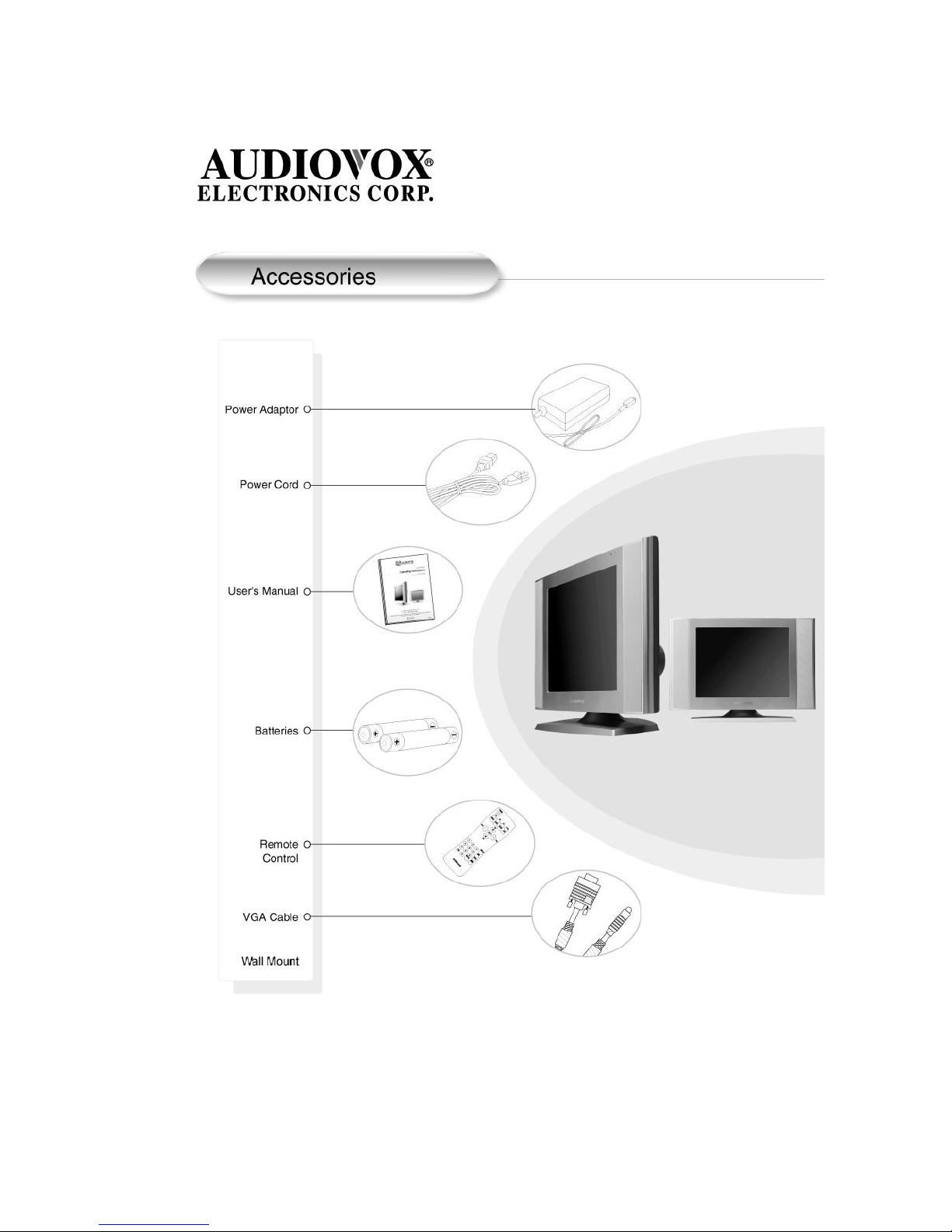

7
Front
Identification of controls
Remote sensor
On/Standby
Indicator Light
SOURCE MENU CH CH VOL VOL POWER
To enter into MENU
Volume down Power on/ Standby
Volume up
Channel down
Channel up
To select input signal
8
DVD input
(480i)
PC audio
line in
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
LLPHONE
AV
R
HDTV
L
YPb Pr
R
L
VIDEO
VGA
YCb Cr
R
L
-
S VIDEO ANT IN LINE IN
L
VIDEO
PHONE
AV
R
HDTV
L
YPb Pr
R
L
S-video input
Video
input
DC input
from power
supply
VGA input Antenna input Earphone
jack
Speaker
outputs
HDTV Audio inputs
Audio inputs
HDTV YPbPr
inputs (480p,
720p,1080i)
Back
DC +24V
+12V
+5V
9
Identification of controls(continued)

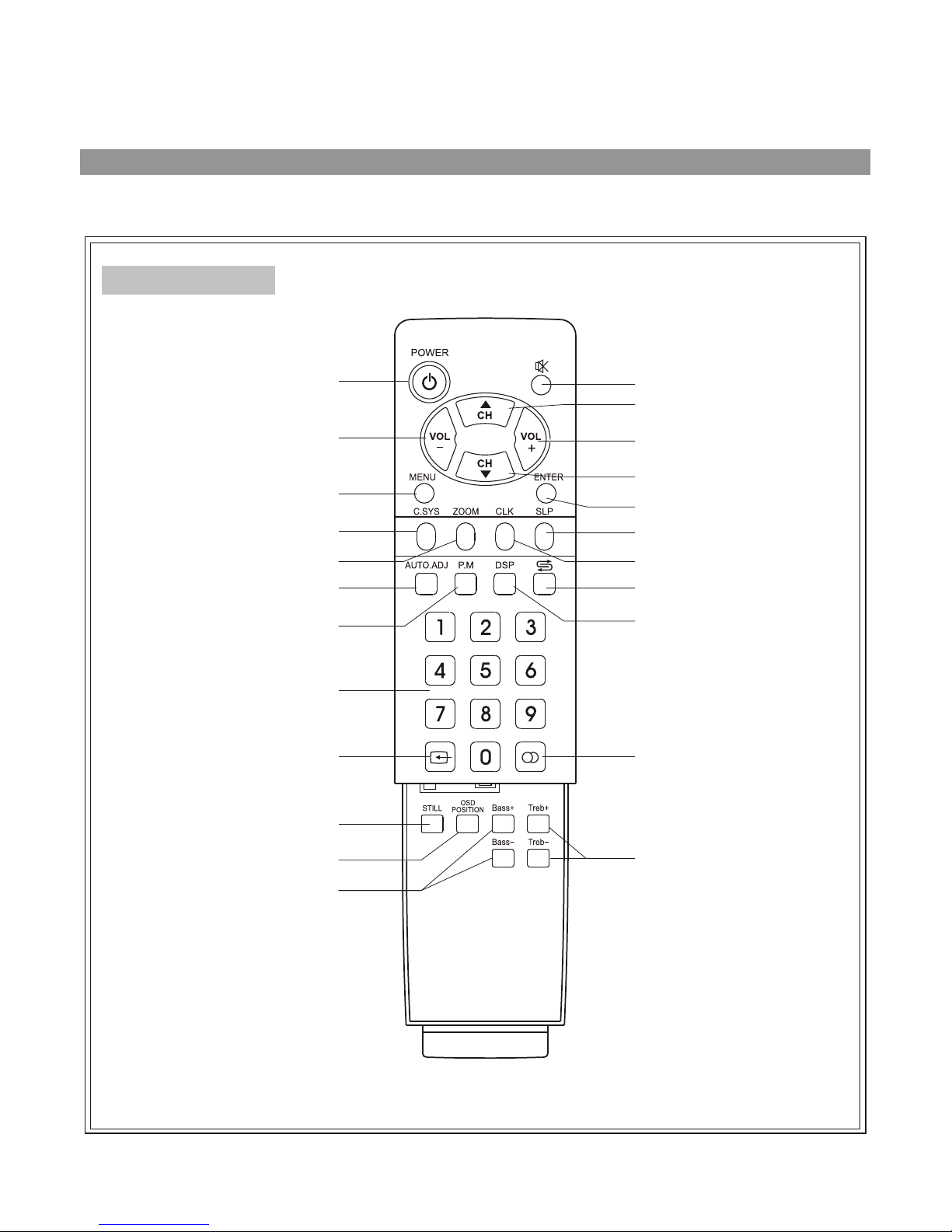

Remote Control
power on/Standby
Volume down
To enter into MENU
Colour/ sound
system select
Zoom mode select
Auto correct picture
Picture mode select
Keypad
Video Input select
Still picture
OSD position select
Adjusting Bass
Adjusting Treble
Sound mute
Volume up
To exit/selectOSD menu
Sleep timer
Clock/Timer setting
Previous channel (recall)
Channel up
Channel down
On-screen display (info)
10
To select MONO/SAP/
STEREO (TV only)
