Audiovox VBP3800 Manuale utente

VBP3800

VIDEO IN A BAG SYSTEM WITH

5" LCD MONITOR & DVD PLAYER

SAFETY PRECAUTION

Do not change video media while the vehicle is in motion. Do not allow

children to unfasten seat-belts to change video media or make any

adjustments to the system. Enjoy your entertainment system but al-

ways remember the safety of all passengers remains the number one

priority.

IMPORTANT NOTICE

It is unlawful in most jurisdictions for a person to drive a motor vehicle

which is equipped with a television viewer or screen that is located in

the motor vehicle at any point forward of the back of the driver’s seat,

or that is visible, directly or indirectly, to the driver while operating the

vehicle. In the interest of safety, this system should never be installed

where it will be visible, directly or indirectly, by the operator of the mo-

tor vehicle.

A. Introduction

Thank you for selecting the VBP3800 “Video in a Bag” System.

Please read the entire instruction manual supplied with this product

prior to operation. It will assist you in installing the system properly

and obtaining the best equipment performance. All manuals should

be stored for later use. The system's main features include a 5"

Liquid Crystal Display (LCD) monitor and a DVD player. The sys-

tem utilizes the latest state of the art electronics and is designed for

use in vehicles, hotels, offices or your home. The VBP3800 Video

in a Bag is built to provide years of reliable, trouble-free service. It is

compact so that you can take it with you anywhere and is designed

for quick and easy installation. Additional monitors*(AUDIOVOX

VBPEX56) can be purchased and added to the system allowing you

to utilize up to 3 monitors at once. Simply plug the addition monitor

into the system and you are ready to play.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. To prevent it from falling, do not place the set on

an unstable cart, stand, tripod, bracket or table. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the VBP3800 is installed in accordance with the in-

structions and illustrations provided in this manual. When the main

unit is in the bag, the latch of the bag must be fastened to prevent

the unit from falling out. The “S” hooks and all straps must be fas-

tened correctly to secure the system in the vehicle. Operate the

“Video in a Bag” System with the bag open to ensure proper venti-

lation of the monitor and the DVD player. The system is intended to

be mounted for rear seat viewing only. Do not use the system in

the front seat while operating your vehicle.

*NOTE: For home use, the AC/DC power supply that comes with the

VBP3800 can only supply the main unit. If an additional monitor is used,

you must use the AC/DC power supply that is included in all optional

screens.

3. Power

This system MUST be powered from the type of switched (Acces-

sory) power indicated on the marking label (i.e. not directly from the

car battery). Power should be applied to the unit when the ignition

key is in the Run and/or Accessory positions. To prevent battery

discharge, disconnect the “Video in a Bag” System jack from the

cigarette lighter socket when the unit is not in use. Use only the

supplied power cable matching this set to avoid electric hazards.

Always disconnect the power source first and then the jack from the

system.

4. Object and Liquid

Do not push objects of any kind into the system through openings;

do not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on the

unit. To ensure proper ventilation and proper operation, never cover

or block the slots and openings with a cloth or other material.

5. Disassemble

Do not attempt to disassemble the cabinet. There is a risk of electric

shock and/or exposure to Laser Radiation. Contact qualified ser-

vice personnel if your system is in need of repair.

6. Cleaning Unit

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

7. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick paper,

tape or glue on the disc. Do not expose the disc to direct sunlight or

heat sources such as hot air ducts. Do not touch the surface of disc.

Handle the disc by its edge. Clean the disc by wiping the disc from

the center out with a cleaning cloth. Remove the disc from the unit

and store it in its case after playing. Some playback operations of

discs may be intentionally fixed by software producers. Since this

unit plays discs according to the disc contents the software pro-

ducers designed, some playback features may not be available.

Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x Monitor & DVD Player Combo

2. 1 x AC to DC Adapter

3. 1 x Cigarette Lighter Adapter

4. 1 x Remote Control W/battery CR2025

5. 1 x Mounting Bag with 4 Straps

6. 1 x Travel bag

7. 1 x Instruction Manual

D. Power Source

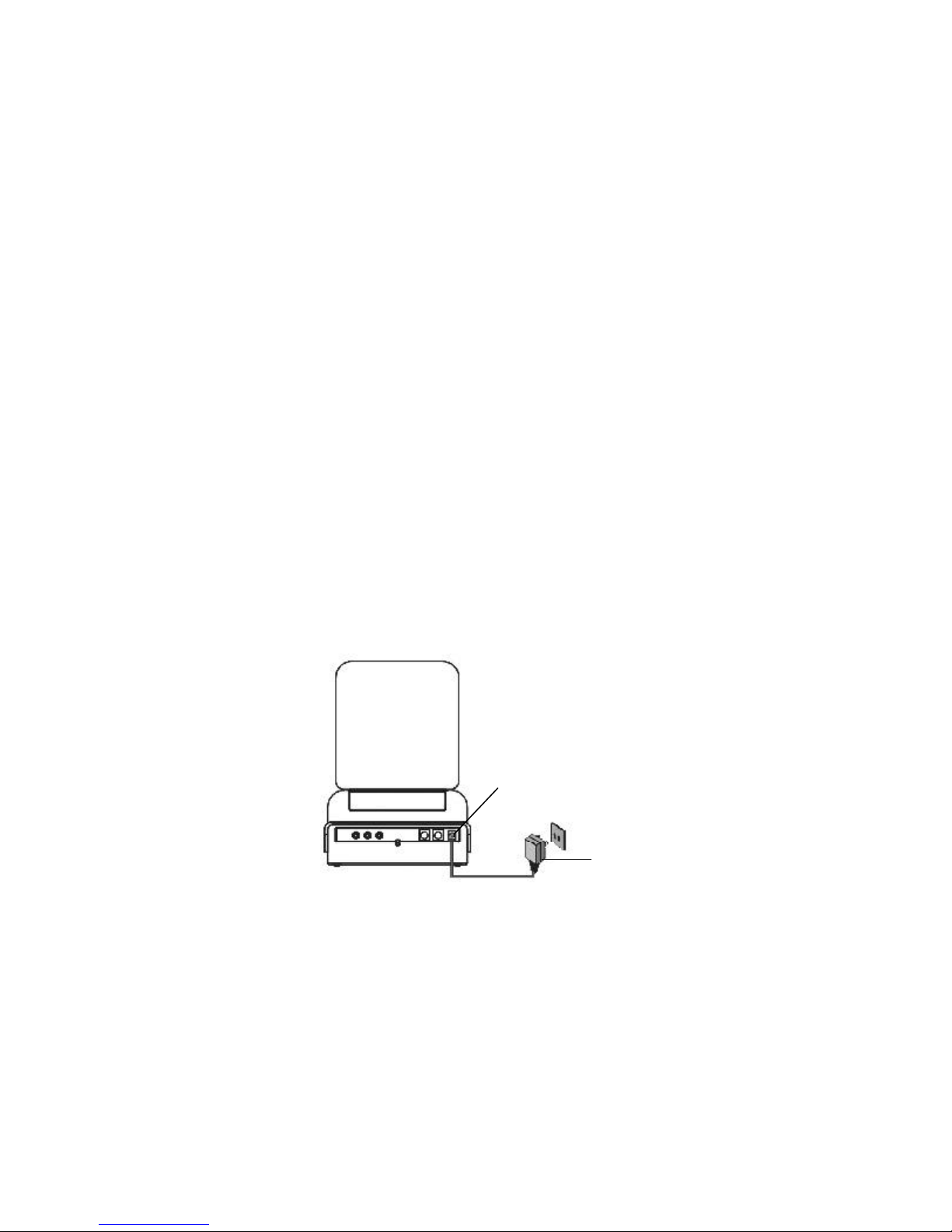

1. Powering the system indoors (Refer to Figure 1)

Figure 1.

Unzip the lower compartment of the bag and take out the AC to DC

adapter. Plug one end of the AC to DC adapter into the DC 12V

Input jack on the rear right side of the main unit, then plug the other

end into the 110V AC power receptacle.

AC/DC

Adapter

DC Input

Jack

E. Installation

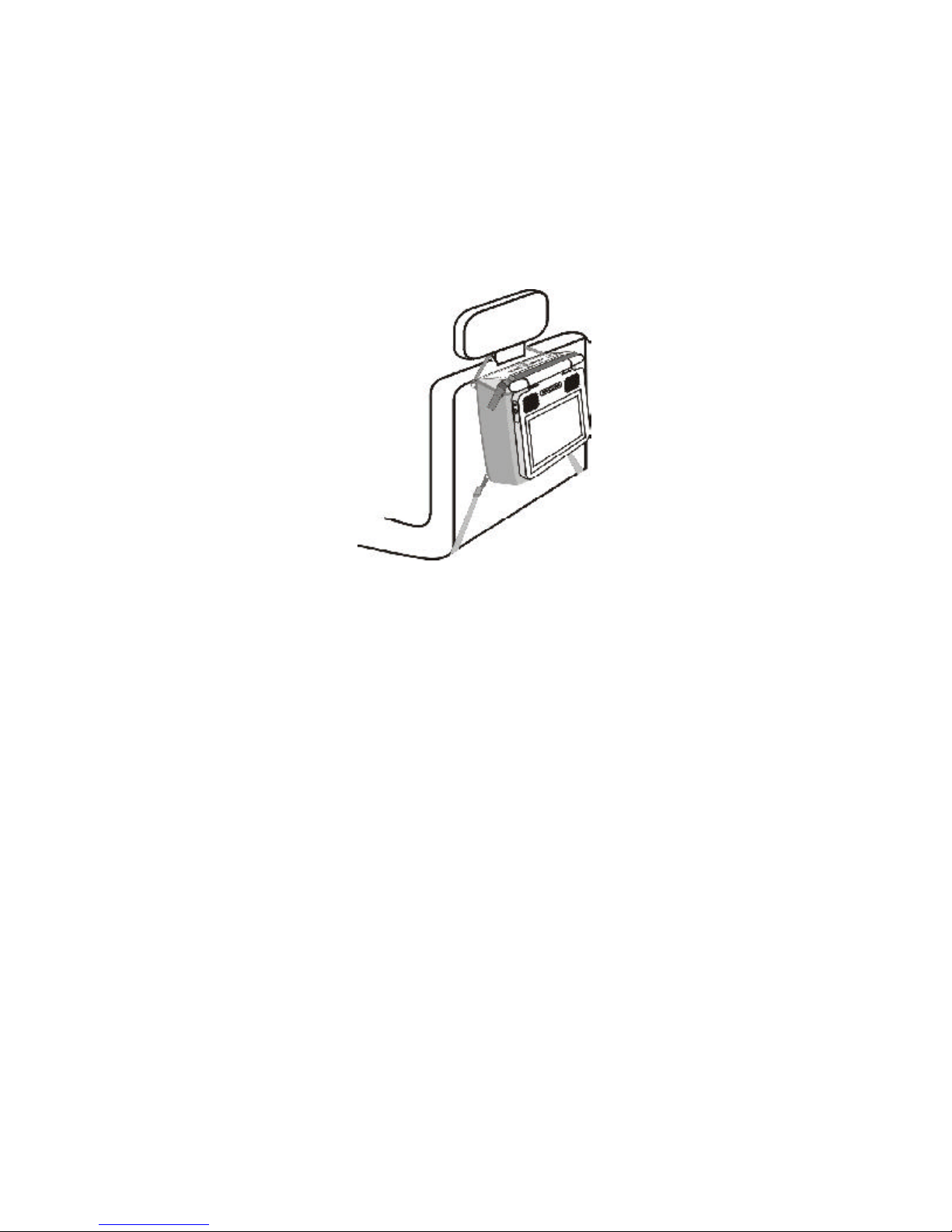

1.Installing the System onto the seat back in a car

(Refer to Figure 2)

Figure 2.

1. Unfasten the Velcro strap on the rear of the bag. Fold the

strap into the shape of a triangle and fasten it to the lower

Velcro strip.

2. Take one of the supplied straps from the lower compartment.

Connect the latch to one of the upper metal rings on the

mounting bag. Connect the “S” hook to the other upper metal

ring and place the loop over the headrest. Adjust the strap

until the bag is firmly secured.

3. Take one of the supplied straps from the lower compartment

of the bag, and connect the latch to the lower metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the seat rail. Repeat this pro-

cess for the right side. In some vehicles, it may be neces-

sary to attach the “S” connector to the rail directly, as it may

not be long enough to reach back to the ring.

4. Adjust the straps tightly so that the bag is secured.

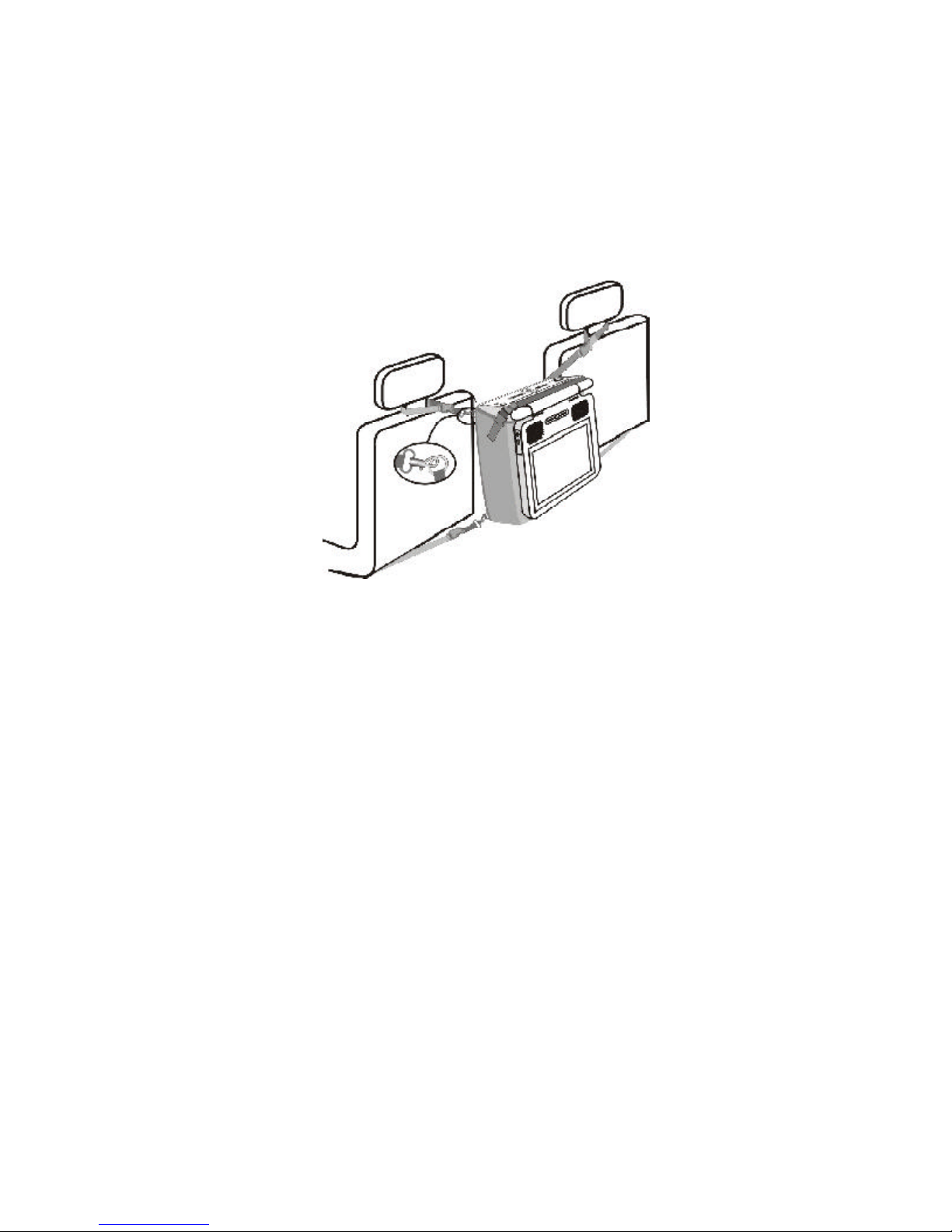

1. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure 3.

1. Take one of the supplied straps from the lower compartment

of the bag, and connect the latch to the upper metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the headrest of the driver’s seat.

Repeat this process for the right side (Passenger Seat).

2. Take another strap and connect the latch to lower metal ring

on the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the driver’s seat rail. Repeat

this process for the right side. In some vehicles, it may be

necessary to attach the “S” connector directly to the rail, as it

may not be long enough to reach back to the ring.

3. Adjust the straps tightly so that the bag is secured.

4. Swing the monitor upwards and adjust the screen for the de-

sired viewing angle.

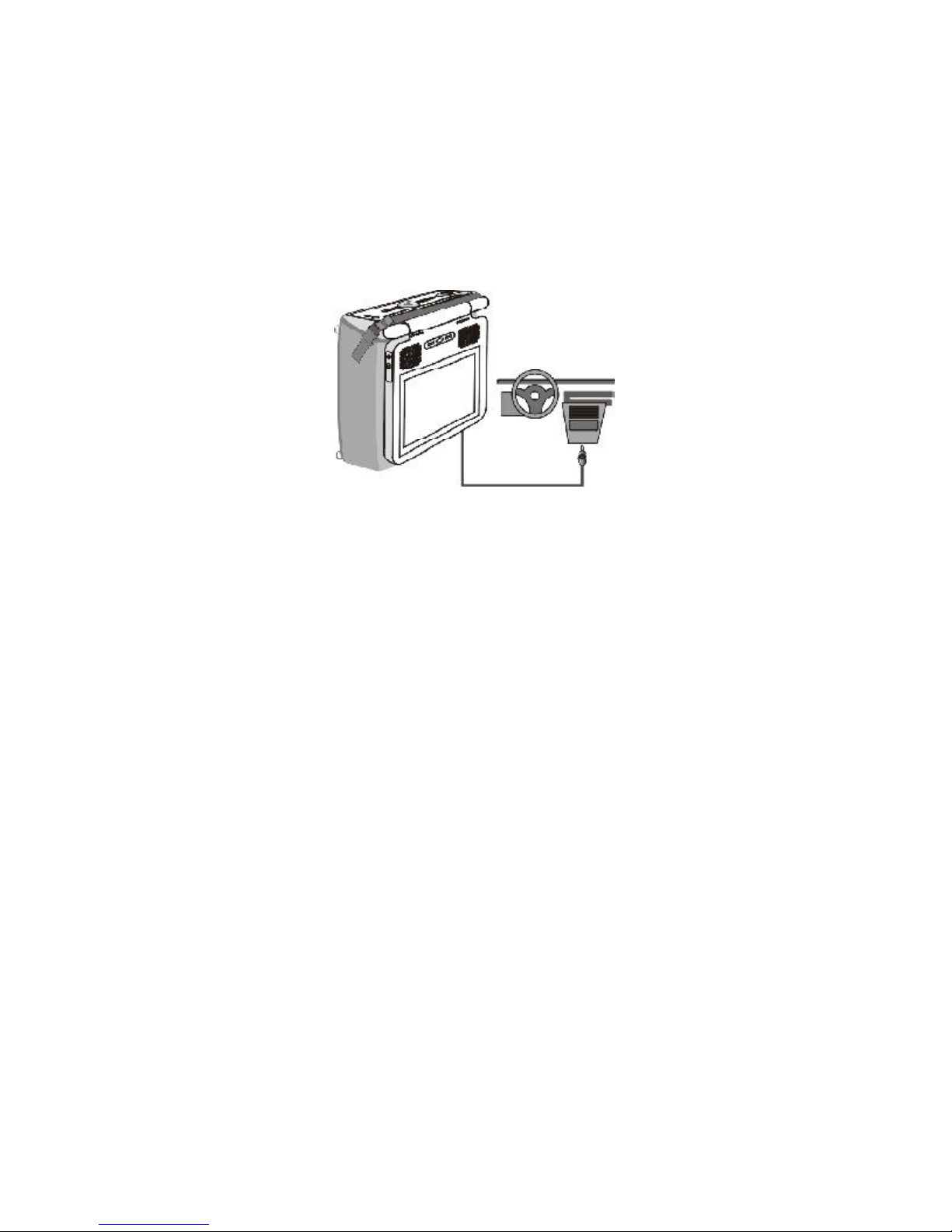

2. Powering the system in the vehicle (Refer to Figure 2)

Figure 4.

Unzip the lower compartment of the bag and take out the cigarette

lighter adapter. Plug one end into the DC 12V jack on the left side of

the main unit, then plug the other end into the cigarette lighter socket.

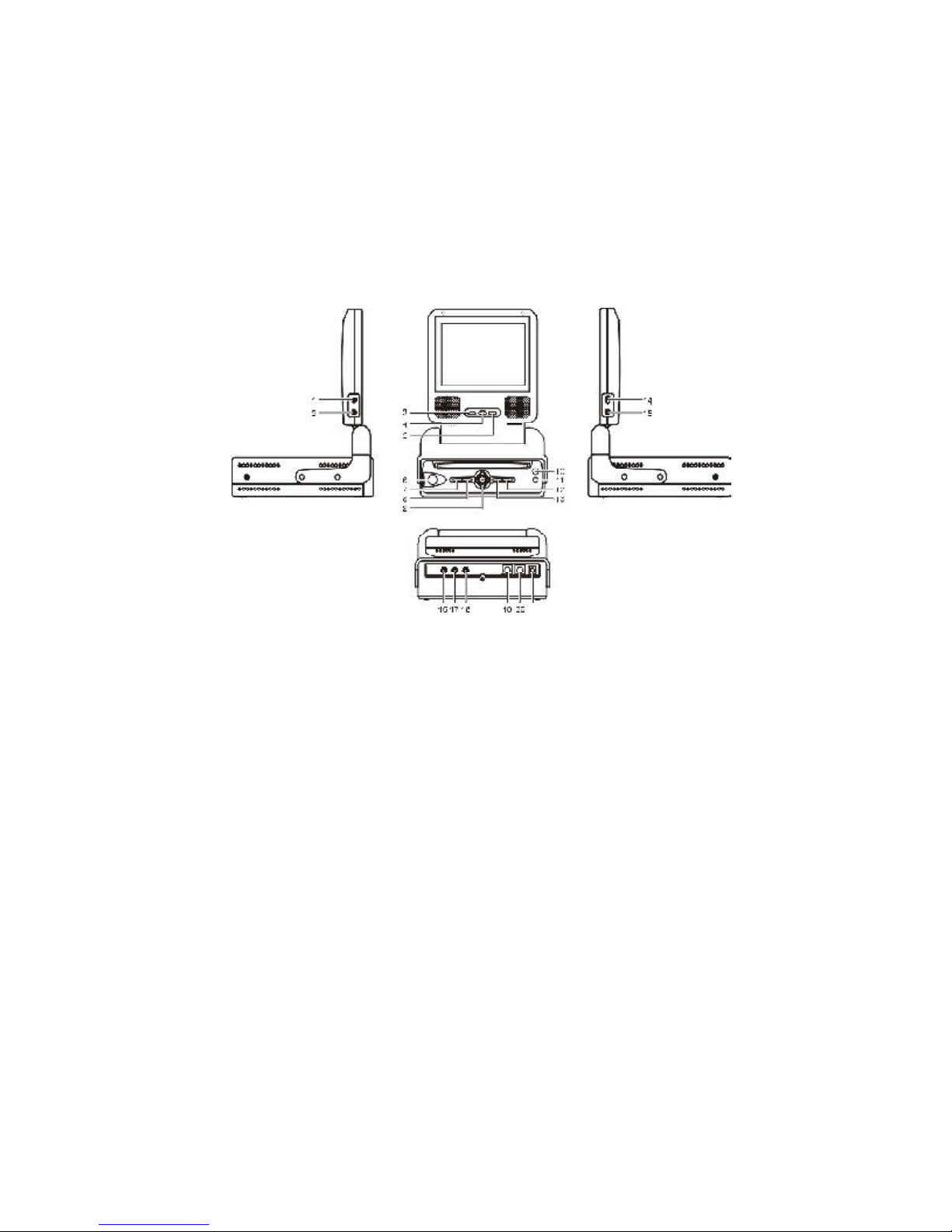

F. Controls, Indicators, and Connectors MAIN Unit

(Refer to Figure 5)

Figure 5.

1) Headphone Jack 1

2) Headphone Jack 2

3) VolumeUp / Down

Thumbwheel

4) Picture Up/Down Button

5) Brightness Thumbwheel

6) Power Button

7) Menu Button

8) Previous Button

9) PLAY/UP/DOWN/LEFT/

RIGHT Button

10) Eject Button

11) Remote Control Sensor

12) Stop Button

13) Next Button

14) DVD/AUX Switch

15) AV Input Jack

16) Video Output Jack

17) DVD Audio L Output Jack

18) DVD Audio R Output Jack

19) Monitor Port 1

20) Monitor Port 2

21) DC12V Input Jack

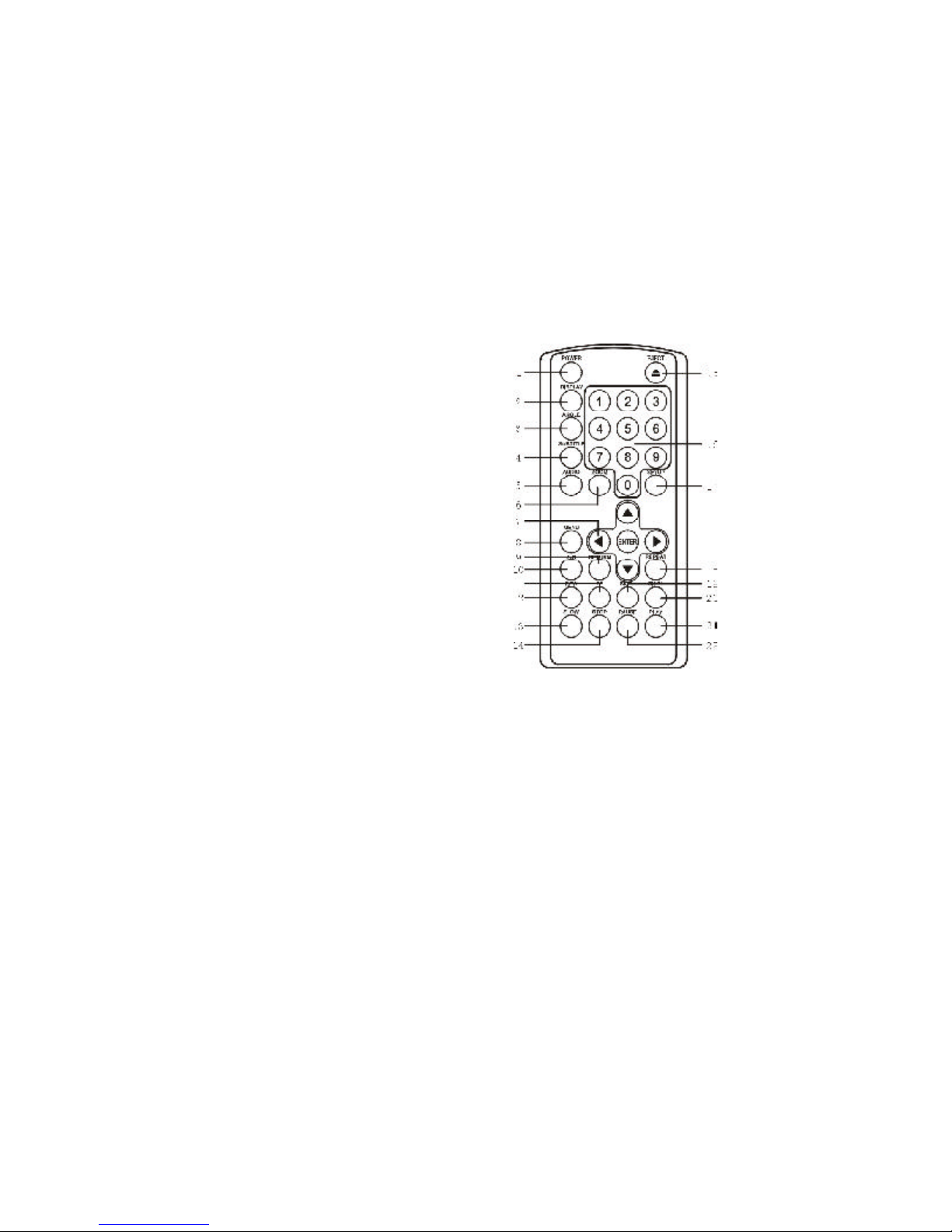

G. Remote Control

(Refer to Figure 7)

1) Power Button

2) Display Button

3) Angle Button

4) Subtitle Button

5) Audio Button

6) Zoom Button

7) Up/Down/Left/Right /

Enter Buttons

8) Menu Button

9) Return Button

10) A-B Button

11) Forward Scan Button

12) Reverse Scan Button

13) Slow Button

14) Stop Button

15) Eject Button

16) Number Buttons

17) Setup Button

18) Repeat Button

19) Skip- Button

20) Skip+ Button

21) Play Button

22) Pause Button

Figure 6.
