Audiovox VBP620 Manuale utente

VBP620

PORTABLE6.2"LCD MONITORAND DVDPLAYER

INABAG

Notice:

This Productincorporates copyrightprotection technologythat is pro-

tectedby methodclaims of certain U.S. Patents andotherintellectual

property rights ownedby Macrovision Corporationandother rights own-

ers. Use ofthiscopyright protectiontechnologymust be authorizedby

Macrovision Corporation,and isintendedforhomeand otherlimitedview-

inguses onlyunless otherwise authorized byMacrovision Corporation.

Reverse engineeringor disassemblyis prohibited.

An LCD panel and/or videomonitor maybe installed in a motor vehicle

and visibleto thedriver ifthe LCD panelor video monitor isused for

vehicleinformation,system control,rearor sideobservation or navigation.

Ifthe LCD panelor videomonitor is used for television reception, video

or DVD play, theLCD panel orvideo monitor must be installed so that

these featureswillonlyfunctionwhenthevehicle isin park!orwhen the

vehicle"s parking brake isapplied.

An LCD panelorvideo monitorusedfortelevision reception,video or

DVD playthat operates whenthe vehicle is in gear or when theparking

brakeisnot appliedmust beinstalledto the rear ofthe driver"sseat

where it will not be visible,directlyor indirectly, to the operatorofthe

motor vehicle.

A.Introduction

Thankyou forselecting theVBP620 portableDVD playerin a bag.

The main features include a 6.2" Screen (16:9 Aspect Ratio) Liquid

CrystalDisplay (LCD) monitor andaDVD player.The unit applies

the lateststate ofthe art electronicsand is designed foruse in hotels,

offices home or vehicle. The unit isconstructed toprovide yearsof

reliable, trouble-free service, andis compact so that youcan take it

with you anywhereand is designedforquick andeasyinstallation.

Please read the entireinstruction manual supplied with thisproduct

prior to operation. The documentation will assist you in installingthe

systemproperly toobtain the bestequipmentperformance.All manu-

als should bestored for lateruse.

B. Cautions and Warnings

1. Placement

Topreventfire orelectric shock, donotexpose thisappliance to

rain or moisture. Do notplace the set on an unstable cart, stand,

tripod,bracketortable topreventitfromfalling. Keep the unitaway

fromstrongmagnets,heatsources,directsunlight,excessivedust.

If theunitisbrought directly from a coldtoa warm location,mois-

ture maycondenseinsidetheunit. Whenyou moveitfrom acold

toa warmlocation,wait foraboutonehour before operatingthe

unit, orremovethe disc andleave the unitturned onuntilthe mois-

ture evaporates.

2. Installation

Ensure thattheVBP620 is installedinaccordancewiththe in-

structions andillustrations provided inthis manual.

3. Object and Liquid

Do not pushobjects ofany kind into theunit through openings;do

notspill orspray liquid ofany kindonorinthesystem(this may

result in a fire or electric shock). Do not place anythingheavy on

the unit. Toensure proper ventilation and proper operation, never

coverorblocktheslotsand openingswithaclothor othermaterial.

4.Disassembly

Do not attempt to disassemblethe cabinet. Thereis a riskof elec-

tricshock and/orexposure toLaserRadiation.Contactqualified

service personnel ifyour system is in need of repair.

5.Cleaning Unit

When cleaning, makesurethe systemis unplugged fromthepower

source.Do not useliquid cleanersor aerosol cleaners.Use a

clothlightlydampenedwith water forcleaning the exteriorof the

systemonly.

6. Disc

Do not use irregularlyshaped discs such asheart orstar-shaped

discs as theymay cause the unittomalfunction.Donotstickpaper,

tapeor glue on the disc. Do not expose thedisc to direct sunlight

or heat sources such as hot air ducts. Do not touch the surface of

disc.Handlethe discbyits edge. Cleanthediscby wiping thedisc

from thecenter outwith acleaning cloth. Removethe disc from

theunit andstoreitinitscaseafterplaying.Someplaybackopera-

tions of discs may be intentionallyfixedbysoftwareproducers.

Since this unit plays discs accordingto the disc contents the soft-

wareproducersdesigned,some playbackfeaturesmay notbe

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1x 6.2""LCD Monitor & DVDPlayer Combination

2. 1x AC to DCAdapter

3. 1xRemote Control w/Battery(CR2025)

4. 1 x Instruction Manual

5. 1 x Power Adapter w/Built-In FMModulator

6. 1x MountingBag w/Straps

7. 1 x Carrying bag

8. 1 xRechargable BatteryPack(PartNumber RB05)

9.1xAudio/Video InputCable

10.1x Audio/ VideoOutputCable

OPTIONAL:

Wireless IR headphones(Part Number IRHSCS)

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plugone end ofthe AC to DC adapter into the DC 9V jackon the

rightsideofthe main unit, then plugthe otherend intothe120V AC

powerreceptacle.

2. Powering the systemin a car

Plugone endofthe DCPower adapter into the DC 9V jackon

theunit, then plugtheother end intothe cigarette lighter socket.

Figure1

3.Powering the system with rechargeable Battery

Please refer to K. *Rechargeable BatteryInstallation andUse

(Page 34 and 36).

E. Installation Prior to installation

Make sure that theunitisplacedinto the mountingbag with theclear

plasticcovering aroundDVDdoor, Load adisc into the DVD

compartment andthen fastenthe Velcro strap acrossthe top portion

ofthe unit. If youareinstallingthe bagontothe seatbackyou will need

to attachthesuppliedSeatStandofftothebackofthemounting bag

with theVelcro bands to obtain theproper viewingangle asshownin

Figure.2

1.Installing the System onto the seat backin a car

(Refer to Figure 2)

Figure2

1).Take oneof thesuppliedstraps from the carrier bag. Connect

thelatchtoone oftheuppermetal rings on the mountingbag.

Connectthe S!hookto theother upper metalringandplacethe

loopoverthe headrest. Adjust thestrapuntil thebag isfirmly

secured.

2).Take anotherstrapfrom thecarrierbag, andconnectthelatchto

the lower metalring on the left side of the bag. Attach the S!

hook to the same ring afterlooping thestrap aroundtheseat rail.

Repeat thisprocessfor the right side.Insome vehicles, it may

be necessary to attach the S!connector to the rail directly,as it

may not be longenough to reach back to the ring.

3).Adjust the straps tightlyso that the bagis secured.

Seat Standoff

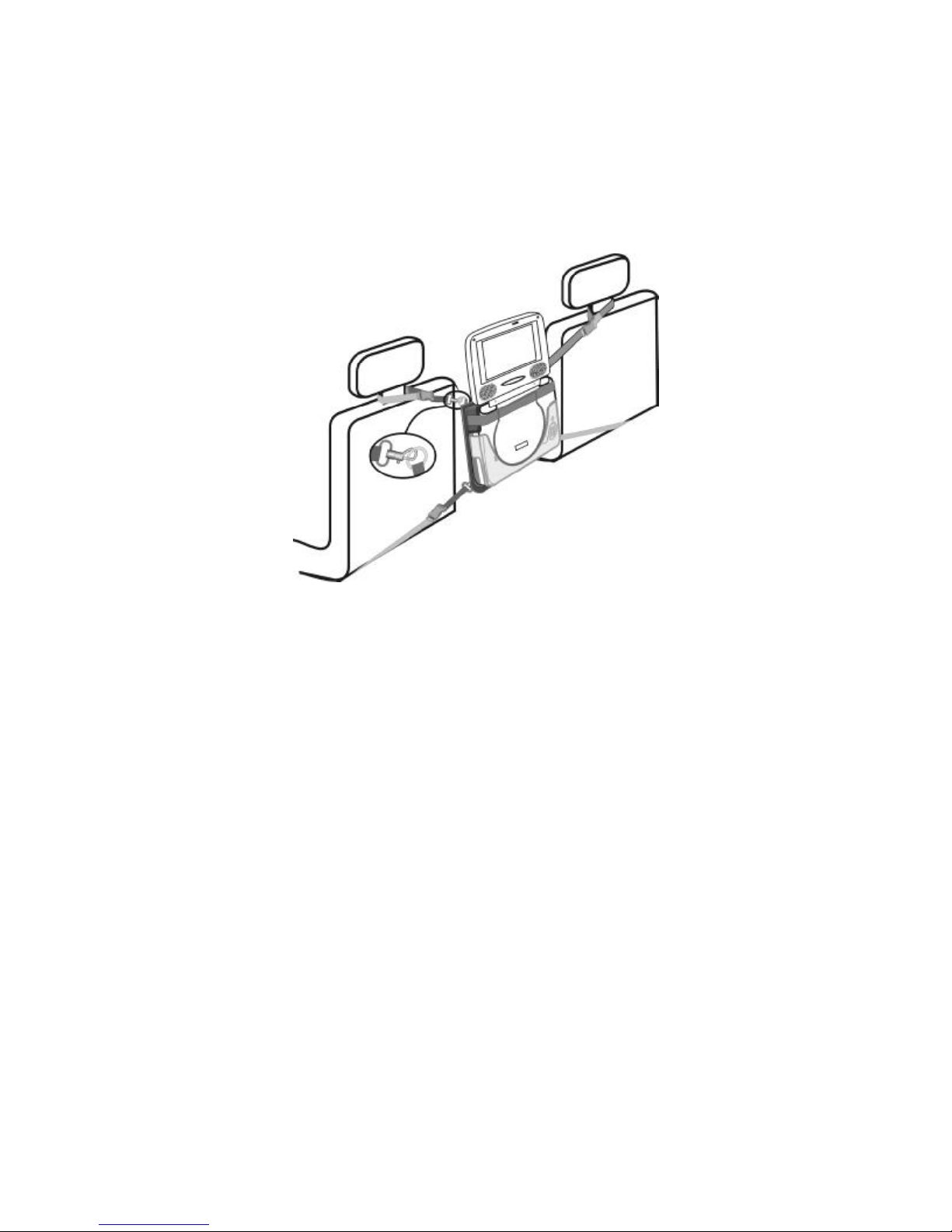

2. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure3

1). Takeone strap and connectthe latch tothe uppermetal ringon

the leftside of the bag. Attach the S!hook tothe samering

after looping thestrap aroundthe headrest of thedriver"sseat.

Repeat thisprocess for the right side(Passenger Seat).

2).Take anotherstrapandconnectthe latch to lower metal ring on

the leftside of the bag. Attach the S!hook tothe samering

after loopingthe strap around thedriver"sseat rail. Repeat this

processfor therightside. Insome vehicles,it maybeneces-

sary to attachthe S!connector directly totherail, as itmaynot

be long enoughto reach backto thering.

3).Adjust the straps tightlyso that the bagis secured.

F.Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 4)

Figure4

1) Screen Mode Button

2)Pause Button

3) Play Button

4) Open Button

5) Previous Button

6) Stop Button

7) NextButton

8) IR Transmitter

9)Remote Control Sensor

10) PowerLED

11) PowerOn/OffSwitch

12)Brightness control

13) Volume control

14)HeadphoneJack 1

15)HeadphoneJack 2

16) IR On/Off Switch

17)DC9V Input Jack

18) DVD Video Output Jack

19) DVDL+R Audio Output

Jack

20) VideoInput Jack

21)AudioL+R InputJack

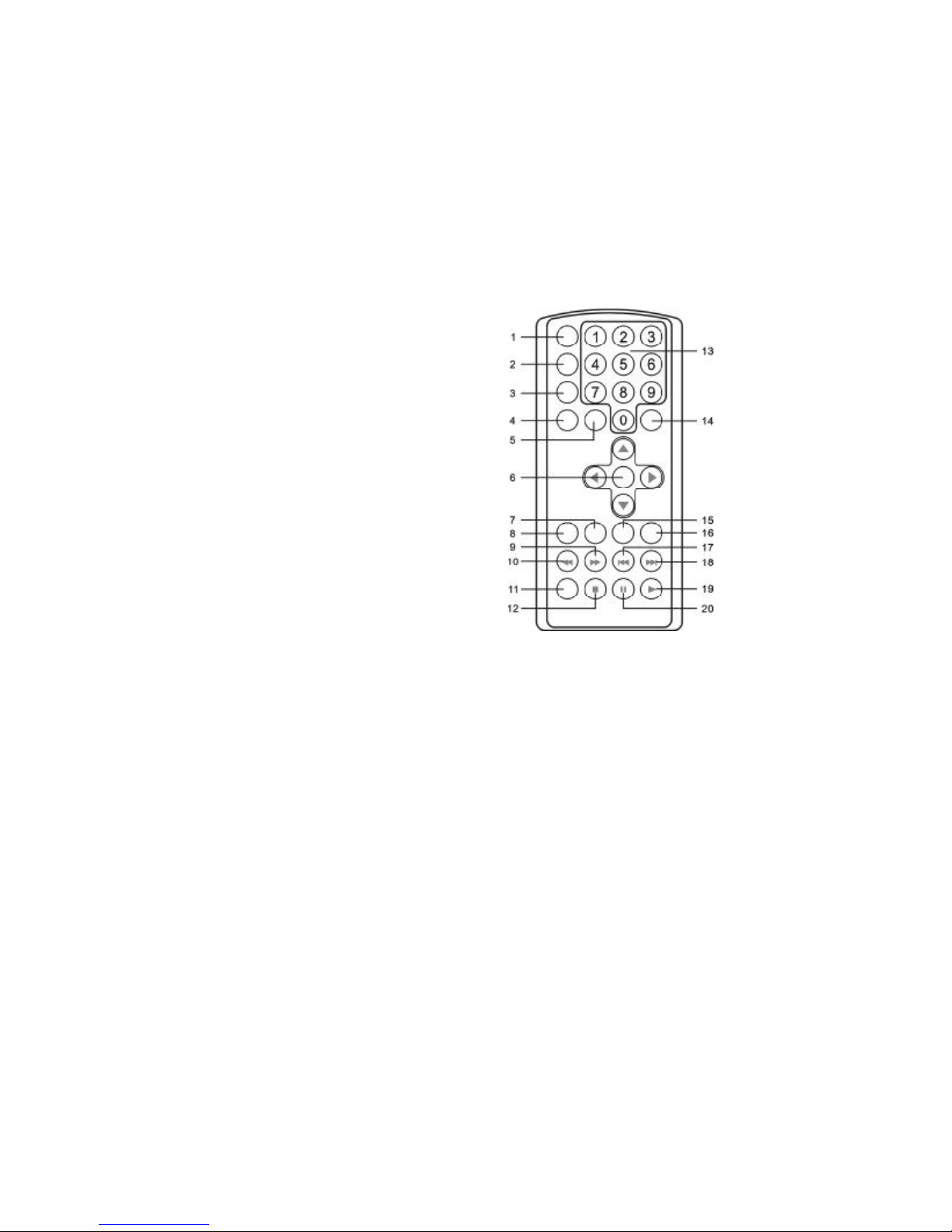

2. Remote ControlView (Refer to Figure5)

1) DISPLAYButton

2) ANGLE Button

3) SUBTITLE Button

4) AUDIO Button

5) ZOOM Button

6) UP/DOWN/LEFT/RIGHT/

ENTER Button

7) RETURN Button

8) A-B Button

9)FORWARD Button

10) REVERSE Button

11)SLOWButton

12) STOP Button

13)NUMERIC KEYPAD

14) SETUP Button

15)MENUButton

16) REPEATButton

17) PREVIOUS Button

18)NEXT Button

19) PLAY ButtonFigure5

20) PAUSE Button

G. Loading and Playing a Disc

a.Afterconnecting powerto theunit, slide thePOWERON/OFF on

theright side to ON, the DVD player"s POWER indicator lights.

b.Openthedisctray by pressingOPEN atthe lowerrightof thedisc

tray,andplace adisc intothetraywith thedisc"slabel facingup.

c. Press at the right side of thedoor untilit clicks shut. Theunit will

load the discandstart playing.

d.RotateBRIGHTand VOLUMEtoadjustthe LCD"sbrightness and

the DVDplayer"s volume.

e. Tostop playing a disc, press STOP.

f.ToturnofftheDVD player, slidePOWER ON/OFF to OFF. The

DVD player"s POWER indicator turns off.

g.Toremove the disc, openthe disctray,just useyour finger to

access the rightinnercorner of thedisctray and lift upthedisc

and remove it from the disc tray. Pleaserefer to Figure 6.

Figure6
