A.Introduction

Thank youfor choosing the D2017portableDVD player.The main

featuresinclude a10.2"Wide Screen (16:9AspectRatio)Liquid Crys-

talDisplay (LCD)monitor andaDVD player.The unit appliesthe

latest state ofthe art electronics and isdesigned foruse in vehicles,

hotels,officesoryourhome.Theunitis constructed toprovide years

of reliable,trouble-free service, andiscompact sothatyou can take

it with you anywhere and is designed for quickand easyinstallation.

Please read the entireinstruction manual supplied with thisproduct

prior tousing.The documentation willassist you inusingthesystem

properly to obtainthebest equipment performance.Please save this

manual for later use.

B. Cautions and Warnings

1. Placement

Toprevent fireorelectric shock,donotexpose this appliance to

rainor moisture. Keep the unitawayfrom strong magnets, heat

sources,directsunlight, excessive dust.If the unit is brought di-

rectly from acold toa warmlocation, moisturemay condense in-

side the unit. When the unit is moved from a cold to a warm loca-

tion, wait about one hour before operatingthe unit, or removethe

disc andleave the unit turned on until the moisture evaporates.

2. Installation

Ensure thatthe D2017 portable DVDplayer is used in accordance

with the instructions and illustrations provided in this manual.

3. Objects and Liquids

Do not push objects ofany kindinto the unit throughopenings;

do not spill or sprayliquid ofanykind on or in the system (this

mayresult in a fire or electric shock). Do not place anything

heavy onthe unit. Toensure proper ventilation and proper

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

operation,never cover or blocktheslots and openings with acloth

or other material. It is hazardousto replacethebattery incorrectly.

Replacethebatteryonly with thesame or equivalenttype.In order

to protect the environment, please dispose the batteryproperly.

Do not use the unit in temperatures higher than 95 degrees Fahr-

enheit or 35 degrees Celsius.

4.Disassembly

Donot attempt to disassemblethe unit.Thereisa riskofelectric

shockand/orexposure to LaserRadiation. Contactqualifiedser-

vicepersonnel ifyour system needs repair.

5.Cleaning Unit

Whencleaning,makesurethesystem isunplugged fromthepower

source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth

lightly dampenedwith waterfor cleaningtheexterior ofthe system

only.

6. Discs

Do not use irregularlyshaped discs such asheart orstar-shaped

discs as theymay cause the unittomalfunction.Donotstickpaper,

tapeor glue on the disc. Do not expose thedisc to direct sunlight

or heat sources. Do not touchthe surface ofdisc. Handle thedisc

by itsedge. Cleanthedisc bywipingthedisc from the center out

with acleaning cloth. Removethe disc from the unit and store it in

its case after playing. Some playbackoperationsofdiscs maybe

intentionally fixed bysoftwareproducers. Since this unitplays discs

according to the disc contentsthesoftwareproducers designed,

some playbackfeatures maynot be available. Also refer to the in-

structionssuppliedwiththediscs.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7.RegionalCoding

Both the DVD player and DVD discs are coded by region. These

regional codes must match inorder for thedisc toplay.Ifthe

codesdon’t match, the disc won’t play. This unit’s code is region

1. DVDs discs with other regional codes cannot be played in this

unit

C. Contents

1. 1x 10.2’’ LCDMonitor & DVD Player Combo

2. 1 xRemote Control with battery(CR2025)

3.1 x Audio/VideoAdapterCable

4. 1 xAC to DCAdapter

5. 1 xDC Power Adapter

6. 1x Instruction Manual

7. 1 xRechargeable Battery

D. Powering and Installation

1. Powering the system indoors (Refer to Figure 1)

Plug one end of theAC to DC adapterinto the DCinputjackon the

left side ofthe mainunit, then plugthe otherend intothe 110~240V

AC power receptacle.

2. Powering the systemin a car

Plug one end ofthe DC Power adapter into the DC input jackon

theunit, then plug the other end intothe vehiclepower outlet.

Figure1

Note: Unplugthe D2017when not in use.

DC 9V

ONOFF

OUT IN

A/V

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

E. Controls, Indicators and Connectors

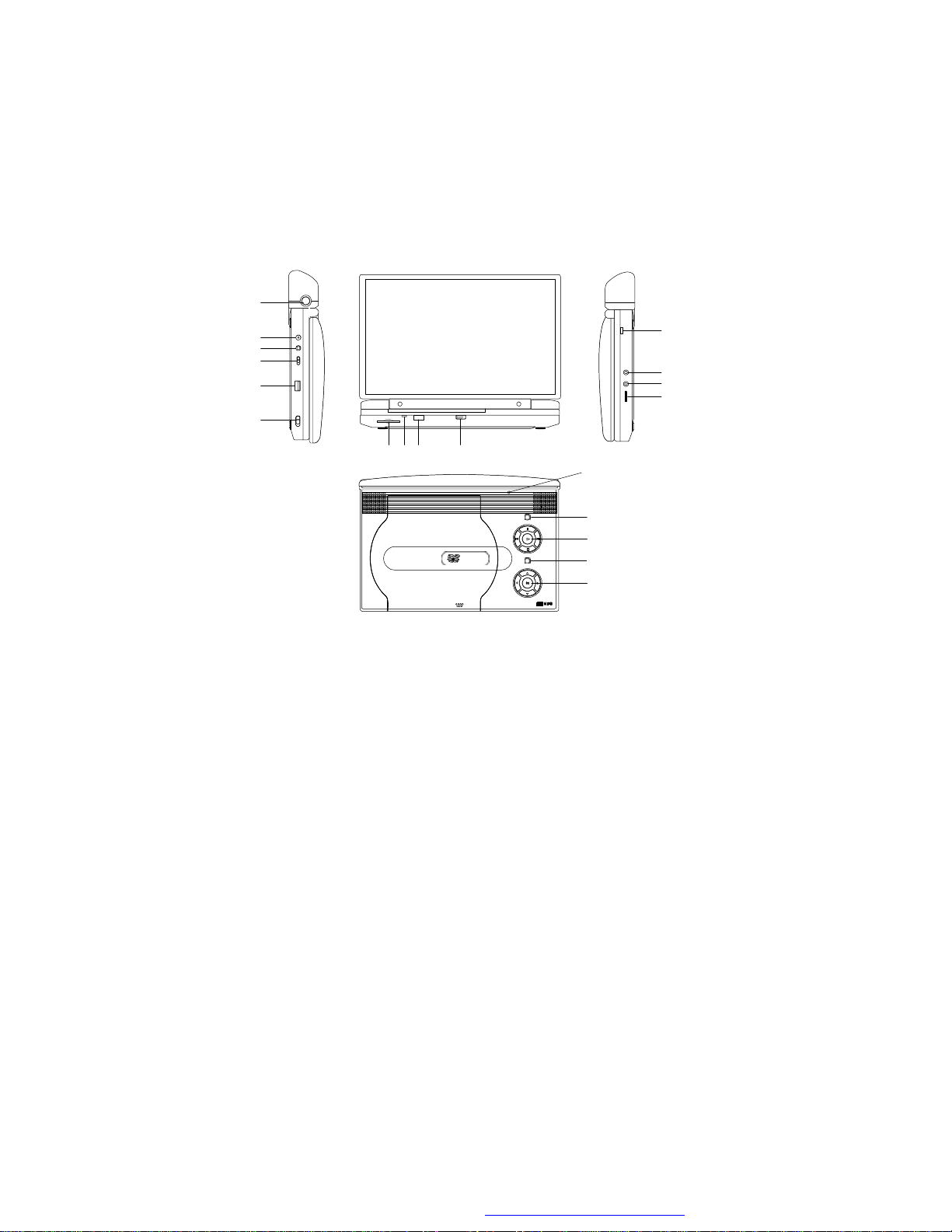

1. UnitView (Refer to Figure2)

Figure 2

* Connectingto headphone jacknumber 1 will disable the

internal speakers

78910

1) Release Button ofBattery

2) DC 9V InputJack

3)AVJack

4)AVIn/Out SW

5) USB Port

6)Power On/Ooff SW

7) SD/MMC/MS Slot

8)Power LED

9)Remote Control Sensor

10) Cover Open Switch

11) Charge Indicator

12)Headphone Jack 1*

13)HeadphoneJack 2

14)Volume Control

15) LCD Panel shut off

16) Wide Button

17) Previous/Next/Pause/Stop/Play

18)MenuButton

19) Up/Down/Left/Right/OK Button

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2.Remote Control (Refer to Figure3)

1)DVD/SD-USB Button

2) DisplayButton

3) Skip-Button

4) Menu Button

5) LeftButton

6)AngleButton

7) Stop Button

8) SetupButton

9)NumericButtons

10) Brightness Decrease Button

11)AudioButton

12) Subtitle Button

13) Up Button

14) Skip+ Button

15) Enter Button

16) Right Button

17) DownButton

18) Play/Pause Button

19) ZoomButton

20)A-B Repeat Button

21) Brightness Increase Button

22) 1-All Repeat Button

F. Loading and Playing a Disc

a.Afterconnectingpowerto the unit, settheDVDplayertoON using

the power switch. The power indicator will light.

b.Openthedisctrayby sliding theOPEN switch inthe directionof

the arrow. Place a disc in the traywith label sidefacingup.

c.Closethe trayby pressingthearea marked PRESS”.Theunitwill

load the discand start playing.

d.Rotate VOLUME controltoadjusttheDVD player’svolume.and

usetheremote controlBRIGHTbuttonto adjust theLCD’sbright-

ness.

e. To stopplaying adisc,pressSTOP.

Figure 3

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

G. Basic Operation

POWER

OPEN

PLAY/PAUSE

STOP

FORWARD

REVERSE

LEFT/RIGHT/UP/DOWN

ENTER

NUMBERS

REPEAT

A-B

DISPLAY

SUBTITLE

AUDIO

ZOOM

SETUP

Turnthe uniton/off

Remove/load the disc

Start Play/Execute item or setting

Still Picture

(1 time) Stop and start at thepresent play-

back point

(2 times) Stop playbackand start from be-

ginning of disc

Goto thenextchapter, track or scene

during play back

Gobacktothe previouschapter, track

or scene duringplayback

Scan forward at 2, 4, 8,16 or

32 times speed

Scan backward at 2, 4, 8, 16or

32 times speed

Used forMenu Navigation

Execute item or confirm setting

Select item or setting

Display the mainmenu ofthe disc

Repeat playingtitle, chapter, or track

Repeat a specific portionfrom

point A to pointBof thedisc

Displayinformation (title, chapter,

track, time, etc.).

Selectthesubtitlelanguageorturn iton/off

Selecttheaudio language

Enlargean imageto 2, 3, or 4 times the

original size.

Displaythe setup menuto select and

set itemsand exit the setup menu.

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

H.Menu

A DVD is divided into sections called titlesandchapters. When you

playaDVD’sroot menu of thediscwill appear on the screen of your

TV orMonitor. Thecontentsof themenu varyfrom disc todisc.Press

MENU duringplaybackto display the menu. Some DVDs onlyallow

you to select disc playbackoptionsusingtheDVD root menu.

I. Display

1. PLAYINGTIME AND REMAININGTIME

a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-

rent Title Number (1), the total Number ofTitles (2), the current

ChapterNumber (3), thetotal Numberof Chapters (4), andthe

elapsed playingtime for the title (5).

Title, Chapter Number, and TimeScreenDisplay

b.Press ‘DISPLAY’repeatedlyto choosethe optionsbelowin

sequence.

TitleElapsed: The elapsedtime ofthe title

Title Remain:The remaining time ofthe title

Chapter Elapsed: The elapsed time ofthe chapter

Chapter Remain: The remainingtime ofthe chapter

Display Off: TheDVD’stimeinformation isremoved fromthedisplay.

Title Elapsed

TitleRemain

Chapter Elapsed

Chapter Remain

DisplayOff

PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Audiovox Lettore DVD portatile

Audiovox

Audiovox FLO TV DFL710 Manuale utente

Audiovox

Audiovox VBP50 Manuale utente

Audiovox

Audiovox D705PK Manuale utente

Audiovox

Audiovox VBP500 Manuale utente

Audiovox

Audiovox VBP70 Manuale utente

Audiovox

Audiovox D1809 - DVD Player - 8 Manuale utente

Audiovox

Audiovox DS9341 Manuale utente

Audiovox

Audiovox D1750T Manuale utente

Audiovox

Audiovox D1500A Manuale utente

Audiovox

Audiovox D1718 - DVD Player - 7 Manuale utente

Audiovox

Audiovox 1287082 Manuale utente

Audiovox

Audiovox D2017PK Manuale utente

Audiovox

Audiovox D1710 Manuale utente

Audiovox

Audiovox D9121ESK Manuale utente

Audiovox

Audiovox Eddie Bauer PE702 Manuale utente

Audiovox

Audiovox D1998PK - 9" Slim Line Portable DVD Player Manuale utente

Audiovox

Audiovox D1530 Manuale utente

Audiovox

Audiovox D1788 - DVD Player - 7 Manuale utente

Audiovox

Audiovox D1708 - DVD Player - 7 Manuale utente

Audiovox

Audiovox D1888PK Manuale utente

Audiovox

Audiovox D1708PK Manuale utente

Audiovox

Audiovox D1830 Manuale utente

Audiovox

Audiovox D1809PK - DVD Player - 8 Manuale utente

Audiovox

Audiovox DS9106 Manuale utente

Manuali Lettore DVD portatile popolari di altre marche

Philips

Philips PET718/77 Manuale utente

Impecca

Impecca DVP775 Manuale utente

NextBase

NextBase MULTI-VISION SET PRO Manuale utente

Impecca

Impecca DVP-1017 Manuale utente

Akura

Akura APDVD6008 Manuale utente

TV Star

TV Star TD3 LCD COMBO Manuale utente

LENCO

LENCO MES-202 Manuale utente

Philips

Philips PET940/98 Manuale utente

Philips

Philips PET702P Manuale utente

Philips

Philips PD7016 Manuale utente

Logik

Logik L7SPDVD11 Manuale utente

LG DP650 Manuale utente

Mustek

Mustek MVP850B Manuale utente

Insignia

Insignia NS-MDDVD10 Manuale utente

Philips

Philips PD9000/12 Manuale utente

LENCO

LENCO DVP-1027 Manuale utente

Philips

Philips PD7010/05 Manuale utente

Technika

Technika PDVDTWINSS10 Guida utente
